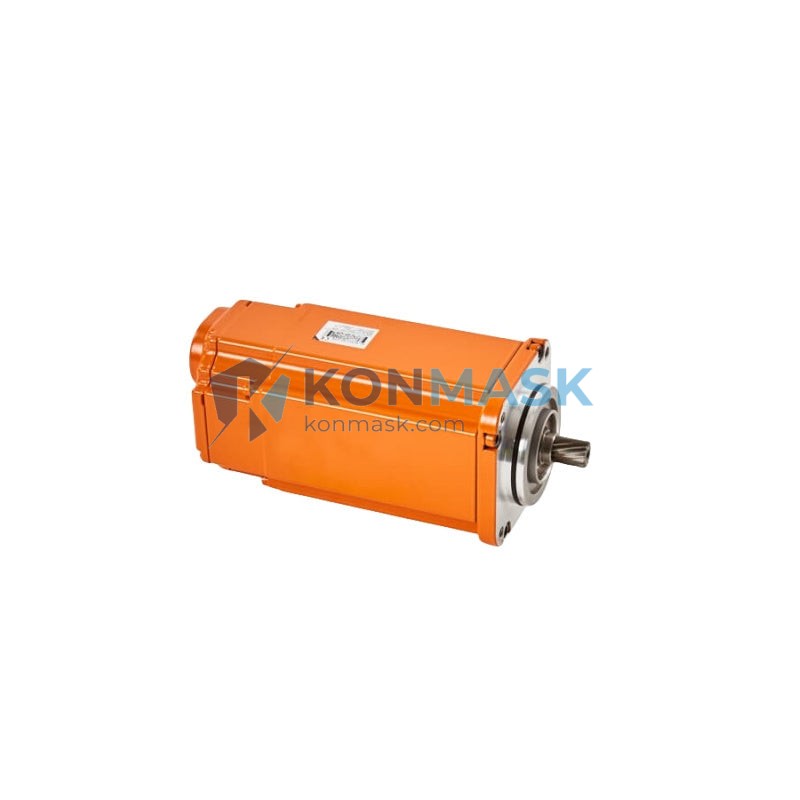

ABB 3HAC033225-001 – Rotary AC Motor with Pinion | IRB6600 / IRB6650 / IRB6640 Series
Engineering Background
The ABB IRB6600 family represents ABB Robotics’ flagship heavy-payload articulated robot platform, engineered for demanding automotive, foundry, and heavy-industry applications. The axis drive motors are safety-critical components: premature failure or incorrect replacement leads to axis positioning errors, reduced repeatability, and unplanned downtime. Part numbers 3HAC033225-001, 3HAC033209-003, and 3HAC033207-001 are OEM-designated rotary AC servo motors with integrated pinion gears, designed as direct drop-in replacements for specific axis assemblies on the IRB6600, IRB6650, and IRB6640 platforms.
Product Positioning
Konmask.com supplies this motor assembly to maintenance engineers, robot integrators, and MRO procurement teams who require verified OEM-equivalent parts with traceable sourcing. Our inventory is sourced from authorized distribution channels and undergoes incoming inspection before dispatch.
Complete Technical Specifications
| Primary Part Number | 3HAC033225-001 |
| Cross-Reference Part Numbers | 3HAC033209-003 | 3HAC033207-001 |
| Manufacturer | ABB Robotics (Sweden) |
| Compatible Robot Models | IRB6600, IRB6650, IRB6640 |
| Component Type | Rotary AC Servo Motor with Pinion |
| Motor Technology | Brushless AC Servo (3-phase) |
| Integrated Pinion | Yes – factory-assembled, pre-aligned |
| Encoder Type | Absolute multi-turn resolver (OEM spec) |
| Cooling Method | Natural convection (IP-rated enclosure) |
| Mounting Interface | Direct axis flange mount per ABB IRB6600 mechanical drawing |
| Country of Origin | Sweden |
| HS Code | 8501.52 (AC motors, multi-phase) |
| Unit Weight (approx.) | ~2 kg |
| Condition | New / Surplus New (specify at inquiry) |
Proven Application Environments
- Automotive Body-in-White: Spot welding and material handling lines using IRB6600/6650 with high-cycle axis demands
- Foundry & Die Casting: IRB6640 deployments in high-temperature, high-vibration environments requiring robust motor sealing
- Heavy Palletizing: End-of-line palletizing cells where axis motor torque and repeatability are critical
- Press Tending: Stamping press automation requiring precise axis positioning under variable load
- MRO / Preventive Maintenance: Scheduled motor replacement programs to avoid unplanned downtime on production-critical robots
Engineering Advantages
- OEM Part Number Compliance: 3HAC033225-001 is the ABB-designated replacement part — no adaptation or re-parameterization required in IRC5 / S4C+ controllers
- Integrated Pinion Assembly: Factory-assembled pinion eliminates field alignment errors common with aftermarket motor kits
- Cross-Platform Coverage: Single SKU covers IRB6600, IRB6650, and IRB6640 axis configurations (verify axis assignment with ABB service documentation)
- Resolver-Based Absolute Encoding: Maintains axis position memory through power cycles — no homing routine required after replacement
- Thermal & Vibration Rated: Designed to ABB’s foundry-duty specifications for sustained operation in harsh environments
System Architecture & Signal Flow
In the IRB6600 drive architecture, each axis motor interfaces with the ABB Drive Unit (DSQC) via a dedicated motor cable (power) and resolver cable (feedback). The 3HAC033225-001 motor connects to the axis gearbox through the integrated pinion, transmitting torque to the joint. The IRC5 controller’s axis computer monitors resolver feedback in real time, executing closed-loop position and velocity control. During replacement, the IRC5 SMB (Serial Measurement Board) must be updated with the new resolver offset value using ABB RobotStudio or the FlexPendant calibration routine.
Sourcing & Quality Verification
- All units sourced from authorized ABB distribution or verified surplus channels
- Incoming inspection includes visual check, label verification (OEM part number, date code, country of origin), and packaging integrity assessment
- Certificate of Conformance (CoC) available upon request for regulated procurement environments
- Counterfeit-risk mitigation: we do not source from unverified secondary markets; all stock is traceable to original distribution
- Long-term storage units are inspected for bearing condition and connector integrity prior to dispatch
Procurement Process
- Confirm Part Number: Cross-reference 3HAC033225-001, 3HAC033209-003, or 3HAC033207-001 against your ABB service BOM or robot nameplate
- Specify Condition: Indicate whether New OEM or Surplus New is acceptable for your application
- Request Quote: Contact support@konmask.com with quantity, required delivery date, and destination country for freight and duty estimation
- Order Confirmation: Purchase order accepted via email; proforma invoice issued within 1 business day
- Shipping: DHL Express / FedEx International Priority standard; EXW Xiamen available for freight-forwarder arrangements
- Documentation: Commercial invoice, packing list, CoC, and HS code declaration included with every shipment
Technical FAQ
Q: Is 3HAC033225-001 compatible with both IRC5 and S4C+ controllers?
A: Yes. The motor hardware is controller-agnostic; compatibility is determined by the robot mechanical platform (IRB6600/6650/6640), not the controller generation. Verify axis assignment in the ABB spare parts catalog.
Q: What is the difference between 3HAC033225-001, 3HAC033209-003, and 3HAC033207-001?
A: These part numbers are ABB’s cross-reference designations for the same motor assembly across different IRB6600-family variants and revision levels. Always confirm the correct part number using the ABB Spare Parts Portal or your robot’s service documentation before ordering.
Q: Do I need to perform calibration after replacing this motor?
A: Yes. After mechanical installation, an axis calibration (fine calibration or revolution counter update) is required using the ABB FlexPendant. Resolver offset data must be updated in the SMB. Refer to ABB Product Manual 3HAC026876-001 for the full procedure.
Q: Can Konmask provide installation support?
A: We provide technical documentation and pre-sales engineering consultation. On-site installation support is not included but can be arranged through ABB’s local service network.
Q: What is the lead time?
A: In-stock units ship within 1–3 business days. Out-of-stock items are subject to sourcing lead time; contact us for current availability.
