TRICONEX 3805E Analog Output Module TMR 4-20mA | Replacement, Equivalent & Selection Guide

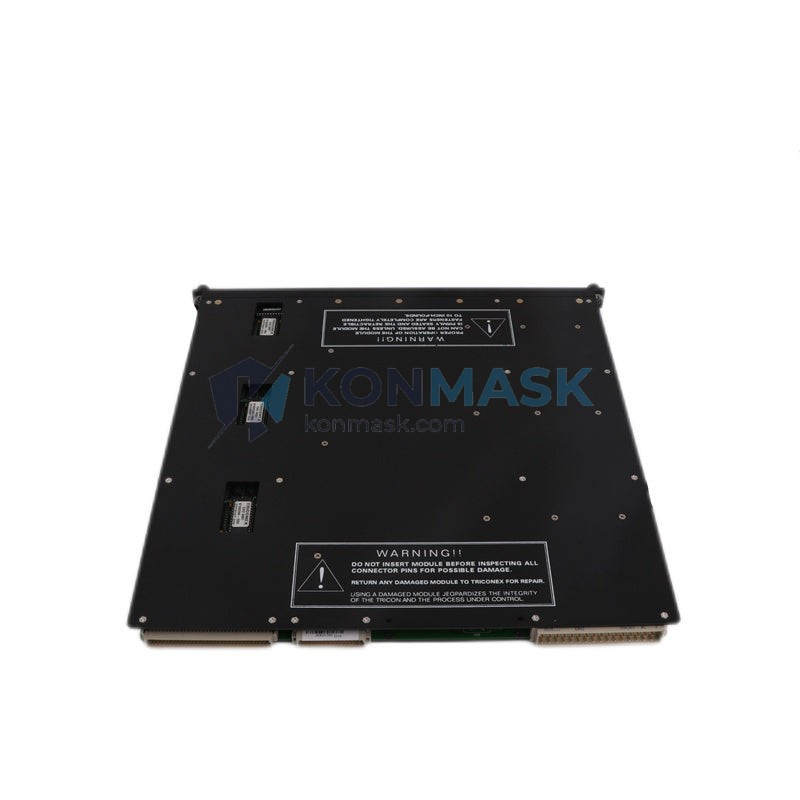

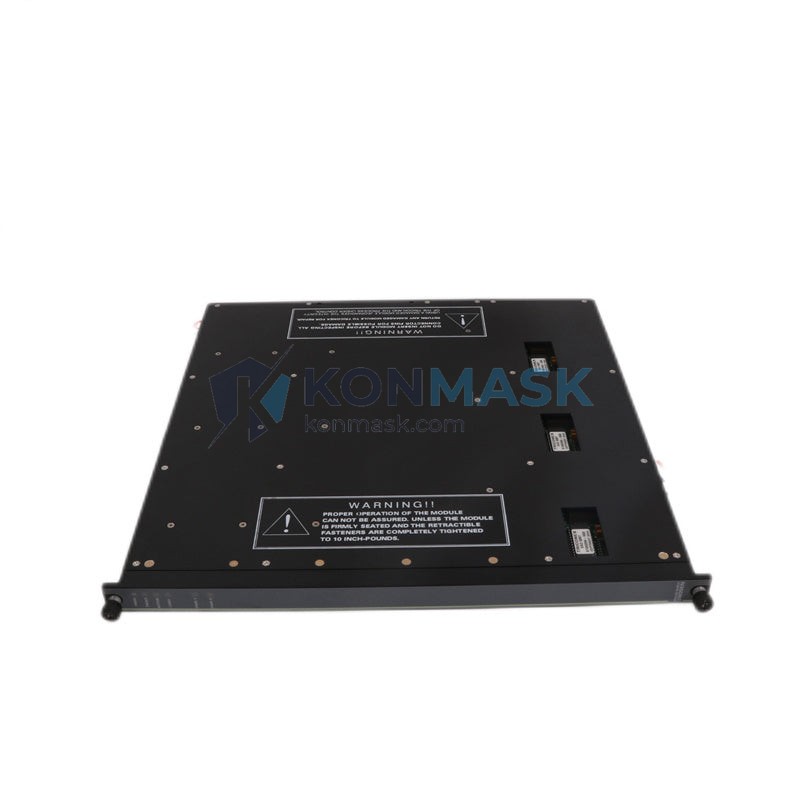

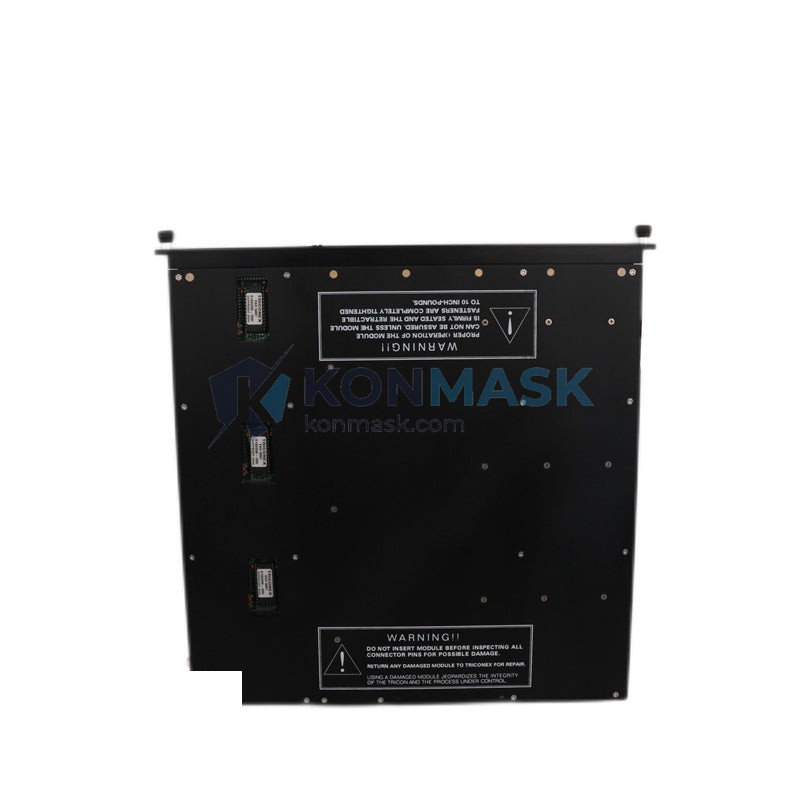

The TRICONEX 3805E is an 8-point Triple Modular Redundant (TMR) analog output module designed for the Triconex Safety Instrumented System (SIS) platform. It delivers 4–20 mA DC current-loop signals to field actuators with current-path isolation (C-PLED), making it a critical component in high-availability process safety applications across oil & gas, petrochemical, and power generation industries.
Selection Background
Buyers searching for a TRICONEX 3805E replacement or 3805E equivalent typically face one of three scenarios: an end-of-life notification from Schneider Electric, an urgent spare-parts shortage during a planned turnaround, or a cross-brand migration project. Understanding which substitute or equivalent model is truly compatible requires careful evaluation of TMR architecture, output channel count, signal range, and SIL certification level. This guide consolidates that information to help you make a confident sourcing decision — and avoid costly mismatches.
Technical Specifications
| Parameter | Value | Replacement Impact |
|---|---|---|
| Model | 3805E | — |
| Brand / Platform | TRICONEX Tricon | ⚠ Platform-locked |
| Module Type | Analog Output | Must match |
| Architecture | TMR (Triple Modular Redundant) | ⚠ Critical for SIL 3 |
| Output Channels | 8 Points | Must match or exceed |
| Signal Range | 4–20 mA DC | Must match |
| Isolation | C-PLED (Current-Path LED Isolated) | ⚠ Affects loop integrity |
| SIL Rating | SIL 3 capable | Must verify for SIS use |
| Backplane Interface | Tricon Main Chassis | ⚠ Chassis-specific |
| Power Supply | Chassis-supplied | — |
| Weight | 2,750 g | — |
| Operating Temp | 0°C to 60°C | Verify for harsh environments |
Compatible Replacement & Equivalent Models
1. Direct Drop-in Replacements (Same Platform)
- TRICONEX 3805H — Enhanced revision of the 3805E; same slot, same wiring, firmware upgrade may be required. Verify chassis firmware compatibility before swapping.
- TRICONEX 3805 (earlier revision) — Functionally equivalent in most Tricon v9/v10 systems; confirm revision compatibility with your system integrator.
2. Functional Equivalents (Same Platform, Different Form Factor)
- TRICONEX 3704E — 4-channel analog output TMR module; suitable when only partial channel count is needed and chassis slots are limited.
- TRICONEX 3806E — 8-channel analog output with extended diagnostics; drop-in candidate for newer Tricon chassis revisions.
3. Cross-Brand Alternatives (Migration Projects Only)
- Honeywell Safety Manager SC AO Module — Functional substitute for greenfield SIS projects; requires full system re-engineering and SIL re-validation.
- Emerson DeltaV SIS AO Card — Cross-brand equivalent for DeltaV-based safety systems; not a plug-in substitute — full migration project required.
- Yokogawa ProSafe-RS AO Module — Alternative for ProSafe platform migrations; SIL 3 certified, 4–20 mA output, requires new I/O mapping.
⚠ Note: Cross-brand alternatives are NOT plug-and-play replacements. They require full system re-engineering, re-validation, and SIL re-certification. Always consult a certified functional safety engineer before proceeding.
Why Choose the Original TRICONEX 3805E
- Certified TMR Precision: Factory-calibrated TMR voting logic ensures sub-1% output accuracy across all 8 channels simultaneously — no field calibration required after hot-swap.
- SIL 3 Certification: Fully certified to IEC 61508 SIL 3 as part of the Tricon system; third-party substitutes require independent re-validation which adds cost and schedule risk.
- Seamless Chassis Compatibility: Designed exclusively for Tricon main chassis backplane — no adapter, no firmware patch, no integration risk when sourced as OEM or verified refurbished.
- OEM Technical Support: Schneider Electric provides lifecycle support, firmware updates, and failure analysis for genuine 3805E modules — unavailable for third-party equivalents.
- Warranty & Traceability: Genuine or Konmask-verified units come with full documentation trail — test reports, serial number traceability, and warranty coverage.
- Reduced Downtime Risk: Hot-swap capability within Tricon TMR architecture means zero process interruption during module replacement — a key advantage over cross-brand migrations.
Typical Applications
- Oil & Gas — Wellhead Control: Driving ESD valve positioners and pressure control loops in SIL 3 wellhead safety systems.
- Petrochemical — Reactor Control: Analog output to control valve actuators in high-hazard reactor temperature and pressure loops.
- LNG Terminals: Modulating cryogenic valve actuators in liquefaction and regasification train safety systems.
- Power Generation — Turbine Control: Speed governor and fuel valve control in gas turbine safety shutdown systems.
- Offshore Platforms: Fire & gas suppression system actuator control in harsh marine environments.
- Chemical Plants — Batch Safety: Controlling dosing pump actuators in SIL-rated batch reactor safety interlocks.
System Compatibility
- Tricon Main Chassis (3000 Series) — Primary host chassis; 3805E occupies one I/O slot per TMR leg.
- TRICONEX 3008 / 3009 Main Processor Module — System controller; firmware v9.x and v10.x confirmed compatible.
- TRICONEX 3700A / 3721 Communication Module — Peer-to-peer and Modbus TCP/IP communication for DCS integration.
- TRICONEX 3481 / 3625 Power Supply Module — Redundant chassis power; verify load budget when adding 3805E modules.
- Field Termination Assembly (FTA) — Model 3805E-FTA — Dedicated marshalling panel for 3805E wiring; required for correct C-PLED loop wiring.
- TriStation 1131 Engineering Workstation — Configuration and diagnostic software; required for module commissioning and loop testing.
Selection Guide
Answer these three questions to confirm the 3805E is the right module for your application — or to identify the best equivalent:
- Is your existing chassis a Tricon 3000-series main chassis? If yes, the 3805E or its direct drop-in revisions (3805H) are your safest path. If no, contact Konmask to evaluate cross-platform options.
- Does your application require SIL 3 certification? If yes, only OEM or Konmask-verified genuine 3805E units with full documentation should be used. Functional equivalents from other brands require independent SIL re-validation.
- Do you need all 8 output channels, or would 4 channels suffice? If 4 channels are sufficient, the TRICONEX 3704E may offer a more cost-effective solution with the same TMR architecture.
Not sure? Contact Konmask with your chassis model, firmware version, and application SIL level — we’ll confirm compatibility within 24 hours.
Quality Assurance & Sourcing
Konmask sources TRICONEX 3805E modules through authorized distribution channels and verified secondary market suppliers with full chain-of-custody documentation.
4-Step Inspection Process:
- Visual Inspection: Board-level inspection for counterfeit markers, re-marking, and physical damage.
- Functional Test: All 8 output channels tested at 4 mA, 12 mA, and 20 mA against calibrated reference load.
- TMR Voting Verification: Leg-to-leg output consistency verified to confirm TMR integrity.
- Documentation Review: Serial number cross-referenced against manufacturer records where available.
Available Documentation: Test report, inspection certificate, packing list, commercial invoice, and Certificate of Conformance (CoC) upon request.
How to Order
- Submit Your Inquiry: Email support@konmask.com or call +0086 19859288691 with your required quantity, delivery timeline, and chassis/firmware details.
- Receive Quotation & Availability Confirmation: Konmask will respond within 24 hours with pricing, lead time, and available documentation package.
- Order Confirmation & Shipment: Upon PO confirmation, modules are inspected, packed, and shipped with full documentation. Express and freight options available worldwide.
Replacement & Compatibility FAQ
Q: Can the TRICONEX 3805H directly replace the 3805E without rewiring?
A: Yes, the 3805H is a direct drop-in replacement for the 3805E in most Tricon 3000-series chassis. The wiring and FTA remain unchanged. A firmware compatibility check is recommended before installation.
Q: Is the TRICONEX 3805E compatible with Tricon v9 and v10 systems?
A: Yes, the 3805E is compatible with both Tricon v9.x and v10.x firmware versions. Verify your TriStation 1131 project file for any module-specific configuration parameters before hot-swapping.
Q: Are there cross-brand equivalents or substitutes for the 3805E that maintain SIL 3 certification?
A: Cross-brand equivalents and substitutes (such as Honeywell Safety Manager or Emerson DeltaV SIS AO cards) exist but are not plug-in replacements. They require full system re-engineering and independent SIL 3 re-validation. For like-for-like replacement within the Tricon platform, the 3805E or 3805H is the only certified option.
