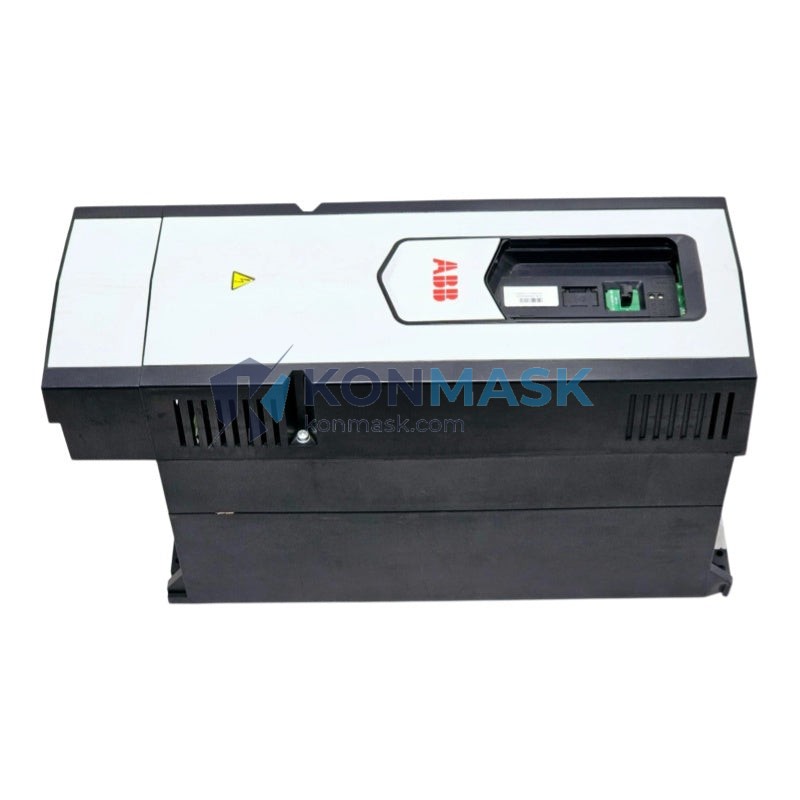

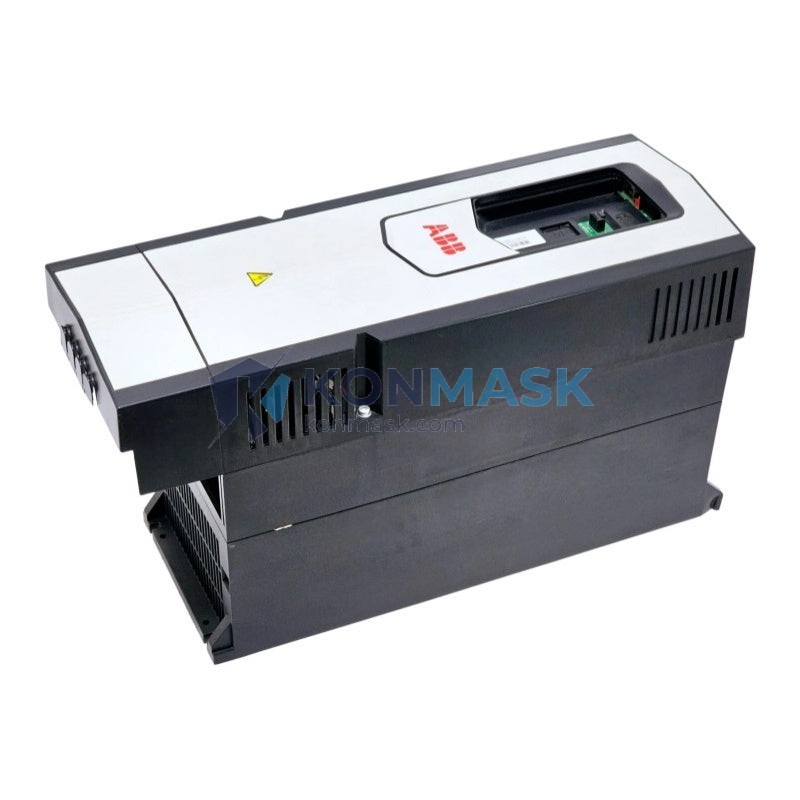

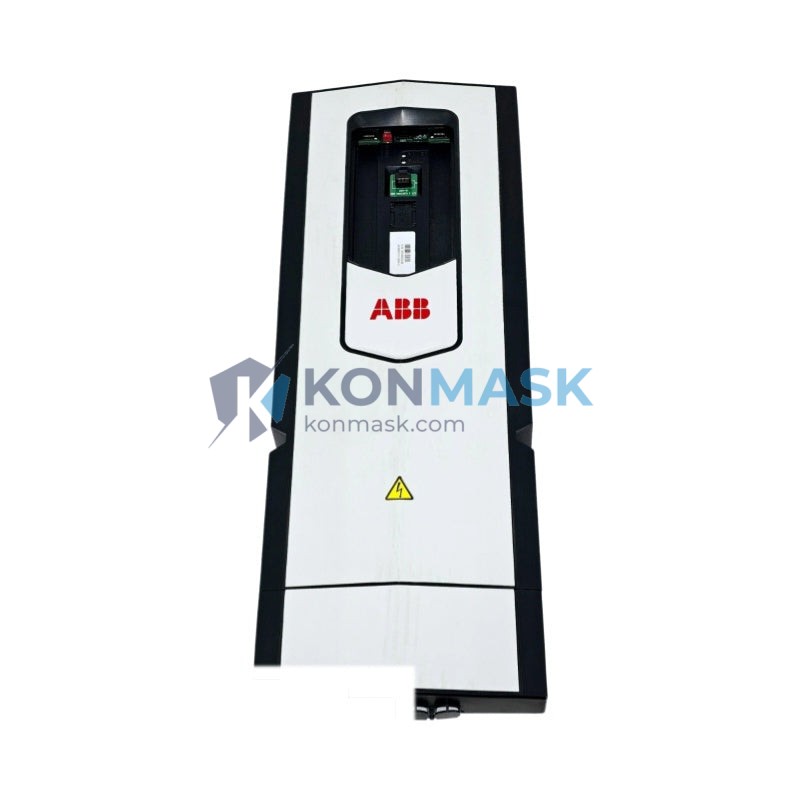

ABB ACS880-01-032A-3 — All-Compatible AC Drive | ACS880 Single Drive Series
Engineering Background: The ACS880 series represents ABB’s flagship industrial drive platform, engineered for demanding process applications where precise motor control, energy efficiency, and system integration are non-negotiable. The ACS880-01-032A-3 is a wall-mounted single drive rated at 32 A continuous output current on a 380–480 V AC three-phase supply, delivering up to 15 kW (20 hp) of shaft power under standard duty conditions.
Product Positioning: Designed for procurement engineers sourcing a drop-in replacement or new installation drive for pumps, fans, compressors, conveyors, and hoists in process industries. The ACS880-01-032A-3 ships with ABB’s Direct Torque Control (DTC) algorithm as standard, eliminating the need for an external encoder in most applications and reducing commissioning time significantly.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Part Number / SKU | ACS880-01-032A-3 |
| Manufacturer | ABB Ltd. |
| Series / Platform | ACS880 Single Drive |
| Output Current (Nominal) | 32 A |
| Motor Power (400 V, Normal Duty) | 15 kW / 20 hp |
| Input Voltage Range | 380–480 V AC ±10%, 3-phase |
| Input Frequency | 48–63 Hz |
| Output Frequency Range | 0–500 Hz |
| Control Method | Direct Torque Control (DTC) / Scalar (V/Hz) |
| Protection Class | IP21 (standard) / IP55 (optional) |
| Ambient Temperature (Operation) | -15 °C to +50 °C (derating above 40 °C) |
| Altitude | Up to 1000 m (derating above) |
| EMC Filter | Built-in C2 EMC filter |
| Braking Chopper | Built-in |
| Communication Interfaces | FDNA-01 (DeviceNet), FENA-21 (EtherNet/IP / Modbus TCP / PROFINET) via option slots |
| Fieldbus Protocol (native) | Modbus RTU (EIA-485) via standard I/O |
| Analog Inputs | 2 × AI (0–10 V / 0–20 mA, configurable) |
| Digital Inputs | 6 × DI (24 V DC) |
| Relay Outputs | 3 × RO (250 V AC / 30 V DC, 2 A) |
| Dimensions (H × W × D) | Approx. 520 × 200 × 237 mm (frame R3) |
| Weight | ~10 kg |
| Certifications | CE, UL, cUL, RoHS, EAC |
| Country of Origin | Finland |
Proven Application Environments
- Pump & Fan Control: Energy-saving PID closed-loop control with sleep/wake function reduces utility costs by up to 30% versus across-the-line starters.
- Conveyor & Material Handling: Smooth ramp profiles and DTC torque accuracy prevent product damage and mechanical shock on belt systems.
- Compressor Drives: Precise speed regulation maintains process pressure setpoints without pressure relief valve cycling.
- Hoist & Crane Applications: Safe torque off (STO, SIL 2 / PLd) function enables safe brake control without additional safety relays.
- HVAC Systems: Built-in PFC and low harmonic distortion comply with EN 61000-3-12 for building management integration.
- Water & Wastewater: IP55 option and corrosion-resistant coating suit humid, chemically aggressive environments.
Engineering Advantages
- Direct Torque Control (DTC): ABB’s proprietary algorithm delivers ±0.5% speed accuracy and full torque at 0 Hz without encoder feedback — superior to standard V/Hz drives.
- Built-in Braking Chopper: Eliminates external braking unit for most applications, reducing panel space and BOM cost.
- Integrated C2 EMC Filter: Meets EN 61800-3 Category C2 out of the box — no external filter required for most industrial installations.
- Modular Option Slots: Two option slots accept ABB FENA/FDNA/FPBA fieldbus adapters and FAIO/FDIO I/O extension modules without drive replacement.
- Safe Torque Off (STO): IEC 62061 SIL 2 / ISO 13849-1 PLd certified — simplifies machinery safety compliance and reduces external safety relay count.
- Energy Optimizer: Automatic motor flux optimization reduces motor losses by up to 10% at partial load.
System Architecture & Signal Flow
The ACS880-01-032A-3 follows a standard AC drive topology: three-phase mains input → EMC filter → rectifier bridge → DC bus (with built-in braking chopper) → IGBT inverter stage → motor output terminals (U2/V2/W2). Control is handled by the RMIO-11C control board, which interfaces with the optional fieldbus adapter via the option slot backplane. The primary control panel (ACS-AP-I or ACS-AP-W) connects via the panel bus port on the front face.
Signal flow for a typical PID pump application: Analog setpoint (AI1, 4–20 mA from SCADA) → internal PID controller → DTC speed reference → IGBT gate driver → motor shaft speed. Feedback via AI2 (pressure transmitter, 4–20 mA). Digital inputs DI1/DI2 handle Run/Stop and direction commands from the PLC.
Sourcing & Quality Verification
- All units sourced from ABB-authorized distribution channels or verified OEM surplus with full traceability documentation.
- Each unit undergoes incoming inspection: visual check, nameplate verification (part number, serial number, date code), and functional power-on test where applicable.
- Serial numbers are cross-referenced against ABB’s product database to confirm authenticity and manufacturing origin.
- Packaging integrity is verified prior to dispatch; original ABB anti-static packaging is preserved where available.
- Certificate of Conformity (CoC) and test reports available upon request for regulated procurement processes.
Procurement Process
- Confirm Part Number: Verify ACS880-01-032A-3 against your BOM or existing drive nameplate. Check input voltage (380–480 V, 3-phase) and output current (32 A) match your motor nameplate.
- Request Quote: Contact support@konmask.com with quantity, required delivery date, and destination port for a formal quotation with lead time.
- Order Confirmation: Purchase order accepted via email. Payment terms: T/T, PayPal, or as agreed. Proforma invoice issued within 24 hours.
- Shipping: DHL Express / FedEx International Priority standard. Sea freight available for bulk orders. Export documentation (commercial invoice, packing list, CO) included.
- After-Sales Support: 12-month warranty on verified OEM units. Technical commissioning support available via email or video call.
Technical FAQ
Q: Can the ACS880-01-032A-3 control a permanent magnet (PM) motor?
A: Yes. The ACS880 supports induction motors (IM), permanent magnet synchronous motors (PMSM), and synchronous reluctance motors (SynRM) via the motor identification run (ID run) procedure.
Q: Is an external EMC filter required for this drive?
A: No. The ACS880-01-032A-3 includes a built-in C2 EMC filter compliant with EN 61800-3, suitable for most industrial environments. For Category C1 (residential) compliance, an additional external filter may be required.
Q: What fieldbus protocols are supported?
A: Native Modbus RTU via the standard I/O terminal. PROFIBUS DP, PROFINET, EtherNet/IP, Modbus TCP, DeviceNet, and CANopen are supported via optional fieldbus adapter modules (FPBA-01, FENA-21, FDNA-01, etc.).
Q: Can I use the ACS880-01-032A-3 as a direct replacement for an ACS800 drive?
A: Mechanically and electrically compatible in most cases. Parameter migration is required; ABB provides a migration guide (document 3AXD50000016097). Verify motor cable and input fuse ratings before installation.
Q: What is the warranty period?
A: 12 months from date of shipment for verified OEM units supplied by Konmask.com. Extended warranty available upon request.
