ICS TRIPLEX T8151C Trusted Communications Interface | Replacement, Equivalent & Selection Guide

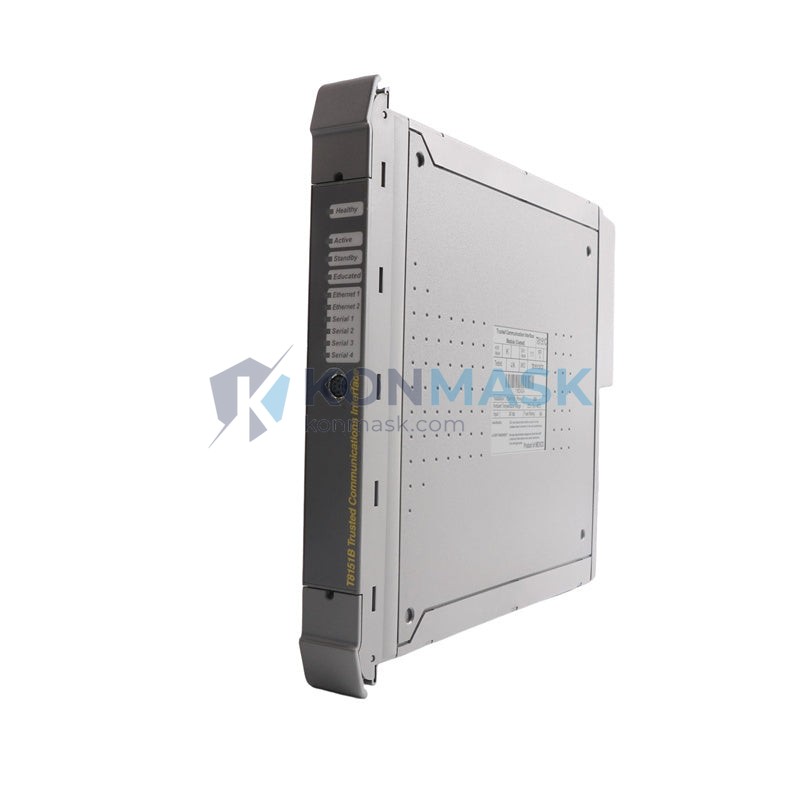

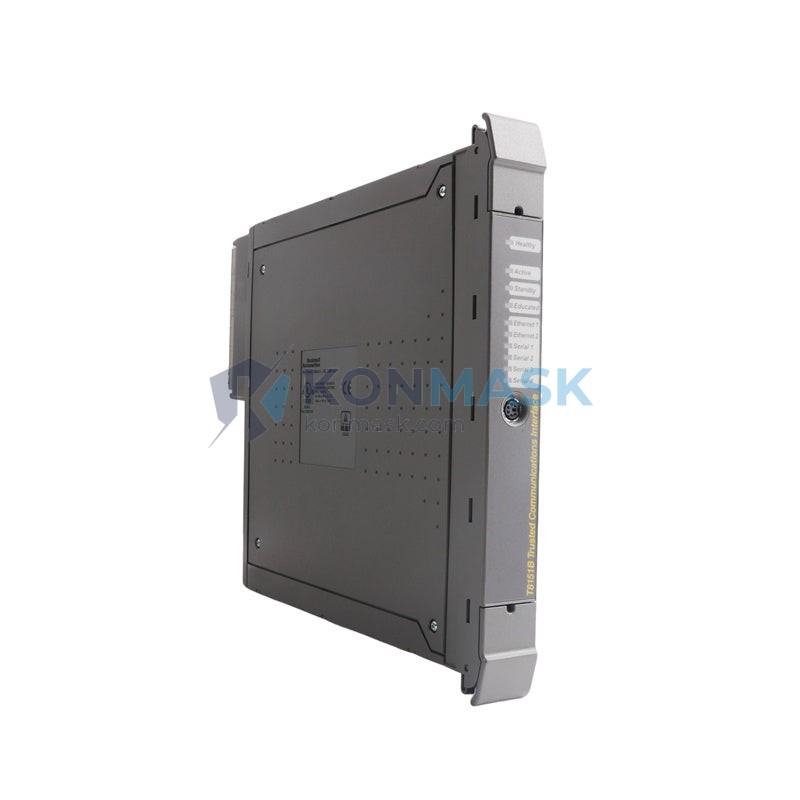

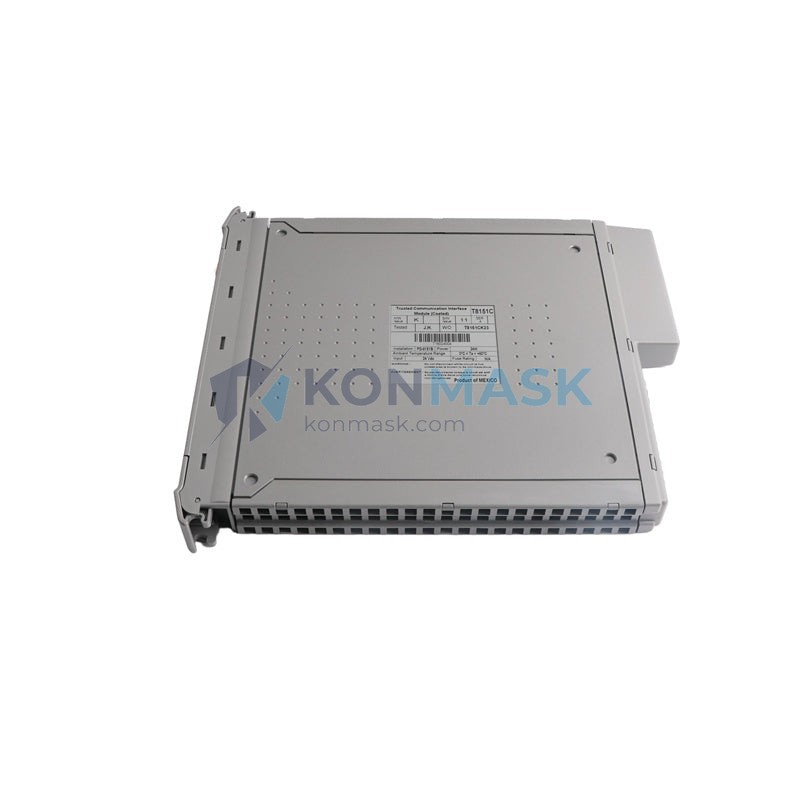

The ICS TRIPLEX T8151C is a Trusted Communications Interface module designed for use within ICS TRIPLEX TMR (Triple Modular Redundancy) safety and control systems. It serves as the primary communication bridge between the TMR controller backplane and external supervisory networks, enabling high-integrity data exchange in safety-critical industrial environments. The T8151C is a core component of the TRIPLEX T8000 series platform, widely deployed in oil & gas, petrochemical, and power generation facilities.
Selection Background
When sourcing a T8151C replacement or T8151C equivalent, buyers must carefully evaluate firmware compatibility, backplane slot assignment, and network protocol support. Many facilities face end-of-life supply challenges with legacy TRIPLEX hardware, driving demand for verified substitutes and cross-brand alternatives. Whether you need a direct drop-in replacement, a functional equivalent, or a cross-brand substitute, this guide helps you identify the right solution and avoid costly mismatches in your TMR architecture.
Technical Specifications
| Part Number | T8151C |
| Manufacturer | ICS TRIPLEX (Rockwell Automation) |
| Module Type | Trusted Communications Interface |
| Platform | TRIPLEX T8000 TMR Safety System |
| Communication Protocol | Proprietary TRIPLEX Trusted Bus + Ethernet/Modbus TCP (application dependent) |
| Backplane Interface | TMR Backplane (T8000 series) |
| Power Supply | Supplied via backplane (24 VDC nominal) |
| Operating Temperature | 0°C to +60°C |
| Certifications | SIL 2 / SIL 3 capable (IEC 61508) |
| Weight | 920 g |
| Form Factor | Single-slot TMR module card |
| ⚠️ Key Replacement Parameter | Firmware version and backplane slot type must match target system configuration |
Compatible Replacement & Equivalent Models
1. Direct Drop-in Replacements
These modules are pin-compatible and firmware-compatible with the T8151C in standard T8000 backplane configurations:
- ICS TRIPLEX T8151B — Previous revision; verify firmware compatibility before substitution
- ICS TRIPLEX T8151D — Upgraded revision; backward compatible in most T8000 chassis (confirm with system integrator)
Prerequisite: Same backplane slot type; firmware must be validated against the target controller version.
2. Functional Equivalents
Modules that perform the same communications interface function within the TRIPLEX ecosystem but may require configuration changes:
- ICS TRIPLEX T8152 — Enhanced communications interface with additional protocol support; may require updated configuration files
- ICS TRIPLEX T8153 — Redundant communications variant; suitable where dual-channel comms are required
Note: Functional equivalents may require engineering review and FAT (Factory Acceptance Test) before deployment in SIL-rated loops.
3. Cross-Brand Alternatives
For system migrations or when OEM parts are unavailable, the following platforms offer comparable TMR communications functionality:
- Rockwell Automation AADvance T9110 — Next-generation TRIPLEX successor platform; migration requires full system re-engineering
- Honeywell Safety Manager SC — Cross-brand TMR alternative; protocol translation gateway required
- Emerson DeltaV SIS — Alternative SIL 3 safety platform; not a drop-in substitute, full migration project required
⚠️ Cross-brand alternatives are not plug-and-play. Always engage a certified system integrator and conduct a full HAZOP/SIL assessment before substitution in safety-critical applications.
Why Choose the Original T8151C Model
- Certified Precision: Factory-calibrated and validated to IEC 61508 SIL 2/3 requirements — no re-certification needed for like-for-like replacement
- Full OEM Certification: Carries original ICS TRIPLEX / Rockwell Automation certifications and CE/UL markings, ensuring regulatory compliance
- Seamless Backplane Compatibility: Guaranteed fit and function within T8000 series chassis without firmware patching or slot remapping
- Dedicated Technical Support: Konmask provides pre-sales compatibility verification and post-sales technical assistance for T8151C integration
- Warranty & Traceability: Each unit supplied with documented sourcing chain, test records, and minimum 12-month warranty
- Reduced Downtime Risk: Verified original hardware eliminates the commissioning risk associated with untested substitutes in live safety systems
Typical Applications
- Oil & Gas: Emergency Shutdown Systems (ESD) and High Integrity Pressure Protection Systems (HIPPS) on offshore platforms and onshore terminals
- Petrochemical: Burner Management Systems (BMS) and process safety interlocks in refinery units
- Power Generation: Turbine control and protection systems requiring TMR redundancy and high-availability communications
- Pipeline: SCADA-integrated pipeline safety controllers with remote communications interface requirements
- LNG Facilities: Safety instrumented systems (SIS) in liquefaction and regasification trains
- Chemical Processing: Reactor safety systems and critical process interlocks demanding SIL 3 integrity
System Compatibility
The T8151C is designed for use within the following ICS TRIPLEX T8000 system components:
- T8100 — TRIPLEX TMR Controller Module (primary processing unit)
- T8110 — TRIPLEX Power Supply Module (backplane power)
- T8120 — TRIPLEX I/O Interface Module (field signal termination)
- T8140 — TRIPLEX Backplane / Chassis (physical mounting and bus)
- T8160 — TRIPLEX Termination Assembly (field wiring interface)
- T8170 — TRIPLEX Diagnostic Module (system health monitoring)
Selection Guide
Answer these three questions to confirm T8151C suitability for your application:
- Is your chassis a T8000 series TMR backplane? — The T8151C is slot-specific to the T8000 platform. If you are running a different TRIPLEX generation, contact Konmask to identify the correct communications interface part number.
- What firmware version is your TMR controller running? — Firmware compatibility between the T8151C and the T8100 controller must be validated. Provide your controller firmware version when enquiring.
- Is this a safety-rated SIL loop? — If yes, only original OEM or fully validated equivalent modules should be used. Konmask can provide the necessary documentation to support your MOC (Management of Change) process.
📩 Not sure which model fits your system? Contact Konmask with your system details for a free compatibility check.
Quality Assurance & Sourcing
Sourcing Channels: Konmask sources T8151C modules through authorized distributors, certified refurbishers, and verified surplus channels with full traceability documentation.
4-Step Inspection Process:
- Visual Inspection: Board-level examination for physical damage, corrosion, counterfeit markers, and component integrity
- Functional Test: Power-on self-test (POST) and communications loopback verification using TRIPLEX test equipment
- Firmware Verification: Firmware version confirmed and documented against customer system requirements
- Final QC & Packaging: ESD-safe packaging, serialized labeling, and quality certificate issued
Available Documentation: Test reports, certificate of conformance (CoC), material traceability records, and datasheet upon request.
How to Order
- Submit Your Enquiry: Email support@konmask.com or call +0086 19859288691 with your part number (T8151C), required quantity, and system details
- Receive Confirmation & Quote: Konmask will verify stock availability, confirm compatibility, and provide a formal quotation within 24 hours
- Order & Ship: Confirm your order and receive ESD-safe, fully documented shipment with tracking — worldwide delivery available
Replacement & Compatibility FAQ
Q: Can the T8151B directly replace the T8151C?
A: The T8151B is a prior revision and may be used as a T8151C replacement in some configurations, but firmware compatibility must be verified against your T8100 controller version. Konmask recommends a compatibility check before substitution.
Q: Is the T8151C compatible with non-TRIPLEX TMR systems?
A: No. The T8151C is designed exclusively for the ICS TRIPLEX T8000 backplane architecture and is not compatible with other TMR platforms without significant re-engineering. For cross-brand migration, contact Konmask for a system assessment.
Q: What is the functional equivalent of the T8151C in the newer AADvance platform?
A: The Rockwell Automation AADvance T9110 Communications Module is the closest functional equivalent in the successor platform, but it is not a drop-in substitute — a full migration project is required. Konmask can advise on migration pathways and sourcing of both legacy and new-generation hardware.
