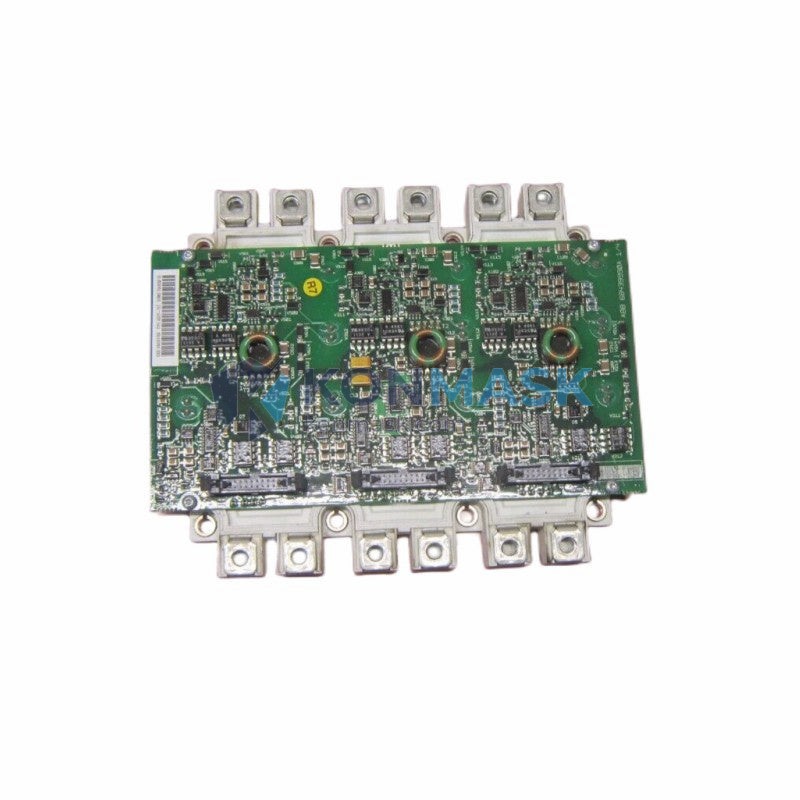

ABB AGDR-72C 68436788A Gate Driver Board | Replacement, Equivalent & Selection Guide
The ABB AGDR-72C (Part No. 68436788A) is a precision gate driver board designed for ABB’s high-power drive and inverter systems. This page provides full technical specifications, verified compatible replacements, application guidance, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Manufacturer: ABB
- Part Number: AGDR-72C
- Reference Number: 68436788A
- Type: IGBT Gate Driver Board
- Function: Gate drive signal isolation and amplification for IGBT modules
- Supply Voltage: Refer to ABB drive system documentation (typically ±15 V DC auxiliary)
- Output: Isolated gate drive pulses for IGBT switching
- Protection Features: Short-circuit protection, desaturation detection, under-voltage lockout (UVLO)
- Mounting: PCB-mounted, compatible with ABB ACS / ACS800 / ACS880 drive chassis
- Operating Temperature: -10 °C to +55 °C (ambient, derated at higher altitudes)
- Weight: Approx. 1,000 g (board + packaging)
- Condition Available: New OEM, Refurbished, Tested Used
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as functional replacements or equivalents for the AGDR-72C. Always verify electrical and mechanical compatibility before substitution:
- ABB AGDR-71C — Earlier revision; verify firmware and connector pinout compatibility
- ABB AGDR-73C — Later revision with enhanced protection; drop-in compatible in most ACS800 platforms
- ABB AGDR-76C — Higher current rating variant; suitable for uprated drive configurations
- ABB NGDR-02C / NGDR-03C — Next-generation driver series; requires adapter harness in legacy chassis
- Third-party equivalents — Available from qualified OEM-grade suppliers; must match isolation voltage, gate resistance, and PWM signal interface
Note: Konmask supplies only verified, tested units. Contact us for cross-reference confirmation before ordering.
Why Choose the Original AGDR-72C
- OEM-matched performance: Designed and validated by ABB for exact drive system integration
- Proven reliability: Field-tested in heavy industrial environments including steel mills, paper mills, and marine drives
- Full protection suite: Desaturation, UVLO, and short-circuit protection reduce system downtime risk
- Warranty alignment: Using original parts preserves ABB drive system warranty eligibility
- Minimal commissioning time: No firmware or parameter adjustments required when replacing like-for-like
Typical Applications
- ABB ACS800 series variable frequency drives (VFDs)
- ABB ACS880 industrial drive platforms
- High-power inverter and regenerative drive systems
- Steel and metals processing lines
- Marine propulsion and offshore power systems
- Mining hoists and conveyor drives
- Paper and pulp mill drive systems
- Wind turbine converter platforms (select configurations)
System Compatibility
The AGDR-72C is primarily designed for use within the following ABB drive families. Confirm your drive’s hardware revision and IGBT module type before ordering:
- ABB ACS800-01 / -04 / -07 / -11 / -17 / -31 / -37
- ABB ACS880-01 / -07 / -17 / -37 (with compatible IGBT stack)
- ABB ACSM1 (motion control drives, select power ranges)
- ABB DCS880 DC drive platforms (select configurations)
If your drive model is not listed, contact Konmask with your full drive nameplate data for a compatibility assessment.
Selection Guide
Use the following criteria to determine whether the AGDR-72C is the correct part for your application:
- Step 1 — Identify your drive model: Confirm the ABB drive series and power rating from the nameplate
- Step 2 — Locate the existing driver board: Check the part number printed on the PCB silkscreen or label (AGDR-72C / 68436788A)
- Step 3 — Verify IGBT module type: Confirm the IGBT module brand and current rating in your drive stack
- Step 4 — Check revision compatibility: Compare hardware revision codes if upgrading from AGDR-71C or earlier
- Step 5 — Confirm quantity: Multi-phase drives may require 2–6 driver boards per unit; specify phase count when ordering
- Step 6 — Contact Konmask: Share your drive model, serial number, and existing part number for final confirmation
Quality Assurance & Sourcing
- Source: Authorized distribution channels and verified industrial surplus
- Inspection: Each unit undergoes visual inspection, functional bench testing, and ESD-safe handling
- Packaging: Anti-static bag + foam-padded carton; suitable for international air and sea freight
- Documentation: Test reports and certificates of conformance available on request
- Traceability: Batch and serial number records maintained for all OEM-new stock
- Warranty: 12-month warranty on new OEM units; 90-day warranty on refurbished/tested units
How to Order
- Add to cart directly, or contact us for bulk / project pricing
- Provide your drive model and serial number for compatibility confirmation
- Specify required condition: New OEM / Refurbished / Tested Used
- Request a proforma invoice for bank transfer or L/C payment
- Lead time: In-stock items ship within 1–3 business days; sourced items 5–15 business days
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can the AGDR-72C replace the AGDR-71C directly?
A: In most ACS800 platforms, yes — the AGDR-72C is a revised version of the AGDR-71C with the same connector layout. However, verify the firmware version of your drive’s control board before swapping.
Q: Is the AGDR-73C a drop-in replacement for the AGDR-72C?
A: Generally yes for ACS800 series drives. The AGDR-73C adds enhanced desaturation protection. Confirm with ABB documentation or contact Konmask for your specific drive revision.
Q: How many AGDR-72C boards does my drive require?
A: This depends on the drive topology. A 3-phase 2-level inverter typically uses 6 driver boards (one per IGBT). Provide your drive model for an exact count.
Q: Do you supply refurbished units?
A: Yes. All refurbished units are fully tested, cleaned, and carry a 90-day warranty. Test reports are available on request.
Q: Can I use a third-party equivalent driver board?
A: Third-party equivalents exist but must precisely match the gate resistance, isolation voltage, and PWM interface of the original. Konmask can advise on verified third-party options if OEM stock is unavailable.
Q: What is the lead time for out-of-stock units?
A: Typically 5–15 business days for sourced units. Expedited sourcing is available for critical downtime situations — contact us directly.
