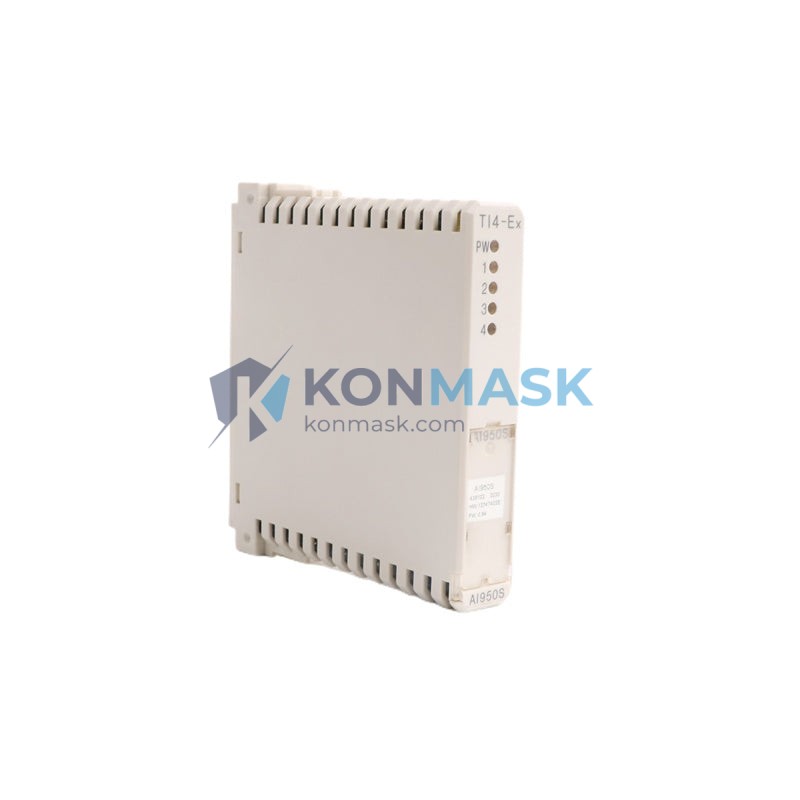

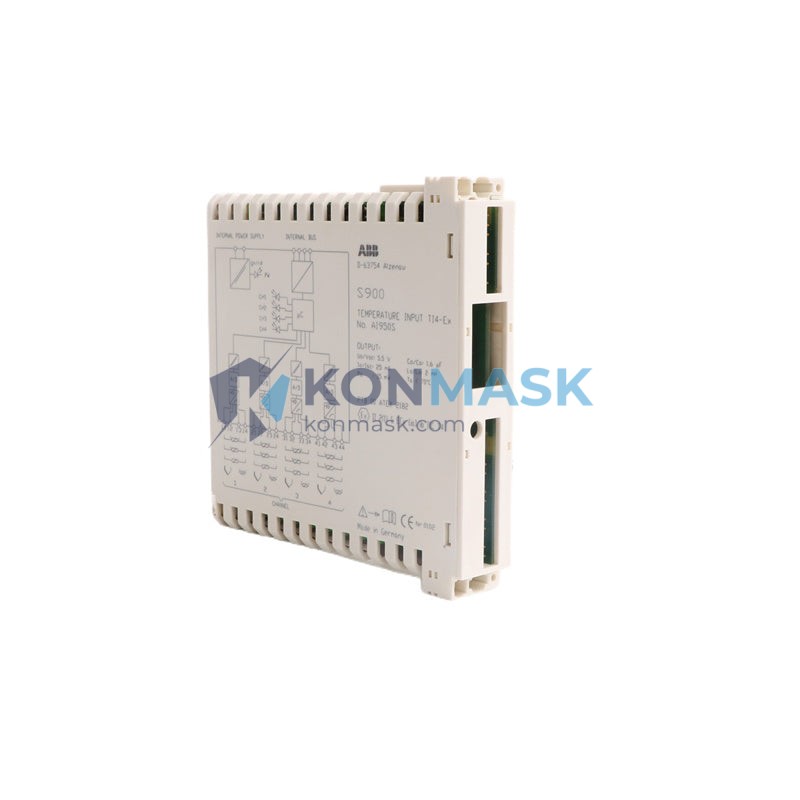

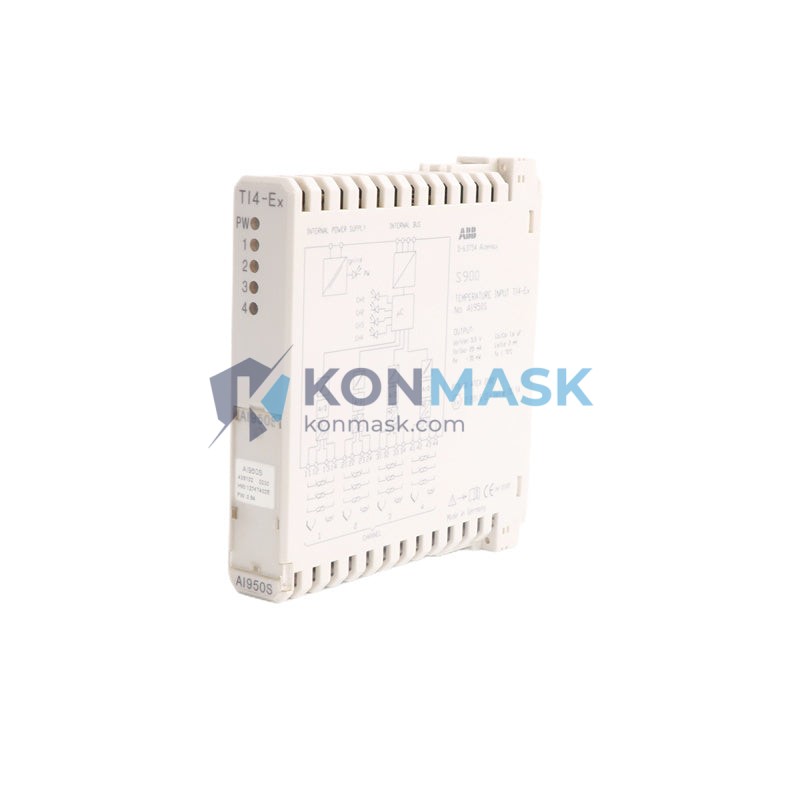

ABB AI950S 3KDE175521L9500 – Multi-Channel Temperature Input Module | AC800M DCS Platform
Engineering Background: The ABB AI950S is a high-precision temperature input module designed for the AC800M Distributed Control System (DCS) platform — ABB’s flagship process automation architecture widely deployed in power generation, oil & gas, chemical processing, and pulp & paper industries. Part number 3KDE175521L9500 identifies the standard hardware revision with full S800 I/O bus compatibility.
Product Positioning: Engineered for mission-critical process environments where accurate temperature measurement directly impacts product quality, safety interlocks, and regulatory compliance. The AI950S supports multiple sensor types on independent channels, enabling flexible field wiring without additional signal conditioning hardware.
Complete Technical Specifications
- Part Number: AI950S / 3KDE175521L9500
- Manufacturer: ABB (ASEA Brown Boveri)
- Module Type: Analog Temperature Input
- Compatible Platform: AC800M DCS / S800 I/O
- Input Channels: 8 channels (individually configurable)
- Sensor Types Supported: RTD (Pt100, Pt1000, Ni100, Ni1000), Thermocouple (Type J, K, T, E, R, S, B)
- Measurement Range: -200°C to +850°C (sensor-dependent)
- Resolution: 16-bit ADC per channel
- Accuracy: ±0.1°C typical (RTD), ±0.5°C typical (TC)
- Cold Junction Compensation: Automatic, internal reference
- Communication Bus: S800 I/O optical bus
- Power Supply: Supplied via S800 I/O bus (no external power required)
- Operating Temperature: 0°C to +55°C
- Storage Temperature: -40°C to +70°C
- Humidity: 5% to 95% RH, non-condensing
- Protection Class: IP20
- Weight: Approx. 120 g
- Certifications: CE, UL, ATEX (zone 2 when used with approved barriers)
- Firmware: Configurable via ABB Control Builder M
Proven Application Environments
- Power Generation: Turbine exhaust temperature monitoring, boiler feed water control, steam header management
- Oil & Gas: Wellhead temperature surveillance, pipeline heat tracing verification, separator temperature control
- Chemical Processing: Reactor temperature profiling, distillation column tray temperature, heat exchanger performance monitoring
- Pulp & Paper: Digester temperature control, dryer section profiling, bleaching process temperature
- Pharmaceutical: Sterilization cycle validation, clean-in-place (CIP) temperature verification, GMP-compliant batch recording
- Water Treatment: Sludge digester temperature, UV disinfection system monitoring
Engineering Advantages
- Multi-Sensor Flexibility: Each channel independently configurable for RTD or TC type — eliminates need for separate module variants per sensor type
- High Channel Density: 8 inputs per module slot reduces cabinet footprint and wiring complexity in large-scale installations
- Automatic CJC: Built-in cold junction compensation eliminates external reference junction hardware for thermocouple inputs
- Optical Bus Isolation: S800 optical communication bus provides galvanic isolation between field and controller, enhancing noise immunity in electrically harsh environments
- Hot-Swap Capable: Module replacement without system shutdown when used with redundant I/O station configurations
- Diagnostic Reporting: Per-channel open-circuit, short-circuit, and out-of-range diagnostics reported to AC800M controller in real time
- Seamless Integration: Native configuration via ABB Control Builder M — no third-party driver or GSD file required
System Architecture & Signal Flow
The AI950S installs into an S800 I/O station mounted on a standard DIN rail within the AC800M control cabinet. Field sensor wiring connects to the module’s screw-terminal front connector. The module performs local A/D conversion and transmits engineering-unit values over the S800 optical bus to the CI854/CI858 communication interface module, which forwards data to the AC800M controller CPU via the ModuleBus. Configuration parameters (sensor type, filter time, alarm limits) are downloaded from Control Builder M during commissioning and stored in non-volatile module memory.
Signal path: Field sensor → AI950S terminal → 16-bit ADC → S800 optical bus → CI85x interface → AC800M CPU → SCADA/DCS historian
Sourcing & Quality Verification
Konmask.com applies a structured 4-step verification protocol to every ABB module before shipment:
- Step 1 — Documentation Audit: Supplier traceability records, original ABB packaging inspection, and label authenticity check against ABB part number database
- Step 2 — Physical Inspection: PCB visual inspection under magnification; connector pin integrity; housing, seal, and label condition assessment
- Step 3 — Functional Bench Test: Module powered on S800 I/O test station; channel response verified with calibrated RTD/TC simulator; diagnostic register readout confirmed
- Step 4 — Final Documentation: Test report issued with serial number, test date, and technician sign-off; included with shipment
All units are shipped in anti-static packaging with desiccant. Shelf-life tracking ensures no module exceeds recommended storage duration prior to dispatch.
Procurement Process
- Submit Inquiry: Email support@konmask.com with part number AI950S / 3KDE175521L9500, required quantity, and delivery timeline
- Receive Quotation: Formal quotation with unit price, lead time, and shipping options issued within 24 business hours
- Order Confirmation: Purchase order accepted via email; proforma invoice issued for payment processing
- Quality Inspection & Packing: 4-step verification completed; anti-static packing with test report enclosed
- Shipment & Tracking: Dispatched via DHL Express / FedEx International Priority with full tracking number provided
- Post-Delivery Support: 12-month warranty; technical support available via email and WhatsApp
Technical FAQ
Q: Is the AI950S compatible with AC800xA as well as AC800M?
A: The AI950S is designed for the AC800M / S800 I/O architecture. AC800xA uses a different I/O bus (PROFIBUS / FOUNDATION Fieldbus). Please confirm your controller platform before ordering.
Q: Can I mix RTD and thermocouple sensors on the same module?
A: Yes. Each of the 8 channels is independently configurable for RTD or TC sensor type via Control Builder M software.
Q: What is the scan cycle time for all 8 channels?
A: Typical scan cycle is 100 ms for all 8 channels with default filter settings. Adjustable via software filter time constant.
Q: Do you supply the matching S800 I/O station and CI interface module?
A: Yes. Konmask.com stocks a broad range of AC800M / S800 I/O components including TB820, CI854, CI858, and associated power supply modules. Contact us for a complete BOM quotation.
Q: What warranty is provided?
A: 12-month warranty against manufacturing defects from date of shipment. Warranty covers functional failure under normal operating conditions; physical damage from improper installation is excluded.
Q: Can you provide an ABB certificate of conformity?
A: We provide our own inspection and test report for every unit. Original ABB CoC availability depends on the specific unit’s supply chain traceability — please inquire at time of order.
