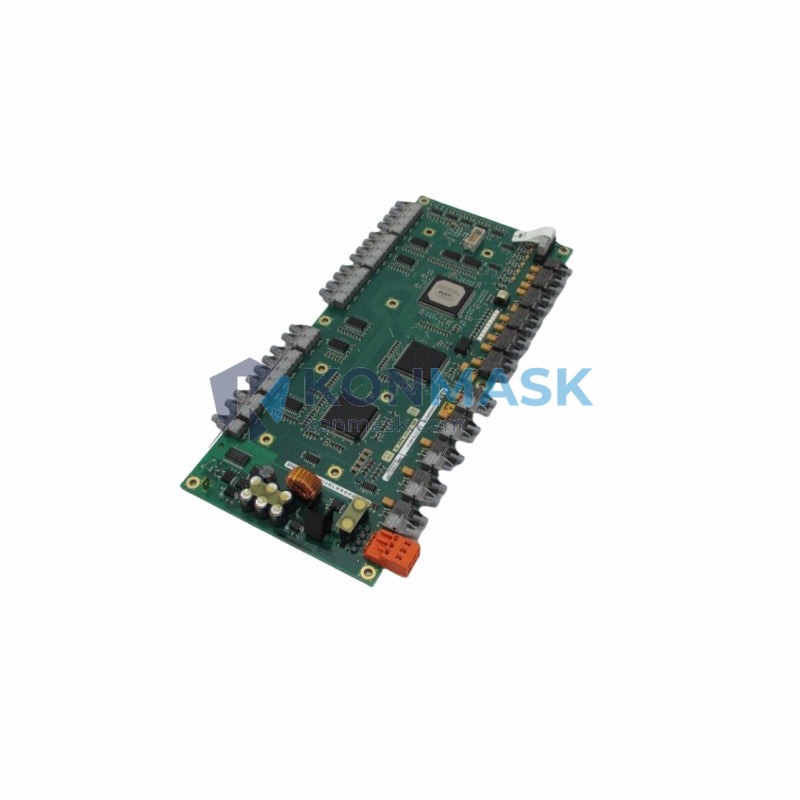

ABB C718 AE101 HIEE300936R0101 Main Circuit Interface Board – Advant Controller Series
When a main circuit interface board fails inside an ABB Advant DCS cabinet, the consequences are immediate and severe: the controller loses its ability to route I/O signals between the CPU and field devices, process variables go blind, and the entire control loop collapses. In continuous-process industries — power generation, pulp & paper, oil & gas — an unplanned shutdown triggered by a single failed board can cost tens of thousands of dollars per hour. The ABB C718 AE101 (HIEE300936R0101) is the exact replacement component that restores full system integrity without requiring a controller architecture change.
Within the ABB Advant Controller family, the C718 AE101 occupies a critical position as the main circuit interface module responsible for internal bus communication and signal conditioning between the controller backplane and peripheral I/O modules. Carrying the hardware reference HIEE300936R0101, this board represents ABB’s engineering standard for reliable, noise-immune signal routing in harsh industrial environments. It remains one of the most sought-after spare parts for legacy Advant installations worldwide, where plant operators prioritize system continuity over full migration.
Technical Specifications
| Attribute | Detail |
|---|---|
| Manufacturer | ABB |
| Part Number | C718 AE101 |
| Hardware Reference | HIEE300936R0101 |
| Product Series | Advant Controller (AC) Series |
| Module Type | Main Circuit Interface Board |
| Form Factor | Rack-mount PCB module |
| Weight (approx.) | 38 kg (packaged) |
| Condition Available | New surplus / Tested refurbished |
| Warranty | 12 months (Konmask standard) |
Note: Detailed electrical specifications (voltage, current ratings, bus speed) are available upon request. We do not publish unverified parameters.
Key Features & Benefits
- Drop-in Replacement: Designed to slot directly into existing Advant controller racks — no firmware re-flashing or hardware modification required in most installations.
- Noise-Immune Signal Routing: ABB’s internal bus architecture on this board provides robust EMI rejection, critical in high-voltage switchgear environments.
- Long Service Life: Industrial-grade PCB construction with conformal coating tolerance, suited for continuous 24/7 operation.
- Genuine ABB Engineering: Manufactured to ABB’s Advant platform specifications, ensuring full compatibility with ABB diagnostic and configuration tools.
- Reduces Downtime Risk: Stocking this board as a critical spare eliminates multi-week lead times from OEM channels during emergency shutdowns.
Industry & Equipment Applications
- Power Generation: Turbine control systems, boiler management, and generator excitation control using ABB Advant DCS platforms.
- Pulp & Paper: Continuous digester control, bleaching line automation, and paper machine drive coordination.
- Oil & Gas: Upstream wellhead controllers, midstream compressor stations, and refinery process control cabinets.
- Chemical & Petrochemical: Reactor temperature/pressure loop control integrated with Advant I/O subsystems.
- Water & Wastewater: SCADA-linked pump station controllers and treatment plant automation.
- Marine & Offshore: Platform automation and vessel power management systems built on ABB Advant architecture.
System Integration & Compatible Parts
The C718 AE101 operates within the ABB Advant Controller ecosystem. Compatible and commonly co-ordered components include:
- ABB Advant Controller CPU modules (AC 400 / AC 450 series)
- ABB S800 I/O modules (AI810, AO810, DI810, DO810)
- ABB HIEE / HIPC series communication interface boards
- ABB Advant backplane and rack assemblies
- ABB MasterBus 300 / PROFIBUS communication modules
If you need a complete bill of materials for your Advant cabinet restoration, contact our technical team — we can cross-reference your existing rack configuration.
Our Quality Assurance Process
- Visual Inspection: Every board is inspected for physical damage, burnt components, corrosion, and connector integrity before listing.
- Functional Bench Test: Where test fixtures are available, boards undergo power-on verification and bus communication checks.
- ESD-Safe Handling: All modules are handled in ESD-controlled environments and shipped in anti-static packaging.
- Traceability: Hardware reference codes (HIEE300936R0101) are verified against physical board markings before shipment.
- 12-Month Warranty: We stand behind every unit with a 12-month warranty covering functional defects.
How to Order
- Submit an Inquiry: Use the contact form or email support@konmask.com with your required quantity and delivery timeline.
- Receive a Quote: Our team responds within 1 business day with pricing, availability, and lead time.
- Confirm & Pay: We accept T/T bank transfer, PayPal, and other B2B payment methods.
- Ship & Track: Orders are dispatched via DHL, FedEx, or UPS Express with full tracking and export documentation.
Why Choose Konmask.com?
- ✅ Specialized in industrial automation spare parts — ABB, Siemens, Honeywell, Rockwell, and more.
- ✅ Global stock with fast export from China — serving customers in 60+ countries.
- ✅ Technical team with hands-on DCS/PLC experience — not just a parts catalog.
- ✅ Transparent sourcing: we disclose condition (new surplus vs. refurbished) on every unit.
- ✅ Emergency support: priority processing available for critical plant shutdowns.
Frequently Asked Questions
Q: Is the HIEE300936R0101 the same as C718 AE101?
A: Yes. HIEE300936R0101 is ABB’s hardware reference number for the C718 AE101 main circuit interface board. Both designations refer to the same physical module.
Q: Will this board work with my existing Advant controller without reconfiguration?
A: In most cases, yes — it is a direct hardware replacement. However, we recommend your automation engineer verify the firmware revision compatibility with your specific controller version before installation.
Q: Do you provide a test report or inspection certificate?
A: Yes. A functional test report is available upon request for refurbished units. Please specify this requirement when submitting your inquiry.
Q: What is the lead time for this part?
A: Lead time depends on current stock status. In-stock units ship within 3–5 business days. Out-of-stock units typically have a 2–4 week sourcing lead time. Contact us for real-time availability.
Q: Can you supply multiple units for a plant-wide spare parts program?
A: Yes. We support bulk orders and long-term supply agreements. Contact our sales team for volume pricing.
{
