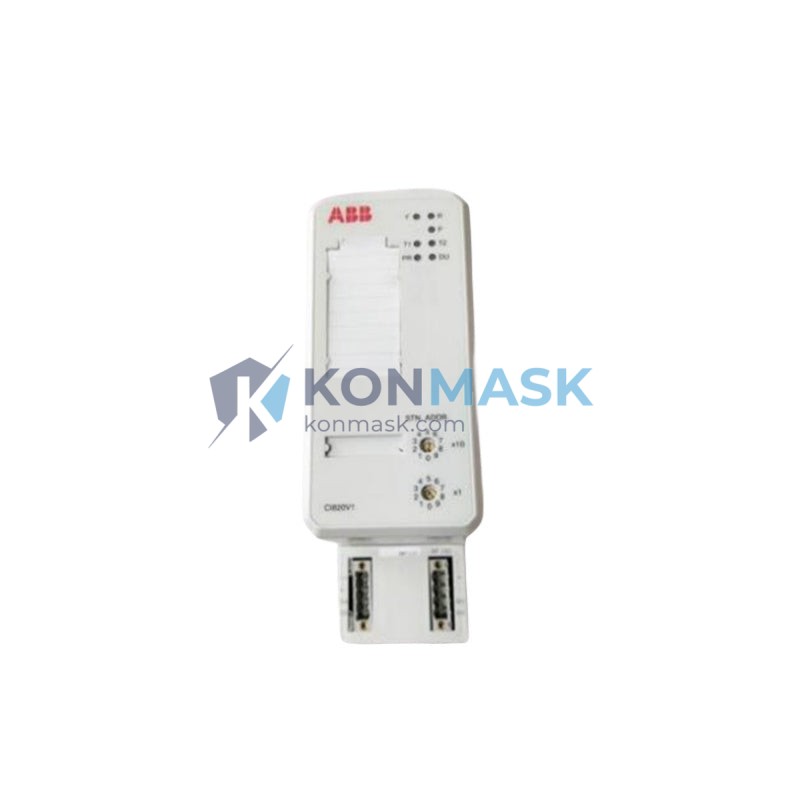

ABB CI820V1 Redundant Fieldbus Communication Interface – AC 800M S800 I/O System
When a fieldbus communication link fails in a mission-critical process plant — a refinery, a power generation facility, or a pharmaceutical production line — the consequences extend far beyond a simple alarm. Controllers lose visibility over field devices, actuators freeze in last-known positions, and operators are left managing a blind system. Unplanned shutdowns, product loss, and safety incidents follow. The ABB CI820V1 (Part No. 3BSE025255R1) exists precisely to prevent this scenario: a dedicated Redundant Fieldbus Communication Interface engineered to keep the communication backbone alive even when one path fails.
Within ABB’s AC 800M controller platform and S800 I/O architecture, the CI820V1 occupies a critical tier. It is the hardware bridge between the AC 800M process controller and the PROFIBUS DP or FOUNDATION Fieldbus H1 field network, and its built-in redundancy capability makes it the preferred choice for SIL-rated and high-availability installations worldwide. Deployed across tens of thousands of process automation loops globally, the CI820V1 is a proven, field-hardened component trusted by engineering teams at major EPC contractors and end-user facilities alike.
Technical Specifications
- Part Number: 3BSE025255R1
- Model: CI820V1
- Manufacturer: ABB
- Function: Redundant Fieldbus Communication Interface (FCI)
- Compatible Platform: AC 800M Controller / S800 I/O
- Fieldbus Protocol: PROFIBUS DP / FOUNDATION Fieldbus H1 (configuration-dependent)
- Redundancy: Full hardware redundancy — primary/backup switchover
- Mounting: S800 I/O ModuleBus carrier
- Communication Bus: ModuleBus (internal S800 backplane)
- Weight: Approx. 500 g
- Operating Temperature: 0°C to +55°C
- Certifications: CE, UL (refer to ABB datasheet for full certification list)
- Country of Origin: Sweden / Germany (ABB manufacturing)
Key Features & Benefits
- Hardware Redundancy: Dual CI820V1 modules operate in active/standby configuration; bumpless switchover on fault detection eliminates communication downtime.
- Seamless AC 800M Integration: Plug-and-play compatibility with ABB’s AC 800M controller family — no custom firmware or external gateways required.
- High Node Capacity: Supports up to 125 PROFIBUS DP slave devices per segment, enabling large-scale I/O architectures from a single interface card.
- Deterministic Communication: Cyclic data exchange ensures predictable scan times critical for closed-loop process control.
- Hot-Swap Capable: Modules can be replaced under power without shutting down the controller or the fieldbus segment, minimizing maintenance windows.
- Diagnostic Transparency: Integrated diagnostics report communication health, slave status, and bus load directly to the AC 800M engineering tool (Control Builder M).
- Compact Form Factor: Standard S800 module footprint preserves cabinet space in dense I/O marshalling panels.
Industry & Equipment Applications
- Oil & Gas: Upstream wellhead controllers, midstream pipeline SCADA, downstream refinery DCS expansions
- Power Generation: Turbine control systems, boiler management, substation automation
- Pulp & Paper: Continuous digester control, bleaching line automation
- Pharmaceuticals & Life Sciences: FDA-compliant batch process control, clean-room HVAC automation
- Water & Wastewater: Pump station control, treatment plant DCS
- Chemical Processing: Reactor management, distillation column control
- Mining & Minerals: Conveyor systems, flotation cell automation
System Integration & Compatible Parts
The CI820V1 is designed to operate within ABB’s AC 800M ecosystem. Typical system configurations include:
- Controllers: PM861, PM864, PM866, PM891 (AC 800M family)
- I/O Modules: S800 I/O series (AI810, AO810, DI810, DO810, etc.)
- Redundancy Partner: Second CI820V1 (3BSE025255R1) for active/standby pair
- Carrier Units: TB820V2 ModuleBus Modem, TP830 Termination Panel
- Engineering Tool: ABB Control Builder M (CBM) for configuration and diagnostics
- Power Supply: SD821, SD822, SD823 (AC 800M power supply modules)
If you need assistance confirming compatibility with your existing AC 800M configuration, our engineering team is available to review your system architecture before purchase.
Our Quality Assurance Process
At Konmask.com, every ABB CI820V1 unit offered goes through a structured verification process before it reaches your facility:
- Source Verification: Units are sourced from authorized ABB distributors, certified surplus dealers, or directly from decommissioned ABB-maintained installations with documented service history.
- Visual & Physical Inspection: Each module is inspected for connector integrity, label authenticity, housing condition, and absence of counterfeit indicators.
- Functional Testing: Where applicable, modules are bench-tested for communication response and self-diagnostic pass status.
- Traceability Documentation: Serial numbers are logged and cross-referenced against known ABB production batches.
- Secure Packaging: ESD-safe anti-static bags, foam-lined boxes, and climate-controlled storage prior to shipment.
How to Order
- Submit an Inquiry: Email support@konmask.com or call +0086 19859288691 with your required quantity and delivery timeline.
- Receive a Quote: Our team responds within 1 business day with pricing, lead time, and stock confirmation.
- Order Confirmation: Approve the proforma invoice and confirm shipping details.
- Shipment & Tracking: We ship via DHL, FedEx, or UPS with full tracking. Export documentation (commercial invoice, packing list, COO) provided for customs clearance.
- After-Sales Support: Our technical team remains available post-delivery for integration questions.
Why Choose Konmask.com?
- Specialized in industrial automation components — not a generalist marketplace
- Engineering-led team with hands-on DCS/PLC system experience
- Global shipping to 50+ countries with full export documentation
- Responsive inquiry handling — quotes within 24 hours
- Transparent sourcing: we tell you where the part came from
- Long-term partnership focus: we support repeat procurement programs for MRO teams
Frequently Asked Questions
Q: Is the CI820V1 the same as 3BSE025255R1?
A: Yes. CI820V1 is the ABB model designation; 3BSE025255R1 is the ABB catalog part number. Both refer to the identical hardware module.
Q: Can the CI820V1 be used without redundancy?
A: Yes. A single CI820V1 can operate as a non-redundant FCI. Redundancy requires a second CI820V1 module configured as the standby unit in Control Builder M.
Q: What fieldbus protocols does the CI820V1 support?
A: The CI820V1 supports PROFIBUS DP. For FOUNDATION Fieldbus H1, ABB offers the CI801 or CI840A. Please confirm your fieldbus type before ordering.
Q: Is this module compatible with the AC 800M High Integrity (HI) controller?
A: The CI820V1 is designed for the standard AC 800M platform. For SIL-rated HI applications, consult ABB’s safety system documentation or contact our team for guidance.
Q: What is the lead time for the CI820V1?
A: Lead time depends on current stock. Contact us for real-time availability. In-stock units typically ship within 2–3 business days of order confirmation.
Q: Do you provide a warranty?
A: Yes. We offer a standard 90-day functional warranty on all modules. Extended warranty options are available — ask your sales contact for details.
