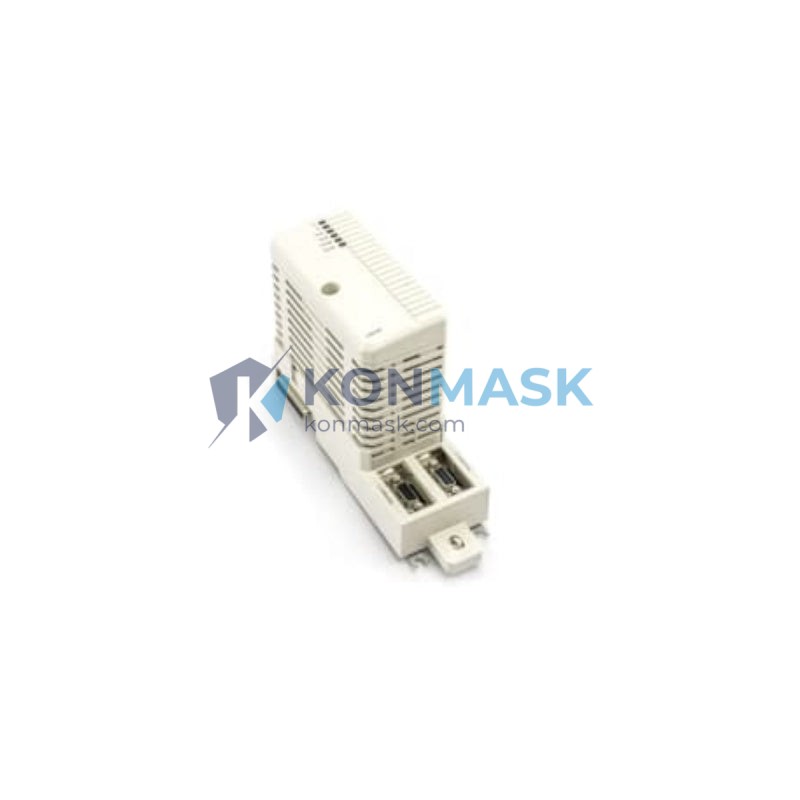

ABB CI854BK01 – PROFIBUS-DP/V1 Communication Interface Module | AC 800M / S800 I/O Platform
Engineering Background: The CI854BK01 is ABB’s dedicated PROFIBUS-DP/V1 communication interface module designed for the AC 800M controller platform — ABB’s flagship process automation controller used in 800xA distributed control systems. PROFIBUS-DP/V1 extends the base DP protocol with acyclic data exchange, enabling advanced device parameterization, diagnostics, and alarm management without interrupting cyclic process communication.
Product Positioning: Targeted at process industries requiring deterministic fieldbus communication with intelligent field devices (smart transmitters, variable-speed drives, positioners), the CI854BK01 serves as the physical and logical gateway between the AC 800M controller and PROFIBUS-DP/V1 networks. It supports both Class 1 (cyclic) and Class 2 (acyclic) master functions, making it suitable for both standard I/O polling and advanced device management applications.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | CI854BK01 |
| Manufacturer | ABB |
| Platform | AC 800M / 800xA DCS |
| Protocol | PROFIBUS-DP/V1 (EN 50170 / IEC 61158) |
| Master Class | Class 1 (cyclic) & Class 2 (acyclic) |
| Max. Slaves | Up to 125 slaves per segment |
| Baud Rate | 9.6 kbps – 12 Mbps (auto-detect) |
| Connector | 9-pin D-Sub (RS-485) |
| Redundancy | Supported (with redundant controller configuration) |
| Module Slot | AC 800M controller backplane |
| Power Supply | Via controller backplane (5 VDC) |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -40 °C to +70 °C |
| Humidity | 5% – 95% RH (non-condensing) |
| Country of Origin | Germany |
| Certifications | CE, UL, cUL, ATEX (zone 2 when installed in approved enclosure) |
| Weight | ~500 g |
Proven Application Environments
- Oil & Gas: Upstream wellhead automation, offshore platform DCS, pipeline SCADA integration with PROFIBUS-enabled field instruments.
- Chemical & Petrochemical: Reactor control loops with smart positioners and transmitters communicating via PROFIBUS-DP/V1 for online diagnostics.
- Power Generation: Turbine control systems, boiler management, and balance-of-plant automation using ABB 800xA with PROFIBUS fieldbus networks.
- Pulp & Paper: High-speed process lines requiring deterministic communication with drives and actuators.
- Water & Wastewater: Pump station automation and treatment plant control with distributed PROFIBUS device networks.
- Pharmaceuticals: GMP-compliant batch process control with full device audit trail via acyclic DP/V1 services.
Engineering Advantages
- DP/V1 Acyclic Services: Enables online parameter read/write and extended diagnostics without disrupting cyclic process data — critical for predictive maintenance strategies.
- Seamless 800xA Integration: Native support within ABB System 800xA engineering environment; device library (GSD files) pre-loaded for common ABB and third-party field devices.
- Redundancy Architecture: Supports hot-standby controller redundancy, ensuring zero-downtime failover for safety-critical processes.
- Auto Baud Rate Detection: Simplifies commissioning across mixed-speed PROFIBUS segments.
- Diagnostic Transparency: Full slave diagnostics surfaced to 800xA operator stations, enabling rapid fault isolation.
- Compact Backplane Design: Single-slot module minimizes controller cabinet footprint.
System Architecture & Signal Flow
The CI854BK01 installs directly into the AC 800M controller backplane. The controller CPU communicates with the module via the internal backplane bus. The module acts as PROFIBUS-DP Class 1 Master, polling configured slave devices cyclically (process I/O data exchange). Simultaneously, as a Class 2 Master, it handles acyclic requests from the 800xA Asset Optimization layer for device parameterization and diagnostics.
Typical Signal Flow:
800xA Operator Station → AC 800M CPU (PM860 / PM861 / PM866) → CI854BK01 (PROFIBUS Master) → RS-485 Bus → Field Devices (transmitters, drives, positioners, remote I/O)
Bus termination must be applied at both physical ends of the PROFIBUS segment. Maximum segment length depends on baud rate (e.g., 100 m at 12 Mbps, 1200 m at 93.75 kbps). Repeaters can extend network reach.
Sourcing & Quality Verification
- All CI854BK01 units sourced through verified ABB authorized channels or certified industrial surplus with full traceability documentation.
- Each unit undergoes incoming inspection: visual check, label verification (ABB part number, revision, serial number), and functional power-on test where applicable.
- Firmware revision and hardware revision documented and disclosed prior to shipment.
- Original ABB packaging preserved where available; anti-static ESD packaging applied for all shipments.
- Certificate of conformity and test records available upon request for regulated industries.
Procurement Process
- Submit RFQ: Contact support@konmask.com with quantity, required delivery date, and any revision/firmware requirements.
- Quotation: Receive itemized quote with unit price, lead time, and sourcing documentation within 24 hours.
- Order Confirmation: Purchase order accepted via email; proforma invoice issued for prepayment or net terms (qualified accounts).
- Quality Inspection: Pre-shipment inspection report provided; third-party inspection available on request.
- Shipment: DHL / FedEx / UPS express worldwide; EXW Xiamen or CIF destination available.
- After-Sales Support: Technical assistance for installation and commissioning available via email and WhatsApp.
Technical FAQ
Q: Is CI854BK01 compatible with PM860, PM861, and PM866 controllers?
A: Yes. The CI854BK01 is compatible with all AC 800M controller CPUs that support the standard backplane communication interface. Verify the 800xA software version supports the module revision in use.
Q: Can CI854BK01 operate as a PROFIBUS slave?
A: No. The CI854BK01 is a master-only module. For slave functionality, different ABB communication modules are required.
Q: What is the maximum number of PROFIBUS devices supported?
A: Up to 125 slave addresses per PROFIBUS segment. Multiple CI854BK01 modules can be installed in one AC 800M controller to support multiple independent PROFIBUS networks.
Q: Does it support PROFIBUS PA devices?
A: PROFIBUS PA devices require a DP/PA coupler or link to connect to the DP segment. The CI854BK01 communicates with the DP side; PA integration is handled via the coupler hardware.
Q: What GSD file is required for third-party slave configuration?
A: GSD files are provided by each slave device manufacturer. Import them into the 800xA Control Builder engineering tool for device configuration. ABB-certified device libraries are available through the ABB Library.
Q: Is redundant PROFIBUS bus cabling supported?
A: The CI854BK01 itself uses a single PROFIBUS port. Bus redundancy at the physical layer requires third-party PROFIBUS redundancy switches or media redundancy couplers installed on the network.
