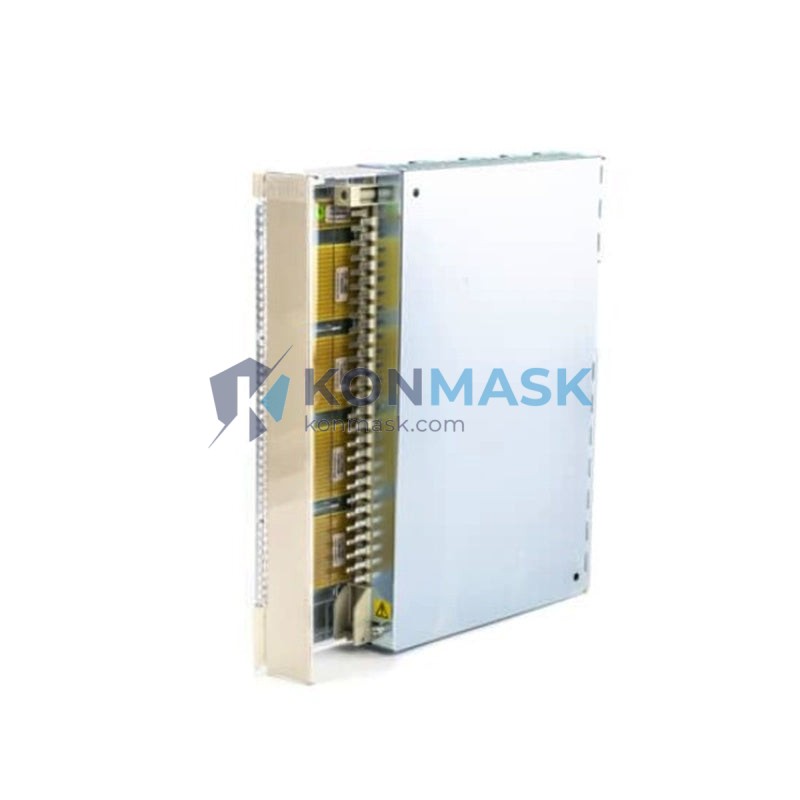

ABB DI650 3BHT300025R1 – 16-Channel Digital Input Module | S800 I/O Platform
Engineering Background
The ABB DI650 is a high-density digital input module engineered for ABB’s S800 I/O system, the distributed I/O backbone of the AC800M process automation controller platform. Designed for continuous-duty industrial environments, the DI650 delivers deterministic signal acquisition across 16 isolated digital input channels, making it a cornerstone component in process control, power generation, and critical infrastructure applications worldwide.
Product Positioning
As a procurement engineer sourcing replacement or expansion I/O for an AC800M-based DCS, the DI650 (3BHT300025R1) is the factory-specified module for 24 VDC discrete signal acquisition within the S800 I/O family. Konmask.com stocks verified-authentic units with full traceability, enabling rapid deployment without the lead-time risk of OEM channels.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | DI650 |
| Order Code | 3BHT300025R1 |
| Manufacturer | ABB Automation Products GmbH |
| Platform | S800 I/O / AC800M |
| Module Type | Digital Input (DI) |
| Number of Channels | 16 |
| Input Voltage (Nominal) | 24 VDC |
| Input Voltage Range | 19.2 – 30 VDC |
| Logic “1” Threshold | ≥ 15 VDC |
| Logic “0” Threshold | ≤ 5 VDC |
| Input Current (per channel) | Approx. 7 mA @ 24 VDC |
| Galvanic Isolation | Channel group to bus: 500 VAC |
| Cycle Time | Configurable via AC800M controller |
| Communication Bus | S800 I/O ModuleBus (optical) |
| Module Width | Single-slot S800 I/O rack |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -40 °C to +70 °C |
| Relative Humidity | 5 – 95 % RH (non-condensing) |
| Protection Class | IP20 |
| Weight | Approx. 1,200 g (module + packaging) |
| Certifications | CE, UL, cUL, ATEX (zone 2 with barrier) |
| Firmware Compatibility | AC800M firmware 5.x and above |
Proven Application Environments
- Oil & Gas: Wellhead control panels, compressor station DCS, pipeline SCADA integration
- Power Generation: Turbine control systems, boiler management, substation automation
- Pulp & Paper / Chemical: Continuous process control with AC800M as primary controller
- Water & Wastewater: Pump station monitoring, valve position feedback acquisition
- Marine & Offshore: Vessel automation systems certified to DNV/ABS standards (with appropriate barriers)
- Pharmaceutical: Batch process control under 21 CFR Part 11 validated environments
Engineering Advantages
- High Channel Density: 16 DI channels in a single S800 slot minimizes rack space and wiring complexity.
- Optical ModuleBus: Noise-immune fiber-optic communication between I/O modules and the CI854/CI858 communication interface eliminates ground-loop interference.
- Hot-Swap Capable: Modules can be replaced under power without controller shutdown, supporting zero-downtime maintenance strategies.
- Integrated Diagnostics: Per-channel open-wire and short-circuit detection reported directly to AC800M fault log.
- Deterministic Scan: Fixed-cycle input scanning ensures predictable latency for safety-critical interlock logic.
- Wide Temperature Tolerance: Rated to +55 °C continuous operation, suitable for non-air-conditioned field enclosures.
System Architecture & Signal Flow
The DI650 mounts on an S800 I/O baseplate (TB820/TB840 series) and communicates upstream via the optical ModuleBus to a CI854A or CI858 communication interface unit (CIU). The CIU connects to the AC800M PM8xx processor module via the controller backplane. Signal flow:
Field Device → Terminal Unit (TU830/TU840) → DI650 Module → Optical ModuleBus → CI854A/CI858 CIU → AC800M PM8xx → Control Application
Each channel maps to a discrete BOOL variable in the AC800M application, addressable via standard IEC 61131-3 structured text or function block diagram. Module configuration (channel enable, filter time, inversion) is performed in ABB Control Builder Plus without requiring hardware jumpers.
Sourcing & Quality Verification
- Authenticity: All DI650 units sourced through authorized distribution channels or directly from ABB-certified surplus. Each unit carries original ABB labeling with traceable batch codes.
- Incoming Inspection: Visual inspection, firmware version verification, and functional power-on test performed prior to listing.
- Packaging: Anti-static ESD bag + foam-lined carton. Humidity indicator card included for long-haul shipments.
- Documentation: ABB datasheet (3BDS011222), hardware manual (3BSE008584), and CE declaration of conformity available upon request.
- Warranty: 12-month Konmask operational warranty covering manufacturing defects and DOA units.
Procurement Process
- Confirm Compatibility: Verify your AC800M firmware version (≥ 5.x) and baseplate type (TB820V2 or TB840A recommended for DI650).
- Request Quote: Contact support@konmask.com for volume pricing, lead time confirmation, and export documentation (CO, packing list, commercial invoice).
- Place Order: Purchase directly via Konmask.com checkout or via bank transfer (T/T) for orders above USD 2,000.
- Shipping: DHL Express / FedEx IP standard. Typical transit: 3–7 business days worldwide. Air freight with full insurance available.
- Goods Receipt: Inspect packaging integrity upon arrival. Report any damage within 48 hours with photographic evidence for warranty claim initiation.
Technical FAQ
Q: Is the DI650 compatible with the S900 I/O system?
A: No. The DI650 is exclusively designed for the S800 I/O ModuleBus architecture. For S900 I/O, the equivalent module is the DI910 series.
Q: Can the DI650 accept 120 VAC field signals?
A: No. The DI650 is rated for 24 VDC inputs only. For 120/230 VAC digital inputs, ABB offers the DI810 module with appropriate signal conditioning.
Q: What terminal unit (TU) is required?
A: The DI650 is compatible with TU830V1, TU830V2, TU840, and TU842 terminal units. TU selection depends on field wiring configuration (single-ended vs. differential) and cable entry direction.
Q: Is a redundant configuration supported?
A: The DI650 itself is a non-redundant module. I/O redundancy in S800 systems is achieved at the CI (communication interface) level, not at the individual I/O module level.
Q: What is the maximum cable length from field device to terminal unit?
A: ABB specifies a maximum of 1,000 m for 24 VDC digital input wiring, subject to cable resistance and voltage drop calculations per installation guidelines.
Q: Do you provide an IEC 62443 compliance statement?
A: Konmask can provide available ABB cybersecurity documentation for the AC800M platform upon request. Contact support@konmask.com.
