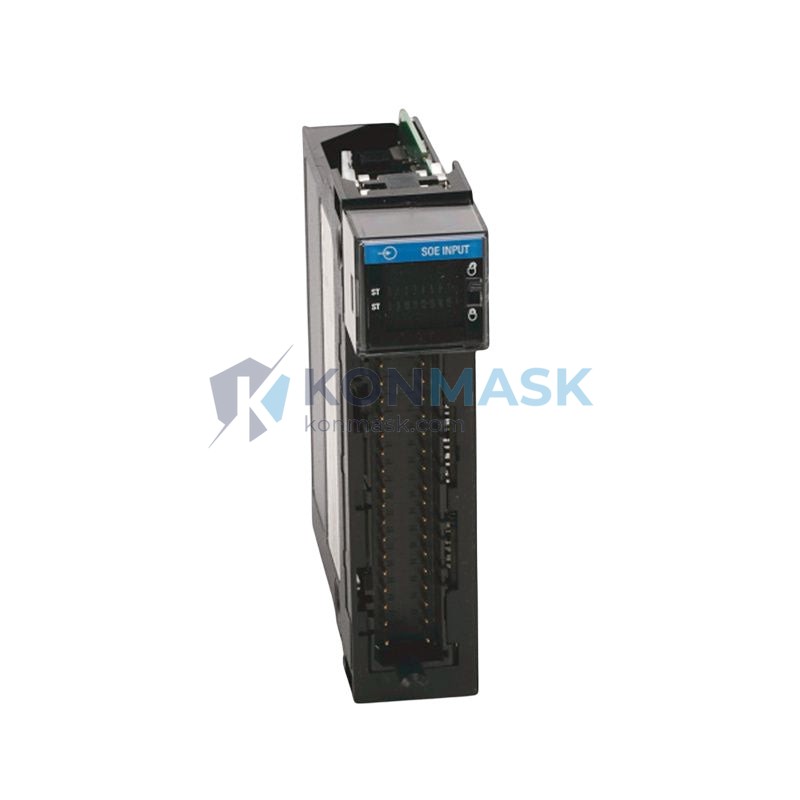

Sequence of Events Recording Solution – Allen-Bradley 1756-IB16ISOE | ControlLogix SOE Input Module
In high-stakes industrial environments — power generation plants, transmission substations, and petrochemical process units — a fault event can cascade through dozens of field devices within milliseconds. Post-incident investigations routinely reveal that conventional DCS or PLC digital input modules, with scan-cycle resolutions of 10–100 ms, are incapable of capturing the precise chronological order of protective relay trips, breaker operations, and interlock activations. Without sub-millisecond timestamping, root-cause analysis becomes guesswork, regulatory reporting is compromised, and repeat failures remain unresolved. Industry data indicates that ambiguous SOE records extend mean-time-to-repair (MTTR) by an average of 4–6 hours per major fault event.
The Allen-Bradley 1756-IB16ISOE resolves this problem at the hardware level. As a dedicated Sequence of Events input module for the ControlLogix platform, it timestamps each of its 16 digital input channels with 1 ms resolution — independently of the controller scan cycle — using an on-board real-time clock synchronized to the system time master. Engineers gain an immutable, chronologically ordered event log that survives controller faults, enabling forensic-grade post-trip analysis, compliance reporting to NERC CIP and IEC 61850 standards, and confident relay coordination studies.
Where This Product Is Used
1. Power Generation – Thermal & Combined-Cycle Plants
– Generator Protection Panels: Captures the exact sequence of differential relay (87G) trip, field breaker open, and excitation shutdown across 16 channels; operating environment 0–60 °C, high EMI from generator bus; meets IEEE C37.90 relay testing standards.
– Steam Turbine Trip Systems: Records overspeed trip, thrust bearing high-temperature alarm, and EHC solenoid de-energization within the same 1 ms window; critical for OEM warranty compliance and insurance reporting.
– Boiler Master Fuel Trip (MFT): Timestamps all 16 MFT initiating causes simultaneously, enabling NFPA 85 post-trip documentation without ambiguity.
2. Electrical Transmission & Distribution Substations
– Bus Protection & Breaker Failure Schemes: Resolves the sequence between zone-1 distance relay pickup, breaker-fail initiation, and backup trip within 1 ms; IEC 61850 GOOSE message correlation; panel environment -20–70 °C.
– Transformer Differential Protection: Captures Buchholz relay, winding temperature, and differential trip order for transformer failure forensics; supports CIGRE TB 414 reporting.
– Capacitor Bank Switching: Records inrush current relay operations and switching transient events for power quality studies; 24 VDC field wiring compatible with standard relay output contacts.
3. Oil & Gas – Upstream & Midstream Facilities
– Emergency Shutdown Systems (ESD): Timestamps HIPPS valve closure, blowdown valve open, and flare pilot confirmation in SIL 2 ESD architectures; IEC 61511 compliance documentation.
– Compressor Train Protection: Records high-vibration trip, lube oil low-pressure shutdown, and anti-surge valve position in sequence; operating in Class I Div 2 environments with appropriate barriers.
– Pipeline Leak Detection: Captures pressure transmitter alarm, block valve closure, and SCADA alarm acknowledgment sequence for regulatory incident reporting.
4. Petrochemical & Refinery Process Units
– Reactor Safety Interlock Systems: Documents the precise order of high-temperature trip, feed isolation valve closure, and quench water valve open for HAZOP deviation analysis; IEC 61511 SIL verification.
– Distillation Column Shutdown: Timestamps reflux pump trip, reboiler steam isolation, and pressure relief valve lift for API 521 overpressure study validation.
– Fired Heater Burner Management: Records pilot flame failure, fuel gas valve closure, and purge cycle initiation per NFPA 86 requirements.
5. Water & Wastewater Treatment
– Pump Station Protection: Captures motor overload trip, discharge valve closure, and standby pump start sequence; wet, corrosive environment; IP54 panel enclosure typical.
– Chlorination System Interlocks: Records chlorine gas detector alarm, ventilation fan start, and isolation valve closure for EPA RMP incident documentation.
– SCADA Alarm Flood Analysis: Timestamps nuisance alarm sources to support ISA-18.2 alarm rationalization projects.
6. Automotive & Heavy Manufacturing
– Press Line Safety Systems: Records light curtain trip, press brake engagement, and E-stop relay drop-out sequence for ISO 13849 safety function verification.
– Robotic Cell Fault Diagnosis: Timestamps servo drive fault, robot controller E-stop, and cell fence gate open to reconstruct collision events; operating environment 10–50 °C, high vibration.
– Paint Booth Fire Suppression: Captures smoke detector alarm, suppression system activation, and exhaust fan shutdown sequence for NFPA 13 compliance records.
Technical Specifications
| Parameter | Value | Application Relevance |
|---|---|---|
| Catalog Number | 1756-IB16ISOE | ControlLogix chassis-compatible; direct replacement for 1756-IB16 |
| Number of Input Channels | 16 | Covers full protection relay panel with one module |
| Input Voltage Range | 10–31.2 VDC (24 VDC nominal) | Compatible with standard relay dry contacts and NAMUR sensors |
| SOE Timestamp Resolution | 1 ms | Meets IEEE 1344 and IEC 61850-5 SOE accuracy requirements |
| Time Synchronization | System time master via ControlLogix backplane | Synchronized across all chassis in multi-rack SOE systems |
| Input Filter Time | Configurable: 0–32 ms | Eliminates contact bounce without sacrificing SOE resolution |
| Input Impedance | 10 kΩ typical | Compatible with relay output contacts rated ≥ 5 mA |
| ON-State Voltage | 10–31.2 VDC | Reliable detection of relay pick-up across full supply tolerance |
| OFF-State Voltage | 0–5 VDC | Prevents false triggering from leakage current in relay circuits |
| Isolation | Group isolation (8 channels per group) | Limits fault propagation between field circuit groups |
| Backplane Current (5 VDC) | 125 mA | Low power draw; multiple modules per chassis without derating |
| Operating Temperature | 0–60 °C | Suitable for standard industrial panel environments |
| Storage Temperature | -40–85 °C | Safe for cold-climate storage and shipping |
| Relative Humidity | 5–95% non-condensing | Suitable for coastal and tropical plant environments |
| Vibration | 2 g @ 10–500 Hz | Meets IEC 60068-2-6 for panel-mounted applications |
| Shock | 30 g operational | Survives switchgear close/open mechanical shock |
| Certifications | UL, CE, C-Tick, ATEX (with barriers) | Global project compliance |
| Module Keying | Electronic & mechanical | Prevents incorrect module insertion during maintenance |
| Wiring | RTB (Removable Terminal Block) compatible | Hot-swap wiring without field rewiring |
| Dimensions (H × W × D) | 94 × 35 × 87 mm (approx.) | Standard 1756 single-slot form factor |
| Weight | ~200 g | Standard ControlLogix module weight |
Why Engineers Specify This Model
- In power plant generator protection, the 1756-IB16ISOE delivers 1 ms SOE timestamping independent of PLC scan cycle because its on-board clock captures events asynchronously, meeting IEEE C37.118 and IEC 61850-5 Class T1 accuracy requirements.
- In substation bus protection schemes, the 1756-IB16ISOE delivers unambiguous breaker operation sequencing because each channel timestamp is preserved in non-volatile buffer memory even during controller fault, meeting NERC CIP-007 event logging requirements.
- In SIL 2 emergency shutdown systems, the 1756-IB16ISOE delivers forensic-grade incident documentation because the 16-channel simultaneous capture eliminates the round-robin polling ambiguity of standard DI modules, meeting IEC 61511 management of functional safety audit requirements.
- In refinery reactor interlock systems, the 1756-IB16ISOE delivers configurable input filtering (0–32 ms) because contact bounce suppression is tunable per channel without affecting SOE resolution, meeting ISA-84 SIS design requirements.
- In SCADA alarm management projects, the 1756-IB16ISOE delivers ISA-18.2-compliant alarm flood reconstruction because the 1 ms timestamp granularity identifies root-cause alarms versus consequential alarms in high-density event storms.
- In automotive press line safety validation, the 1756-IB16ISOE delivers ISO 13849 safety function response time verification because the hardware timestamp provides court-admissible evidence of safety system reaction time independent of HMI or historian clock drift.
Complete System Bill of Materials
The following components form a complete ControlLogix SOE recording system. The 1756-IB16ISOE is the SOE capture layer; all other components are required for a functional, maintainable installation.
- 1756-IB16ISOE – This module. SOE digital input, 16-ch, 24 VDC. Qty: 1 per 16 SOE points.
- 1756-L7x / 1756-L8x Controller – ControlLogix CPU. Hosts SOE ladder/FBD logic and time master configuration. Qty: 1 per chassis.
- 1756-EN2T / 1756-EN2TR – EtherNet/IP communication module. Provides network access for SOE data retrieval and remote monitoring. Qty: 1–2 per chassis (redundant ring for critical applications).
- 1756-PA75 / 1756-PB75 – ControlLogix power supply (120/240 VAC or 24 VDC input). Powers backplane; size per total chassis current draw. Qty: 1 per chassis.
- 1756-A10 / 1756-A17 – ControlLogix chassis (10 or 17 slot). Houses all modules. Qty: 1 per rack.
- 1492-AIFM16-F-5 – Allen-Bradley analog/digital interface module (IFM). Provides screw-terminal field wiring interface for 1756-IB16ISOE RTB. Qty: 1 per SOE module.
- 1756-TBCH / 1756-TBS6H – Removable Terminal Block (RTB). Field wiring termination for 1756-IB16ISOE. Qty: 1 per module.
- 1756-L7SP / 1756-SRM – ControlLogix redundancy module (optional). Required for hot-standby redundant SOE systems in power generation. Qty: 2 (primary + secondary chassis).
- 24 VDC Field Power Supply – Powers field relay contacts wired to SOE inputs. Recommend isolated, regulated supply (e.g., Phoenix Contact QUINT series). Qty: 1 per field panel.
- Surge Protection Devices (SPD) – Field wiring surge arrestors (e.g., Phoenix Contact TT-UKK5-D/24DC). Protects SOE inputs from substation switching transients. Qty: 1 per channel in substation applications.
Compliance & Industry Standards
- UL 508 (Underwriters Laboratories) – Industrial Control Equipment listing. Confirms module safety for North American panel installations; required by NEC Article 409 for industrial machinery.
- CE Marking / EN 61131-2 (European Commission) – Programmable Controller Equipment directive compliance. Required for EU project installations and CE-marked control panel assemblies.
- IEC 61850-5 Class T1 – SOE timestamp accuracy class for substation automation. Confirms 1 ms resolution meets IEC 61850 GOOSE and sampled values time correlation requirements.
- IEEE C37.90 – Standard for Relays and Relay Systems Associated with Electric Power Apparatus. SOE module performance aligns with relay testing and event recording requirements.
- NERC CIP-007-6 – North American Electric Reliability Corporation Critical Infrastructure Protection. SOE event logging supports CIP-007 R4 security event monitoring requirements.
- IEC 61511 / ISA-84 – Functional Safety for SIS. SOE documentation supports management of functional safety (MoFS) audit trails for SIL-rated interlock systems.
- IEC 60068-2-6 / 2-27 – Environmental testing (vibration and shock). Module rated to 2 g vibration and 30 g shock, confirmed by Rockwell Automation environmental qualification testing.
- RoHS / REACH – EU hazardous substance restrictions. Module complies with RoHS Directive 2011/65/EU; relevant for EU procurement and end-of-life disposal compliance.
Quality Assurance & Sourcing
Sourcing Channels: Konmask.com sources the 1756-IB16ISOE exclusively from authorized Allen-Bradley distributors, certified surplus dealers with documented chain-of-custody, and direct OEM decommissioning projects. We do not source from unverified grey-market channels.
4-Step Inspection Process:
- Visual & Physical Inspection: Label authenticity check (hologram, date code, lot number), connector pin condition, housing integrity, and absence of rework indicators.
- Functional Bench Test: Module powered in live 1756 chassis; all 16 SOE channels exercised with calibrated pulse generator; timestamp accuracy verified against GPS-disciplined reference clock.
- Firmware Version Verification: Module firmware confirmed against Rockwell Automation TechConnect compatibility matrix for target controller series (L7x/L8x).
- Documentation Package Assembly: Test report, serial number record, and (where available) original Rockwell Automation certificate of conformance compiled prior to shipment.
Available Documentation: Functional test report · Serial number traceability record · Original manufacturer datasheet · Certificate of conformance (where available) · Export compliance classification (ECCN EAR99)
How to Source This Part
- Submit Your Inquiry: Email support@konmask.com or call +0086 19859288691 with your required quantity, target delivery date, and project site location. Alternatively, add to cart directly for standard stock orders.
- Receive Quotation & Availability Confirmation: Our team responds within 24 hours with stock status, lead time, unit price (HKD/USD), and shipping options. Expedited air freight available for shutdown and outage emergencies.
- Order Confirmation & Global Shipment: Orders confirmed with pro-forma invoice. We ship worldwide via DHL Express, FedEx International Priority, and sea freight for bulk orders. Export documentation (commercial invoice, packing list, COO) provided for all international shipments. Typical transit: 3–7 business days air, 15–30 days sea.
Application-Specific FAQ
Q1: Can the 1756-IB16ISOE be used in a substation protection panel where IEC 61850 GOOSE messaging is required for SOE correlation?
A: Yes. The 1756-IB16ISOE timestamps events at 1 ms resolution on the ControlLogix backplane time master, which can be synchronized to an IEEE 1588 PTP grandmaster clock via the 1756-EN2T module. This allows SOE records to be correlated with IEC 61850 GOOSE event logs from numerical protection relays (e.g., SEL, GE, Siemens) within the same 1 ms accuracy class, satisfying IEC 61850-5 T1 requirements for substation event recording.
Q2: In a power plant emergency shutdown application, how does the 1756-IB16ISOE maintain SOE data integrity if the ControlLogix controller faults during a trip event?
A: The 1756-IB16ISOE stores SOE event records in its own on-board buffer memory, independent of the controller CPU. In the event of a controller fault, power loss, or program fault, the module retains the timestamped event log. Upon controller recovery, the SOE buffer is uploaded and merged into the historian record, ensuring no events are lost during the fault window — a critical requirement for IEC 61511 SIS incident investigation and NERC CIP-007 event log continuity.
Q3: For a refinery reactor interlock system with high contact-bounce from mechanical relay outputs, how should the 1756-IB16ISOE input filter be configured to avoid false SOE events without degrading timestamp accuracy?
A: The 1756-IB16ISOE provides per-channel configurable input filter times from 0 to 32 ms, set in RSLogix 5000 / Studio 5000 module properties. For mechanical relay contacts with typical bounce durations of 1–5 ms, a filter setting of 6–10 ms eliminates bounce-induced false events. Critically, the SOE timestamp is captured at the leading edge of the filtered signal — not at the end of the filter window — so the recorded event time reflects the actual contact closure moment, preserving 1 ms SOE accuracy even with filtering enabled. This behavior is documented in Rockwell Automation Publication 1756-UM058.
