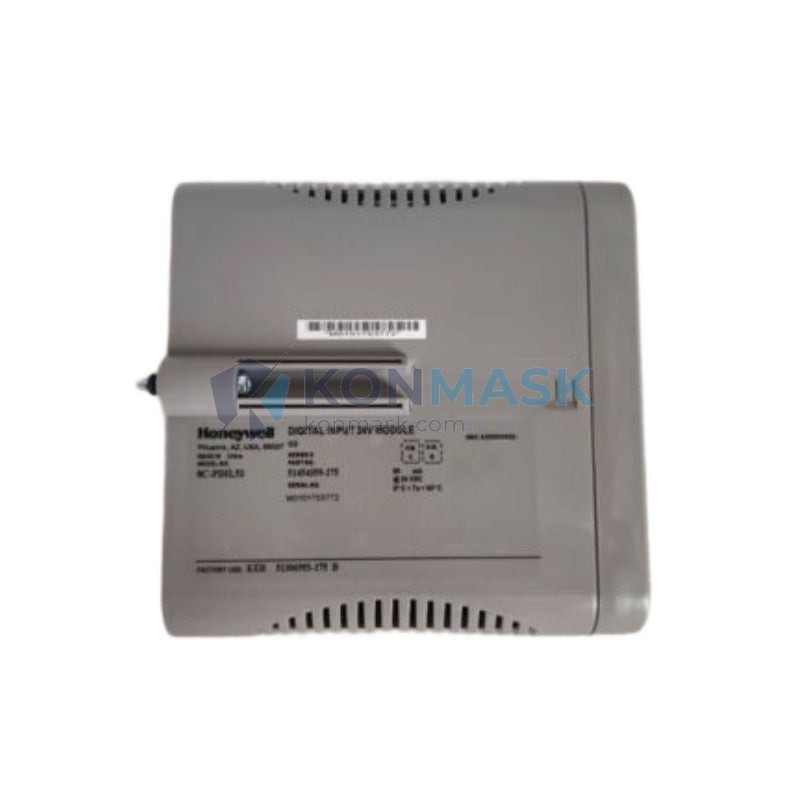

HONEYWELL 8C-PDIL51 51454359-175 — 8-Channel Digital Input Module | Experion PKS C300 Series
Engineering Background: The Honeywell Experion PKS (Process Knowledge System) platform is one of the most widely deployed distributed control systems in continuous-process industries, including refining, petrochemical, power generation, and water/wastewater treatment. Within the Experion PKS architecture, the C300 Controller Series manages real-time process control loops and discrete I/O through a family of Series C I/O modules mounted on the IOTA (I/O Termination Assembly) backplane. The 8C-PDIL51 is a Series C Digital Input module that serves as the primary field-signal acquisition interface between field-mounted discrete devices—limit switches, proximity sensors, relay contacts, valve position feedback—and the C300 controller logic engine. Its role in the architecture is deterministic: without reliable digital input acquisition, the controller cannot execute interlock logic, sequence-of-events recording, or safety-critical shutdown sequences.
Product Positioning: The 8C-PDIL51 (part number 51454359-175) provides 8 isolated digital input channels per module, distinguishing it from the 16-channel variant (8C-PDIL01) where channel density is prioritized over per-channel isolation budget. The -175 revision designator indicates a specific hardware revision level with defined firmware compatibility requirements—substitution with a different revision suffix requires confirmation against the C300 firmware release notes. This module is suited for applications where field wiring runs are long, ground potential differences between field devices and the control cabinet are non-negligible, or where per-channel isolation is mandated by the site electrical classification. It is not a safety-rated SIL module; for SIL 2/3 applications, the Honeywell Safety Manager I/O family applies.
Complete Technical Specifications
Electrical
- Number of Channels: 8 digital input channels
- Input Voltage Range: 24 VDC nominal (18–32 VDC operating range)
- Input Logic Threshold: ON state ≥ 11 VDC; OFF state ≤ 5 VDC
- Input Current (per channel): Approx. 7 mA at 24 VDC
- Channel-to-Channel Isolation: Optically isolated per channel
- Channel-to-Backplane Isolation: 500 VAC (1 min dielectric withstand)
- Input Filter Time: Configurable via Experion PKS Control Builder (1–255 ms)
- Backplane Power Consumption: ≤ 1.5 W (from C300 IOTA backplane)
- Part Number / Revision: 51454359-175
Mechanical
- Form Factor: Series C plug-in module (IOTA-mounted)
- Weight: Approx. 480 g (module only, without IOTA)
- Connector Interface: 40-pin backplane connector to IOTA termination board
- Mounting: Tool-less insertion/extraction with module locking latch
- Dimensions: Per Honeywell Series C I/O mechanical envelope standard
Environmental
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Vibration: IEC 60068-2-6 (operational)
- Shock: IEC 60068-2-27
- Altitude: Up to 2000 m without derating
Certifications
- CE Marking: EMC Directive 2014/30/EU compliant
- UL Listed: UL 508 (Industrial Control Equipment)
- ATEX / IECEx: Not rated for Zone 0/1 (use appropriate barriers for hazardous area field wiring)
- RoHS: Compliant per EU Directive 2011/65/EU
Data source: Honeywell Experion PKS Series C I/O Product Data Sheet (Doc. No. EP-DS-8C-PDIL51), Honeywell Process Solutions. Specifications subject to revision; verify against current Honeywell documentation for safety-critical applications.
Proven Application Environments
- Petroleum Refining — Crude Distillation Unit: Valve position feedback (open/close limit switches) on atmospheric tower overhead condensers; continuous 24/7 operation with ambient temperatures up to 55°C in the MCC room.
- Petrochemical — Ethylene Cracker: Furnace burner management system discrete inputs (flame detector relay contacts, fuel gas isolation valve feedback); high-cycle switching with sub-100 ms response requirements.
- Power Generation — Combined Cycle Gas Turbine: Auxiliary system interlock inputs (lube oil pump run status, cooling water flow switch contacts); redundant C300 controller configuration with module hot-swap capability.
- Water Treatment — Municipal WWTP: Pump run/fault status acquisition across multiple lift stations; long cable runs (up to 300 m) requiring per-channel isolation to reject ground loop noise.
- Pulp & Paper — Recovery Boiler: Emergency shutdown system discrete input acquisition (safety relay dry contacts); integrated with Experion PKS sequence-of-events logging for post-incident analysis.
- Pharmaceutical — Sterile Manufacturing: Clean-in-place (CIP) system valve position monitoring; FDA 21 CFR Part 11 audit trail supported through Experion PKS historian integration.
Engineering Advantages
- For long field cable runs in outdoor substations, this digital input module provides per-channel optical isolation, because ground potential differences between remote field devices and the control room can exceed 50 V, causing false triggering in non-isolated designs.
- For high-availability process units requiring zero-downtime maintenance, this module supports hot-swap insertion and extraction on the C300 IOTA backplane, because the Series C architecture maintains controller scan continuity during module replacement without requiring a controller restart.
- For applications with noisy field environments (VFD-heavy motor control centers), this module’s configurable input filter (1–255 ms) suppresses contact bounce and electrical transients, because software-configurable filtering eliminates the need for external RC filter networks on each input channel.
- For sequence-of-events (SOE) applications in power plant protection systems, this module timestamps discrete input transitions at the Experion PKS controller scan resolution, because deterministic scan execution in the C300 ensures consistent event ordering for post-trip analysis.
- For multi-vendor field device integration, this module accepts standard 24 VDC dry-contact and wet-contact inputs without additional signal conditioning, because the input circuit design accommodates both sourcing and sinking field device configurations.
- For spare parts inventory optimization, this module is interchangeable across all C300 IOTA backplane positions designated for digital input, because the Series C architecture uses software-defined channel assignment rather than hardware address jumpers.
System Architecture & Signal Flow
Signal Flow: Field device (dry/wet contact) → Field terminal block on IOTA termination board → Optical isolator input circuit (per channel) → Digital signal conditioning & filter → Backplane data bus → C300 Controller scan engine → Experion PKS Control Builder logic execution → Operator Station / Historian.
Compatible Hardware:
- C300 Controller (51309288-175 / -225 / -275): Primary host controller; firmware R500.x and above recommended for full feature compatibility with -175 revision modules.
- IOTA Backplane (51454352-175 series): Required termination assembly; the 8C-PDIL51 plugs into any DI-designated slot on the IOTA.
- Control Firewall / ENIM (51309512-175): Ethernet node interface module for FTE (Fault Tolerant Ethernet) network connectivity; no direct dependency but required for redundant controller configurations.
- Experion PKS R500 / R501 / R510: Software platform versions with validated driver support for the -175 hardware revision.
Substitution Conditions: The 8C-PDIL51 51454359-175 may be substituted with the same part number at a higher revision suffix (e.g., -200) provided the site’s Experion PKS firmware version is listed in Honeywell’s compatibility matrix for that revision. Cross-substitution with the 16-channel 8C-PDIL01 is not supported without IOTA backplane reconfiguration and Control Builder I/O assignment changes. Substitution in SIL-rated loops requires re-validation per IEC 61511.
Sourcing & Quality Verification
Units offered through Konmask.com are sourced from decommissioned Honeywell Experion PKS installations, authorized distributor excess inventory, and verified secondary market channels. Each unit undergoes the following 4-step verification process before listing:
- Visual & Physical Inspection: Connector pin integrity, PCB condition, label legibility, revision suffix confirmation, and absence of physical damage or unauthorized repair.
- Functional Power-On Test: Module inserted into a compatible C300 IOTA test bench; backplane communication verified, channel status LEDs confirmed operational, no fault codes generated.
- Firmware / Revision Verification: Hardware revision suffix confirmed against physical label and Honeywell part number database; firmware version read-back where accessible.
- Burn-In & Soak: 48-hour powered soak at ambient temperature to screen for latent component failures prior to shipment.
Documentation available upon request: Test report, high-resolution photographs of all module faces and connectors, revision label close-up, certificate of conformance (CoC), and export compliance documentation (HS code, country of origin declaration).
Procurement Process
- Submit Inquiry: Contact [email protected] or call +0086 19859288691 with your required quantity, target delivery date, and any site-specific revision or firmware requirements. A formal quotation with unit price, lead time, and shipping terms (EXW / CIF / DAP) will be issued within 24 hours.
- Order Confirmation & Pre-Shipment Inspection: Upon purchase order receipt, pre-shipment photographs and test reports are provided for buyer review. Export documentation (commercial invoice, packing list, CoC) is prepared in parallel.
- Shipment & Technical Support: Units are shipped via DHL / FedEx / SF Express with full tracking. Post-delivery technical support is available for installation verification, Control Builder I/O assignment guidance, and compatibility confirmation with the site’s Experion PKS firmware version.
Technical FAQ
Q1: Is the 8C-PDIL51 51454359-175 compatible with Experion PKS R400 series software?
A: Compatibility with R400.x requires verification against Honeywell’s I/O compatibility matrix for the -175 revision suffix. In general, the -175 revision was introduced alongside R500.x; use in R400.x environments should be confirmed with Honeywell technical support or by reviewing the site’s qualified hardware list (QHL) before installation.
Q2: Can the 8C-PDIL51 replace the 8C-PDIL01 (16-channel variant) in an existing installation?
A: Direct slot-for-slot substitution is not supported. The 8C-PDIL01 provides 16 channels per module; replacing it with the 8C-PDIL51 (8 channels) requires IOTA backplane reconfiguration, additional module slots, and Control Builder I/O assignment updates. A site modification assessment is required before proceeding.
Q3: Is this module certified for use in hazardous area (ATEX Zone 1) installations?
A: The 8C-PDIL51 itself is not ATEX/IECEx Zone 1 rated and must be installed in a purged/pressurized enclosure (Ex p) or located in a safe area. Field wiring from Zone 1 devices must pass through certified Zener barriers or galvanic isolators (e.g., MTL, P+F series) before connecting to the module’s IOTA terminal block. This configuration is standard practice in refinery and offshore platform installations using Experion PKS.
