ABB DO810 3BSE008510R1 Digital Output Module | Replacement, Equivalent & Selection Guide

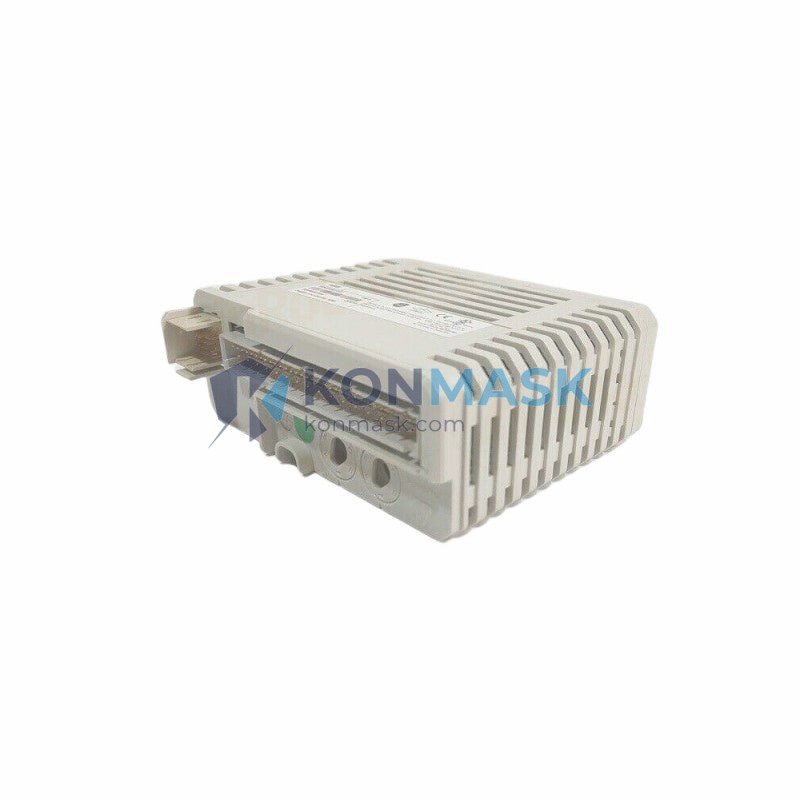

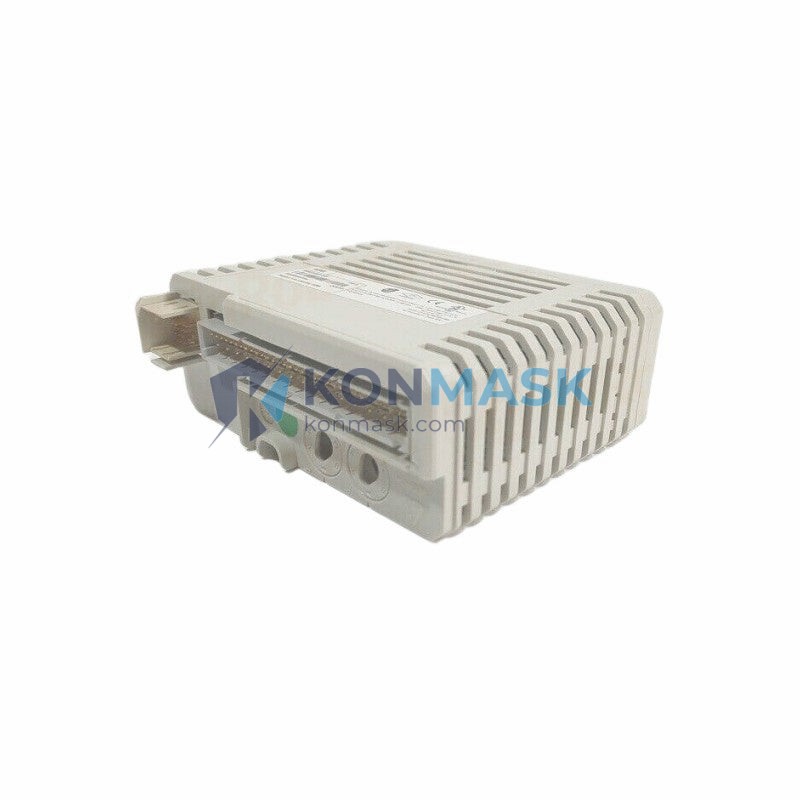

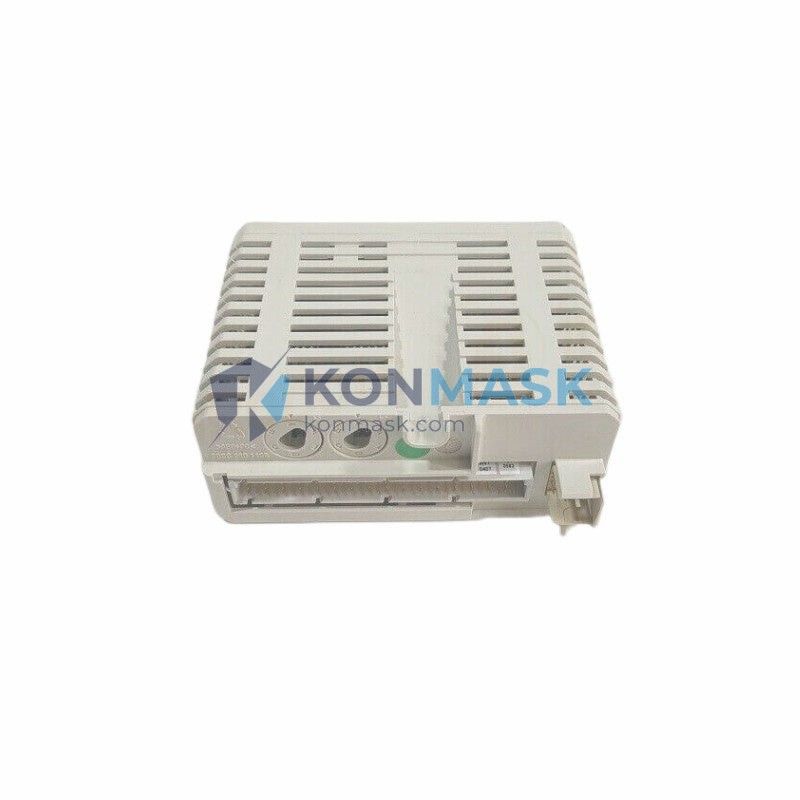

The ABB DO810 (Part No. 3BSE008510R1) is a 24 VDC digital output module designed for use within ABB’s AC800M Distributed Control System (DCS) platform. It provides 16 channels of digital output for controlling field devices such as solenoid valves, relays, and actuators in process automation environments. This page serves as a comprehensive selection, replacement, and compatibility reference for engineers and procurement specialists.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 3BSE008510R1 |
| Model | DO810 |
| Manufacturer | ABB |
| Module Type | Digital Output (DO) |
| Number of Channels | 16 |
| Output Voltage | 24 VDC |
| Output Current (per channel) | 0.5 A max |
| Total Load Current | 4 A max |
| Output Type | Transistor (sourcing) |
| Short-Circuit Protection | Yes (electronic) |
| Isolation | Optocoupler isolated |
| Communication Bus | S800 I/O bus |
| Compatible Controller | AC800M (PM851, PM856, PM860, PM861, PM864, PM866) |
| Mounting | S800 I/O rail / TB820 ModuleBus Modem |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -40 °C to +70 °C |
| Humidity | 5–95% RH (non-condensing) |
| Weight | Approx. 200 g |
| HS Code | 853710 |
| Country of Origin | Sweden |
Compatible Replacement & Equivalent Models
When the DO810 is unavailable or end-of-life, the following models may serve as functional replacements or equivalents. Always verify firmware, bus compatibility, and channel count before substitution.
| Model | Part No. | Channels | Notes |
|---|---|---|---|
| ABB DO810 | 3BSE008510R1 | 16 DO | Original — this listing |
| ABB DO820 | 3BSE008514R1 | 16 DO | Relay output variant; different output type |
| ABB DO840 | 3BSE020836R1 | 16 DO | Extended diagnostics; direct drop-in for most applications |
| ABB DO880 | 3BSE028602R1 | 32 DO | Higher density; requires compatible TB880 terminal base |
| ABB DO810V1 | 3BSE008510R1 (V1) | 16 DO | Earlier hardware revision; functionally equivalent |
Note: Replacement suitability depends on your specific AC800M configuration, firmware version, and terminal base. Contact Konmask for pre-sale compatibility verification.
Why Choose the Original Model
- Guaranteed compatibility with existing AC800M controller configurations and S800 I/O bus topology
- No firmware reconfiguration required — plug-and-play replacement in certified installations
- Proven field reliability in oil & gas, power generation, and chemical process plants
- Full ABB diagnostics support via Control Builder M and System 800xA engineering tools
- Regulatory compliance maintained for SIL-rated and IEC 61511 process safety applications
Typical Applications
- Solenoid valve control in oil & gas upstream and midstream facilities
- Motor starter and relay switching in power plant auxiliary systems
- On/off actuator control in chemical and petrochemical batch processes
- Pump and fan start/stop sequencing in water treatment plants
- Safety interlock output in SIS (Safety Instrumented System) architectures
- Discrete output for conveyor and material handling automation
System Compatibility
- DCS Platform: ABB AC800M (all PM8xx controller variants)
- I/O Bus: S800 I/O bus via TB820 ModuleBus Modem or TB840 (redundant)
- Engineering Tool: ABB Control Builder M, System 800xA
- Redundancy: Supports redundant I/O configurations with appropriate bus modem
- Terminal Base: TB810 (standard) / TB810F (FISCO fieldbus variant)
- Not compatible with: AC800F, AC31, or Freelance DCS platforms without hardware adaptation
Selection Guide
Use the following criteria to confirm the DO810 is the right module for your application:
- Output type needed: Transistor sourcing (24 VDC) → DO810 ✓ | Relay contact → consider DO820
- Channel count: 16 channels sufficient → DO810 ✓ | Need 32 channels → consider DO880
- Diagnostics requirement: Standard → DO810 ✓ | Extended field diagnostics → consider DO840
- Redundancy: Simplex I/O → DO810 ✓ | Redundant I/O → pair with TB840 bus modem
- Load per channel: ≤ 0.5 A per channel and ≤ 4 A total → DO810 ✓
- Environment: Standard industrial (0–55 °C) → DO810 ✓ | Hazardous area → consult ATEX-rated alternatives
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels with full traceability
- Each module undergoes visual inspection, functional bench test, and firmware version verification prior to shipment
- Anti-static packaging with humidity indicator cards for safe international transit
- Certificates of conformity and test reports available upon request
- Konmask maintains a no-counterfeit policy — all ABB modules are verified against ABB’s serial number database where applicable
How to Order
- Confirm your AC800M controller model and current firmware version
- Verify terminal base type (TB810 or TB840) already installed in your cabinet
- Specify quantity and required delivery timeline
- Contact Konmask via email or phone for a formal quotation with lead time
- For urgent replacement needs, ask about our express stock availability
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can the DO810 replace a DO840 directly?
A: In most cases yes, as both use the same S800 bus and terminal base footprint. However, DO840 offers extended diagnostics that DO810 does not provide. Verify your Control Builder M configuration before swapping.
Q: Is the DO810 still in production?
A: ABB has transitioned newer projects to the DO840 series. DO810 units are available as new-old-stock (NOS) or refurbished. Konmask maintains stock for MRO and emergency replacement purposes.
Q: What terminal base does the DO810 require?
A: The DO810 mounts on the TB810 terminal base (standard) or TB810F (FISCO). It is not compatible with TB820 directly — TB820 is the ModuleBus Modem, not a terminal base.
Q: Can I use the DO810 in a SIL 2 safety loop?
A: The DO810 is not independently SIL-certified. For SIL-rated applications, consult ABB’s safety I/O portfolio (e.g., DO890 series) or your functional safety engineer.
Q: What is the difference between 3BSE008510R1 and other DO810 part numbers?
A: 3BSE008510R1 is the standard commercial part number for the DO810. Suffix variations (R2, etc.) typically denote hardware revision updates with backward compatibility. Always confirm with ABB documentation for your specific revision.
