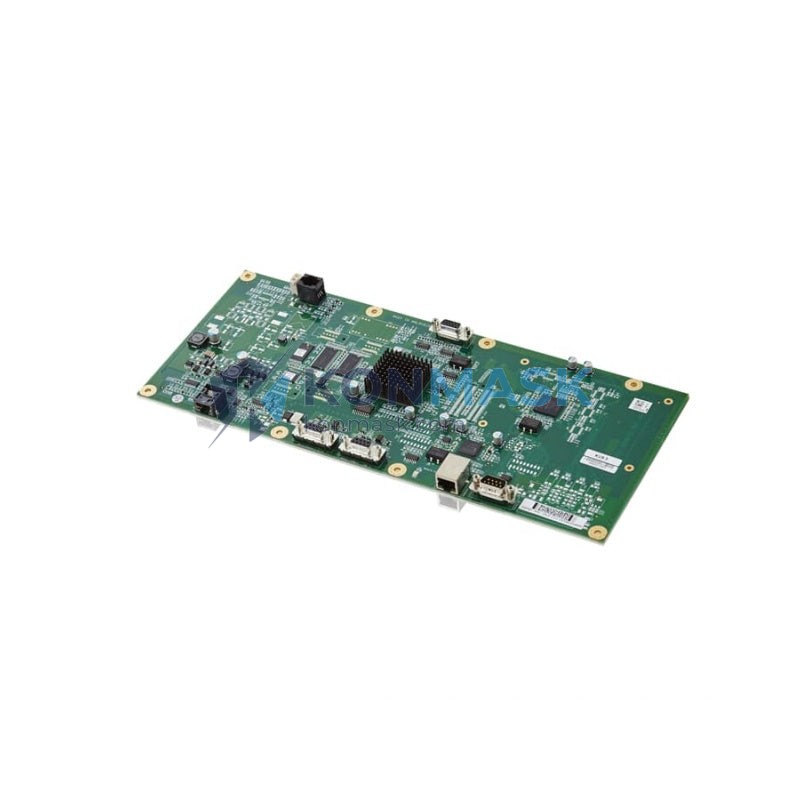

ABB DSQC1015 (3HAC043521-001) – Integrated Safety Control Module | IRC5 Robot Controller Platform
Engineering Background: The DSQC1015 is ABB’s dedicated safety processing module engineered for the IRC5 single-cabinet and dual-cabinet robot controller family. It consolidates emergency stop logic, safety-rated I/O monitoring, and dual-channel watchdog supervision into a single DIN-rail-mounted unit, replacing the legacy DSQC400/DSQC643 safety board architecture introduced with IRC5 Gen 2.
Product Positioning: Designed for system integrators and OEM machine builders who require IEC 62061 / ISO 13849-1 PLd-compliant safety architecture without external safety relays. The DSQC1015 is the factory-fitted safety module on IRB 1200, IRB 2600, IRB 4600, IRB 6700, and IRB 7600 series robots manufactured from 2013 onward. Cross-reference part numbers: 3HAC043521-001 (primary), 3HAC048858-001 (revision B), 3HNP03854-1 (spare part kit reference).
Complete Technical Specifications
- Manufacturer: ABB Robotics (Sweden)
- Part Number: 3HAC043521-001
- Cross-Reference: 3HAC048858-001 / 3HNP03854-1 / DSQC1015
- Module Series: DSQC1015
- Platform Compatibility: ABB IRC5 Single Cabinet / Dual Cabinet / Paint Controller
- Safety Rating: PLd / Category 3 (ISO 13849-1), SIL 2 (IEC 62061)
- Supply Voltage: 24 V DC (±15%), supplied via IRC5 internal backplane
- Safety I/O: Dual-channel emergency stop inputs, enabling device inputs, safety output relays
- Communication Interface: Internal DeviceNet / EtherNet/IP via IRC5 backplane connector
- Watchdog: Dual-channel hardware watchdog with cross-monitoring
- Operating Temperature: 0 °C to +52 °C (ambient, forced-air cooled cabinet)
- Storage Temperature: −25 °C to +70 °C
- Humidity: 5–95% RH, non-condensing
- Weight: 420 g
- Mounting: DIN rail / IRC5 controller card cage slot
- Firmware: Compatible with RobotWare 5.14 and later; RobotWare 6.x fully supported
- Certifications: CE, UL, cUL, RoHS compliant
Proven Application Environments
- Automotive body-in-white welding cells (spot welding, MIG/MAG)
- Palletizing and material handling lines with collaborative fencing
- Painting and coating booths (IRC5 Paint Controller variant)
- Machine tending with safety-rated door interlocks
- Press-tending and die-casting with two-hand control integration
- Semiconductor and electronics assembly (cleanroom IRC5 configurations)
- Food and beverage packaging lines requiring washdown-rated perimeter guarding
Engineering Advantages
- Drop-in Replacement: Plug-and-play swap for failed DSQC1015 units — no RobotWare re-licensing required when replacing like-for-like revision.
- Consolidated Safety Architecture: Eliminates external safety relay modules by integrating E-stop, enabling device, and mode-selector logic on a single board.
- Dual-Channel Redundancy: Independent processing paths ensure PLd / SIL 2 integrity even under single-point hardware fault conditions.
- Firmware Backward Compatibility: Supports RobotWare 5.14+ through RobotWare 6.15, covering the full IRC5 installed base.
- Reduced Downtime: Hot-swap capable after controller power-down; typical replacement time under 20 minutes by a qualified technician.
- Genuine ABB Component: Sourced from authorized ABB distribution channels with full traceability documentation available on request.
System Architecture & Signal Flow
Within the IRC5 controller, the DSQC1015 occupies the dedicated safety slot on the main computer unit (MCU) backplane. On power-up, the module performs a self-test sequence and handshakes with the IRC5 main computer (DSQC1000/DSQC1024) via the internal safety bus. Emergency stop chains (X1/X2 connectors) are routed through dual-channel optocoupler inputs; the module’s output relays de-energize the drive system contactor within ≤20 ms of an E-stop event. The enabling device input (3-position) is monitored independently on a separate channel to prevent single-fault bypass. All safety state transitions are logged to the IRC5 event log for audit traceability.
Sourcing & Quality Verification
- Origin: Genuine ABB production, manufactured in Sweden
- Condition: New surplus / refurbished units available — condition specified at order confirmation
- Inspection: Each unit undergoes functional power-on test, safety I/O channel verification, and visual inspection before shipment
- Traceability: Serial number and date code recorded; ABB factory test report available for new units
- Packaging: ESD-safe anti-static bag, foam-lined carton, humidity indicator card
- Warranty: 12-month warranty against manufacturing defects; DOA replacement within 7 business days
Procurement Process
- Submit your inquiry via support@konmask.com or WhatsApp +0086 19859288691 with your robot serial number and RobotWare version.
- Receive stock confirmation, condition report, and proforma invoice within 1 business day.
- Payment via T/T, PayPal, or credit card (Shopify Payments).
- Shipment via DHL Express / FedEx International Priority — typical transit 3–7 business days worldwide.
- Tracking number and commercial invoice provided same day as dispatch.
Technical FAQ
Q: Is 3HAC043521-001 the same as 3HAC048858-001?
A: Yes. 3HAC048858-001 is the revision B part number for the same DSQC1015 module. Both are functionally and mechanically interchangeable in IRC5 controllers.
Q: Can I use DSQC1015 with RobotWare 6.x?
A: Yes. DSQC1015 is fully supported under RobotWare 6.x including the SafeMove2 option. No hardware modification is required.
Q: What causes DSQC1015 failure?
A: Common failure modes include E-stop relay contact wear (high-cycle applications), ESD damage from improper handling during maintenance, and firmware corruption from unclean power cycles. Always power down the controller before replacing the module.
Q: Do I need to reconfigure safety parameters after replacement?
A: Safety configuration (SafeMove, speed limits, zone definitions) is stored on the IRC5 main computer, not on the DSQC1015. A replacement module will load the existing configuration automatically on first boot.
Q: What is the lead time for new units?
A: In-stock units ship within 1–2 business days. For new factory-order units, lead time is typically 4–8 weeks. Contact us for current stock status.
