ABB DSQC1032 (3HAC058665-001) Additional Analog I/O Board | Replacement, Equivalent & Selection Guide

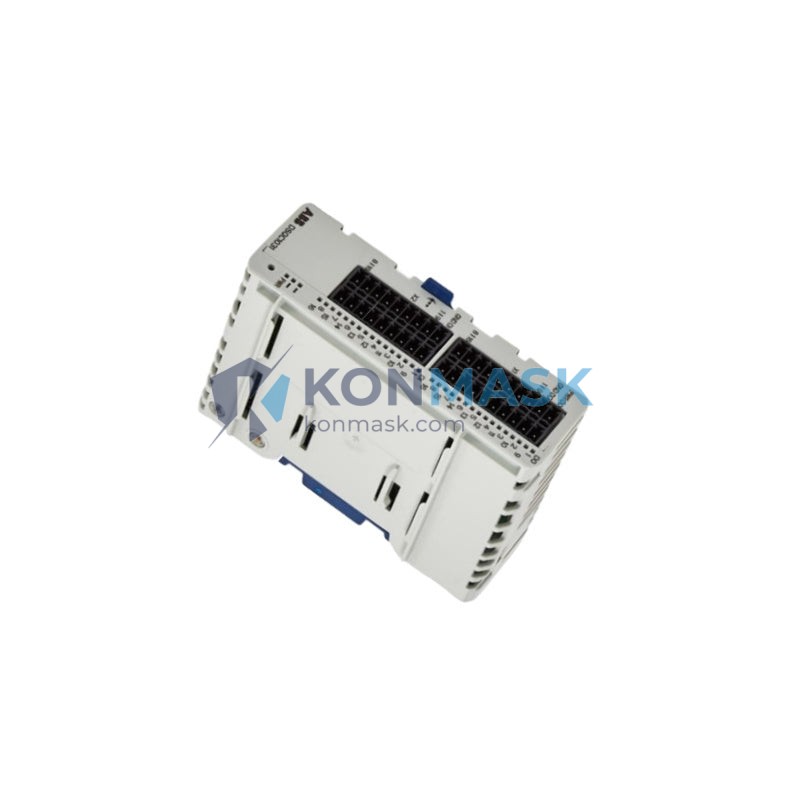

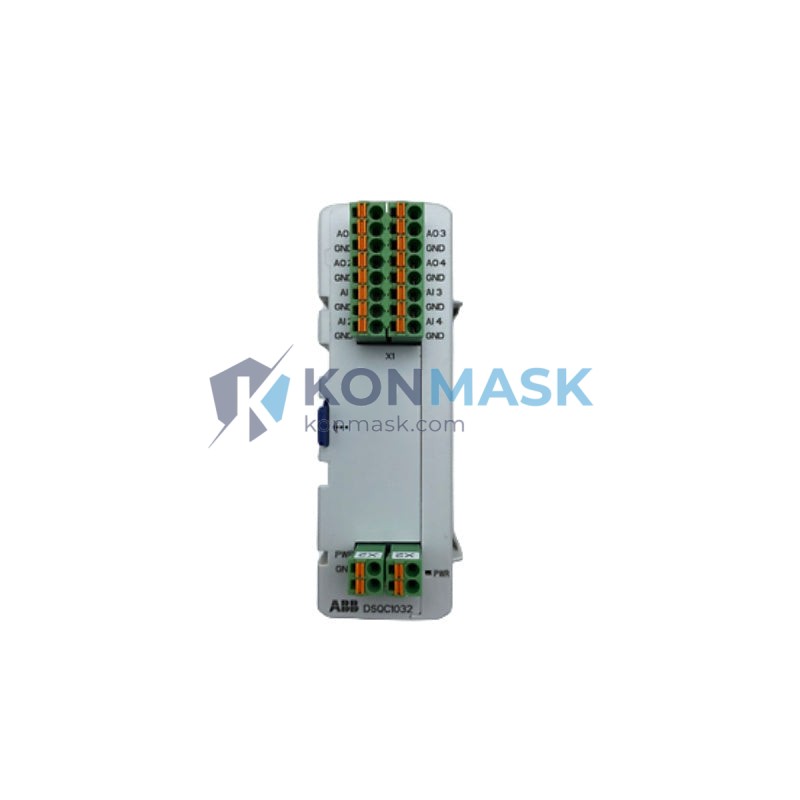

The ABB DSQC1032 (Part No. 3HAC058665-001) is an Additional Analog I/O Board designed for ABB IRC5 robot controllers. It expands analog signal capacity for precision motion control, process automation, and multi-axis robotic systems. This page provides full technical specifications, compatible replacement models, and a structured selection guide to help engineers and procurement teams make informed sourcing decisions.
Technical Specifications
- Manufacturer: ABB Robotics
- Part Number: 3HAC058665-001
- Model / SKU: DSQC1032
- Series: DSQC IRC5 I/O Module Series
- Module Type: Additional Analog I/O Board
- Compatible Controller: ABB IRC5 (Single Cabinet, Dual Cabinet, Panel Mounted)
- Analog Inputs: Multiple differential analog input channels
- Analog Outputs: Multiple analog output channels
- Signal Range: ±10 V / 0–20 mA (configurable)
- Communication Interface: Internal IRC5 backplane bus
- Weight: Approx. 900 g
- Operating Temperature: 0°C to +55°C
- Compliance: CE, RoHS
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the DSQC1032. Always verify firmware version and IRC5 cabinet revision before substitution:
- ABB DSQC1032 (3HAC058665-001) — Original OEM module (this listing)
- ABB DSQC652 (3HAC025917-001) — Earlier-generation analog I/O board; compatible with older IRC5 revisions
- ABB DSQC355A — Analog I/O expansion for S4C+ controllers; not directly interchangeable but functionally similar
- Third-party analog I/O boards — Must match backplane connector pinout, voltage range, and RobotWare I/O configuration parameters
Note: Konmask.com recommends using original ABB parts for safety-critical robotic applications. Contact our team for cross-reference verification.
Why Choose the Original DSQC1032
- Factory-calibrated analog channels ensure measurement accuracy within ABB RobotWare specifications
- Full compatibility with ABB IRC5 SafeMove and FlexPendant diagnostics
- Plug-and-play installation — no additional firmware patching required
- Backed by ABB’s global service network and spare parts warranty
- Traceable serial number for maintenance records and audit compliance
Typical Applications
- Welding robots requiring precise torch current/voltage feedback
- Painting and dispensing robots with analog flow control
- Assembly lines using force/torque analog sensors
- Machine tending cells with analog conveyor speed integration
- Palletizing systems with analog weight or position feedback
System Compatibility
- Controller: ABB IRC5 (all variants — M2004, M2010, M2016)
- RobotWare Version: 5.x / 6.x (verify with ABB release notes)
- Robot Models: IRB 120, IRB 1200, IRB 2600, IRB 4600, IRB 6700, IRB 7600 and other IRC5-based robots
- Not Compatible With: S4C+ controllers, IRC5 Compact (verify slot availability)
Selection Guide
Use the following criteria to determine if the DSQC1032 is the right module for your application:
- Step 1 — Identify your controller: Confirm your cabinet is IRC5 (not S4C+ or IRC5 Compact without expansion slots)
- Step 2 — Count existing I/O: Check current analog channel usage in RobotStudio or FlexPendant I/O configuration
- Step 3 — Verify slot availability: The DSQC1032 requires a free I/O slot in the IRC5 cabinet
- Step 4 — Check RobotWare version: Ensure your RobotWare version supports the DSQC1032 I/O board driver
- Step 5 — Confirm signal type: Match your sensor/actuator signal range (±10 V or 0–20 mA) to the board’s configurable channels
Quality Assurance & Sourcing
- All units sourced from authorized ABB distributors or verified surplus channels
- Pre-shipment functional inspection and visual check performed
- Original packaging and documentation preserved where available
- Traceability documentation available upon request for MRO and OEM customers
- Export compliance reviewed for international shipments
How to Order
- Online: Add to cart directly on this page — stock availability shown in real time
- Email: Send your PO or RFQ to support@konmask.com
- Phone / WhatsApp: +0086 19859288691
- Lead Time: In-stock orders ship within 1–3 business days; sourced orders 5–15 business days
- MOQ: 1 unit
Replacement & Compatibility FAQ
Q: Can the DSQC1032 replace a DSQC652?
A: They serve similar analog I/O functions but have different part numbers and connector layouts. A direct swap requires verification of backplane compatibility and RobotWare I/O configuration. Contact us for a detailed cross-reference check.
Q: Is the DSQC1032 compatible with IRC5 Compact controllers?
A: IRC5 Compact has limited expansion slots. Verify available slots in your specific cabinet revision before ordering.
Q: Do you supply refurbished units?
A: We supply both new OEM and tested refurbished units. Condition is clearly stated on each listing. Refurbished units include a 90-day functional warranty.
Q: Can I get a datasheet or wiring diagram?
A: Yes — contact support@konmask.com with your order reference or inquiry, and we will provide available technical documentation.
Q: What is the return policy?
A: We accept returns within 30 days for unused, uninstalled items in original condition. Please review our full returns policy on the website.
