Industrial Robot Servo Control Solution – ABB DSQC546A | IRC5 Series
Where This Product Is Used

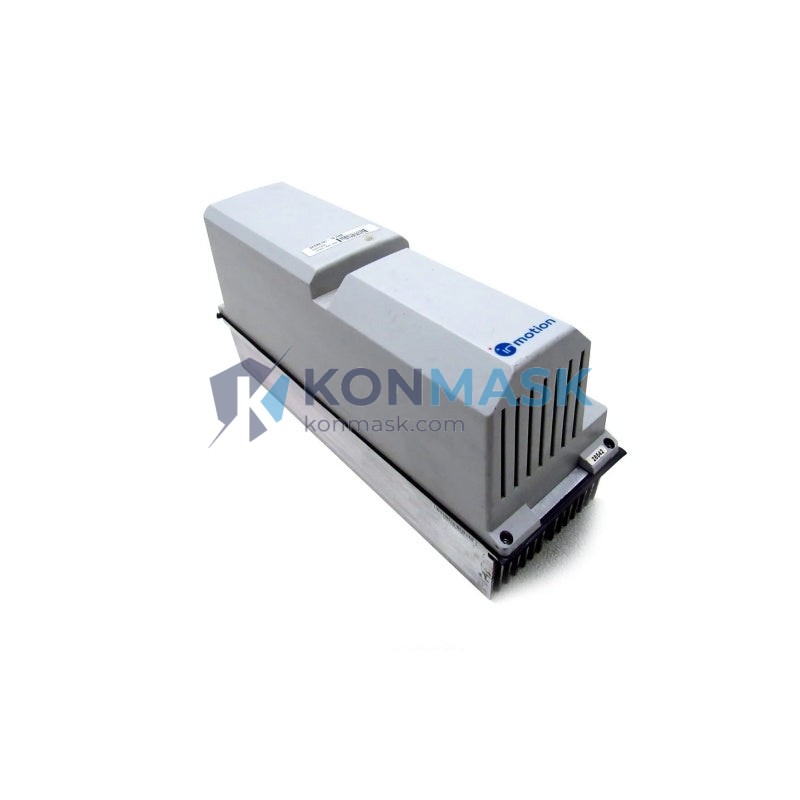

The ABB DSQC546A AC Servo Drive Unit (part numbers 3HAB8101-18/09A and 3HAB8101-18/09B) is a core axis drive module deployed inside ABB IRC5 robot controller cabinets. It is found in high-demand industrial environments including:
- Automotive body-in-white welding lines – powering 6-axis articulated robots for spot and arc welding
- Automotive paint shops – servo control for painting robots requiring precise, repeatable motion
- Electronics assembly & PCB handling – high-speed pick-and-place with sub-millimeter accuracy
- Metal fabrication & press tending – heavy-load servo axis control for press-feeding robots
- Palletizing & material handling – coordinated multi-axis motion in logistics and warehousing
- Foundry & die casting – servo drives operating in high-temperature, high-vibration environments
- Food & beverage packaging – hygienic-zone robots requiring reliable servo axis modules
Technical Specifications
| Manufacturer | ABB Robotics |
| Part Number (Primary) | DSQC546A |
| Reference Numbers | 3HAB8101-18/09A | 3HAB8101-18/09B |
| Series / Platform | IRC5 Robot Controller |
| Module Type | AC Servo Drive Unit (Axis Drive Board) |
| Compatible Controllers | IRC5 Single Cabinet, IRC5 Dual Cabinet, IRC5 Panel Mounted Controller |
| Compatible Robot Families | IRB 140, IRB 1600, IRB 2400, IRB 4400, IRB 6600, IRB 6640, IRB 7600 and other IRC5-based models |
| Drive Technology | AC Servo (IGBT-based PWM) |
| Weight | Approx. 1.45 kg |
| Condition Available | New OEM / Refurbished / Tested Used |
Why Engineers Specify This Model
- OEM-matched performance – Designed specifically for ABB IRC5 architecture; no firmware tuning or compatibility workarounds required
- Dual part-number coverage – DSQC546A covers both /09A and /09B revisions, simplifying procurement across mixed-revision fleets
- Proven field reliability – Widely deployed in Tier-1 automotive plants with multi-shift, 24/7 duty cycles
- Hot-swap capable – Designed for rapid in-cabinet replacement to minimize robot downtime
- Integrated protection – Over-current, over-temperature, and short-circuit protection built into the drive module
- Long service life – Robust IGBT power stage rated for continuous industrial duty
Complete System Bill of Materials
The DSQC546A is typically specified alongside the following IRC5 controller components:
- DSQC508 – Axis Computer Board
- DSQC532 / DSQC533 – I/O Module
- DSQC609 – Power Supply Unit
- DSQC679 – FlexPendant (Teach Pendant)
- DSQC662 – Fieldbus Adapter (DeviceNet / PROFIBUS)
- 3HAC026253-001 – IRC5 Main Computer (M2004)
- Servo motor cables & resolver feedback harnesses (robot-model specific)
Compliance & Industry Standards
- CE Marked – Compliant with EU Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU
- RoHS Compliant – Restriction of Hazardous Substances per EU Directive 2011/65/EU
- ISO 10218-1 – Industrial robots safety requirements (controller-level compliance)
- UL / cUL Listed – Applicable to OEM units shipped to North American markets
- IEC 61800-3 – Adjustable speed electrical power drive systems, EMC requirements
Quality Assurance & Sourcing
Every DSQC546A unit offered by Konmask.com undergoes the following before shipment:
- Visual inspection for physical damage, burnt components, and connector integrity
- Power-on functional test under simulated IRC5 load conditions
- Firmware version verification against ABB release notes
- ESD-safe packaging with anti-static foam and moisture barrier bag
- Serialized traceability record retained for warranty and audit purposes
Units are sourced from decommissioned OEM production lines, authorized ABB service partners, and certified industrial surplus channels. We do not sell counterfeit or uncertified parts.
How to Source This Part
To request a quote or confirm stock availability for the ABB DSQC546A:
- Email: support@konmask.com
- Phone / WhatsApp: +0086 19859288691
- Website: https://konmask.com
- Provide your robot model, controller serial number, and required quantity for fastest response
- Bulk orders and MRO standing agreements available
- Express worldwide shipping via DHL / FedEx / UPS with export documentation support
Application-Specific FAQ
Q: Is DSQC546A compatible with both /09A and /09B hardware revisions?
A: Yes. The DSQC546A part number covers both the /09A and /09B board revisions. Both are functionally interchangeable within the IRC5 controller platform.
Q: Can this drive unit be used in an IRC5 Compact controller?
A: The DSQC546A is designed for standard IRC5 cabinet configurations. Compatibility with IRC5 Compact should be verified against your specific robot model’s spare parts manual (ABB document 3HAC021313-001).
Q: What causes DSQC546A failure in the field?
A: Common failure modes include IGBT degradation from sustained overload, capacitor aging in high-temperature environments, and connector corrosion in foundry or paint-shop applications. Fault codes 50001–50099 in RobotStudio typically indicate axis drive faults.
Q: Do you provide a warranty?
A: Yes. All tested and refurbished units carry a 90-day functional warranty. New OEM units carry the standard ABB warranty. Contact us for full warranty terms.
Q: Can you supply multiple units for a fleet replacement project?
A: Yes. We support MRO bulk orders and can source multiple units. Contact us with your quantity and delivery timeline.
