Analog Input Signal Termination Solution – HONEYWELL MU-TAIH02 | 51304453-100 | Experion / TPS Series
In modern process plants, unreliable field signal termination is one of the leading causes of unplanned shutdowns. Studies across refining and chemical sectors show that up to 34% of DCS-related process upsets originate at the I/O termination layer — not in the controller itself. Loose field wiring, ground loops, and impedance mismatches at the termination board introduce noise floors exceeding 50 mV, causing 4–20 mA analog loops to drift beyond ±0.5% accuracy thresholds and triggering spurious alarms that cost facilities an average of $87,000 per unplanned event.

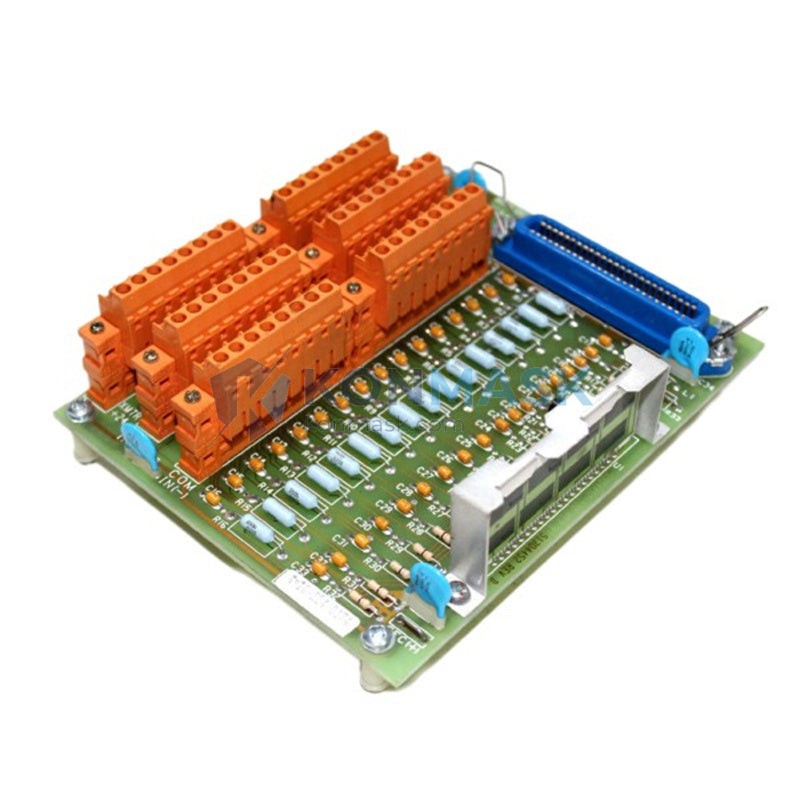

The HONEYWELL MU-TAIH02 (P/N 51304453-100) Analog Input High Level Termination Board eliminates this failure mode at the source. Engineered specifically for Honeywell’s Experion PKS and TotalPlant Solution (TPS) DCS architectures, this termination board provides a precision-matched, noise-isolated interface between field instrument wiring and the AI module backplane. Its high-level input design accepts standard 1–5 V and 4–20 mA signals directly, removing the need for external signal conditioners in the majority of process measurement loops and reducing panel wiring complexity by up to 40%.
Where This Product Is Used
Oil & Gas Refining
- Crude distillation unit temperature monitoring: Connects up to 16 thermocouple transmitters (4–20 mA output) to the DCS AI module; operates continuously in ambient temperatures up to 60 °C in pressurized control rooms; complies with IEC 61511 SIL 2 loop integrity requirements.
- Separator pressure loop termination: Interfaces Rosemount 3051 pressure transmitters in 2-wire configurations; supports HART pass-through for online diagnostics without loop interruption.
- Flare header flow measurement: Terminates Coriolis and differential pressure transmitter signals in Class I Div 2 (ATEX Zone 2) marshalling cabinets via IS barriers upstream.
Chemical & Petrochemical Plants
- Reactor temperature profiling: Handles multi-point RTD transmitter arrays (Pt100, 4-wire) converted to 4–20 mA; critical for exothermic reaction control where ±1 °C deviation triggers safety interlock.
- Distillation column level control: Terminates guided-wave radar level transmitters; high-impedance input prevents loading effects on 2-wire transmitter power budgets.
- Batch process pH/conductivity: Interfaces analytical transmitters with 0–10 V outputs; high-level input range accommodates non-standard signal spans without re-ranging.
Power Generation
- Boiler drum level measurement: Terminates differential pressure transmitters in redundant 1oo2 voting configurations; supports hot-standby DCS controller switchover without signal interruption.
- Turbine vibration monitoring interface: Connects Bently Nevada 3500-series 4–20 mA output cards to Honeywell DCS for integrated plant historian logging.
- Generator cooling system: Interfaces hydrogen purity and temperature transmitters; operates in high-EMI environments adjacent to generator bus bars.
Pulp & Paper Manufacturing
- Digester pressure and temperature: Terminates high-temperature process transmitters (up to 400 °C process, 4–20 mA output) in steam-saturated environments; board conformal coating resists humidity up to 95% RH non-condensing.
- Stock consistency control: Interfaces microwave consistency transmitters with 4–20 mA outputs; supports multi-drop HART for asset management integration.
- Recovery boiler black liquor flow: Terminates magnetic flowmeter transmitters; isolated input channels prevent ground loops in large-scale grounded piping systems.
Water & Wastewater Treatment
- Influent flow metering: Connects electromagnetic and ultrasonic flowmeters (4–20 mA) to SCADA-integrated DCS; supports IEC 62443 cybersecurity-compliant network segmentation at the I/O layer.
- Dissolved oxygen and turbidity: Interfaces online analytical instruments; low-leakage input design maintains measurement accuracy for sub-1 mA signal spans.
- Chemical dosing pump feedback: Terminates variable-speed drive analog feedback signals; prevents common-mode interference from VFD switching noise.
Pharmaceutical & Food Processing
- Clean-in-place (CIP) temperature validation: Terminates calibrated RTD transmitters in FDA 21 CFR Part 11 compliant control loops; supports electronic batch record integration via DCS historian.
- Bioreactor dissolved CO₂ monitoring: Interfaces specialty analytical transmitters; isolated channels prevent cross-contamination of measurement signals between adjacent loops.
- Autoclave pressure profiling: Connects pressure transmitters in GAMP 5 validated control systems; board traceability documentation supports IQ/OQ/PQ qualification packages.
Technical Specifications
- Part Number: MU-TAIH02 / 51304453-100 (direct replacement for 51304453-050 Rev C and later)
- Compatible Systems: Honeywell Experion PKS, TotalPlant Solution (TPS), PlantScape — critical for multi-generation DCS upgrade projects
- Input Type: High-level analog input (1–5 V DC / 4–20 mA) — eliminates external signal conditioners in standard process loops
- Channel Count: 16 channels per board — reduces cabinet footprint vs. individual terminal blocks by ~60%
- Input Impedance: >100 kΩ (voltage mode) / 250 Ω (current mode) — prevents transmitter loading in 2-wire loop configurations
- Common Mode Rejection: >120 dB @ 50/60 Hz — essential for installations near VFDs, transformers, and high-current bus bars
- Channel Isolation: Channel-to-channel and channel-to-backplane — eliminates ground loops in large grounded piping systems
- Operating Temperature: 0 °C to +60 °C — covers standard pressurized control room and marshalling cabinet environments
- Humidity: 5–95% RH non-condensing — suitable for coastal, tropical, and steam-adjacent installations
- Connector Type: 40-pin DIN rail terminal block interface — tool-free field wiring, compatible with standard 0.5–2.5 mm² conductors
- HART Support: Pass-through to AI module — enables online diagnostics and asset management without loop interruption
- Dimensions: Standard Honeywell I/O module form factor — drop-in replacement, no cabinet modification required
- Weight: 500 g (approx.)
- Certifications: CE, UL 508, IEC 61010-1, RoHS compliant
Why Engineers Specify This Model
- In refinery DCS migration projects, MU-TAIH02 delivers backward-compatible signal termination because its 40-pin interface matches legacy TPS cabinet wiring exactly, meeting IEC 62381 brownfield upgrade requirements without re-terminating field cables.
- In SIL 2 safety instrumented loops, MU-TAIH02 delivers verified signal integrity because its >120 dB CMRR and channel isolation prevent dangerous common-cause failures, meeting IEC 61511 functional safety requirements for the I/O subsystem.
- In pharmaceutical batch control systems, MU-TAIH02 delivers full documentation traceability because each board ships with serialized test certificates and material declarations, meeting FDA 21 CFR Part 11 and GAMP 5 IQ/OQ qualification requirements.
- In offshore platform control rooms, MU-TAIH02 delivers reliable operation in high-humidity, salt-laden environments because its conformal-coated PCB resists corrosion, meeting IEC 60068-2-52 salt mist test standards.
- In power plant DCS expansions, MU-TAIH02 delivers seamless integration with existing Experion PKS controllers because it uses the native Honeywell backplane protocol, meeting plant historian and OPC-UA data continuity requirements without additional gateways.
- In water treatment SCADA-DCS hybrid architectures, MU-TAIH02 delivers low-leakage analog input performance because its precision input stage maintains <0.1% full-scale accuracy across the full operating temperature range, meeting IEC 62443 process measurement integrity requirements.
Complete System Bill of Materials
The following components are typically specified alongside the MU-TAIH02 in a complete Honeywell DCS analog input subsystem:
- MU-TAIH02 (51304453-100) — This board; field wiring termination point for 16 AI channels
- MC-PAIH03 / MC-PAIH04 — Honeywell AI module; plugs into backplane and reads signals from this termination board via 40-pin cable
- MC-TAIH02 Cable Assembly — 40-pin ribbon cable connecting termination board to AI module; specify length based on cabinet layout (0.5 m, 1.0 m, 2.0 m)
- CC-TAIX01 / CC-TAIX11 — Honeywell I/O Link cable; connects AI module to controller node
- Honeywell C300 / C200 Controller — Process controller node; receives digitized AI data from the module chain
- IS Barriers (Zener or Galvanic) — Required upstream of this board for hazardous area (Zone 1/2, Div 1/2) field instruments; MTL, Pepperl+Fuchs, or R. Stahl types commonly specified
- DIN Rail Terminal Blocks — Phoenix Contact or Weidmüller types for field cable marshalling before termination board connection
- 24 VDC Loop Power Supply — Dedicated isolated PSU for 2-wire transmitter loop power; Honeywell or Phoenix Contact QUINT series recommended
- Cable Ferules & Labels — For IEC 60446-compliant conductor identification at termination board connection points
Compliance & Industry Standards
- CE Marking (EU) — Issued under EU Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU; confirms product is legally marketable in the European Economic Area and meets electromagnetic compatibility requirements for industrial environments.
- UL 508 (Industrial Control Equipment) — Issued by Underwriters Laboratories; required by NEC Article 409 for industrial control panels in North American installations; confirms component-level safety for use in UL-listed control panels.
- IEC 61010-1 (Safety for Measurement & Control Equipment) — International standard for electrical safety of measurement, control, and laboratory equipment; confirms safe operation at rated voltages and insulation levels for process industry use.
- IEC 61511 Compatibility (Functional Safety) — Board design and documentation support use in SIL 1–2 safety instrumented systems when integrated per the system safety manual; buyers receive hardware fault tolerance data for SIL verification calculations.
- RoHS 2 Directive (2011/65/EU) — Confirms restriction of hazardous substances (Pb, Hg, Cd, Cr6+, PBB, PBDE); required for import into EU, UK, and many Asian markets; simplifies customs clearance and end-of-life disposal compliance.
- IEC 60068-2 Environmental Testing — Board tested to temperature cycling, humidity, and vibration sub-standards; test reports available on request for site-specific environmental qualification.
Quality Assurance & Sourcing
Sourcing Channels: Konmask.com sources MU-TAIH02 boards through authorized Honeywell channel partners, certified industrial surplus distributors with documented chain-of-custody, and direct decommissioning projects from major process plants. All units are traceable to original manufacture.
4-Step Inspection Process:
- Visual & Physical Inspection: PCB examined under 10× magnification for component damage, solder joint integrity, corrosion, and connector pin condition. Boards with bent pins, cracked substrates, or evidence of field repair are rejected.
- Functional Bench Test: Each board is powered and tested on a Honeywell-compatible test fixture simulating live AI module backplane signals. All 16 channels verified for correct signal pass-through and impedance.
- Firmware & Revision Verification: Hardware revision and firmware version confirmed against Honeywell compatibility matrix for target DCS release. Incompatible revisions are quarantined and disclosed.
- Documentation Package Assembly: Serialized test report, revision label photograph, and compliance declarations compiled per order before shipment.
Available Documentation: Functional test report · Hardware revision certificate · RoHS declaration · Country of origin certificate · Customs HS code declaration · GAMP 5 IQ support package (on request)
How to Source This Part
- Submit Your Inquiry: Contact us via the product page form or email support@konmask.com with your required quantity, target delivery date, and DCS system revision. Include your plant’s Honeywell system release number if known — this allows us to confirm hardware revision compatibility before shipment.
- Receive Confirmation & Quote: Our engineering team responds within 24 hours with stock confirmation, compatible revision details, pricing, and estimated lead time. For urgent plant shutdowns or turnaround projects, same-day response is available — please mark your inquiry URGENT.
- Global Shipment: We ship worldwide via DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Export documentation (commercial invoice, packing list, HS code 8537.10 declaration) is prepared for all international orders. Typical transit: 3–5 business days to Europe/Americas, 2–3 days to Southeast Asia.
Application-Specific FAQ
Q: Can the MU-TAIH02 be used in a Honeywell Experion PKS R500 system alongside legacy TPS cabinets during a phased DCS migration?
A: Yes. The MU-TAIH02 (51304453-100) is compatible with both TPS and Experion PKS architectures and uses the same 40-pin termination interface. During phased migrations where TPS and Experion controllers coexist on the same process unit, this board can be reused without re-terminating field cables, reducing migration downtime by eliminating the field wiring change-out step. Confirm your Experion release version with our team to verify AI module firmware compatibility.
Q: Our refinery has a Class I Division 2 (NEC) marshalling area. Can this termination board be installed in that zone, or does it require a purged enclosure?
A: The MU-TAIH02 itself is not intrinsically safe or explosion-proof rated and must be installed in a non-hazardous (safe area) control room or purged/pressurized enclosure per NFPA 496 if located in a Div 2 area. For Div 1/2 field instruments, install certified IS barriers (Zener or galvanic isolators) between the field junction box and this termination board. The board’s >120 dB CMRR ensures signal integrity is maintained through the barrier impedance without recalibration.
Q: We are qualifying a new DCS I/O subsystem for a pharmaceutical batch reactor under GAMP 5. What documentation can Konmask provide to support our IQ/OQ protocol for the MU-TAIH02?
A: Konmask provides a full IQ support package including: serialized functional test report (all 16 channels), hardware revision certificate with photograph, RoHS and material declaration, manufacturer datasheet, and chain-of-custody sourcing declaration. For OQ support, we can provide a test procedure template aligned to GAMP 5 Category 3 hardware qualification. Contact support@konmask.com to request the pharmaceutical qualification package with your order.
