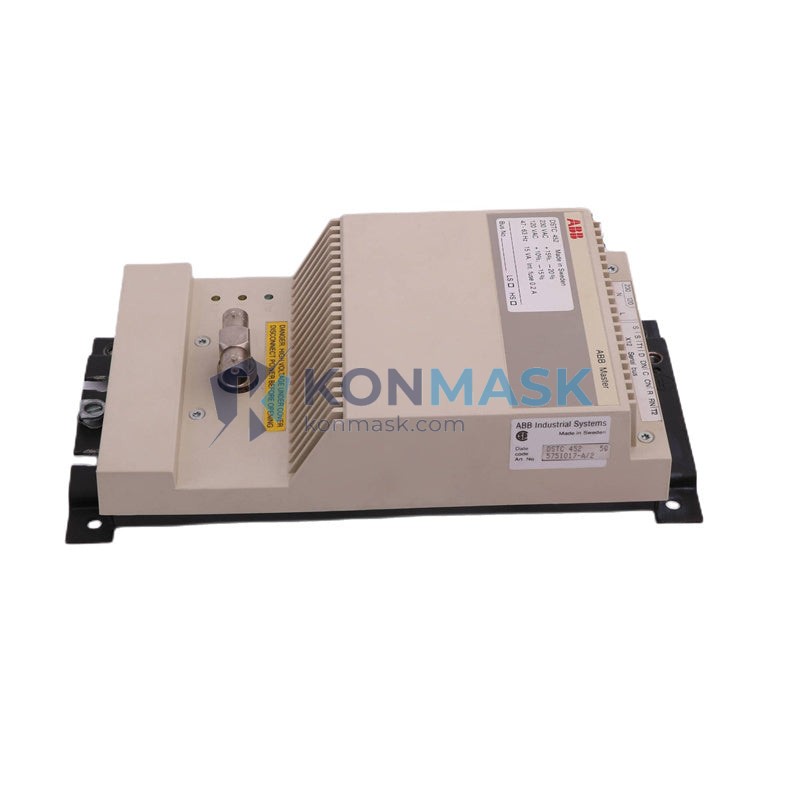

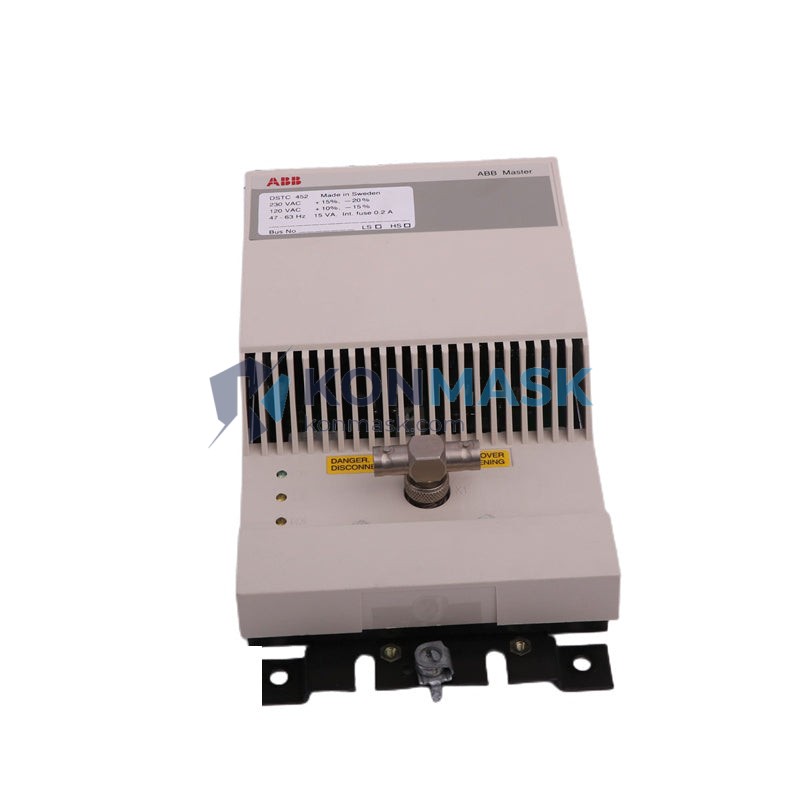

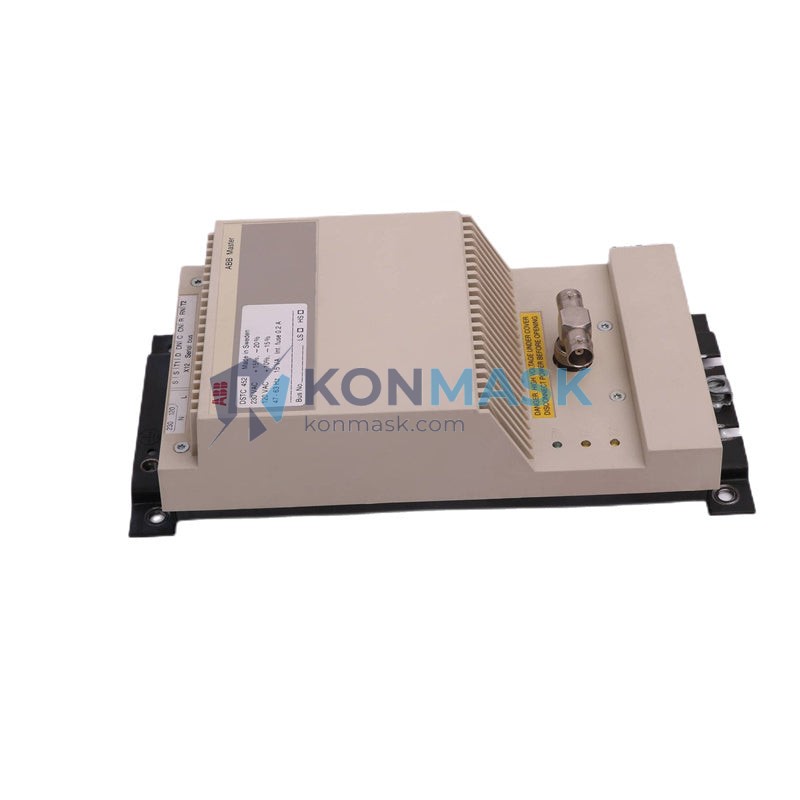

ABB DSTC452 5751017-A – 16-Channel Analog Output Board | Advant OCS / Master Series
Engineering Background
The ABB DSTC452 (Part No. 5751017-A) is a high-density analog output board designed for the ABB Advant OCS / Advant Master distributed control platform — one of ABB’s most widely deployed process automation architectures in power generation, oil & gas, pulp & paper, and chemical industries. This board provides 16 independent analog output channels, enabling precise, simultaneous control of field actuators, control valves, and variable-speed drives from a single slot.
Product Positioning
Procurement engineers sourcing replacement or expansion modules for legacy Advant OCS installations will find the DSTC452 to be the OEM-equivalent solution. Konmask maintains verified stock of this module, supporting both emergency replacement and planned MRO procurement cycles with full traceability documentation.
Complete Technical Specifications
- Part Number: DSTC452 / 5751017-A
- Manufacturer: ABB (Asea Brown Boveri)
- Platform Compatibility: ABB Advant OCS, Advant Master, AC 450, AC 410
- Module Type: Analog Output Board
- Number of Channels: 16 (independent)
- Output Signal Type: 4–20 mA current loop (standard); voltage output per channel configuration
- Resolution: 12-bit D/A conversion per channel
- Isolation: Channel-to-channel and channel-to-bus galvanic isolation
- Communication Interface: S400 Fieldbus / internal Advant backplane bus
- Power Supply: Supplied via Advant subrack backplane (24 VDC nominal)
- Operating Temperature: 0°C to +55°C
- Storage Temperature: –40°C to +70°C
- Humidity: 5–95% RH, non-condensing
- Weight: Approx. 1,050 g
- Form Factor: Single-width Advant subrack card
- Certifications: CE marked; compliant with IEC 61131-2
Proven Application Environments
- Power Generation: Turbine governor control, boiler feedwater valve positioning, generator excitation trim
- Oil & Gas: Wellhead pressure control, separator level valve actuation, compressor anti-surge control
- Pulp & Paper: Digester pressure/temperature setpoint output, stock flow control valves
- Chemical Processing: Reactor temperature control loops, dosing pump speed reference signals
- Water Treatment: Pump VFD speed reference, chemical dosing actuator control
Engineering Advantages
- High Channel Density: 16 outputs per single subrack slot minimizes cabinet footprint and wiring complexity.
- True Galvanic Isolation: Eliminates ground loop interference in multi-actuator installations — critical for long cable runs in process plants.
- Hot-Swap Compatible: Supports online replacement within Advant subrack without full system shutdown (subject to system configuration).
- Deterministic Output Update: Synchronized with Advant OCS scan cycle for predictable control loop performance.
- Backward Compatibility: Drop-in replacement for earlier DSTC series analog output boards in the same subrack family.
System Architecture & Signal Flow
The DSTC452 resides in the Advant subrack and communicates with the Advant Controller (AC 450 / AC 410) via the S400 internal fieldbus. The controller writes 16-bit process output values to the board’s onboard memory over the backplane bus. The DSTC452’s onboard D/A converters translate these digital setpoints into precision 4–20 mA current signals, which are then routed via field terminal blocks to the connected actuators. Each channel maintains its last valid output value in the event of a communication timeout, providing fail-safe behavior configurable at the controller level.
Sourcing & Quality Verification
- Stock Condition: New surplus / refurbished-to-spec (condition confirmed at time of inquiry)
- Inspection Protocol: Visual inspection, board-level continuity check, functional power-on test where applicable
- Traceability: Serial number and revision level documented; original ABB labeling intact
- Packaging: Anti-static ESD bag + foam-lined carton; humidity indicator card included
- Warranty: 12-month Konmask warranty against DOA and latent defects
- Lead Time: In-stock items ship within 1–3 business days; contact us for current availability
Procurement Process
- Submit RFQ: Email support@konmask.com with your part number, required quantity, and delivery timeline.
- Receive Quotation: Konmask responds within 4 business hours with pricing, stock confirmation, and lead time.
- Order Confirmation: Issue PO against our proforma invoice; payment terms available for qualified accounts.
- Shipment & Documentation: Module ships with packing list, test report, and commercial invoice. DHL / FedEx / sea freight options available.
- After-Sales Support: Technical support available for integration questions; warranty claims processed within 5 business days.
Technical FAQ
Q: Is the DSTC452 compatible with the Advant AC 450 controller?
A: Yes. The DSTC452 is designed for the Advant subrack family and is fully compatible with AC 450 and AC 410 controllers using the S400 fieldbus architecture.
Q: Can this board be used as a direct replacement for DSTC451?
A: The DSTC451 and DSTC452 share the same form factor but differ in channel count and configuration. Verify your subrack slot assignment and controller I/O configuration before substitution. Contact our technical team for a compatibility assessment.
Q: What is the output load impedance limit per channel?
A: For 4–20 mA current output, the maximum load impedance is typically 600 Ω per channel. Refer to ABB document 3BSE008514R1 for full electrical specifications.
Q: Do you provide a test report with each unit?
A: Yes. A functional test record is included with each shipment where testing has been performed. Raw surplus units are documented as inspected-only.
Q: Can you supply multiple units for a plant-wide spares program?
A: Yes. Konmask supports bulk MRO procurement. Contact us for volume pricing and consignment stock arrangements.
