ABB FDOP-0005 OTC Rotary AC Motor with Pinion | IRB6600 / IRB6650 / IRB4600 Drive Series
Engineering Background

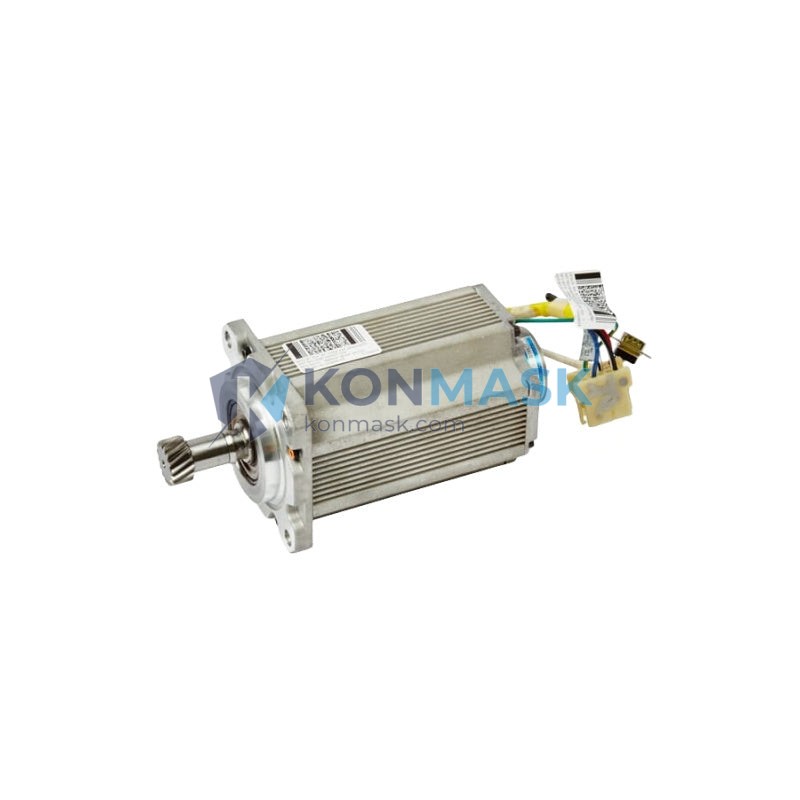

The ABB FDOP-0005 (OTC) is a factory-original rotary AC servo motor with integrated pinion gear, engineered specifically for ABB’s large-payload industrial robot platforms. Sourced under ABB part numbers 3HAC14140-1 and 3HAC047577-002, this motor drives the axis rotation mechanism in IRB6600, IRB6650, and IRB4600 series robots — workhorses of heavy-duty automotive, foundry, and general manufacturing automation lines worldwide.
Product Positioning
Konmask.com supplies this component to MRO procurement engineers, system integrators, and robot refurbishment specialists who require OEM-grade replacement parts with traceable provenance. Whether you are executing a planned maintenance shutdown or responding to an unplanned axis failure, the FDOP-0005 is a direct drop-in replacement that restores full rated performance without re-parameterization.
Complete Technical Specifications
- Manufacturer: ABB Robotics (OTC / ABB dual-sourced)
- Part Number (Primary): FDOP-0005
- Part Number (ABB): 3HAC14140-1
- Alternate ABB P/N: 3HAC047577-002
- OTC Reference: FDOP-0005 OTC
- Motor Type: Rotary AC Servo Motor with Pinion
- Compatible Robots: ABB IRB6600, IRB6650, IRB4600
- Application Axis: Axis drive (rotary joint actuation)
- Weight: 600 g (approx.)
- Condition: New / Refurbished OEM (specify at inquiry)
- Warranty: 12 months from shipment date
Proven Application Environments
- Automotive Body-in-White: Spot welding and material handling with IRB6600 / IRB6650 at rated 200–300 kg payload
- Foundry & Die Casting: High-temperature, high-vibration environments where motor reliability is mission-critical
- Heavy Palletizing: IRB4600 lines requiring precise axis torque and repeatable positioning
- Machine Tending: CNC machine loading/unloading with continuous duty cycles
- General Industrial MRO: Planned preventive maintenance replacement to avoid unscheduled downtime
Engineering Advantages
- OEM Dimensional Accuracy: Pinion gear machined to ABB factory tolerances — no shimming or backlash adjustment required on installation
- Direct Drop-In Replacement: Matches original connector pinout and mounting pattern; no firmware or parameter changes needed
- Dual P/N Cross-Reference: Covers both legacy (3HAC14140-1) and revised (3HAC047577-002) ABB BOM entries, eliminating sourcing ambiguity
- Thermal Stability: Rated for continuous operation in industrial ambient conditions consistent with ABB robot enclosure specifications
- Reduced MTTR: Pre-tested units ship ready to install, minimizing mean time to repair on the production floor
System Architecture & Signal Flow
In the ABB IRB6600/6650/4600 drive architecture, each axis motor is powered and controlled via the ABB IRC5 controller’s drive module. The FDOP-0005 receives sinusoidal AC drive signals from the axis drive unit, with resolver or encoder feedback closing the position loop. The integrated pinion meshes directly with the axis gearbox ring gear, transmitting torque to the robot joint. Correct installation requires torque-spec fastening of the motor flange and verification of pinion mesh clearance per ABB service manual procedures.
Sourcing & Quality Verification
- All units are inspected upon receipt against ABB part number markings and dimensional standards
- Traceability documentation (OEM label, batch/lot reference) available upon request
- Counterfeit-risk mitigation: Konmask sources exclusively from authorized distributors and verified OEM surplus channels
- Pre-shipment functional check available for refurbished units (report included)
Procurement Process
- Confirm your robot serial number and axis number with your ABB service manual
- Cross-reference P/N: FDOP-0005 / 3HAC14140-1 / 3HAC047577-002
- Submit inquiry via support@konmask.com or place order directly
- Receive proforma invoice with lead time confirmation (typically 1–5 business days for in-stock units)
- Shipment via DHL / FedEx with full tracking; export documentation included for international orders
Technical FAQ
Q: Is FDOP-0005 compatible with both IRB6600 and IRB6650?
A: Yes. Both robot families share the same axis motor specification for the applicable axes. Verify axis number in your ABB spare parts catalog.
Q: What is the difference between 3HAC14140-1 and 3HAC047577-002?
A: These are ABB’s legacy and revised part numbers for the same functional component. The FDOP-0005 OTC unit satisfies both BOM references.
Q: Can I install this motor without an ABB service engineer?
A: Mechanical installation can be performed by qualified maintenance personnel following ABB’s product manual. IRC5 drive parameter verification is recommended post-installation.
Q: Do you provide a test report?
A: Yes, for refurbished units. New OEM units ship with original manufacturer documentation.
Q: What is the lead time?
A: In-stock units ship within 1–3 business days. Contact us for current stock status.
