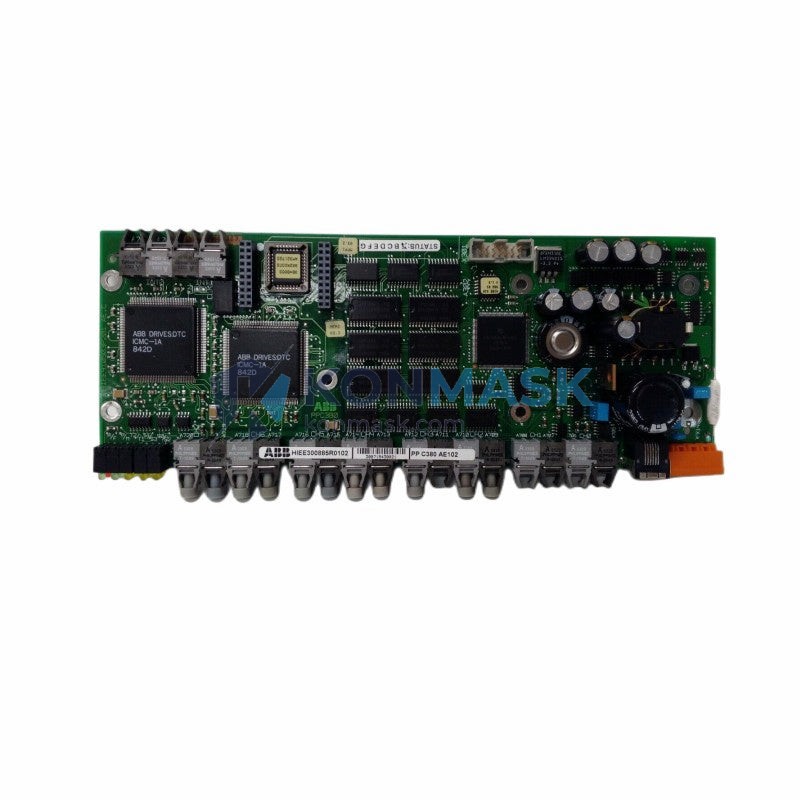

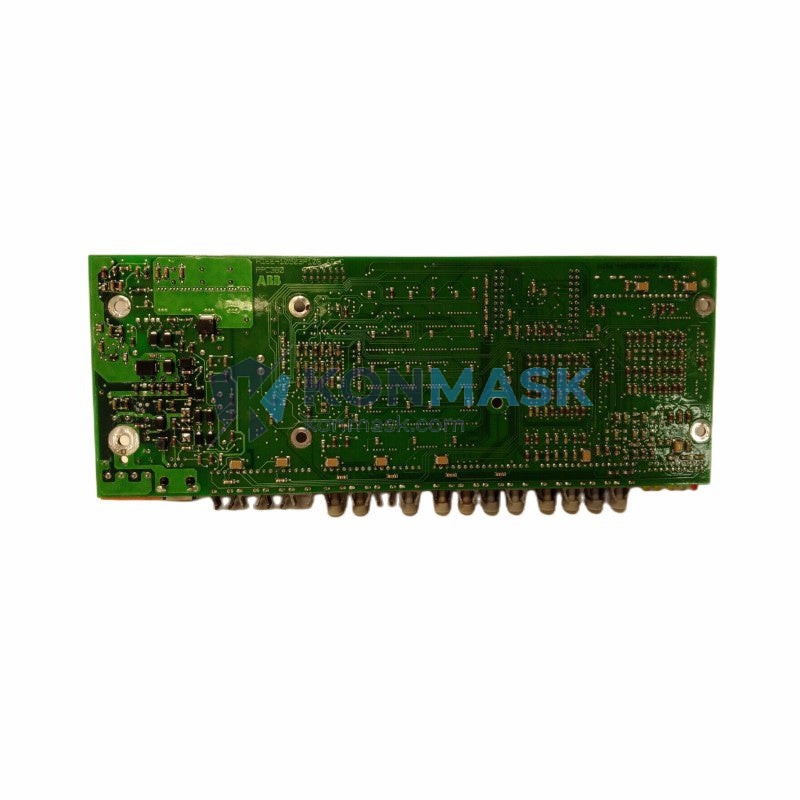

ABB HIEE300885R0101 / PPC380AE0101 – Processor PC Board | AC800M / AC 800M HI Series
Engineering Background
The ABB AC800M HI (High Integrity) controller platform is engineered for safety-critical and high-availability process automation environments. Built on ABB’s proven Advant / Symphony Plus architecture, the AC800M HI series delivers deterministic real-time control with redundancy support, making it the backbone of continuous process industries worldwide. The HIEE300885R0101 (PPC380AE0101) is the central processor PC board within this platform — the computational core responsible for executing control logic, managing I/O communication, and maintaining system integrity.
Product Positioning
Konmask.com supplies this board as a verified replacement and spare unit for maintenance engineers, MRO procurement teams, and system integrators who require a drop-in compatible processor board without the lead times associated with OEM new-build orders. Each unit is sourced through traceable industrial channels and undergoes functional verification prior to dispatch.
Complete Technical Specifications
| Manufacturer | ABB |
| Part Number | HIEE300885R0101 |
| Board Reference | PPC380AE0101 |
| Component Type | Processor PC Board (CPU Module) |
| Platform Compatibility | ABB AC800M HI / AC 800M High Integrity Controller |
| Architecture | PowerPC-based real-time processor |
| Communication Interfaces | Advant Fieldbus 100 (AF100), Ethernet, internal backplane bus |
| Operating Voltage | 24 VDC (supplied via controller backplane) |
| Operating Temperature | 0°C to +55°C (storage: -40°C to +70°C) |
| Humidity | 5% to 95% RH, non-condensing |
| Weight | Approx. 300 g |
| Form Factor | Single-slot plug-in board for AC800M HI chassis |
| Firmware | Compatible with ABB Control Builder M software suite |
| Certifications | CE, IEC 61508 SIL 2/3 capable platform |
| Condition | Refurbished / Surplus — Tested & Verified |
Proven Application Environments
- Oil & Gas: Upstream wellhead control, pipeline SCADA, compressor station automation
- Petrochemical & Refining: Distillation column control, reactor management, safety shutdown systems (SIS)
- Power Generation: Turbine governor control, boiler management, grid synchronization
- Pulp & Paper: Continuous digester control, bleaching process automation
- Water & Wastewater: Pump station control, treatment plant SCADA integration
- Mining & Minerals: Conveyor control, crusher automation, flotation cell management
- Pharmaceutical: Batch process control in GMP-compliant environments
Engineering Advantages
- High Integrity Architecture: Designed for SIL 2/3 safety loops — supports redundant CPU configurations for fault-tolerant operation without process interruption.
- Deterministic Execution: PowerPC-based real-time OS ensures scan-cycle consistency critical for closed-loop process control.
- Seamless Backward Compatibility: Drop-in replacement for existing AC800M HI installations — no chassis modification or re-engineering required.
- Integrated Diagnostics: Onboard LED status indicators and self-test routines accelerate fault isolation during maintenance windows.
- Long Service Life: ABB’s industrial-grade PCB manufacturing standards ensure reliable operation across extended thermal cycling and vibration profiles.
- Software Ecosystem: Fully supported by ABB Control Builder M — existing control programs, function blocks, and HMI configurations remain intact after board swap.
System Architecture & Signal Flow
Within the AC800M HI chassis, the PPC380AE0101 processor board occupies the CPU slot and interfaces directly with the backplane bus. Control logic compiled in Control Builder M is loaded into the board’s non-volatile memory. During runtime, the processor executes IEC 61131-3 programs (LD, FBD, ST, SFC), polls I/O modules via the internal bus, and communicates upstream to the DCS operator station via Ethernet or AF100 fieldbus. In redundant configurations, a secondary CPU board mirrors the primary’s memory state in real time, enabling bumpless switchover upon primary fault detection. Watchdog timers and hardware self-diagnostics continuously monitor processor health, triggering safe-state outputs if anomalies are detected.
Sourcing & Quality Verification
- Traceability: All units sourced from documented industrial decommissioning projects or authorized surplus channels — full chain-of-custody records available on request.
- Incoming Inspection: Visual inspection for physical damage, corrosion, and component integrity prior to acceptance.
- Functional Testing: Power-on verification and communication bus testing performed on each unit before shipment.
- ESD Protection: Boards stored and shipped in anti-static packaging conforming to ANSI/ESD S20.20 standards.
- Warranty: 90-day replacement warranty against DOA (Dead on Arrival) defects. Extended warranty available — contact sales.
Procurement Process
- Confirm Compatibility: Verify your AC800M HI chassis revision and firmware version against the PPC380AE0101 compatibility matrix. Contact our technical team if uncertain.
- Request a Quote: Submit your RFQ via [email protected] or place a direct order through this listing.
- Order Confirmation: You will receive a proforma invoice with unit condition report and test certificate within 1 business day.
- Shipping: DHL Express / FedEx International Priority — typical transit 3–7 business days. Export documentation (commercial invoice, packing list, HS code 8537.10) included.
- Incoming Acceptance: Inspect packaging integrity upon receipt. Report any shipping damage within 48 hours with photographic evidence.
Technical FAQ
Q: Is HIEE300885R0101 the same as PPC380AE0101?
A: Yes. HIEE300885R0101 is ABB’s catalog ordering number (MLFB), while PPC380AE0101 is the board-level part number printed on the PCB silkscreen. Both designations refer to the identical hardware assembly.
Q: Can this board be used in a non-redundant AC800M HI configuration?
A: Yes. The board operates in both simplex and redundant CPU configurations. Redundancy is enabled via software configuration in Control Builder M — no hardware modification is required.
Q: What firmware version is pre-loaded?
A: Firmware versions vary by unit history. Konmask recommends customers perform a firmware update to the latest ABB-approved version using Control Builder M after installation to ensure compatibility with current I/O module firmware.
Q: Do you provide a test report with the shipment?
A: Yes. A functional test certificate is included with every shipment. Detailed test logs are available upon request for quality-critical procurement processes.
Q: What is the lead time for this part?
A: In-stock units ship within 1–2 business days of order confirmation. For bulk or project quantities, contact us for availability and lead time confirmation.
Q: Can you supply other ABB AC800M HI modules?
A: Yes. Konmask maintains an extensive inventory of ABB Advant, AC800M, and Symphony Plus components. Submit your BOM for a comprehensive quote.
