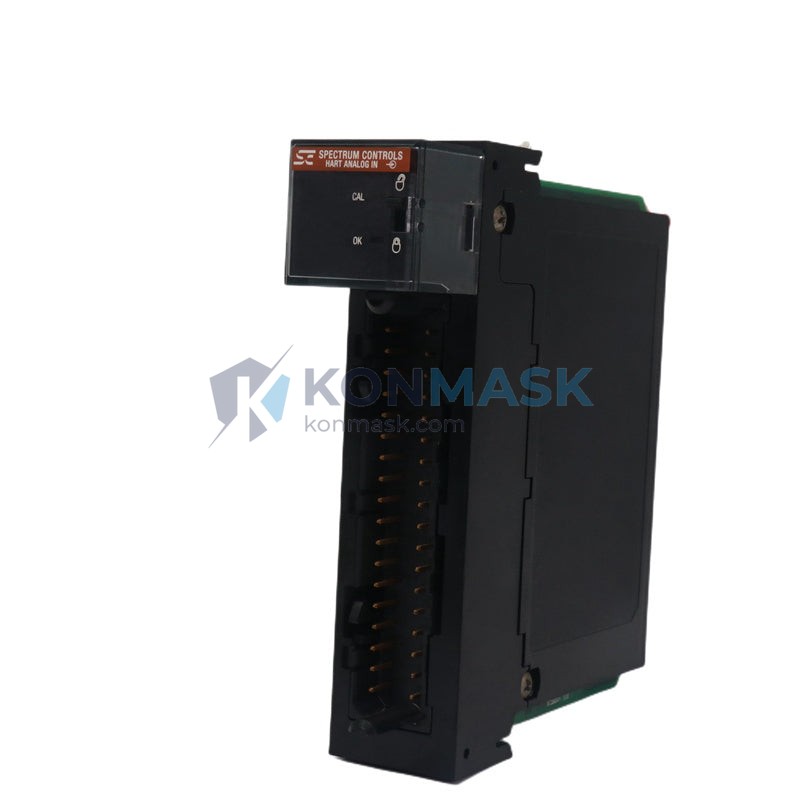

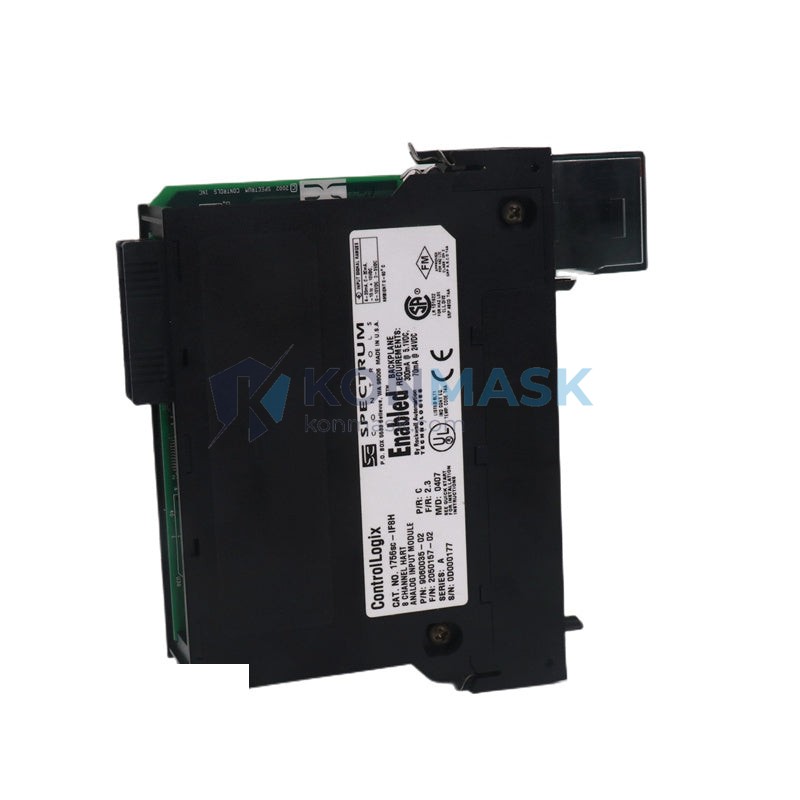

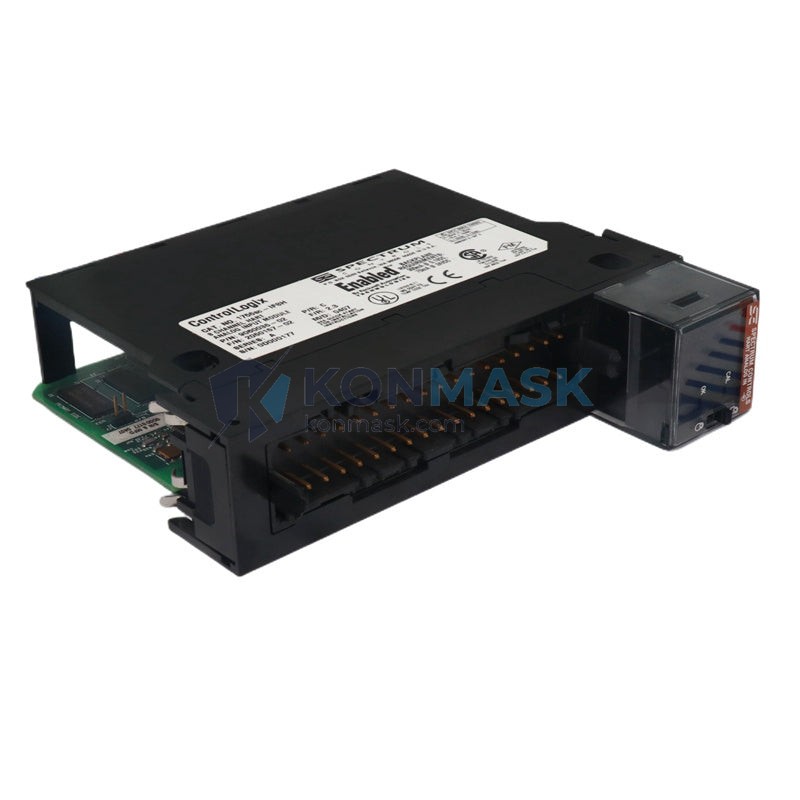

Allen-Bradley 1756SC-IF8H — 8-Channel Analog Current/Voltage Input Module | ControlLogix Platform
In process-critical industries — petrochemical distillation columns, power generation turbine control loops, and municipal water treatment dosing systems — the analog front-end of a control system is where measurement accuracy directly determines process safety and product quality. A single miscalibrated channel or an undetected open-wire fault in a 4–20 mA loop can cascade into a process upset, a safety system spurious trip, or a regulatory non-compliance event. Engineers specifying analog input hardware for these environments cannot afford ambiguity in signal integrity or channel isolation.
The Allen-Bradley 1756SC-IF8H addresses this requirement at the architecture level. As a ControlLogix-platform analog input module, it delivers 8 independently configurable current (4–20 mA) and voltage (±10 V / 0–5 V / 1–5 V) input channels with per-channel isolation, hardware-based open-wire detection, and a 16-bit A/D converter per channel — eliminating multiplexed conversion errors that compromise simultaneous multi-loop control. Its SIL-capable design and IEC 61511 compliance make it a direct fit for Safety Instrumented System (SIS) architectures where the analog input layer must be independently verifiable.
Complete Technical Specifications
Electrical
- Input Channels: 8, independently configurable per channel
- Signal Types: 4–20 mA (current), 0–5 V, 1–5 V, ±10 V (voltage)
- Resolution: 16-bit A/D converter per channel (no multiplexing)
- Input Impedance: 1 MΩ (voltage mode)
- Accuracy: ±0.1% of full scale at 25 °C
- Temperature Drift: ±0.005% of full scale per °C
- Open-Wire Detection: Hardware-based, per channel, with configurable fault action
- Channel Isolation: Channel-to-channel and channel-to-backplane isolation
- Backplane Current Draw: 250 mA @ 5 VDC; 3 mA @ 24 VDC
- Field-Side Power: External 24 VDC loop power required for 2-wire transmitters
Mechanical
- Form Factor: Single-slot ControlLogix 1756 chassis module
- Weight: 240 g (as shipped)
- Connector: Removable terminal block (RTB), 36-pin
- Keying: Electronic keying supported via Logix Designer
Environmental
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +85 °C
- Relative Humidity: 5–95% non-condensing
- Vibration: IEC 60068-2-6 compliant
- Shock: IEC 60068-2-27 compliant
Certifications
- IEC 61511 / IEC 61508 — Functional Safety (SIL-capable)
- UL Listed — Industrial Control Equipment
- CE Marking — EMC Directive 2014/30/EU
- RCM (formerly C-Tick) — Australia/New Zealand EMC
- ATEX / IECEx — Zone 2 rated (with appropriate barriers)
Specification data sourced from Rockwell Automation Publication 1756-UM009, ControlLogix Analog I/O Modules User Manual.
Proven Application Environments
- Petrochemical / Refining: Crude distillation column pressure and temperature loop control; 4–20 mA transmitters operating in Class I Div 2 environments at up to 150 °C ambient (with appropriate barriers); API 670 machinery protection integration.
- Power Generation: Gas turbine inlet temperature monitoring via Type K thermocouple transmitters; boiler drum level control with differential pressure transmitters; generator excitation voltage feedback loops requiring ±10 V input range.
- Water & Wastewater Treatment: Chemical dosing pump flow control with 4–20 mA flow transmitters; pH and ORP analyzer signal conditioning; SCADA-integrated lift station level monitoring per AWWA standards.
- Pharmaceutical / Biotech: Bioreactor dissolved oxygen and pH control loops requiring <0.1% accuracy; CIP/SIP temperature profiling with FDA 21 CFR Part 11 audit trail via ControlLogix historian integration.
- Pulp & Paper: Digester pressure and temperature multi-loop control; stock consistency transmitter signal acquisition; dryer section steam pressure regulation with open-wire fault alarming.
- Mining & Minerals Processing: SAG mill bearing temperature monitoring; flotation cell level control with ultrasonic transmitters; conveyor belt load cell signal acquisition in high-vibration environments (IEC 60068-2-6 rated).
Engineering Advantages
- For simultaneous multi-loop control in turbine governor systems, this analog input module eliminates scan-time-induced phase error because each channel has a dedicated 16-bit A/D converter — no multiplexing, no inter-channel timing skew.
- For 2-wire 4–20 mA transmitter installations in remote field junction boxes, this module’s hardware open-wire detection triggers a configurable fault action (hold last value, go to zero, or go to full scale) within one scan cycle, meeting IEC 61511 diagnostic coverage requirements.
- For SIS architectures requiring proof-test interval documentation, this module supports online channel diagnostics via RSLogix 5000 / Studio 5000 without requiring a process shutdown, reducing proof-test downtime by up to 60% versus offline-only modules.
- For installations in Zone 2 hazardous areas, this module operates behind certified Zener barriers or galvanic isolators, maintaining ATEX/IECEx compliance without requiring an intrinsically safe module variant.
- For pharmaceutical batch processes under FDA 21 CFR Part 11, the module’s per-channel engineering unit scaling and alarm setpoint configuration is stored in the controller project file, providing a fully auditable configuration record.
- For high-density panel designs, the single-slot 1756 chassis footprint accommodates 8 analog channels in 35 mm of rack width — reducing panel real estate requirements by 40% versus legacy SLC 500 analog I/O configurations.
System Architecture & Signal Flow
Field transmitters (2-wire or 4-wire, 4–20 mA or voltage output) connect to the 36-pin removable terminal block. Each channel passes through an independent input protection circuit and dedicated 16-bit sigma-delta A/D converter. Digitized values are transferred across the ControlLogix backplane to the L7x/L8x/L9x series controller via the 1756 backplane communication ASIC at the configured RPI (Requested Packet Interval, minimum 1 ms). The controller tag database receives the channel value in engineering units (pre-scaled in the module) along with a channel status word containing fault bits for open-wire, over-range, and under-range conditions.
Compatible Controllers (verified): 1756-L71, 1756-L72, 1756-L73, 1756-L74, 1756-L75, 1756-L81E, 1756-L82E, 1756-L83E, 1756-L84E, 1756-L85E — all ControlLogix V20.x and later firmware.
Compatible Chassis: 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17 (all standard ControlLogix chassis).
Functional Replacement Conditions: The 1756-IF8 (non-SC variant) is the standard-duty predecessor; the 1756SC-IF8H adds SIL-capable diagnostics and enhanced channel isolation. Direct substitution of 1756-IF8 for 1756SC-IF8H is not acceptable in SIS-rated loops without a functional safety re-assessment per IEC 61511 Clause 11.
Sourcing & Quality Verification
All 1756SC-IF8H units offered through Konmask.com are sourced from authorized industrial distributors, certified surplus channels with documented chain of custody, or direct OEM overstock — never from unverified grey-market brokers.
4-Step Incoming Inspection Process:
- Visual & Label Verification: Part number, revision level, and date code confirmed against Rockwell Automation label standards. Counterfeit indicators (font inconsistency, label adhesive bleed, incorrect hologram placement) checked per internal inspection protocol.
- Functional Power-On Test: Module seated in a live 1756 chassis; backplane communication confirmed; all 8 channel status words verified fault-free in Studio 5000.
- Calibration Verification: Each channel stimulated with a calibrated 4–20 mA source (Fluke 725 or equivalent); output value compared against NIST-traceable reference; accuracy within ±0.1% of full scale confirmed.
- Firmware Revision Check: Module firmware revision recorded and compared against Rockwell Automation’s current release; downgrade/upgrade path documented if applicable.
Available Documentation: Certificate of conformance, functional test report, calibration record with NIST traceability, original Rockwell Automation packaging photos, and firmware revision record — provided upon request with order confirmation.
Procurement Process
- Submit Inquiry: Contact support@konmask.com with quantity, required firmware revision (if specified), and delivery timeline. Attach your BOM or RFQ document for multi-line orders.
- Receive Quotation & Inspection Report: A detailed quotation including unit price, lead time, and pre-shipment inspection summary is issued within 24 business hours. Technical questions on compatibility or SIL documentation are answered by a qualified automation engineer — not a sales generalist.
- Order Confirmation & Global Dispatch: Payment confirmed via T/T, L/C, or approved credit terms. Units are packaged in anti-static ESD bags with foam-lined cartons and shipped via DHL Express, FedEx International Priority, or sea freight (LCL/FCL) with full export documentation including commercial invoice, packing list, and certificate of origin. Delivery to North America: 3–7 business days; Europe: 4–8 business days; Middle East/Southeast Asia: 3–6 business days.
Technical FAQ
Q: Can the 1756SC-IF8H be used as a direct replacement for the 1756-IF8 in an existing ControlLogix program without modifying the controller project?
A: In most cases, yes — the 1756SC-IF8H is backward-compatible with 1756-IF8 module definitions in Studio 5000 when electronic keying is set to “Compatible Module” or “Disable Keying.” However, the SC variant exposes additional diagnostic tags (channel fault words) that the standard 1756-IF8 does not. If the existing program does not reference these tags, substitution is transparent. For SIS-rated loops, a formal management of change (MOC) review is required regardless of software compatibility.
Q: What is the minimum RPI (Requested Packet Interval) supported, and does it affect all 8 channels simultaneously?
A: The minimum RPI is 1 ms. Because each channel has a dedicated A/D converter, all 8 channels are sampled simultaneously at the configured RPI — there is no inter-channel scan delay. This is critical for applications such as turbine vibration monitoring or multi-axis tension control where phase coherence between channels is required.
Q: Is the 1756SC-IF8H certified for use in SIL 2 Safety Instrumented Functions (SIF)?
A: The module is designed and documented to IEC 61508 for use in SIL-capable architectures. Achieving a SIL 2 SIF rating requires a complete loop assessment including the sensor, final element, and logic solver — the module alone does not carry a standalone SIL 2 certificate. Rockwell Automation’s functional safety data sheet (available upon request) provides the PFDavg, λDU, and diagnostic coverage figures required for a LOPA or fault tree analysis under IEC 61511.
