ABB IRB 6600 Wrist Unit 3HAC037635-003 – Precision Axis Gearbox | IRB 6600 Series Platform
Engineering Background
The ABB IRB 6600 is a high-payload, long-reach industrial robot platform widely deployed in automotive body-in-white welding, heavy material handling, and press-tending applications. The wrist assembly — governed by the RV (Rotary Vector) gearbox — is the most mechanically demanding sub-system in the kinematic chain, transmitting torque from the servo motor to the tool center point under continuous cyclic loading.
Product Positioning

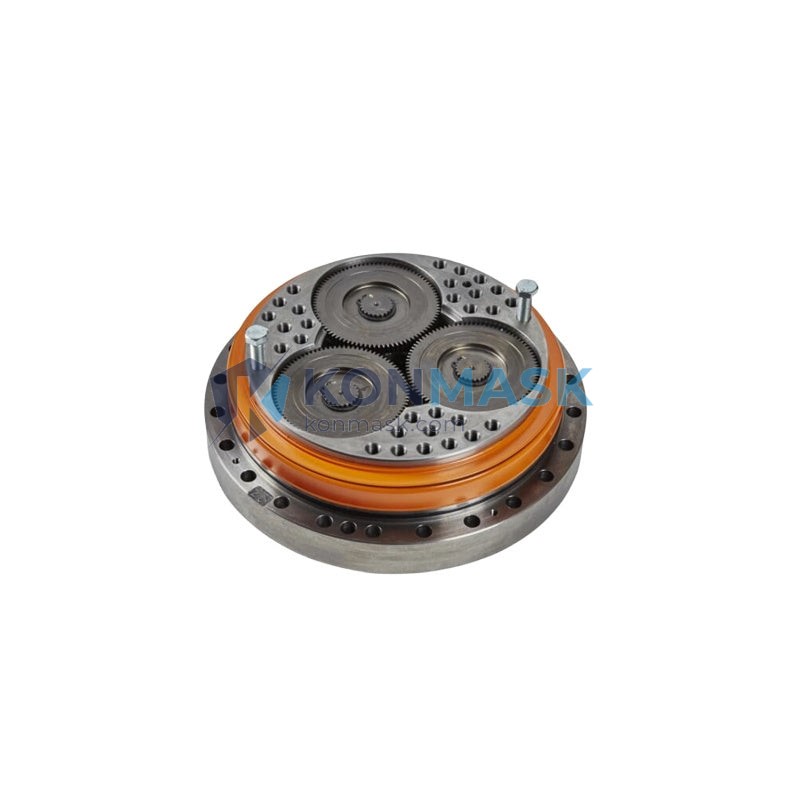

Part number 3HAC037635-003 is the OEM-specified wrist unit for the IRB 6600 robot, rated at RV 70F-125.8 (reduction ratio 125.8, frame size 70F). Variant references VR 3HAC037635-001 / -002 / -003 / -005 cover the full axis-6 wrist sub-assembly family. This component is sourced from verified ABB-authorized supply channels and is fully interchangeable with the original factory-fitted unit.
Complete Technical Specifications
- OEM Part Number: 3HAC037635-003
- Variant / Cross-Reference: VR 3HAC037635-001 / -002 / -003 / -005
- Compatible Robot: ABB IRB 6600 (all payload/reach variants)
- Gearbox Type: RV (Rotary Vector) Reducer
- Model Designation: RV 70F-125.8
- Reduction Ratio: 125.8 : 1
- Frame Size: 70F
- Axis Position: Axis 6 (Wrist / Tool Flange)
- Controller Compatibility: IRC5, OmniCore C30 / C90XT
- Weight: 1,600 g (1.6 kg)
- Condition: New / Refurbished OEM (specify at inquiry)
- Origin: ABB Robotics OEM Supply Chain
Proven Application Environments
- Automotive body-in-white (BIW) spot welding and MIG/MAG welding cells
- Heavy press-tending and stamping line automation
- Foundry and die-casting material handling (IP67 wash-down variants)
- Palletizing and depalletizing of heavy payloads (>150 kg)
- Machine tending on CNC machining centers and transfer lines
- Aerospace structural assembly jigs requiring high repeatability
Engineering Advantages
- High Torque Density: RV 70F gearbox delivers rated output torque with minimal backlash (<1 arc-min), preserving TCP accuracy over service life
- Drop-in Replacement: Identical bolt pattern, shaft interface, and encoder connector as factory unit — no re-parameterization required
- Thermal Stability: Designed for continuous-duty cycles in ambient temperatures up to 52 °C (IRB 6600 Foundry spec)
- Sealed Lubrication: Pre-packed with ABB-specified grease; no field re-greasing required at installation
- Reduced Downtime: Ready-to-install unit eliminates on-site disassembly of sub-components
System Architecture & Signal Flow
In the IRB 6600 kinematic chain, the axis-6 wrist unit receives rotational input from the servo motor via a splined coupling. The RV 70F-125.8 gearbox reduces motor speed by a factor of 125.8 and multiplies torque proportionally before transmitting to the tool flange. The integrated resolver/encoder feedback loop closes the position loop in the IRC5 / OmniCore drive module (DSQC 661 / DSQC 1000), ensuring <0.05 mm TCP repeatability. Lubrication is isolated from the motor cavity by dual lip seals, preventing cross-contamination in wash-down environments.
Sourcing & Quality Verification
- All units are inspected against ABB Product Specification 3HAC037635 Rev. G before dispatch
- Serial number and date-code traceability maintained for warranty and audit purposes
- Packaging: OEM anti-static foam insert, moisture-barrier bag, rigid outer carton
- Lead time: Ex-stock (standard) / 3–7 business days (sourced)
- Minimum Order Quantity: 1 unit
Procurement Process
- Submit your robot serial number and current firmware version via the inquiry form or email
- Konmask engineering team confirms compatibility and issues a formal quotation within 24 hours
- Payment via T/T, L/C, or online checkout; export documentation (CO, packing list, commercial invoice) included
- Dispatch via DHL Express / FedEx International Priority with full tracking
- Post-delivery technical support available for installation verification
Technical FAQ
Q: Is 3HAC037635-003 compatible with the IRB 6600-175/2.55 and IRB 6600-205/2.75?
A: Yes. The RV 70F-125.8 wrist unit is common across all IRB 6600 payload/reach variants sharing the same axis-6 architecture.
Q: What is the difference between -001, -002, -003, and -005 suffix variants?
A: The VR 3HAC037635-00X suffixes denote sub-assembly revision levels and regional compliance markings. The -003 is the current production release; -001/-002/-005 are functionally interchangeable predecessors. Confirm with your robot’s service manual revision.
Q: Does installation require ABB RobotStudio recalibration?
A: A fine calibration (CalPendulum or Levelmeter 2000) is recommended after wrist replacement to restore TCP accuracy to factory specification. Base calibration data is preserved in the SMB (Serial Measurement Board).
Q: What grease specification is used?
A: ABB specifies SHELL Gadus S2 V220 2 (or equivalent) for the RV gearbox cavity. The unit ships pre-filled; no additional grease is required at installation.
