Heavy-Payload Robotic Arm Joint Solution — ABB IRB6700 / IRB760 | Axis Reducer Series
Where This Product Is Used

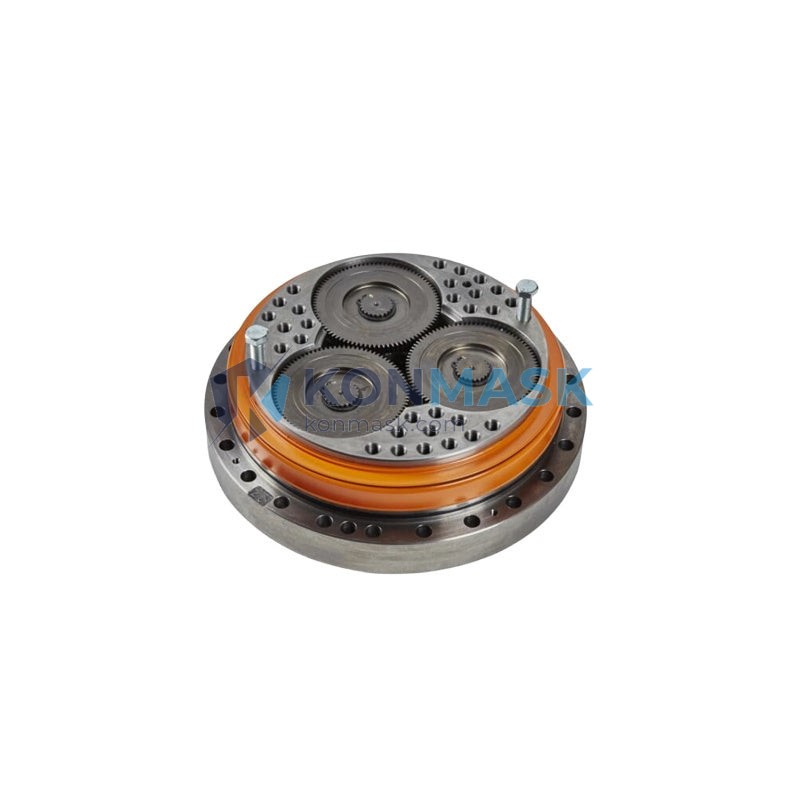

The ABB IRB6700 and IRB760 Axis Reducer is a precision gearbox assembly engineered for the joint axes of ABB’s heavy-payload industrial robot arms. These reducers are deployed across the most demanding automation environments globally:
- Automotive Body-in-White (BIW) Welding Lines — Spot welding and MIG/MAG welding cells requiring high repeatability and torque stability at axes 1–6.
- Press Tending & Stamping Automation — High-cycle press-to-press transfer with IRB6700 robots handling payloads up to 235 kg.
- Foundry & Die Casting — Harsh thermal and particulate environments where gearbox integrity is critical for uptime.
- Palletizing & Material Handling — End-of-line palletizing with IRB760 robots requiring smooth, low-backlash axis motion.
- Machine Tending — CNC machine loading/unloading with precise positional repeatability (±0.05 mm).
- Structural Assembly — Aerospace and heavy equipment assembly lines where torque consistency is non-negotiable.
Technical Specifications
| Parameter | Details |
|---|---|
| Part Numbers | 3HAC055445-001 / 3HAC045066-001 / 3HAC037474-001 / 3HAC051323-001 |
| Compatible Robots | ABB IRB6700 (all variants), ABB IRB760 |
| Reduction Ratios | 200 / 150 / 245 / 30 |
| Component Type | Axis Reducer (Precision Gearbox) |
| Manufacturer | ABB Robotics (OEM) |
| Series | IRB6700 / IRB760 Spare Parts |
| Weight (approx.) | 300 g (unit packaging) |
| Condition | New / Genuine OEM |
| Origin | ABB Robotics Supply Chain |
Why Engineers Specify This Model
- OEM Dimensional Accuracy: Direct drop-in replacement — no shimming, re-calibration offsets, or adapter plates required.
- Torque Density: High reduction ratios (up to 245:1) deliver maximum output torque in a compact envelope, critical for axes 1 and 2 of the IRB6700.
- Low Backlash: Maintains ±0.05 mm TCP repeatability over the robot’s rated service life.
- Thermal Stability: Designed for continuous-duty cycles in foundry and press environments (ambient up to 52°C).
- Sealed Construction: Integrated sealing prevents lubricant contamination in wash-down and dusty environments.
- Multi-Ratio Availability: Four ratio variants (200/150/245/30) cover all primary axes of the IRB6700 and IRB760 platform in a single sourcing event.
Complete System Bill of Materials
For a full axis reducer replacement on ABB IRB6700 / IRB760, engineers typically source the following alongside this part:
- Axis Reducer (this part) — 3HAC055445-001 / 3HAC045066-001 / 3HAC037474-001 / 3HAC051323-001
- ABB Robot Grease / Gearbox Lubricant (LGFP 2 or OEM-specified)
- Axis Motor (servo motor for corresponding axis)
- Motor Coupling / Flange Adapter
- Sealing Kit (O-rings, gaskets for axis housing)
- Fastener Set (M-series bolts, torque-spec per ABB service manual)
- ABB IRC5 / OmniCore Controller (if full cell rebuild)
Compliance & Industry Standards
- ISO 9283 — Manipulating industrial robots: performance criteria and related test methods.
- ISO 10218-1 — Safety requirements for industrial robots.
- CE Marking — ABB IRB6700 / IRB760 platform is CE-certified for EU machinery directive compliance.
- RoHS Compliant — Materials meet EU RoHS 2 (2011/65/EU) requirements.
- ABB OEM Quality Standard — Manufactured and tested to ABB Robotics internal quality protocols.
Quality Assurance & Sourcing
Konmask.com sources ABB spare parts through verified industrial automation supply channels. Every unit is:
- Inspected for OEM part number label authenticity and packaging integrity.
- Stored in ESD-safe, climate-controlled warehousing to prevent lubricant degradation.
- Shipped with original manufacturer documentation where available.
- Traceable to batch/lot records for quality audit purposes.
We do not supply grey-market, refurbished, or counterfeit components. All parts are sourced new from authorized distribution networks.
How to Source This Part
- Confirm your axis number — Cross-reference your ABB service manual to identify which ratio (200 / 150 / 245 / 30) corresponds to your failed axis.
- Verify the part number — Match against the label on the existing reducer: 3HAC055445-001, 3HAC045066-001, 3HAC037474-001, or 3HAC051323-001.
- Submit your RFQ — Contact us via email or phone with your part number, quantity, and required delivery date.
- Receive quotation within 24 hours — We confirm stock availability, lead time, and freight options (DHL / FedEx / sea freight for bulk orders).
- Order & ship — Secure payment, then dispatch with full tracking and commercial invoice for customs clearance.
Application-Specific FAQ
Q: Are these reducers compatible with both IRB6700 and IRB760?
A: Yes. The four part numbers in this listing cover axis positions across both the IRB6700 (all payload variants: 150/200/235/300 kg) and the IRB760 platform. Always verify the ratio against your robot’s axis configuration in the ABB product manual.
Q: What is the expected service life of an ABB axis reducer?
A: Under normal operating conditions and with correct lubrication intervals (per ABB maintenance schedule), axis reducers typically achieve 20,000–40,000 operating hours before replacement is recommended.
Q: Can I replace the reducer without full robot recalibration?
A: OEM replacement reducers maintain the same mechanical zero reference, but ABB recommends performing axis calibration (using the ABB CalibWare tool or Levelmeter) after any gearbox replacement to ensure TCP accuracy.
Q: Do you supply the lubricant required for reinstallation?
A: We can supply ABB-specified gearbox grease alongside this part. Please request this when submitting your RFQ.
Q: What is your minimum order quantity (MOQ)?
A: MOQ is 1 unit. Bulk pricing is available for orders of 5+ units. Contact us for a volume quotation.
Q: Do you offer a warranty?
A: Yes. All OEM parts carry a 12-month warranty against manufacturing defects from the date of shipment, subject to correct installation and operating conditions.
