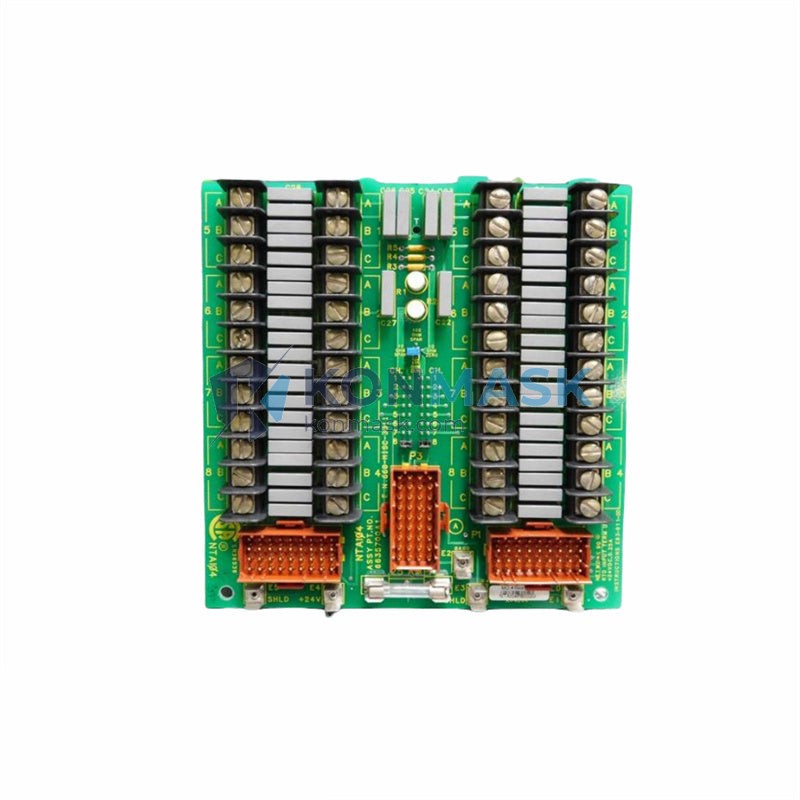

ABB NTAI04 Analog Input Termination Unit | Replacement, Equivalent & Selection Guide
The ABB NTAI04 is an Analog Input Termination Unit designed for use with ABB’s S800 I/O system in AC800M Distributed Control System (DCS) environments. It provides field-side signal termination for analog input modules, enabling clean, reliable signal conditioning in process automation applications. Konmask.com supplies genuine and compatible NTAI04 units with full traceability for industrial buyers worldwide.
Technical Specifications
- Part Number: NTAI04
- Manufacturer: ABB
- Series: S800 I/O / AC800M
- Type: Analog Input Termination Unit
- Function: Field-side termination for analog input signals
- Compatible I/O Module: AI810, AI820, AI830, AI835, AI843, AI845
- Signal Types: 4–20 mA, 0–10 V (module-dependent)
- Channels: Up to 8 analog input channels
- Mounting: DIN rail or panel mount via S800 I/O carrier
- Weight: 1,320 g
- Operating Temperature: 0°C to +55°C
- Protection Class: IP20
- Communication: Passive termination (no active bus)
Compatible Replacement & Equivalent Models
When the NTAI04 is unavailable or discontinued, the following models may serve as functional equivalents depending on your I/O module pairing and wiring configuration:
- ABB NTAI05 – Extended analog input termination, compatible with AI845 and AI835
- ABB NTAI02 – Simplified 4-channel analog input termination unit
- ABB TU810V1 / TU811V1 – Universal I/O termination units with broader module compatibility
- ABB NDSI115 – Digital/analog hybrid termination for mixed signal environments
- Third-party equivalents: Custom-wired terminal blocks with equivalent pinout (consult Konmask engineering team for validation)
⚠ Always verify module-to-termination unit compatibility using ABB’s S800 I/O System Product Guide before substitution.
Why Choose the Original NTAI04
- ✅ Factory-validated pinout and signal integrity for ABB AI8xx series modules
- ✅ Plug-and-play installation — no rewiring of field cables required
- ✅ Maintains ABB system warranty and certification compliance
- ✅ Proven reliability in continuous process industries (oil & gas, power, chemicals)
- ✅ Full traceability with ABB documentation and CE/UL markings
Typical Applications
- Oil & gas process control (flow, pressure, temperature measurement)
- Chemical plant DCS analog signal termination
- Power generation plant instrumentation loops
- Water treatment facility SCADA integration
- Pharmaceutical manufacturing process monitoring
- Pulp & paper mill automation upgrades
System Compatibility
- DCS Platform: ABB AC800M (PM851, PM856, PM860, PM861, PM864, PM866)
- I/O System: ABB S800 I/O
- Compatible Modules: AI810, AI820, AI830, AI835, AI843, AI845
- Fieldbus: PROFIBUS DP, FOUNDATION Fieldbus (via CI840/CI854 interface)
- Engineering Tool: ABB Control Builder M (CBM)
Selection Guide
Use this guide to select the correct termination unit for your analog input module:
- AI810 / AI820 (8-ch, 4–20 mA): → NTAI04 ✅ (primary match)
- AI830 / AI835 (HART-enabled): → NTAI04 or NTAI05 (verify HART passthrough requirement)
- AI843 / AI845 (high-density): → NTAI05 preferred; NTAI04 may require adapter
- Mixed signal (AI + DI): → Consider TU810V1 universal termination unit
- Replacement scenario (existing wiring): → NTAI04 is drop-in compatible with original field cable harness
Quality Assurance & Sourcing
- 🔍 All units inspected for physical integrity, label authenticity, and connector condition
- 📦 Shipped in anti-static packaging with protective foam inserts
- 📄 Certificate of conformity and original ABB documentation available on request
- 🏭 Sourced from authorized ABB distributors and certified surplus channels
- 🔄 30-day return policy for unused, unopened units
How to Order
- Confirm your existing I/O module model (e.g., AI810, AI820)
- Verify quantity and lead time requirements with our team
- Add ABB NTAI04 to cart or contact us for bulk/project pricing
- Provide your shipping address and preferred freight method
- Receive order confirmation with tracking within 24 hours
📧 Email: support@konmask.com
📞 Phone/WhatsApp: +0086 19859288691
🌐 Website: https://Konmask.com
Replacement & Compatibility FAQ
Q: Can NTAI04 replace NTAI05?
A: Partially. NTAI04 and NTAI05 share similar form factors but differ in channel density and HART support. Verify your module’s termination unit requirement in the ABB S800 I/O hardware manual.
Q: Is NTAI04 compatible with third-party DCS systems?
A: NTAI04 is designed exclusively for ABB S800 I/O modules. Use with non-ABB systems requires custom wiring and is not recommended without engineering validation.
Q: What is the lead time for NTAI04?
A: In-stock units ship within 1–3 business days. For project quantities, contact us for availability and lead time confirmation.
Q: Do you provide a warranty?
A: Yes. All units carry a 12-month functional warranty against manufacturing defects under normal operating conditions.
Q: Can I get a datasheet or wiring diagram?
A: Yes. Contact support@konmask.com with your order or inquiry number to receive the official ABB NTAI04 datasheet and wiring documentation.
