Factory Automation & Process Control Solution — ABB PM554-TP-ETH 1SAP120600R0071 | AC500 Series
Where This Product Is Used

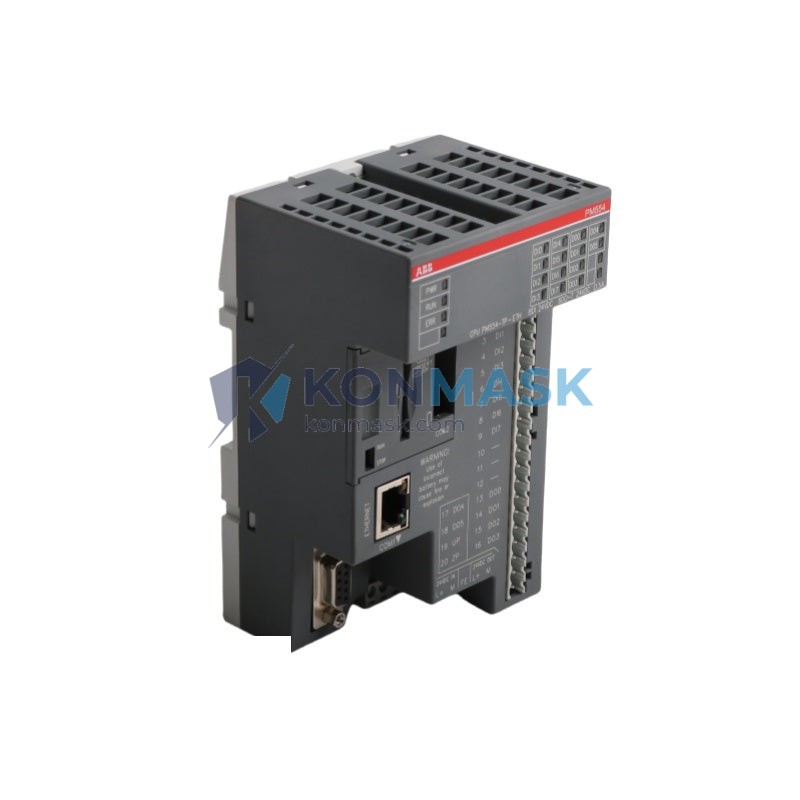

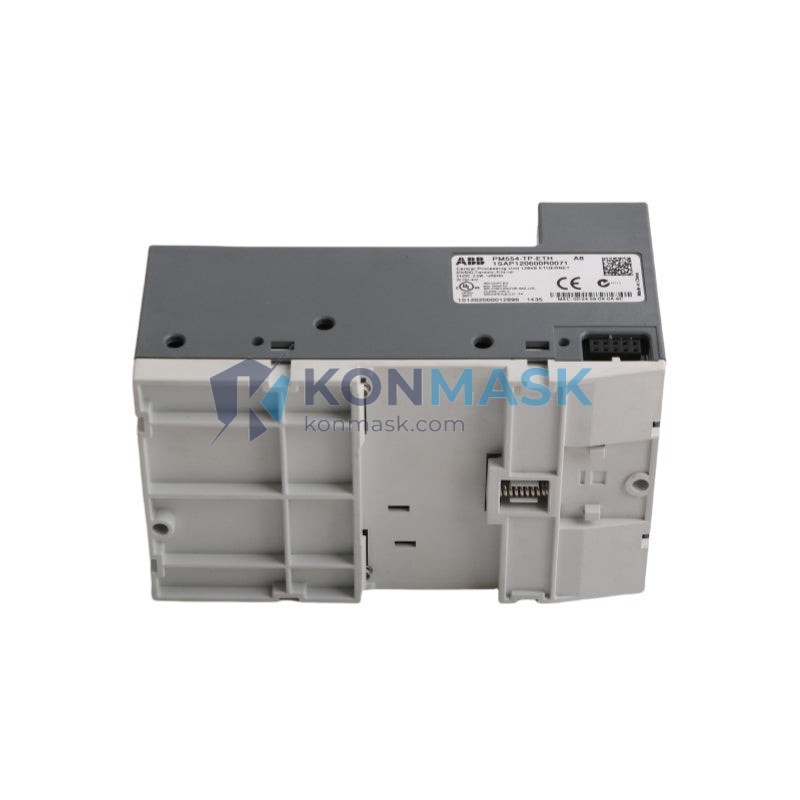

The ABB PM554-TP-ETH is a mid-range CPU processor module from the AC500 PLC family, engineered for demanding industrial environments. Engineers and system integrators specify this module across a wide range of applications:
- Factory Automation: Coordinating multi-axis conveyor systems, robotic cell sequencing, and assembly line control where deterministic Ethernet communication is critical.
- Water & Wastewater Treatment: Managing pump stations, dosing systems, and SCADA-connected remote I/O nodes with reliable Modbus TCP/IP connectivity.
- Building Automation & HVAC: Controlling air handling units, chiller plants, and BMS integration via standard fieldbus protocols.
- Machine Building (OEM): Embedded as the primary controller in packaging machines, printing presses, and material handling equipment requiring compact DIN-rail mounting.
- Energy & Power Distribution: Substation automation and generator control panels where IEC 61131-3 compliance and long-term parts availability are mandatory.
- Food & Beverage Processing: Hygienic-area control panels requiring robust CPU performance with remote diagnostics over Ethernet.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Part Number (SKU) | PM554-TP-ETH |
| Order Code | 1SAP120600R0071 |
| Product Series | AC500 |
| Module Type | CPU / Processor Module |
| Communication Interface | Built-in Ethernet (10/100 Mbit/s), RS-485 (COM1) |
| Supported Protocols | Modbus TCP, CS31, FTP, HTTP, SNMP |
| Program Memory | 512 KB |
| Data Memory | 512 KB |
| Digital I/O (onboard) | 16 DI / 12 DO (transistor) |
| Analog I/O (onboard) | 4 AI / 2 AO |
| Max. Expansion I/O | Up to 10 I/O modules via S500 bus |
| Supply Voltage | 24 V DC |
| Power Consumption | ≤ 5 W (CPU only) |
| Operating Temperature | -25 °C to +60 °C |
| Storage Temperature | -40 °C to +70 °C |
| Degree of Protection | IP20 |
| Mounting | DIN rail (35 mm) |
| Dimensions (W × H × D) | 72 × 90 × 56 mm |
| Weight | ~300 g |
| Programming Standard | IEC 61131-3 (via ABB Automation Builder) |
| Real-Time Clock | Yes (battery-backed) |
| SD Card Slot | Yes (program backup & data logging) |
Why Engineers Specify This Model
- Integrated Ethernet eliminates gateway cost: The onboard 10/100 Mbit/s Ethernet port enables direct SCADA/HMI connectivity without an additional communication module, reducing BOM cost and panel footprint.
- Compact yet expandable: The PM554-TP-ETH supports up to 10 S500 I/O expansion modules, scaling from small standalone machines to distributed control architectures.
- IEC 61131-3 multi-language programming: Supports LD, FBD, ST, IL, and SFC via ABB Automation Builder — reducing migration effort from other IEC-compliant platforms.
- Extended temperature range: Rated to -25 °C / +60 °C, suitable for outdoor enclosures and harsh industrial environments without additional climate control.
- Battery-backed RTC & SD card: Enables timestamped data logging and program backup/restore — critical for regulated industries and remote installations.
- Long product lifecycle: AC500 is ABB’s flagship mid-range PLC platform with a committed long-term availability roadmap, protecting capital investment in control system design.
Complete System Bill of Materials
For a complete AC500-based control system using the PM554-TP-ETH as the CPU, engineers typically specify the following companion components:
- Power Supply: ABB CP502 (24 V DC, 2 A) or CP504 (4 A) — DIN rail mount
- Digital Input Module: ABB DC532 (16 × 24 V DC DI) — 1SAP220200R0001
- Digital Output Module: ABB DC532 / DO531 (16 × 24 V DC DO transistor)
- Analog I/O Module: ABB AX522 (4 AI + 2 AO, ±10 V / 4–20 mA)
- Communication Module (optional): ABB CM572-DP (PROFIBUS DP Master/Slave)
- HMI Panel (optional): ABB CP600 series or compatible Modbus TCP HMI
- Programming Cable: USB-to-Ethernet or direct RJ45 connection to engineering PC
- Software: ABB Automation Builder (free download, license required for full features)
- DIN Rail & Terminal Blocks: 35 mm DIN rail, Phoenix Contact or equivalent
Compliance & Industry Standards
- IEC 61131-2 — Programmable Controllers: Equipment Requirements & Tests
- IEC 61131-3 — Programming Languages
- CE Marking — EU Low Voltage Directive & EMC Directive
- UL 508 — Industrial Control Equipment (UL Listed)
- RoHS Compliant — Restriction of Hazardous Substances
- ATEX / IECEx — Suitable for use in Zone 2 hazardous areas with appropriate enclosure (consult ABB for certification details)
- DNV GL — Marine & offshore type approval (selected variants)
Quality Assurance & Sourcing
Konmask.com specializes in industrial automation components for B2B buyers, system integrators, and MRO procurement teams. Every unit of the ABB PM554-TP-ETH 1SAP120600R0071 offered through our platform is:
- Sourced from verified supply chain partners with documented traceability
- Inspected for original ABB labeling, holographic seals, and firmware version consistency
- Stored in ESD-safe, climate-controlled warehousing
- Shipped with anti-static packaging and shock-absorbing outer cartons
- Accompanied by a test report and sourcing declaration upon request
We do not sell refurbished, remarked, or counterfeit components. All parts carry our authenticity guarantee.
How to Source This Part
To place an order or request a quotation for the ABB PM554-TP-ETH (1SAP120600R0071):
- Online: Add to cart directly on this page. Bulk pricing available for orders of 3+ units.
- RFQ / Large Volume: Email support@konmask.com with your required quantity, delivery timeline, and project details.
- Phone / WhatsApp: +0086 19859288691 — available Monday–Saturday, 09:00–18:00 CST.
- Lead Time: In-stock units ship within 1–3 business days. Ex-stock and indent orders quoted on request.
- Export & Cross-Border: We support international shipping with commercial invoice, packing list, and HS code documentation for customs clearance.
Application-Specific FAQ
Q: Can the PM554-TP-ETH communicate with a Siemens HMI via Modbus TCP?
A: Yes. The PM554-TP-ETH supports Modbus TCP server (slave) mode, allowing any Modbus TCP-capable HMI — including Siemens, Weintek, and Schneider panels — to read/write registers directly.
Q: Is this module compatible with the AC500 V2 and V3 I/O expansion bus?
A: The PM554-TP-ETH is part of the AC500 V2 generation. It is compatible with S500 I/O modules. For AC500-eCo or AC500 V3 I/O, consult ABB’s compatibility matrix or contact our technical team.
Q: What programming software is required?
A: ABB Automation Builder (based on CODESYS) is the official programming environment. A free Lite version is available; full features require a paid license. The IDE supports all five IEC 61131-3 languages.
Q: Can this CPU be used in a redundant control architecture?
A: The PM554-TP-ETH does not natively support hot-standby CPU redundancy. For redundant applications, ABB recommends the PM595 or PM591 with the appropriate redundancy module.
Q: What is the maximum number of I/O points this CPU can handle?
A: With up to 10 S500 expansion modules, the system can support several hundred I/O points depending on module selection. For very large I/O counts, distributed I/O via Modbus TCP or CS31 fieldbus is recommended.
Q: Do you provide a warranty on this part?
A: Yes. Konmask.com provides a 12-month warranty against manufacturing defects on all new components. DOA (Dead on Arrival) units are replaced at no charge within 30 days of delivery.
