ABB FS300R12KE3/AGDR-71CS IGBT Module | Replacement, Equivalent & Selection Guide

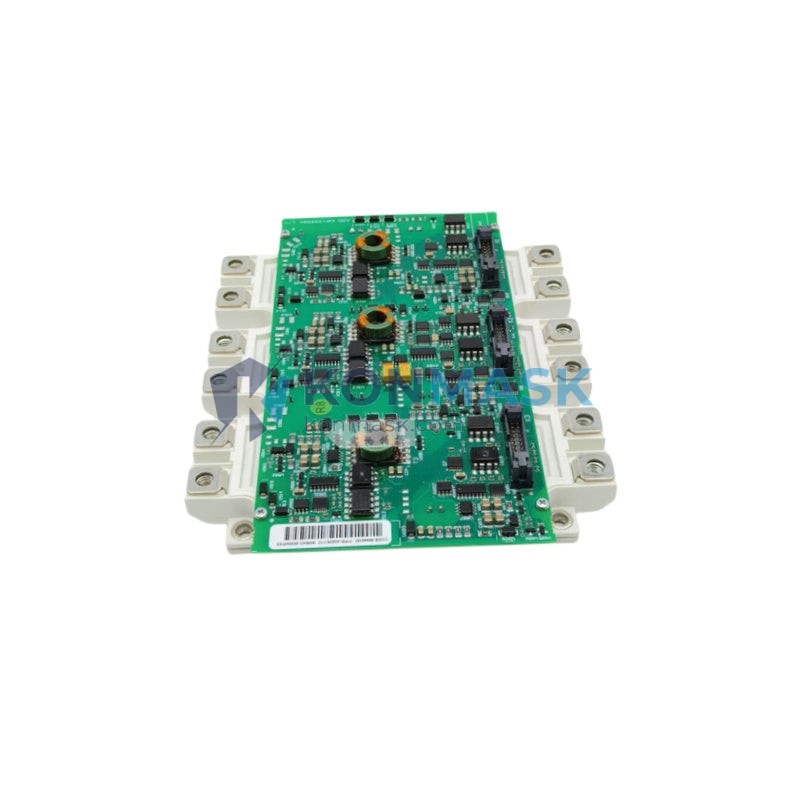

The ABB FS300R12KE3/AGDR-71CS is a high-performance IGBT power module rated at 1200V / 300A, paired with the AGDR-71CS gate driver unit. Designed for demanding industrial drive and converter applications, this module delivers reliable switching performance, low saturation voltage, and integrated protection features. At Konmask.com, we supply genuine ABB modules and provide expert selection guidance for compatible replacements and equivalents.
Technical Specifications
| Part Number | FS300R12KE3/AGDR-71CS |
| Manufacturer | ABB (Infineon IGBT chip platform) |
| Module Type | Six-Pack IGBT Module + Gate Driver |
| Collector-Emitter Voltage (Vce) | 1200 V |
| Collector Current (Ic) | 300 A |
| Gate Driver | AGDR-71CS (ABB integrated gate driver) |
| Topology | Three-phase bridge (6-pack) |
| Switching Frequency | Up to 4 kHz (typical drive application) |
| Isolation Voltage | 4000 V (RMS) |
| Operating Temperature | -40°C to +150°C (Tj) |
| Country of Origin | Germany |
| Weight | 1450 g |
| HS Code | 8541.10.00 |
Compatible Replacement & Equivalent Models
When the original ABB FS300R12KE3/AGDR-71CS is unavailable or requires a cost-effective alternative, the following models offer functional equivalence. Always verify gate driver compatibility and PCB footprint before substitution.
| Model | Manufacturer | Vce | Ic | Notes |
|---|---|---|---|---|
| FS300R12KE3 | Infineon | 1200V | 300A | Bare IGBT module (requires separate gate driver) |
| FF300R12KE3 | Infineon | 1200V | 300A | EconoPACK+ package, pin-compatible in many ABB drives |
| CM300DY-24NF | Mitsubishi | 1200V | 300A | Dual-pack; requires topology adaptation |
| SKM300GB12T4 | Semikron | 1200V | 300A | SEMITRANS package; check mounting dimensions |
| FZ300R12KE3 | Infineon | 1200V | 300A | PrimePACK™ housing; different footprint |
Note: Replacement modules must be used with a compatible gate driver. The AGDR-71CS is specific to ABB ACS/ACS800 drive platforms. Consult Konmask engineers for validated drop-in solutions.
Why Choose the Original Model
- Integrated gate driver (AGDR-71CS): Factory-matched to the IGBT chip for optimal switching timing and protection coordination.
- ABB ACS800 / ACS600 platform optimized: Plug-and-play replacement for ABB industrial drives without firmware reconfiguration.
- Built-in protection: Short-circuit protection, desaturation detection, and under-voltage lockout via AGDR-71CS.
- Proven field reliability: Widely deployed in steel mills, paper machines, cranes, and marine drives globally.
- Traceability: Genuine ABB modules supplied by Konmask include full batch traceability documentation.
Typical Applications
- ABB ACS800 / ACS600 series AC drives (medium voltage inverter stages)
- Industrial motor drives: pumps, fans, compressors, conveyors
- Crane and hoist drive systems
- Marine propulsion and auxiliary drives
- UPS and energy storage converter systems
- Steel rolling mill main drives
- Paper and pulp machine drives
System Compatibility
| ABB Drive Series | Typical Power Range | Compatibility |
|---|---|---|
| ACS800-01 / -04 / -07 | 75–355 kW | ✔ Direct replacement |
| ACS600 | 55–315 kW | ✔ Verified compatible |
| ACS550 (high-power variants) | Up to 355 kW | ⚠ Verify gate driver interface |
| Custom converter designs | — | ⚠ Engineering review required |
Selection Guide
Use the following criteria to select the correct IGBT module for your application:
- Step 1 — Confirm drive model: Identify the exact ABB drive model and firmware version. The AGDR-71CS is designed for specific ACS800/ACS600 control boards.
- Step 2 — Verify voltage class: FS300R12KE3 is a 1200V class module. For 690V AC input drives, 1200V class is standard. For 400V AC, 600V or 1200V class may apply depending on design margin.
- Step 3 — Match current rating: 300A Ic corresponds to approximately 132–160 kW output at 400V. Confirm against your drive’s rated output current.
- Step 4 — Gate driver compatibility: If replacing only the IGBT module (FS300R12KE3 bare), ensure your existing gate driver board is compatible. If replacing the full assembly, the AGDR-71CS is included.
- Step 5 — Thermal interface: Confirm heatsink mounting surface flatness (<50 µm) and apply fresh thermal compound (recommended: Wacker P12 or equivalent).
Quality Assurance & Sourcing
- All modules supplied by Konmask.com are sourced from authorized ABB distribution channels or verified surplus with full traceability.
- Each unit undergoes incoming inspection: visual check, Vce(sat) measurement, and gate threshold verification.
- Packaging: original ABB anti-static tray with desiccant; double-boxed for international shipment.
- Warranty: 12 months from date of shipment against manufacturing defects.
- Counterfeit prevention: batch codes verified against ABB manufacturer records upon request.
How to Order
- Add the ABB FS300R12KE3/AGDR-71CS to your cart directly on this page.
- For bulk orders (3+ units) or urgent requirements, contact us at support@konmask.com for priority stock allocation and volume pricing.
- Provide your drive model and serial number for pre-shipment compatibility confirmation (optional but recommended).
- International orders: DHL Express / FedEx International Priority available. Lead time: 1–5 business days for in-stock units.
Replacement & Compatibility FAQ
Q: Can I use FS300R12KE3 (bare module) without the AGDR-71CS gate driver?
A: Yes, but only if your existing gate driver board is confirmed compatible. The AGDR-71CS provides matched protection thresholds — using a generic driver may compromise short-circuit protection response time.
Q: Is the FS300R12KE3/AGDR-71CS interchangeable with FF300R12KE3?
A: The FF300R12KE3 uses the EconoPACK+ package with a different pin layout. Electrical parameters are similar, but PCB footprint and mounting are not identical. Engineering adaptation is required.
Q: What thermal paste should I use during installation?
A: ABB recommends Wacker P12 silicone thermal compound. Apply a thin, uniform layer (0.1–0.15 mm) to the module base plate before mounting.
Q: Do you supply the AGDR-71CS gate driver separately?
A: Yes. Contact support@konmask.com with your quantity requirement for separate AGDR-71CS availability and pricing.
Q: How do I verify authenticity of the module received?
A: Each genuine ABB module has a laser-etched date code and batch number on the label. Konmask provides batch traceability documentation upon request.
