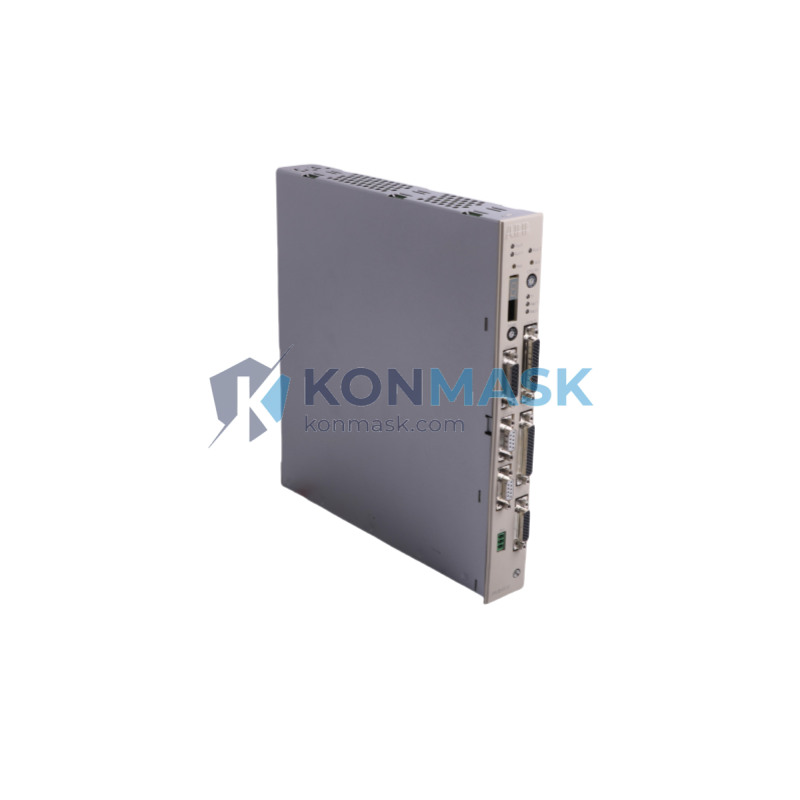

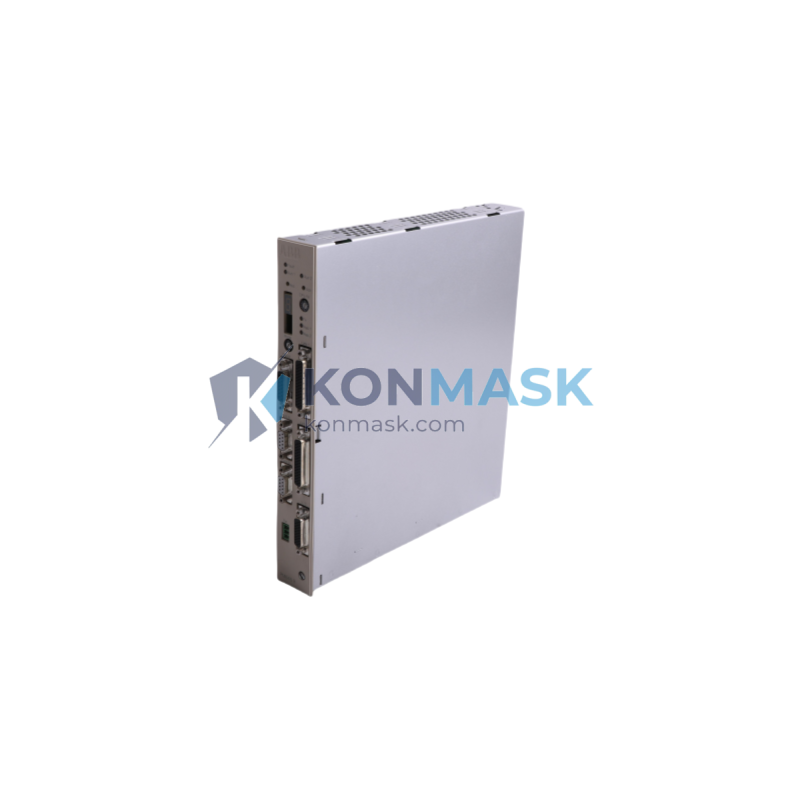

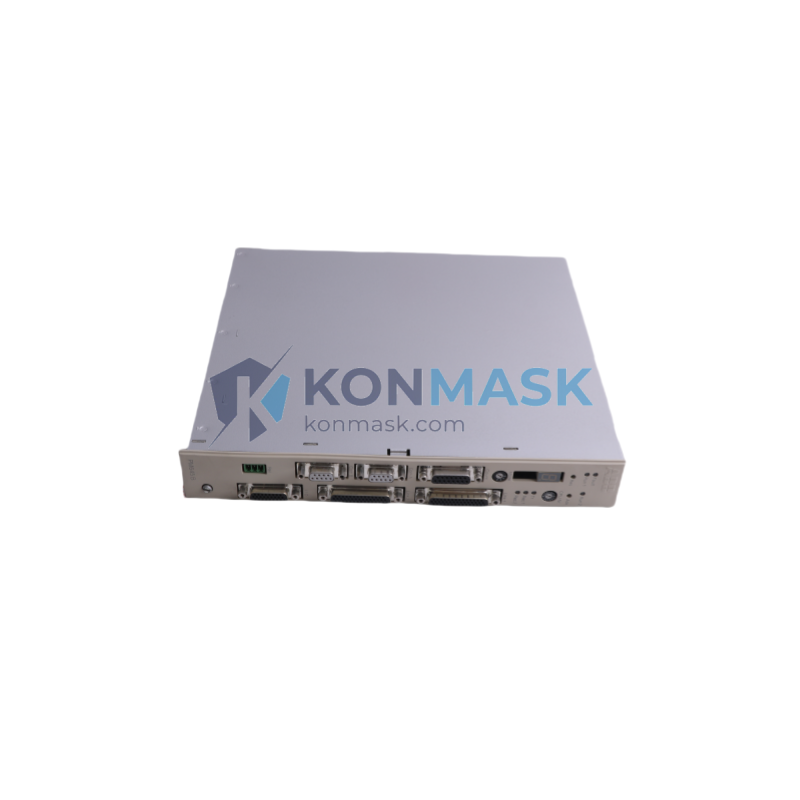

ABB PM645B 3BSE010535R1 – High-Performance DCS Processor Module | AC 800M Platform
Engineering Background: The ABB PM645B is a central processing unit designed for ABB’s AC 800M distributed control system (DCS) platform — one of the most widely deployed process automation architectures in the oil & gas, power generation, pulp & paper, and chemical industries. Part number 3BSE010535R1 identifies the standard hardware revision with full compatibility across the AC 800M controller family.
Product Positioning: As the computational core of the AC 800M controller, the PM645B handles real-time process control execution, inter-module communication, and redundancy management. It is the preferred CPU choice for engineers upgrading legacy S800 I/O systems or deploying new greenfield DCS installations requiring deterministic scan times and high-availability architecture.
Complete Technical Specifications
- Manufacturer: ABB Ltd (Sweden)
- Part Number / SKU: PM645B / 3BSE010535R1
- Product Series: AC 800M Controller Platform
- Module Type: Central Processor Unit (CPU)
- Processor Architecture: 32-bit RISC
- Program Memory: 32 MB Flash
- RAM: 64 MB SDRAM
- Communication Ports: 2× Ethernet (10/100 Mbps), 1× RS-232 service port
- Fieldbus Support: PROFIBUS DP, FOUNDATION Fieldbus H1, Modbus RTU/TCP (via CI modules)
- Redundancy: Hot-standby CPU redundancy supported
- Scan Time: Configurable; minimum ~1 ms for fast loops
- Operating Voltage: 24 VDC (supplied via S800 I/O bus)
- Power Consumption: ≤ 5 W typical
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: −40 °C to +70 °C
- Humidity: 5–95% RH, non-condensing
- Protection Class: IP20
- Dimensions (W × H × D): 40 × 130 × 110 mm (approx.)
- Weight: ~1.72 kg (with housing)
- Certifications: CE, UL, cUL, ATEX (Zone 2 with appropriate enclosure)
- HS Code: 8537.10
- Country of Origin: Sweden
Proven Application Environments
- Oil & Gas: Upstream wellhead control, midstream pipeline SCADA, downstream refinery DCS
- Power Generation: Turbine governor control, boiler management systems, substation automation
- Pulp & Paper: Continuous digester control, bleaching sequence management
- Chemical & Petrochemical: Batch reactor sequencing, distillation column control
- Water & Wastewater: Pump station automation, treatment plant process control
- Pharmaceuticals: FDA 21 CFR Part 11-compliant batch control architectures
Engineering Advantages
- Deterministic Real-Time Execution: Guarantees consistent scan cycle performance critical for closed-loop PID and cascade control strategies.
- Seamless Redundancy: Bumpless switchover in hot-standby configurations minimizes process uptime risk during CPU faults.
- Broad I/O Compatibility: Natively interfaces with the full S800 I/O module library — AI, AO, DI, DO, RTD, thermocouple, and pulse counter modules.
- Engineering Tool Integration: Fully programmed and commissioned via ABB Control Builder M (IEC 61131-3 compliant: FBD, LD, ST, SFC, IL).
- Long Product Lifecycle: ABB AC 800M platform has an established multi-decade support commitment, protecting capital investment.
- Compact Form Factor: Single-slot module design simplifies cabinet layout and reduces panel footprint.
System Architecture & Signal Flow
The PM645B mounts directly onto the S800 I/O bus backplane within an AC 800M controller cabinet. The CPU communicates with I/O modules via the internal S800 bus at high speed, while the dual Ethernet ports connect to the plant control network (PCN) and optionally to a redundant CPU peer. Control Builder M downloads application programs via Ethernet; runtime diagnostics and OPC DA/UA data are served over the same network interface. For fieldbus integration, Communication Interface (CI) modules such as the CI854 (PROFIBUS DP) or CI801 (FOUNDATION Fieldbus) plug into adjacent slots and are managed directly by the PM645B.
Sourcing & Quality Verification
- All units sourced from authorized industrial distributors or decommissioned plant inventories with documented chain of custody.
- Each PM645B undergoes visual inspection, label verification (3BSE010535R1 part number confirmation), and functional power-on test prior to shipment.
- Firmware revision is recorded and disclosed upon request.
- Units are shipped in anti-static packaging with desiccant to prevent moisture ingress during transit.
- Certificate of conformance (CoC) available on request for regulated industries.
Procurement Process
- Confirm Compatibility: Verify your AC 800M controller revision and Control Builder M software version against PM645B firmware requirements.
- Request Quote: Contact support@konmask.com for volume pricing, lead time, and availability confirmation.
- Place Order: Purchase directly via this listing or submit a formal PO to our procurement team.
- Shipping: DHL / FedEx express international shipping available. Export documentation (commercial invoice, packing list, HS 8537.10 declaration) provided.
- Incoming Inspection: We recommend a functional bench test upon receipt before installation into a live system.
Technical FAQ
Q: Is the PM645B compatible with AC 800M R5.x and R6.x software?
A: Yes. The PM645B hardware supports both R5.x and R6.x Control Builder M releases. Firmware upgrade may be required for R6.x features — contact us for the specific firmware version shipped.
Q: Can the PM645B operate in a redundant CPU configuration?
A: Yes. Two PM645B modules can be configured in hot-standby redundancy using ABB’s standard redundancy cabling kit. Switchover is bumpless and typically completes within one scan cycle.
Q: What is the difference between PM645B and PM645A?
A: The PM645B (3BSE010535R1) is the enhanced revision with increased RAM and improved Ethernet performance compared to the earlier PM645A. The PM645B is the recommended replacement for PM645A in all new and retrofit applications.
Q: Do you provide a warranty?
A: Yes. Konmask provides a 90-day functional warranty on all modules. Extended warranty options are available — please inquire at the time of purchase.
Q: Can you supply multiple units for a plant-wide spares program?
A: Yes. We maintain stock and can fulfill multi-unit orders. Contact us for volume pricing and scheduled delivery programs.
