ABB PP845A 3BSE042235R2 – Industrial HMI Touch Panel | AC 800M / AC 800PEC Platform
Engineering Background

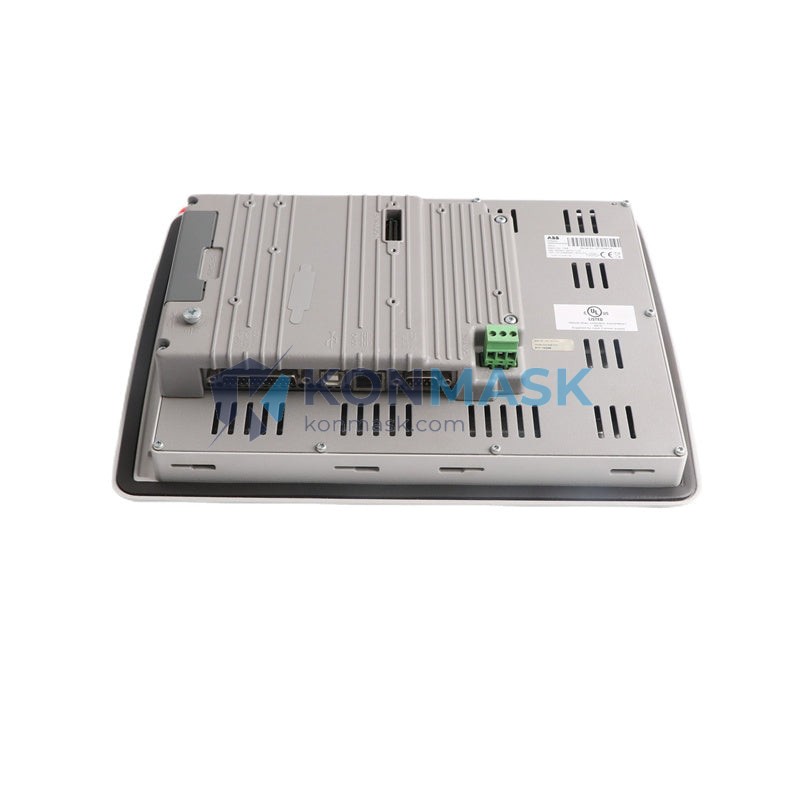

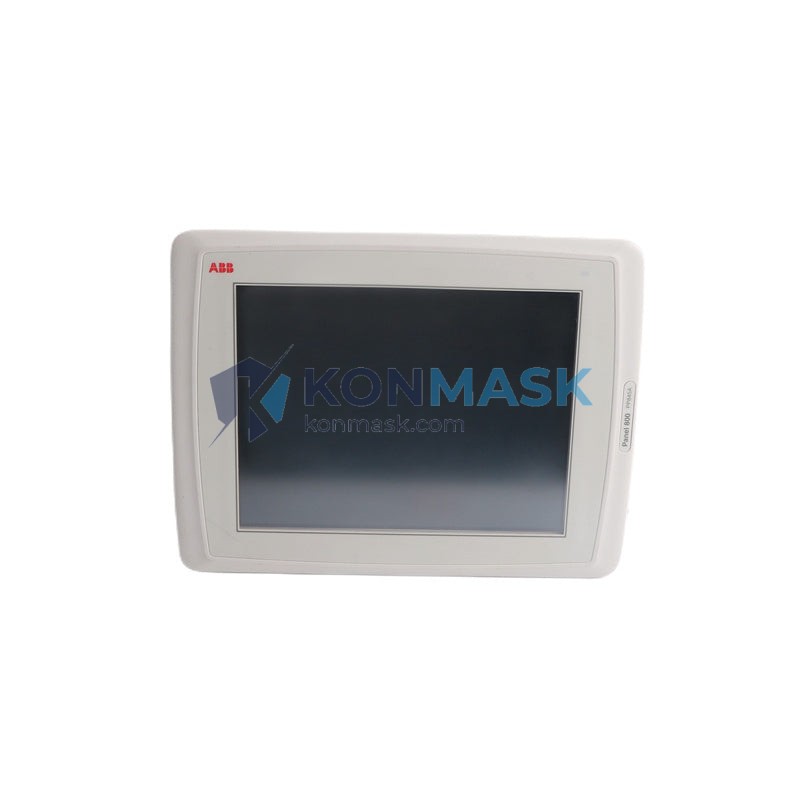

The PP845A is ABB’s flagship operator panel within the System 800xA / AC 800M distributed control architecture. Designed for continuous-duty industrial environments, it provides a high-resolution color touchscreen interface for real-time process visualization, alarm management, and operator interaction — without requiring a separate PC-based workstation. Part number 3BSE042235R2 identifies the standard 15″ TFT variant with integrated USB and Ethernet connectivity.
Product Positioning
Procurement engineers specifying HMI hardware for ABB DCS expansions, panel replacements, or greenfield installations will find the PP845A the lowest-risk, highest-compatibility choice. It is a factory-catalogued ABB component — not a third-party substitute — ensuring seamless integration with existing AC 800M controller nodes, S800 I/O, and 800xA software licenses.
Complete Technical Specifications
| Manufacturer | ABB Ltd. |
| Part Number | PP845A |
| Order Code | 3BSE042235R2 |
| Product Family | Operator Panel / HMI – System 800xA |
| Display Size | 15″ TFT Color LCD |
| Resolution | 1024 × 768 (XGA) |
| Touchscreen Type | Resistive, single-touch |
| Processor | Intel Celeron (embedded) |
| Operating System | Windows XP Embedded / Windows Embedded Standard |
| Communication Interfaces | 2 × Ethernet RJ-45 (10/100 Mbps), 2 × USB 2.0, 1 × RS-232 |
| Power Supply | 24 V DC (nominal), 18–30 V DC operating range |
| Power Consumption | ≤ 60 W (typical) |
| Enclosure Rating | IP65 (front panel), IP20 (rear) |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | −25 °C to +70 °C |
| Relative Humidity | 5–95 % RH (non-condensing) |
| Weight | Approx. 2.04 kg |
| Mounting | Panel cut-out, flush mount |
| Certifications | CE, UL, cUL, ATEX (zone 2 with appropriate enclosure) |
| Compatible Controllers | AC 800M, AC 800PEC, PM851, PM856, PM860, PM861, PM864, PM866 |
| Compatible Software | ABB 800xA HMI, Operate IT, Control Builder M |
| HS Code (CN) | 8537.10 |
Proven Application Environments
- Oil & Gas: Wellhead control panels, compressor station HMI, pipeline SCADA front-ends
- Power Generation: Turbine control rooms, substation automation, boiler management systems
- Chemical & Petrochemical: Reactor monitoring, batch process control, safety interlock visualization
- Pulp & Paper: Machine drive HMI, quality control stations, DCS operator consoles
- Water & Wastewater: Pump station control, WWTP process visualization
- Mining & Minerals: Conveyor control, crusher monitoring, plant-wide DCS operator stations
Engineering Advantages
- Native ABB Integration: Communicates directly with AC 800M over standard Ethernet — no protocol converters or OPC bridges required.
- IP65 Front Seal: Suitable for panel-mount installation in dusty or wash-down environments without additional enclosure.
- Fanless Thermal Design: Eliminates the primary mechanical failure mode in continuous-duty HMI applications.
- Dual Ethernet Ports: Supports redundant network topologies (ring, star) for high-availability DCS architectures.
- Compact Footprint: 15″ form factor fits standard 19″ rack cut-outs and custom panel designs.
- Long-term ABB Support: Covered under ABB’s extended lifecycle program for System 800xA components.
System Architecture & Signal Flow
In a typical AC 800M deployment, the PP845A connects via Ethernet (MMS/IEC 61850 or OPC) to the AC 800M controller node. The controller aggregates field signals from S800 I/O modules (AI, AO, DI, DO, RTD) and exposes process variables to the HMI layer. The PP845A renders real-time graphics, trend displays, and alarm lists using the 800xA HMI runtime. Operator setpoint changes are written back to the controller via the same Ethernet link. A second Ethernet port can connect to the plant historian or engineering workstation without breaking the operator network segment.
Signal path: Field Instruments → S800 I/O → AC 800M Controller → Ethernet → PP845A HMI → Operator
Sourcing & Quality Verification
- Units are sourced from authorized ABB distributors and verified industrial surplus channels.
- Each unit undergoes incoming inspection: visual check, label verification (3BSE042235R2 order code), power-on functional test, and Ethernet port validation.
- Firmware version and OS image are documented prior to shipment.
- Original ABB packaging and documentation supplied where available; otherwise shipped in anti-static ESD packaging with inspection report.
- Counterfeit-risk mitigation: serial number cross-referenced against ABB’s product database where accessible.
Procurement Process
- Confirm compatibility: Verify your AC 800M firmware version and 800xA software release against ABB’s PP845A compatibility matrix (available on request).
- Request a quote: Contact [email protected] with your project quantity, delivery timeline, and any FAT/SAT requirements.
- Order confirmation: Purchase order accepted; lead time and shipping terms confirmed within 1 business day.
- Shipment: ESD-safe packaging, insured freight, tracking number provided. Export documentation (commercial invoice, packing list, COO) included for international orders.
- After-sales support: Technical assistance available for installation, network configuration, and 800xA HMI project migration.
Technical FAQ
Q: Is the PP845A compatible with 800xA version 6.x?
A: Yes. The PP845A supports 800xA versions 5.1 through 6.1. Confirm the specific HMI runtime patch level with your ABB system integrator for version 6.1 SP2 and later.
Q: Can the PP845A replace a PP835 or PP836 in an existing panel cutout?
A: The PP845A uses a different panel cutout dimension (15″ vs. 12.1″). A panel modification or adapter frame is typically required. Contact us for dimensional drawings.
Q: What is the warranty on this unit?
A: Konmask provides a 90-day functional warranty covering power-on operation and communication interface integrity. Extended warranty options are available on request.
Q: Do you provide an IQ/OQ/PQ validation package?
A: Inspection reports and test records are available. Full IQ/OQ documentation packages can be arranged for regulated industries (pharma, F&B) at additional cost.
Q: Can you supply multiple units for a plant-wide HMI refresh project?
A: Yes. Volume pricing and staged delivery schedules are available. Contact us with your BOM and project timeline.
