ABB SDCS-FEX-2A (3ADT311500R0001) – Field Excitation Power Board | DCS800 / DCS400 Series
Engineering Background

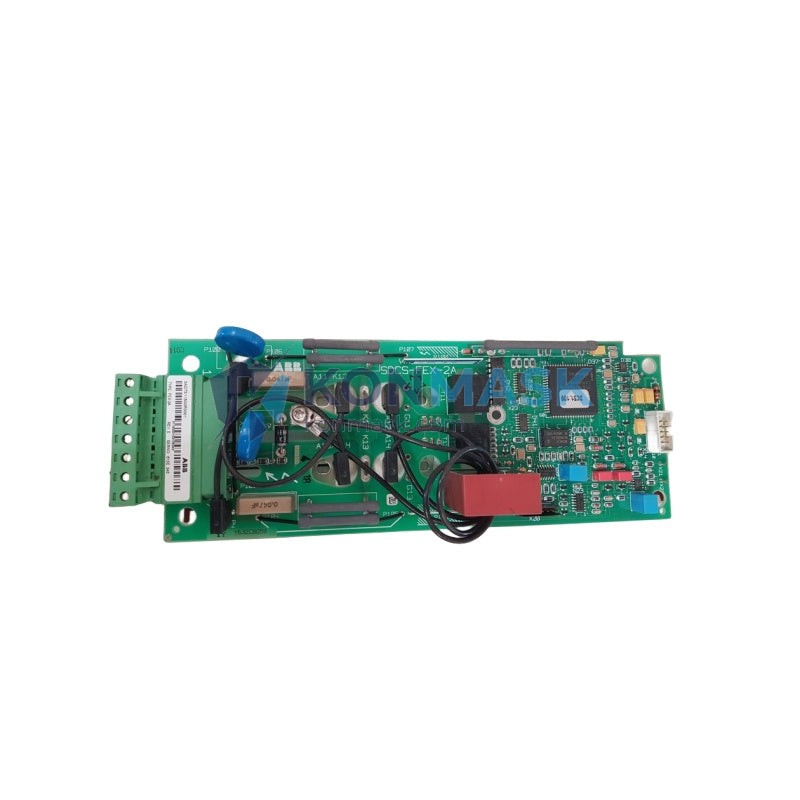

The SDCS-FEX-2A is ABB’s dedicated field excitation board designed for the DCS800 and DCS400 family of fully digital DC drive systems. It provides precisely regulated DC field current to the motor’s field winding, enabling stable flux control across the full speed range. The board interfaces directly with the SDCS-CON-4 control board via the SDCS backplane, forming the core of ABB’s closed-loop field weakening architecture.
Product Positioning
Targeted at maintenance engineers and procurement specialists managing legacy or active ABB DC drive installations in heavy industry, this board is a direct OEM-equivalent replacement. It eliminates the need for full drive replacement when field excitation faults occur, delivering significant cost savings and minimal downtime. Konmask.com stocks verified units sourced from authorized channels and decommissioned OEM equipment.
Complete Technical Specifications
| Part Number | SDCS-FEX-2A |
| ABB Order Code | 3ADT311500R0001 |
| Board Function | Field Excitation Power Board |
| Compatible Platform | ABB DCS800, DCS400 Series DC Drives |
| Field Output Voltage | Up to 500 V DC (field supply dependent) |
| Field Output Current | Up to 16 A DC continuous |
| Input Supply | Single-phase AC, derived from drive field supply terminals |
| Control Interface | SDCS backplane connector (mates with SDCS-CON-4) |
| Regulation Mode | Closed-loop field current regulation with field weakening support |
| Protection Features | Overcurrent, overvoltage, field loss detection |
| Ambient Temperature | 0 °C to +55 °C (operating); -40 °C to +70 °C (storage) |
| Humidity | 5–95% RH, non-condensing |
| Dimensions (approx.) | Per DCS800 board slot form factor |
| Weight | 300 g (approx.) |
| Compliance | CE, RoHS |
| Country of Origin | Finland / EU (OEM) |
Proven Application Environments
- Steel & Metal Processing: Rolling mills, wire drawing machines, and coiler drives requiring precise field control for tension regulation
- Paper & Pulp: Winder and unwinder drives where field weakening enables wide speed range operation
- Mining & Minerals: Conveyor and hoist drives with high-inertia loads demanding stable field excitation under variable load
- Marine & Offshore: Thruster and winch DC drive systems operating in harsh environments
- Cement & Aggregate: Kiln and mill drives with continuous duty cycles
- General Industrial OEM: Any DCS800/DCS400 installation requiring field board replacement or spare inventory
Engineering Advantages
- Direct Drop-In Replacement: Identical form, fit, and function to OEM board — no firmware changes or recalibration required in most installations
- Closed-Loop Field Regulation: Maintains field current accuracy within ±1% across load and temperature variations, protecting motor insulation and extending winding life
- Field Weakening Support: Enables extended speed range operation above base speed without mechanical overspeed risk
- Integrated Protection: On-board field loss and overcurrent detection reduces reliance on external protection relays
- Low Ripple Output: Thyristor-based rectification with filtering minimizes field current ripple, reducing motor heating
- Fast Availability: In-stock at Konmask.com — reduces MRO lead time from weeks to days
System Architecture & Signal Flow
The SDCS-FEX-2A sits within the DCS800 drive cabinet on the SDCS backplane, downstream of the SDCS-CON-4 control board. The control board outputs a field current reference signal via the backplane; the FEX-2A converts this reference into a phase-controlled thyristor firing pattern, rectifying the single-phase AC field supply into regulated DC field current. A feedback loop samples actual field current via a shunt or Hall-effect sensor and returns the signal to the CON-4 for closed-loop correction. Field weakening is achieved by reducing the field current setpoint under CON-4 command as armature speed exceeds base speed.
Signal path summary: CON-4 field reference → FEX-2A thyristor gate drive → AC field supply rectification → DC field winding → current feedback → CON-4 closed-loop correction.
Sourcing & Quality Verification
- Source Traceability: Units sourced from authorized ABB distributors, certified MRO suppliers, or decommissioned OEM equipment with documented service history
- Incoming Inspection: Visual inspection for physical damage, component integrity check, and connector condition verification
- Functional Test: Where applicable, boards are bench-tested for basic power-up and signal continuity prior to dispatch
- Packaging: Anti-static bag + foam-lined carton; humidity indicator card included for long-distance shipments
- Warranty: 90-day replacement warranty against DOA or latent defects (see full terms at Konmask.com/policies)
Procurement Process
- Confirm Compatibility: Verify your DCS800/DCS400 drive frame size and existing SDCS-FEX board revision against your drive nameplate and ABB documentation (3ADW000379 or equivalent)
- Request Quote: Contact support@konmask.com with your drive serial number and required quantity for volume pricing
- Order & Payment: Secure checkout via Konmask.com; T/T bank transfer available for orders above USD 500
- Dispatch: Orders confirmed before 14:00 CST ship same business day; DHL/FedEx express options available
- Installation Support: ABB DCS800 hardware manual (3ADW000379) available on request; Konmask technical team available for pre-installation consultation
Technical FAQ
Q: Is the SDCS-FEX-2A compatible with both DCS800 and DCS400 drives?
A: Yes. The board is mechanically and electrically compatible with both platforms that use the SDCS backplane architecture. Always verify the board revision (R0001 suffix) matches your drive’s BOM.
Q: Can I replace the FEX-2A without re-parameterizing the drive?
A: In most cases, yes. The field excitation parameters (field current reference, field weakening curve) are stored in the CON-4 control board’s non-volatile memory and are not affected by FEX-2A replacement. A field current calibration check is recommended post-installation.
Q: What fault codes indicate a failed SDCS-FEX-2A?
A: Common indicators include F507 (Field Current Too Low), F508 (Field Loss), and A505 (Field Excitation Warning) in the DCS800 fault log. Always rule out field wiring and motor field winding resistance before replacing the board.
Q: Do you offer exchange/repair service?
A: Yes. Contact support@konmask.com to discuss board exchange or third-party repair options for cost-sensitive applications.
Q: What is the lead time for bulk orders?
A: Standard stock orders ship within 1–2 business days. For quantities above 5 units, contact us for availability confirmation and volume pricing.
