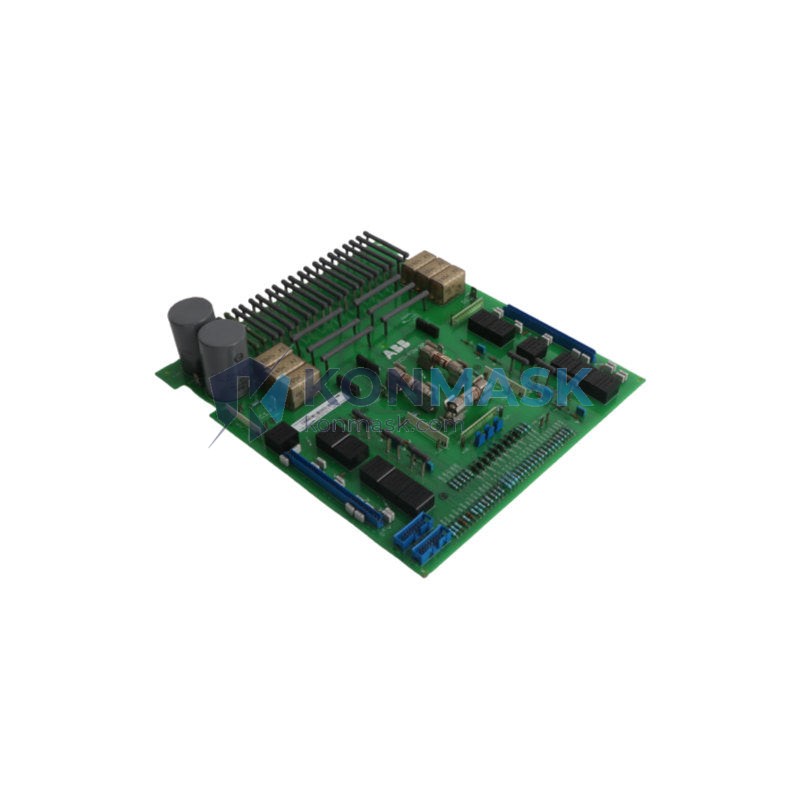

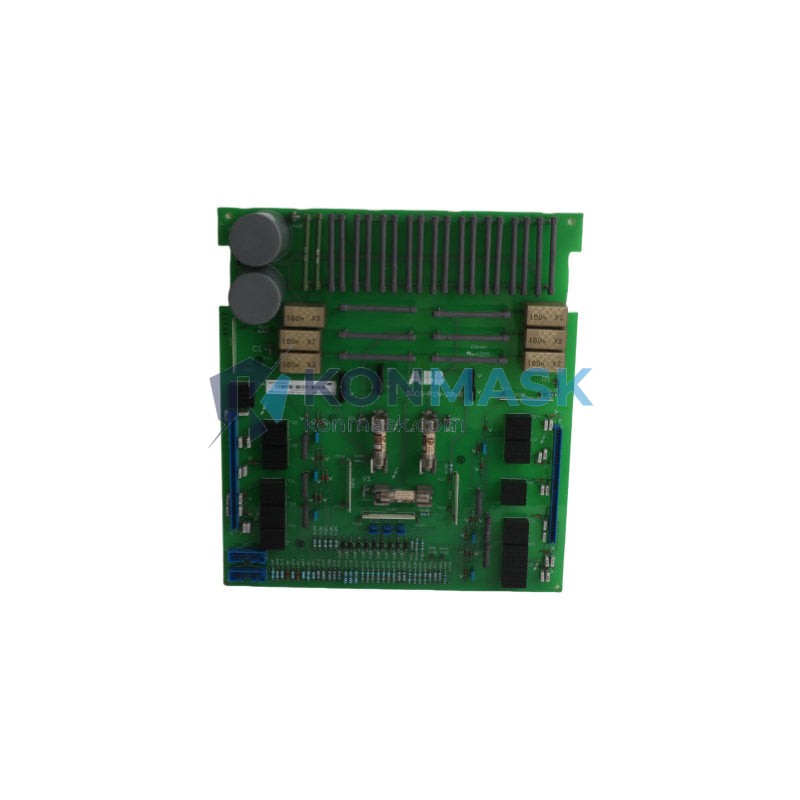

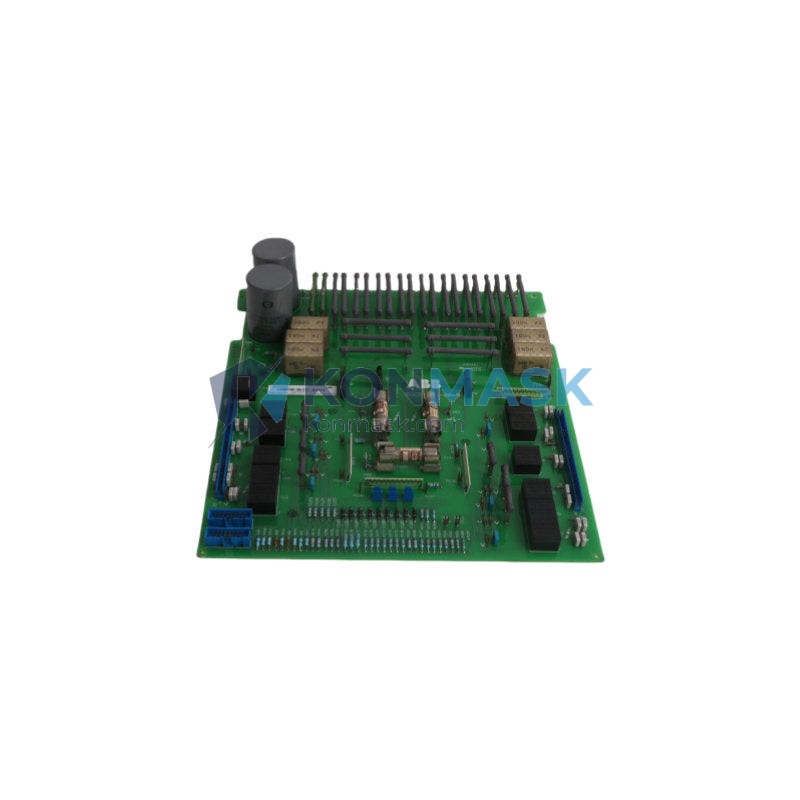

ABB SDCS-PIN-205B-COAT (3ADT220090R0035) – DC Drive Power Interface Board | DCS800 Series Platform
Engineering Background: The SDCS-PIN-205B-COAT is ABB’s conformal-coated power interface board engineered for the DCS800 family of fully digital DC drives. Designed to operate in demanding industrial environments, the conformal coating (suffix -COAT) provides enhanced protection against humidity, condensation, dust, and corrosive atmospheres — a critical requirement for heavy-industry and process-automation installations.
Product Positioning: This board serves as the primary power signal conditioning and interface layer between the DCS800 drive’s control electronics and its power conversion stage. It is a direct OEM replacement component sourced from ABB’s authorized supply chain, carrying part number 3ADT220090R0035. Procurement engineers specifying spare parts for DCS800 installations will find this the exact board required for field replacement or preventive maintenance.
Complete Technical Specifications
- Manufacturer: ABB Ltd.
- Part Number / SKU: SDCS-PIN-205B-COAT
- ABB Reference Number: 3ADT220090R0035
- Board Type: Power Interface Board (PIN)
- Compatible Platform: ABB DCS800 Series DC Drives
- Surface Treatment: Conformal Coated (-COAT) for enhanced environmental protection
- Function: Power signal interface and conditioning between control and power stages
- Mounting: PCB plug-in module, DCS800 drive chassis
- Operating Temperature: Per DCS800 drive specification (typically -10°C to +55°C)
- Weight: Approx. 100 g
- Country of Origin: Finland / EU (ABB manufacturing)
- Condition: New / Surplus New (specify at inquiry)
Proven Application Environments
- Steel mills and rolling mill DC drive systems
- Paper and pulp industry winder/unwinder drives
- Mining hoists and conveyor DC motor control
- Marine and offshore DC propulsion auxiliary drives
- Chemical and petrochemical process line drives
- Cement plant kiln and mill drive systems
- Water treatment pump and blower DC drives
Engineering Advantages
- Conformal Coating: IPC-CC-830 compliant coating protects against moisture ingress, salt spray, and chemical vapors — extending MTBF in harsh environments.
- OEM Exact Fit: Direct plug-in replacement; no field modification required. Eliminates compatibility risk versus aftermarket alternatives.
- Dual Reference Traceability: Both the board-level SKU (SDCS-PIN-205B-COAT) and ABB’s internal catalog number (3ADT220090R0035) are verified, ensuring correct procurement documentation for MRO and ERP systems.
- Reduced Downtime Risk: Stocked component enables same-day dispatch for critical drive repair scenarios.
- Full DCS800 Ecosystem Compatibility: Designed and validated within ABB’s DCS800 drive architecture for seamless integration.
System Architecture & Signal Flow
Within the DCS800 drive, the SDCS-PIN-205B-COAT interfaces the SDCS-CON control board with the thyristor/IGBT power bridge. It conditions feedback signals (current, voltage, temperature) from the power stage and routes gate firing pulses from the control board to the power semiconductors. The conformal coating ensures signal integrity is maintained even when condensation forms on the board surface during thermal cycling — a common failure mode in non-coated variants operating in high-humidity environments.
Sourcing & Quality Verification
- All units are inspected upon receipt against ABB’s published board-level visual inspection criteria.
- Part number and revision markings are verified against ABB documentation prior to listing.
- Konmask.com maintains traceability records (supplier, batch, inspection date) for every unit shipped.
- Certificates of conformance available upon request for regulated industries.
- Anti-static packaging (ESD bag + foam insert) used for all shipments.
Procurement Process
- Step 1: Confirm your DCS800 drive frame size and existing board revision with your ABB drive documentation.
- Step 2: Submit your purchase order or RFQ via the product page or email support@konmask.com.
- Step 3: Receive order confirmation with lead time and shipping options (DHL Express / FedEx International Priority available).
- Step 4: Unit dispatched with packing list, CoC (if requested), and tracking number.
- Step 5: Post-delivery technical support available via email or WhatsApp for installation queries.
Technical FAQ
Q: Is SDCS-PIN-205B-COAT backward compatible with SDCS-PIN-205A?
A: Mechanical and connector footprints are identical; however, firmware-level differences may exist. Consult your ABB DCS800 hardware manual or contact Konmask for revision compatibility guidance before substituting.
Q: What is the difference between SDCS-PIN-205B and SDCS-PIN-205B-COAT?
A: The -COAT suffix denotes the application of a conformal protective coating over the PCB. Electrically and functionally identical; the coated variant is specified for environments with elevated humidity, condensation risk, or chemical exposure.
Q: Can this board be repaired rather than replaced?
A: Board-level repair is technically possible but not recommended for safety-critical drive applications. ABB’s recommended practice is full board replacement to maintain drive performance guarantees and safety certifications.
Q: Do you provide an exchange / core return program?
A: Yes. Contact support@konmask.com to discuss exchange pricing if you have a faulty SDCS-PIN-205B-COAT core to return.
Q: What warranty applies?
A: Konmask provides a 12-month warranty against defects in material and workmanship from date of shipment. New surplus units carry full ABB OEM warranty terms where applicable.
