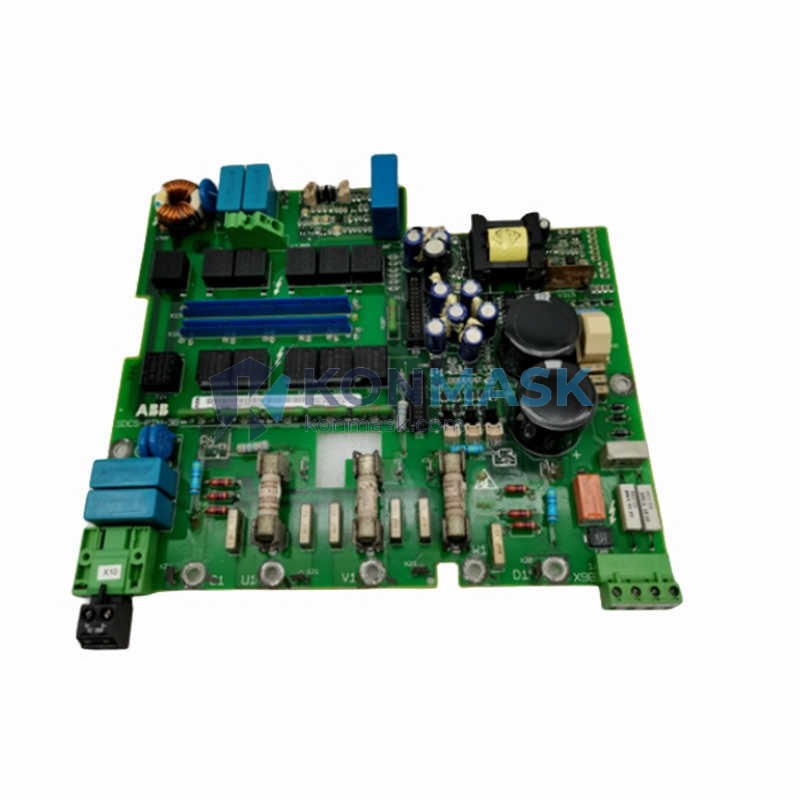

ABB SDCS-PIN-3B 3ADT315200R1001 Pulse Interface Board | Replacement, Equivalent & Selection Guide
The ABB SDCS-PIN-3B (Part No. 3ADT315200R1001) is a precision pulse interface board designed for ABB’s DCS series DC drive systems. This page provides full technical specifications, verified compatible replacements, and a practical selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Manufacturer: ABB
- Part Number: SDCS-PIN-3B
- Reference Number: 3ADT315200R1001
- Type: Pulse Interface Board
- Compatible Drive Series: ABB DCS400 / DCS500 / DCS600
- Function: Encoder pulse signal interface and conditioning for DC drive feedback control
- Mounting: PCB plug-in module
- Weight: Approx. 100 g
- Condition Available: New, Refurbished, Tested Used
Compatible Replacement & Equivalent Models
When the original SDCS-PIN-3B is unavailable or discontinued, the following models may serve as functional equivalents depending on your drive configuration. Always verify firmware and hardware revision compatibility before substitution.
- SDCS-PIN-3A — Earlier revision; functionally similar, verify connector pinout
- SDCS-PIN-4 — Upgraded variant for newer DCS600 firmware revisions
- SDCS-PIN-48 — For 48V encoder supply applications
- Third-party compatible boards — Available upon request; tested against OEM specifications
Not sure which model fits your system? Contact our technical team for a free compatibility check.
Why Choose the Original Model
- Guaranteed OEM Compatibility: Designed and validated by ABB for DCS series drives — no firmware conflicts or signal mismatch risks
- Stable Encoder Feedback: Precision pulse conditioning ensures accurate speed and position feedback in closed-loop control
- Long Service Life: Industrial-grade components rated for continuous operation in demanding environments
- Reduced Commissioning Time: Drop-in replacement with no parameter reconfiguration required in most DCS400/500/600 applications
- Full Traceability: Original part numbers and revision markings preserved for maintenance records and audits
Typical Applications
- DC motor speed and torque control in paper mills, steel rolling lines, and extruders
- Crane and hoist drive systems requiring precise encoder feedback
- Winding and unwinding machines with tension control
- Retrofit and upgrade projects replacing legacy DC drive boards
- Spare parts inventory for ABB DCS400 / DCS500 / DCS600 installations
System Compatibility
| Drive Series | Compatible | Notes |
|---|---|---|
| ABB DCS400 | ✅ Yes | Standard fit; verify firmware version |
| ABB DCS500 | ✅ Yes | Widely used configuration |
| ABB DCS600 | ✅ Yes | Check hardware revision (Rev C or later recommended) |
| ABB DCS550 | ⚠️ Partial | Consult ABB documentation or contact us |
| Third-party DC Drives | ❌ Not recommended | Signal levels may differ; custom interface required |
Selection Guide
Use the following criteria to select the correct pulse interface board for your application:
- Step 1 — Identify your drive model: Confirm the exact ABB DCS series (DCS400, DCS500, or DCS600) and firmware revision from the drive nameplate or commissioning documentation.
- Step 2 — Check encoder supply voltage: SDCS-PIN-3B supports standard 5V/12V encoder supply. If your encoder requires 48V, consider SDCS-PIN-48.
- Step 3 — Verify hardware revision: Cross-reference the board revision marking (Rev A/B/C) with your drive’s compatibility matrix in the ABB DCS Technical Manual.
- Step 4 — Confirm pulse count: Ensure the encoder PPR (pulses per revolution) is within the board’s supported input range.
- Step 5 — Contact us if uncertain: Our engineers can review your drive configuration and recommend the correct board within 24 hours.
Quality Assurance & Sourcing
- Multi-source procurement: We source SDCS-PIN-3B boards from authorized ABB distributors, certified refurbishers, and verified surplus channels globally.
- Pre-shipment testing: Every board undergoes functional verification including signal integrity checks and visual inspection before dispatch.
- Authenticity verification: Part markings, revision codes, and serial numbers are cross-checked against ABB’s published documentation.
- Warranty: 90-day replacement warranty on all units; extended warranty available on request.
- Traceability documentation: Test reports and sourcing certificates available upon request for quality-critical installations.
How to Order
- Add to Cart — Select quantity and proceed to checkout directly on this page.
- Request a Quote — For bulk orders (5+ units) or urgent requirements, email support@konmask.com for priority pricing.
- Provide Drive Details — Share your drive model, firmware version, and application details for a compatibility confirmation before shipment.
- Fast Dispatch — In-stock units ship within 1–3 business days; global shipping available with full tracking.
Replacement & Compatibility FAQ
Q: Can SDCS-PIN-3B replace SDCS-PIN-3A directly?
A: In most DCS500 applications, yes. However, verify the connector pinout and encoder supply voltage match before installation. Contact us for a detailed comparison.
Q: Is a refurbished board as reliable as a new one?
A: Our refurbished boards are fully tested and restored to OEM specifications. They carry the same 90-day warranty and are suitable for non-critical or backup applications. For primary production lines, we recommend new units.
Q: Do you provide installation support?
A: Yes. Our technical team can provide wiring diagrams, parameter settings, and remote commissioning guidance for ABB DCS drive installations.
Q: What if the board fails after installation?
A: Contact us within the warranty period. We offer advance replacement to minimize downtime — a replacement unit ships before you return the faulty board.
Q: Can you source other ABB SDCS series boards?
A: Yes. We stock a wide range of ABB DCS drive boards including SDCS-CON, SDCS-POW, SDCS-FEX, and SDCS-IOB series. Contact us with your part number.
