ABB RDCU-02C 64607901E Drive Control Unit | Replacement, Equivalent & Selection Guide

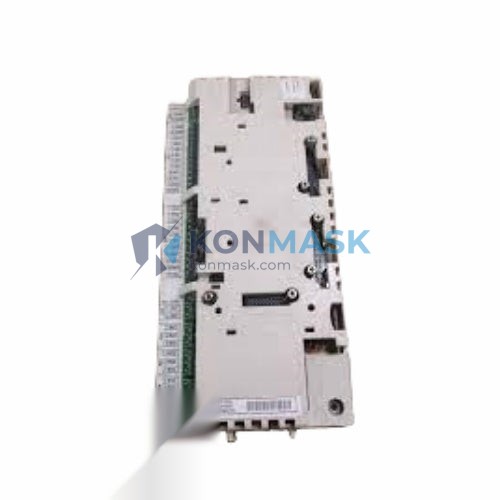

The ABB RDCU-02C (part number 64607901E) is a dedicated Drive Control Unit designed for ABB ACS800 series frequency converters. It serves as the central intelligence board responsible for motor control algorithms, fieldbus communication, and I/O coordination within the drive system. This page provides full technical specifications, verified replacement options, application guidance, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Part Number | RDCU-02C |
| Reference Number | 64607901E |
| Product Type | Drive Control Unit (DCU) |
| Compatible Drive Series | ABB ACS800 (single drive & multidrive) |
| Communication Interfaces | DDCS fiber optic, RS-232 (PC tool port) |
| Fieldbus Support | Via optional fieldbus adapter modules (RPBA, RDNA, RCAN, etc.) |
| Control Panel Interface | CDP312R / ACS-CP-C compatible |
| Memory | Flash memory for firmware & parameter storage |
| Operating Temperature | 0 °C to +55 °C |
| Weight | ~550 g |
| Mounting | Plug-in board, ACS800 control section slot |
| Firmware Compatibility | ACS800 Standard Application Program (ASC800 APPL) |
Compatible Replacement & Equivalent Models
When the original RDCU-02C is unavailable or requires substitution, the following models are commonly evaluated. Always verify firmware version and hardware revision compatibility before installation.
| Model | Manufacturer | Compatibility Notes | Key Difference |
|---|---|---|---|
| RDCU-02C (64607901E) | ABB | ✅ Direct OEM match | — |
| RDCU-02C (earlier revisions) | ABB | ✅ Functionally equivalent; confirm HW rev | Minor PCB revision |
| RDCU-12C | ABB | ⚠️ Partial – check drive frame size | Extended I/O variant |
| APBU-44C / APBU-12C | ABB | ⚠️ Branching unit, not direct replacement | Used in multidrive topology |
| Third-party DCU boards | Various OEMs | ❌ Not recommended for safety-critical systems | Firmware incompatibility risk |
Note: Konmask.com supplies only genuine ABB components. Third-party alternatives listed above are for reference only.
Why Choose the Original Model
- Firmware integrity: The RDCU-02C is factory-programmed and validated for ACS800 application programs — no re-flashing required.
- Parameter retention: Flash memory preserves all drive parameters through power cycles and board swaps.
- ABB ecosystem compatibility: Seamless integration with DriveWindow, DriveStudio, and CDP312R control panels.
- Safety compliance: Meets CE, UL, and IEC 61800-5-1 standards as part of the ACS800 certified system.
- Reduced commissioning time: Plug-and-play replacement with parameter upload from backup or control panel.
Typical Applications
- Paper & pulp mill line drives (winders, coaters, refiners)
- Marine propulsion and thruster control systems
- Oil & gas pump and compressor drives
- Metal rolling mill and crane hoist drives
- Water treatment plant pump stations
- HVAC large-scale air handling unit drives
- Cement and mining conveyor systems
System Compatibility
The RDCU-02C is designed exclusively for the ABB ACS800 drive family. Confirm compatibility using the table below before ordering:
| Drive Series | Compatible | Notes |
|---|---|---|
| ACS800-01 / -04 / -07 | ✅ Yes | Standard single drive frames R2–R8 |
| ACS800-11 / -17 (multidrive) | ✅ Yes | Used with APBU branching unit |
| ACS800-31 (regenerative) | ✅ Yes | Confirm firmware version |
| ACS600 series | ❌ No | Different control board architecture |
| ACS880 series | ❌ No | Uses ZCU/BCU control units |
| DCS800 (DC drives) | ❌ No | Separate control platform |
Selection Guide
Use this decision flow to confirm the RDCU-02C is the correct part for your application:
- Identify your drive model: Confirm the drive nameplate shows ACS800-xx series.
- Locate the existing control unit: The DCU board is in the control section; note the label (RDCU-02C or RDCU-12C).
- Check hardware revision: Compare the HW revision on the board label with the spare part. Revisions A–E are generally cross-compatible.
- Verify firmware version: Use DriveWindow or CDP312R to read parameter 33.01 (SW version). Ensure the replacement supports the same firmware branch.
- Confirm fieldbus adapter: If an RPBA/RDNA/RCAN adapter is installed, verify it is compatible with the replacement board’s DDCS port.
- Backup parameters: Before replacement, upload all parameters to a PC or control panel memory.
- Order with confidence: Contact Konmask.com with your drive serial number for a verified match.
Quality Assurance & Sourcing
- ✅ Genuine ABB components — sourced through authorized distribution channels
- ✅ Pre-shipment inspection — each board tested for physical integrity and label authenticity
- ✅ Traceability — batch records and certificates of conformity available on request
- ✅ Secure packaging — ESD-safe anti-static bags with foam cushioning
- ✅ Warranty — 12-month warranty against manufacturing defects
- ✅ Export compliance — HS code classification and customs documentation provided
How to Order
- Add the RDCU-02C to your cart and proceed to checkout, or
- Contact us directly for bulk orders, urgent requirements, or technical pre-sales consultation:
- 📧 Email: support@konmask.com
- 📞 Phone/WhatsApp: +0086 19859288691
- 🌐 Website: https://Konmask.com
Please provide your drive model, serial number, and required quantity for fastest response. Lead time: typically 3–7 business days for in-stock items.
Replacement & Compatibility FAQ
Q: Can I replace RDCU-02C with RDCU-12C?
A: In some ACS800 frames, yes — but the RDCU-12C has additional I/O and may require different wiring. Always consult the ACS800 Hardware Manual before substituting.
Q: Do I need to re-program the board after replacement?
A: No re-programming is needed if you restore parameters from a backup. The board ships with factory firmware; parameter upload via CDP312R or DriveWindow restores your configuration.
Q: Is the 64607901E reference number the same as RDCU-02C?
A: Yes — 64607901E is ABB’s internal manufacturing reference for the RDCU-02C control unit. Both numbers refer to the same product.
Q: Can this board be used in ACS880 drives?
A: No. ACS880 uses ZCU-12 or BCU-x2 control units. The RDCU-02C is not compatible with ACS880 architecture.
Q: What is the typical failure mode of the RDCU-02C?
A: Common failure symptoms include fault codes F-0001 (overcurrent), communication loss to the control panel, or the drive failing to power up the control section. A faulty RDCU-02C typically requires board replacement rather than repair.
Q: Do you provide a test report or certificate of conformity?
A: Yes — available upon request for all orders. Contact support@konmask.com.
