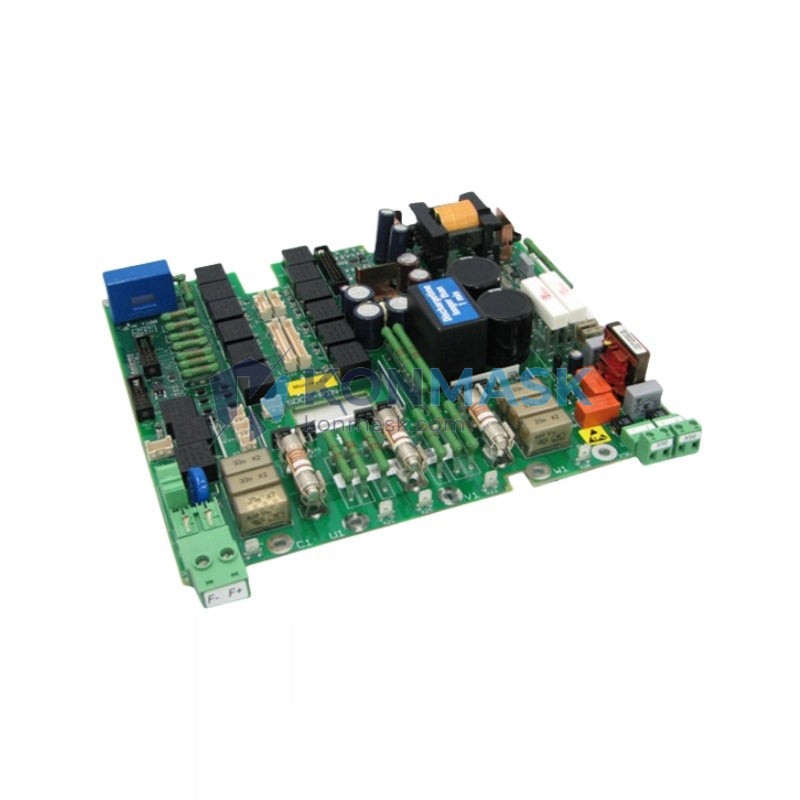

ABB SDCS-PIN-4B-COATED 3ADT316300R1510 Power Interface Module – DCS800 DC Drive Series
When a power interface module fails on a DC drive system, the consequences are immediate and severe: the entire drive loses its ability to regulate armature current, gate firing signals become erratic, and the controlled motor either trips on fault or runs uncontrolled. In paper mills, steel rolling lines, and marine propulsion systems, even minutes of unplanned downtime translate into tens of thousands of dollars in lost production. The ABB SDCS-PIN-4B-COATED 3ADT316300R1510 is the precision-engineered solution that keeps these critical systems running — providing the essential power interface backbone between the DCS800 control board and the thyristor power stack.
The SDCS-PIN-4B-COATED is the conformal-coated variant of the SDCS-PIN-4B power interface module, purpose-built for the ABB DCS800 series of fully digital DC drives — one of the most widely deployed DC drive platforms in global heavy industry. The conformal coating (IEC 60721-3-3 Class 3C2) provides superior protection against humidity, condensation, dust, and corrosive atmospheres, making this module the preferred choice for offshore platforms, coastal installations, chemical plants, and other demanding environments. With ABB’s DCS800 drives installed across thousands of sites worldwide, the SDCS-PIN-4B-COATED represents a critical spare part that procurement engineers and maintenance teams must keep in stock.
Technical Specifications
- Part Number: SDCS-PIN-4B-COATED
- ABB Order Code: 3ADT316300R1510
- Compatible Drive Series: ABB DCS800
- Module Type: Power Interface Module (PIN Board)
- Surface Treatment: Conformal Coated (IEC 60721-3-3 Class 3C2)
- Function: Interface between SDCS-CON control board and thyristor power bridge; provides gate pulse distribution, current feedback, and power supply regulation
- Weight: Approx. 600 g
- Condition: New / Refurbished (specify on inquiry)
- Warranty: 12 months (Konmask standard)
Key Features & Benefits
- Conformal Coating Protection: Guards PCB traces and components against moisture, salt spray, fungal growth, and chemical vapors — extending service life in harsh industrial environments.
- Precision Gate Pulse Distribution: Ensures accurate and synchronized firing of thyristors for stable armature current control and smooth motor torque response.
- Direct OEM Replacement: Drop-in replacement for existing SDCS-PIN-4B boards in DCS800 drives — no firmware changes or parameter re-tuning required.
- Integrated Power Supply Regulation: Provides stable auxiliary voltages to the control electronics, reducing susceptibility to mains voltage fluctuations.
- Reduced Maintenance Downtime: Plug-and-play board swap restores drive operation in minutes, minimizing production interruption.
- Long-Term Availability: Konmask maintains dedicated stock of DCS800 spare boards to support legacy installations worldwide.
Industry & Equipment Applications
- Steel & Metals: Rolling mill main drives, coiler/uncoiler drives, continuous casting line drives
- Paper & Pulp: Winder drives, refiner drives, press section drives
- Marine & Offshore: Thruster drives, winch drives, anchor handling equipment
- Mining: Hoist drives, conveyor drives, crusher drives
- Chemical & Petrochemical: Extruder drives, pump drives in corrosive atmospheres
- Water Treatment: Large pump station DC drives in humid environments
- General Industrial: Any DCS800-based DC drive installation requiring conformal-coated spare boards
System Integration & Compatible Parts
The SDCS-PIN-4B-COATED interfaces directly with the following DCS800 system components:
- SDCS-CON-4: Main control board (communicates gate firing commands to PIN board)
- SDCS-POW-4: Power supply board
- SDCS-FEX-2 / SDCS-FEX-4: Field excitation boards
- SDCS-IOB-3: I/O extension board
- DCS800-S / DCS800-A: Full drive assemblies (all frame sizes)
When replacing the SDCS-PIN-4B-COATED, it is recommended to inspect the SDCS-CON-4 control board and gate cable harnesses simultaneously to rule out cascading faults.
Our Quality Assurance Process
- Visual Inspection: All boards are inspected for physical damage, burnt components, and coating integrity before dispatch.
- Functional Testing: Where applicable, boards are bench-tested using DCS800-compatible test rigs to verify gate pulse output and power supply rails.
- Authenticity Verification: We source exclusively from authorized ABB distributors and verified industrial surplus channels — no counterfeit parts.
- Secure Packaging: ESD-safe anti-static bags, foam cushioning, and moisture-barrier packaging for international shipment.
- Documentation: Certificate of conformity and test report available on request.
How to Order
- Submit your inquiry via the Contact / RFQ form on this page or email support@konmask.com.
- Provide your drive nameplate data (drive type, serial number, firmware version) for compatibility confirmation.
- Receive a formal quotation with lead time and shipping options within 24 business hours.
- Confirm order and arrange payment via T/T, L/C, or other agreed terms.
- Shipment via DHL / FedEx / UPS Express or sea freight — worldwide delivery.
Why Choose Konmask.com?
- ✅ Specialized in ABB Industrial Automation: Deep stock of DCS800, ACS800, ACS880, and AC500 spare parts.
- ✅ Global B2B Supply: Serving OEMs, system integrators, and end-users in 50+ countries.
- ✅ Fast Response: RFQ responses within 24 hours; emergency orders prioritized.
- ✅ Technical Support: Our engineers can assist with fault diagnosis and board identification.
- ✅ Competitive Pricing: Direct sourcing relationships ensure best-in-class pricing for genuine parts.
- ✅ Secure Transactions: Established export compliance procedures and trade documentation.
Frequently Asked Questions
Q: What is the difference between SDCS-PIN-4B and SDCS-PIN-4B-COATED?
A: The SDCS-PIN-4B-COATED is the conformal-coated version of the standard SDCS-PIN-4B. The coating provides additional protection against moisture, condensation, and corrosive gases. Both are functionally identical and interchangeable in DCS800 drives, but the coated version is recommended for harsh or outdoor environments.
Q: Is the 3ADT316300R1510 the same as SDCS-PIN-4B-COATED?
A: Yes. 3ADT316300R1510 is the ABB order/catalog number for the SDCS-PIN-4B-COATED module. Both references identify the same product.
Q: Can I replace SDCS-PIN-4B-COATED without re-parameterizing the DCS800 drive?
A: Yes. The SDCS-PIN-4B-COATED is a hardware board replacement. Drive parameters are stored on the SDCS-CON-4 control board and are not affected by replacing the PIN board. However, always back up drive parameters before any maintenance work.
Q: What DCS800 frame sizes is this module compatible with?
A: The SDCS-PIN-4B-COATED is used across multiple DCS800 frame sizes. Please provide your drive’s nameplate data when submitting an inquiry so we can confirm exact compatibility for your specific unit.
Q: Do you offer expedited shipping for urgent breakdowns?
A: Yes. We offer DHL/FedEx Express shipping for emergency orders. Please mark your inquiry as “URGENT” and we will prioritize processing and dispatch.
Q: What warranty do you provide?
A: All parts supplied by Konmask.com carry a 12-month warranty against manufacturing defects under normal operating conditions.
