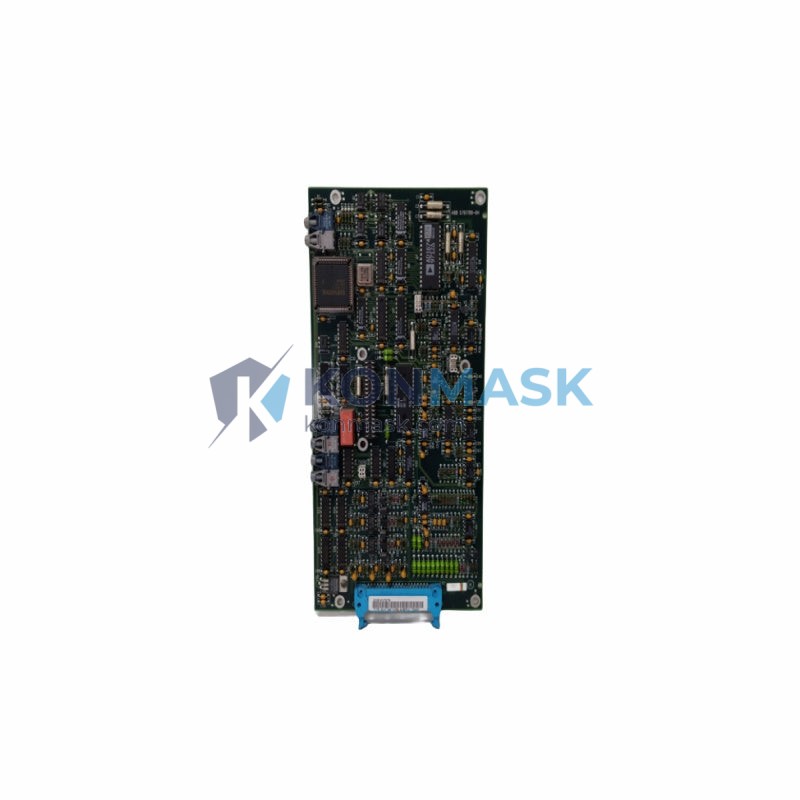

ABB SNAT609TAI 61073779 Control Board – ACS600 / ACS800 Pulse Encoder Interface
When a pulse encoder interface board fails inside an ABB ACS600 or ACS800 variable frequency drive, the consequences are immediate and severe: the drive loses closed-loop speed feedback, torque control degrades, and in precision applications such as paper machines, cranes, or winding lines, the entire production line must halt. Unplanned downtime in these environments can cost thousands of dollars per hour. The ABB SNAT609TAI 61073779 is the exact OEM replacement board that restores full drive functionality — no firmware patching, no parameter re-mapping, no compromise.
Within the ACS600 and ACS800 drive family — ABB’s flagship medium-voltage and low-voltage AC drive platforms deployed across more than 100 countries — the SNAT609TAI occupies a critical position as the dedicated pulse encoder interface (PTAI) control board. It enables high-resolution speed and position feedback from incremental encoders, making it indispensable for applications demanding precise motor control. As global industrial automation continues to expand, demand for genuine spare boards like the SNAT609TAI remains consistently strong among OEM integrators, MRO distributors, and end-user maintenance teams worldwide.
Technical Specifications
- Part Number: SNAT609TAI
- Reference Number: 61073779
- Manufacturer: ABB
- Compatible Drive Series: ACS600, ACS800
- Board Function: Pulse Encoder Interface / Tachometer Adapter Board
- Board Type: Control Board (PTAI — Pulse Tachometer Adapter Interface)
- Weight: Approx. 1,040 g (including packaging)
- Condition: New / Refurbished / Tested — specify on inquiry
Note: All specifications are based on OEM documentation. Konmask.com does not modify or alter original hardware.
Key Features & Benefits
- ✅ OEM-Grade Compatibility — Designed exclusively for ABB ACS600/ACS800 drive platforms; plug-and-play replacement with no additional configuration required.
- ✅ High-Resolution Encoder Feedback — Supports incremental pulse encoders for closed-loop speed and position control in demanding industrial processes.
- ✅ Robust Industrial Design — Built to ABB’s stringent quality standards for continuous operation in harsh industrial environments.
- ✅ Genuine Part Assurance — Every unit sourced through verified supply channels; serial numbers and markings intact.
- ✅ Fast Global Dispatch — In-stock units ship within 1–3 business days; DHL / FedEx / UPS express options available.
Industry & Equipment Applications
- Pulp & Paper: Winder drives, reel drives, and section drives requiring precise speed synchronization.
- Metals & Steel: Rolling mill drives, coiler/uncoiler systems with closed-loop tension control.
- Marine & Offshore: Crane hoisting drives, thruster control systems.
- Oil & Gas: Pump and compressor drives with encoder-based process control.
- Material Handling: Conveyor systems, automated storage and retrieval systems (ASRS).
- Power Generation: Auxiliary drive systems in power plants.
System Integration & Compatible Parts
The SNAT609TAI is designed to integrate seamlessly within the ABB ACS600 and ACS800 drive control architecture. Commonly paired components include:
- NAMC-11 / NAMC-51 — Main Control Boards (ACS800)
- AINT-02 / AINT-11 — Inverter Control Boards
- RDCO-01 / RDCO-02 — DriveWindow Communication Modules
- NINT-41 / NINT-51 — Inverter Interface Boards
- APBU-44C / APBU-12C — Branching Units
If you require a complete bill of materials for your drive repair, our technical team can assist with cross-referencing compatible spare parts.
Our Quality Assurance Process
- Source Verification — All boards are procured from ABB-authorized channels, certified distributors, or decommissioned OEM equipment with full traceability.
- Visual & Physical Inspection — Each board is inspected for component integrity, solder joint quality, connector condition, and label authenticity.
- Functional Testing — Where applicable, boards undergo bench testing against ABB drive test rigs to verify signal output and communication integrity.
- Secure Packaging — Anti-static ESD packaging with foam cushioning; humidity indicator cards included for long-distance shipments.
How to Order
- Click “Request a Quote” or contact us directly at support@konmask.com.
- Provide your required quantity, preferred condition (new / refurbished / tested), and destination country.
- Our team responds within 24 hours with availability confirmation, lead time, and a formal quotation.
- Upon order confirmation, we arrange export documentation (commercial invoice, packing list, COO if required) and dispatch.
Why Choose Konmask.com?
- 🌐 Global B2B Supplier — Serving MRO buyers, system integrators, and OEM partners in 60+ countries.
- 🔍 Verified Sourcing — We do not sell counterfeit or unmarked parts. Every shipment includes traceability documentation.
- 📦 Export-Ready Logistics — DDP / DAP / EXW terms available; experienced with customs clearance for industrial electronics.
- 🛠️ Technical Support — Pre-sales compatibility checks and post-sales installation guidance from our engineering team.
- ⚡ Emergency Stock — Priority fulfillment for urgent plant breakdown situations.
Frequently Asked Questions
Q: Is the SNAT609TAI compatible with both ACS600 and ACS800 drives?
A: Yes. The SNAT609TAI 61073779 is designed for use across the ACS600 and ACS800 drive families. Please confirm your drive model and firmware version with our team before ordering to ensure full compatibility.
Q: Do you supply new or refurbished units?
A: We supply both. New old stock (NOS), factory-refurbished, and tested-used units are available depending on current inventory. Condition is clearly stated in your quotation.
Q: Can you provide a certificate of conformity or test report?
A: Yes. Test reports and inspection certificates are available upon request for refurbished and tested units.
Q: What is the lead time for international orders?
A: In-stock items ship within 1–3 business days. Express delivery (DHL/FedEx) typically reaches most destinations within 3–7 business days.
Q: Do you accept returns if the board is not compatible?
A: We offer a compatibility guarantee. If a board is confirmed incompatible due to our error, we arrange a full replacement or refund. Please review our returns policy or contact us before ordering.
