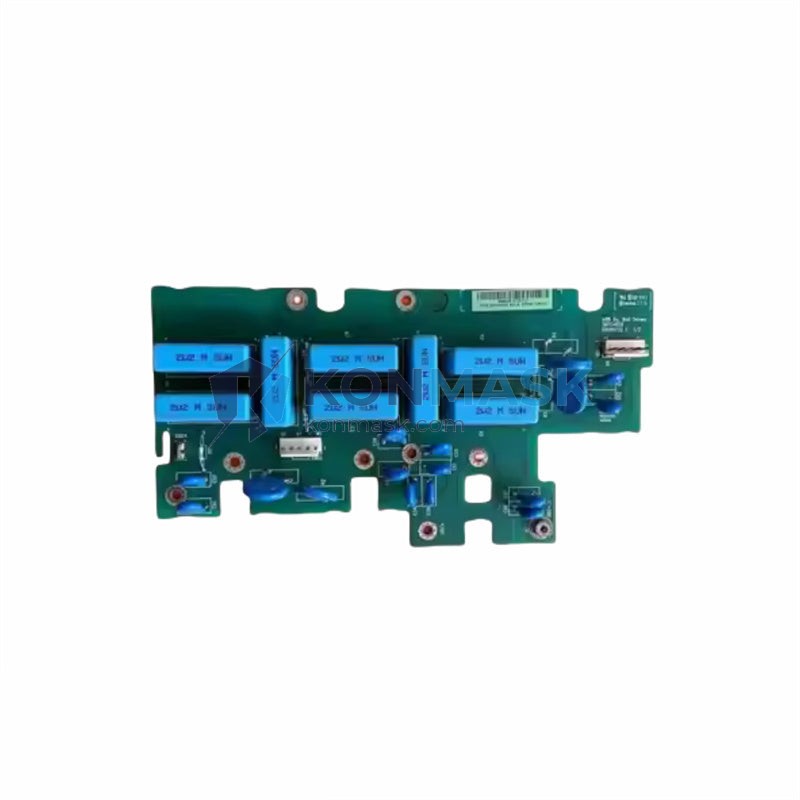

ABB SRFC4620C – Inverter Filter Plate | EMC/RFI Suppression | ACS800 Series Platform
Engineering Background
The SRFC4620C is an OEM-specified inverter filter plate engineered by ABB for integration within the ACS800 series variable frequency drive (VFD) platform. Designed to attenuate conducted electromagnetic interference (EMI) and radio-frequency interference (RFI) at the inverter output stage, this component is a critical element in achieving compliance with IEC/EN 61800-3 Category C2/C3 emission standards in industrial drive installations.
Product Positioning
Targeted at procurement engineers and maintenance teams responsible for ACS800 drive systems in process automation, material handling, HVAC, and heavy industry, the SRFC4620C provides a direct OEM replacement path without the need for third-party filter adaptation. Konmask.com supplies this component with full traceability documentation, supporting both MRO (maintenance, repair, and operations) and new-build project procurement.
Complete Technical Specifications
- Part Number: SRFC4620C
- Manufacturer: ABB
- Compatible Platform: ACS800 Series Variable Frequency Drives
- Function: Inverter Filter Plate – EMC/RFI Suppression
- Filter Type: Conducted emission suppression (output stage)
- Compliance Standard: IEC/EN 61800-3 Category C2/C3
- Weight: 1,120 g
- Mounting: Internal drive frame mount (OEM specification)
- Operating Environment: Industrial enclosure, per ACS800 drive ambient ratings
- Country of Origin: Refer to product label / documentation
Proven Application Environments
- Process automation and continuous manufacturing lines
- HVAC and building management systems using ACS800 drives
- Material handling: conveyors, hoists, and crane drive systems
- Water and wastewater treatment pump drive installations
- Oil & gas upstream/downstream motor control centers
- Marine and offshore drive systems requiring EMC compliance
- Pulp, paper, and metals processing with high-cycle VFD operation
Engineering Advantages
- OEM Direct Fit: Designed and manufactured by ABB to exact ACS800 frame tolerances — no field modification required.
- EMC Compliance Assurance: Maintains CE marking and IEC 61800-3 compliance of the host drive system when replaced with genuine ABB parts.
- Reduced Downtime Risk: Drop-in replacement eliminates compatibility uncertainty associated with aftermarket alternatives.
- Long Service Life: ABB industrial-grade materials rated for continuous duty in demanding thermal and vibration environments.
- Traceability: Supplied with manufacturer documentation supporting ISO 9001 maintenance records and audit trails.
System Architecture & Signal Flow
Within the ACS800 drive architecture, the SRFC4620C filter plate is positioned at the inverter output stage, between the IGBT power module assembly and the motor cable terminals. Its primary function is to suppress high-frequency common-mode and differential-mode noise generated by PWM switching transitions, preventing conducted emissions from propagating onto motor cables and into the facility power network. The filter plate integrates with the drive’s internal bus structure and grounding scheme, ensuring low-impedance EMC bonding consistent with ABB’s drive system design.
Sourcing & Quality Verification
- Source: Konmask.com sources ABB components through authorized distribution and verified industrial surplus channels.
- Inspection: Each unit undergoes visual and dimensional inspection prior to dispatch.
- Documentation: Certificate of conformity and packing list provided with every shipment.
- Authenticity: ABB part markings, date codes, and label integrity verified against known-good references.
- Packaging: Anti-static protective packaging; original ABB packaging where available.
Procurement Process
- Confirm compatibility: verify your ACS800 drive frame size and existing filter plate part number against SRFC4620C.
- Submit inquiry or place order directly via Konmask.com product page.
- Receive order confirmation with lead time and shipping details within 1 business day.
- Shipment dispatched with tracking; DDP/DAP terms available for international orders.
- Technical support available post-delivery for installation guidance.
Technical FAQ
Q: Is the SRFC4620C compatible with all ACS800 frame sizes?
A: The SRFC4620C is specific to defined ACS800 frame configurations. Please confirm your drive’s frame size and existing filter plate reference before ordering. Contact support@konmask.com for compatibility verification.
Q: Can this filter plate be used as a retrofit in non-ABB drives?
A: No. The SRFC4620C is an OEM component designed exclusively for ABB ACS800 series drives. Use in non-ABB equipment is not supported and may void equipment warranties.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. For bulk or project quantities, contact us for availability and lead time confirmation.
Q: Do you provide installation documentation?
A: Yes. ABB ACS800 hardware manuals and relevant service bulletins can be referenced. Konmask technical support can assist with installation guidance upon request.
Q: Is this a genuine ABB part?
A: Yes. Konmask.com supplies only genuine ABB components sourced through verified channels. Documentation is available upon request.
