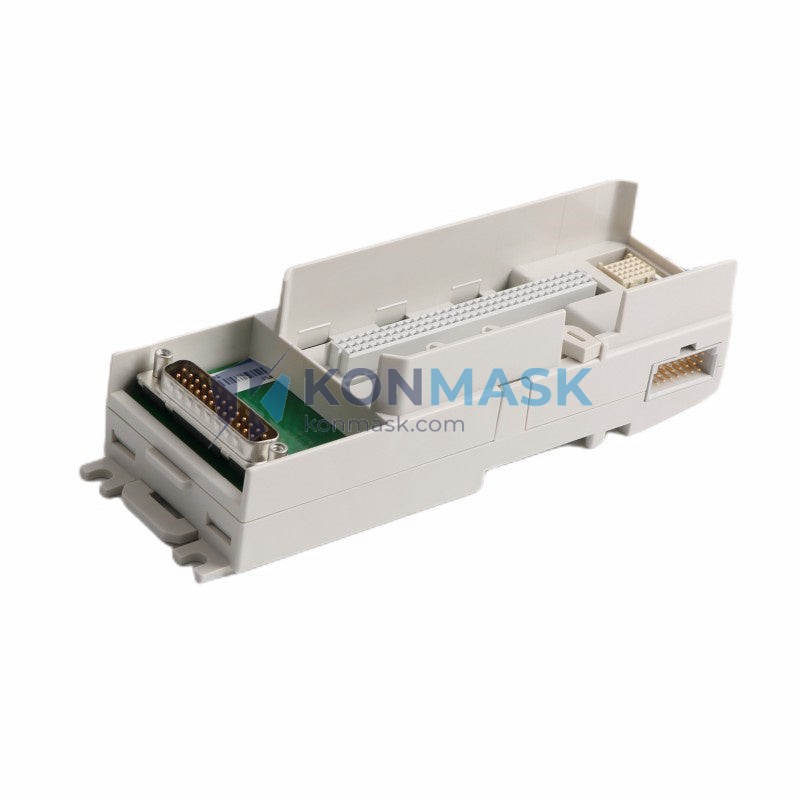

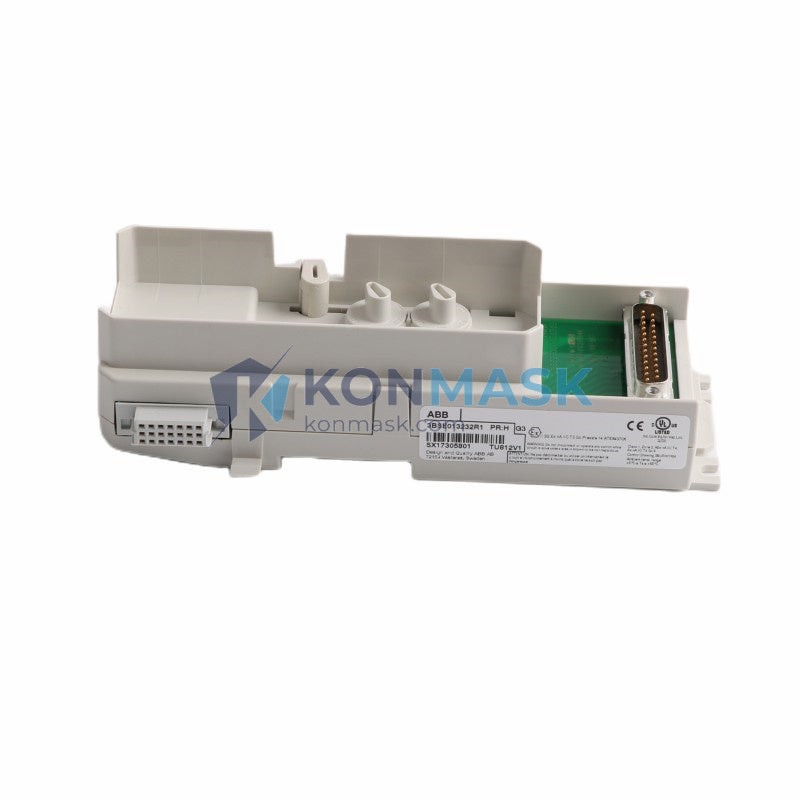

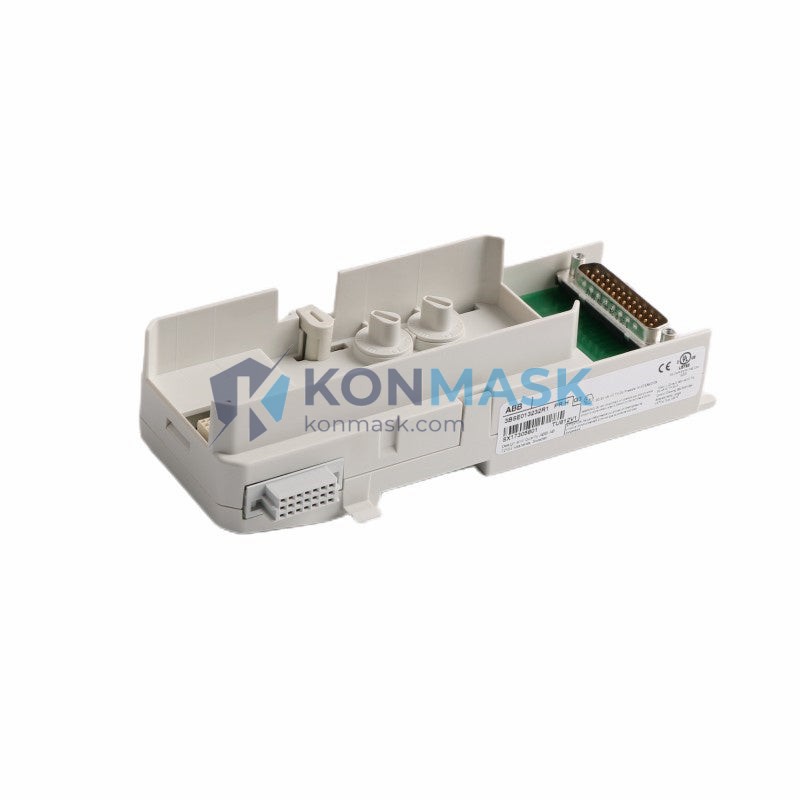

ABB TU812V1 (3BSE013232R1) – Compact Module Termination Unit | AC 800M / S800 I/O Platform
Engineering Background: The ABB S800 I/O system is the field-proven distributed I/O backbone of the AC 800M process automation controller platform, deployed across power generation, oil & gas, pulp & paper, and chemical processing industries worldwide. Termination units (TUs) are the physical interface layer between S800 I/O modules and field wiring — a critical component for signal integrity, maintainability, and system uptime.
Product Positioning: The TU812V1 (catalog no. 3BSE013232R1) is ABB’s compact-footprint termination unit designed for standard S800 I/O modules. It provides a robust, DIN-rail-mountable screw-terminal interface that allows I/O modules to be hot-swapped without disturbing field wiring — a key advantage in live process environments where zero-downtime maintenance is mandatory.
Complete Technical Specifications
- Part Number: TU812V1
- Catalog / Order No.: 3BSE013232R1
- Manufacturer: ABB Ltd. (Automation Products Division)
- Series / Platform: S800 I/O / AC 800M
- Type: Compact Module Termination Unit
- Terminal Style: Screw-type field wiring terminals
- Mounting: DIN rail (35 mm EN 60715)
- Module Interface: Direct plug-in connector for S800 I/O modules
- Hot-Swap Support: Yes — module replacement without field wiring disconnection
- Weight: 160 g (approx.)
- Compliance: CE, IEC 61131-2, UL listed (per ABB S800 system certification)
- Compatible Modules: AI810, AO810V2, DI810, DI811, DI814, DO810, DO814, and other standard S800 I/O modules
- Operating Temperature: 0 °C to +55 °C (storage: −40 °C to +70 °C)
- Relative Humidity: 5–95% non-condensing
- Protection Class: IP20 (module installed)
Proven Application Environments
- Power Generation: Turbine control, boiler management, and generator excitation systems using AC 800M controllers
- Oil & Gas: Wellhead automation, compressor control, and HIPPS safety systems with S800 I/O distributed racks
- Pulp & Paper: Digester control, bleaching process automation, and recovery boiler management
- Chemical & Petrochemical: Reactor temperature/pressure monitoring, batch process control
- Water & Wastewater: Pump station automation and SCADA-integrated treatment plant control
- Marine & Offshore: Vessel automation and platform process control with ABB Marine AC 800M systems
Engineering Advantages
- Zero-Downtime Module Swap: Field wiring remains connected to the TU812V1 during I/O module replacement — critical for 24/7 process operations
- Compact Footprint: Optimized width reduces cabinet space requirements vs. standard TU810 series, enabling higher I/O density per rack
- Screw Terminal Reliability: Vibration-resistant screw terminals rated for industrial environments; no tool-less connector fatigue issues
- System Interoperability: Fully compatible with ABB S800 I/O module ecosystem — no firmware or configuration changes required when replacing TUs
- Simplified Commissioning: Pre-wired TU approach allows field wiring to be completed and tested before I/O modules are installed
- Long Service Life: ABB S800 platform has 20+ year installed base; TU812V1 remains in active production and spare parts availability is confirmed
System Architecture & Signal Flow
In a typical AC 800M / S800 I/O architecture, the TU812V1 occupies a slot on the S800 I/O carrier rail. Field instrument cables terminate directly at the TU812V1 screw terminals. The corresponding S800 I/O module (e.g., AI810 analog input) plugs into the TU812V1 connector, establishing the signal path from field device → TU terminal → I/O module → ModuleBus → AC 800M CPU → control application.
This two-piece architecture (TU + I/O module) means that during maintenance, the I/O module can be extracted and replaced while field wiring remains undisturbed on the TU812V1 — eliminating re-termination errors and reducing MTTR (Mean Time To Repair) to under 5 minutes per module.
Sourcing & Quality Verification
- Origin: OEM-manufactured by ABB; units sourced through authorized distribution and verified secondary market channels
- Inspection Protocol: Each unit undergoes visual inspection, connector integrity check, and label/serial verification prior to shipment
- Authenticity: ABB part markings, date codes, and holographic labels verified against OEM reference standards
- Condition: New (factory-sealed) or Refurbished-Tested stock available — condition specified at time of quotation
- Warranty: 12-month Konmask operational warranty covering manufacturing defects and functional failure
- Documentation: ABB datasheet, test report, and certificate of conformity available upon request
Procurement Process
- Submit RFQ: Contact [email protected] or call +0086 19859288691 with your required quantity and delivery timeline
- Quotation: Receive itemized quote with unit price, lead time, and shipping options within 24 business hours
- Order Confirmation: Purchase order accepted via email; proforma invoice issued for payment processing
- Quality Check & Dispatch: Unit inspected, packed in anti-static ESD packaging, and shipped with tracking
- Delivery: DHL / FedEx / UPS express available; sea freight for bulk orders; typical lead time 3–7 business days
- After-Sales Support: Technical support and warranty claims handled directly by Konmask engineering team
Technical FAQ
Q: What is the difference between TU812V1 and TU810V1?
A: The TU812V1 has a more compact form factor than the TU810V1, allowing higher I/O density in the same cabinet space. Both are compatible with the same S800 I/O module range.
Q: Can TU812V1 be used with S800 I/O modules in a redundant configuration?
A: The TU812V1 is a standard (non-redundant) termination unit. For redundant I/O module configurations, ABB offers the TU812V2 or TU830V1 series. Verify your system’s redundancy requirements before ordering.
Q: Is field wiring truly undisturbed during module hot-swap?
A: Yes. The field wiring connects to the TU812V1 screw terminals, which remain in place. Only the I/O module is extracted from the TU connector. This is a core design feature of the S800 I/O architecture.
Q: What wire gauge is supported by the TU812V1 terminals?
A: ABB specifies 0.5–2.5 mm² (AWG 20–14) for the screw terminals on standard S800 TUs. Refer to ABB document 3BSE013231R1 (TU812 Installation Manual) for full wiring specifications.
Q: Is the TU812V1 still in production?
A: Yes. The S800 I/O platform remains in active production and support by ABB. The TU812V1 / 3BSE013232R1 is a current catalog item with confirmed availability.
