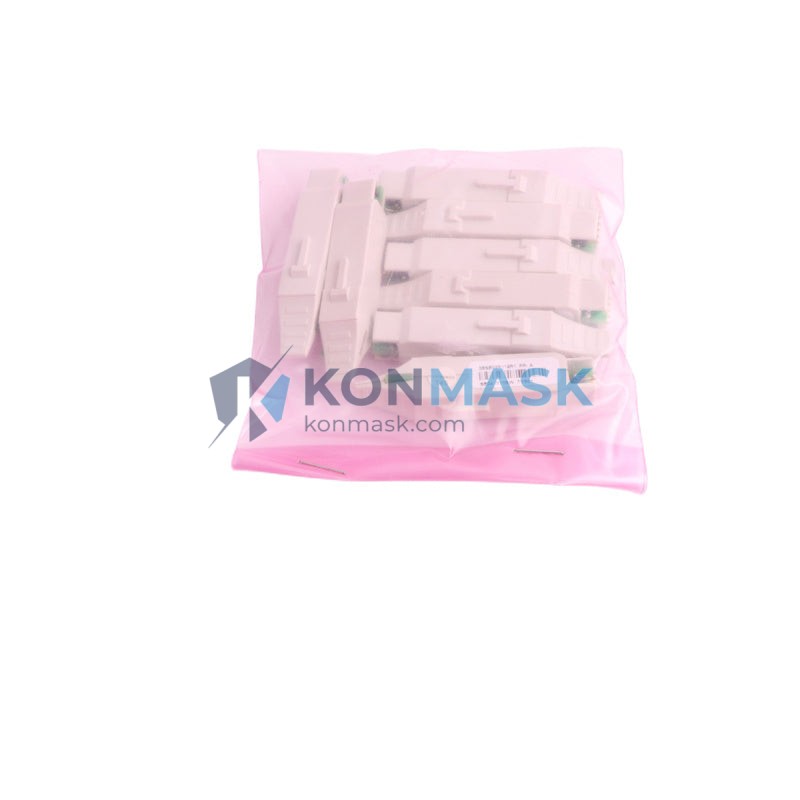

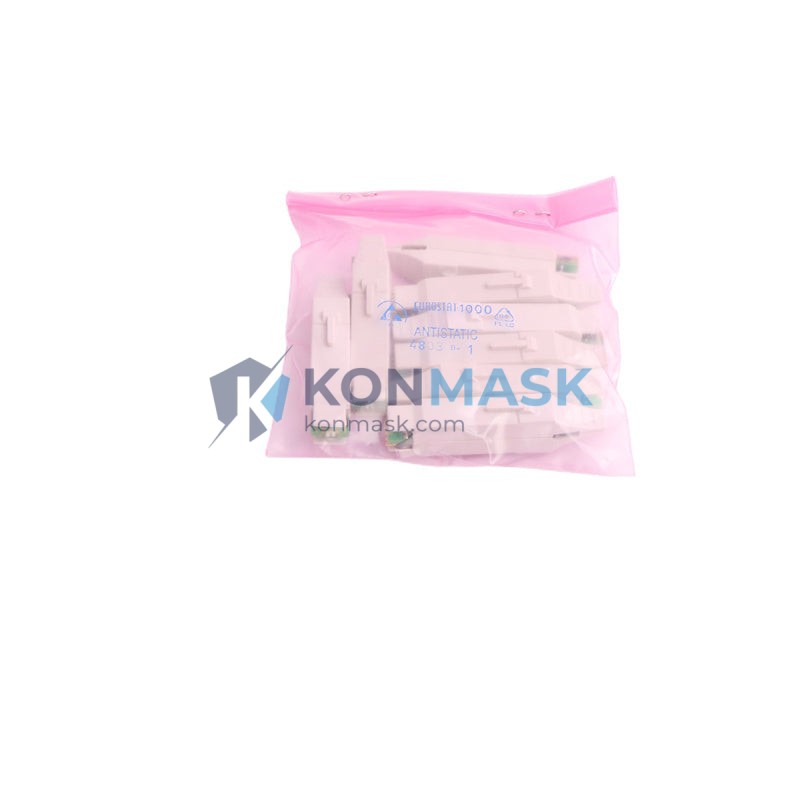

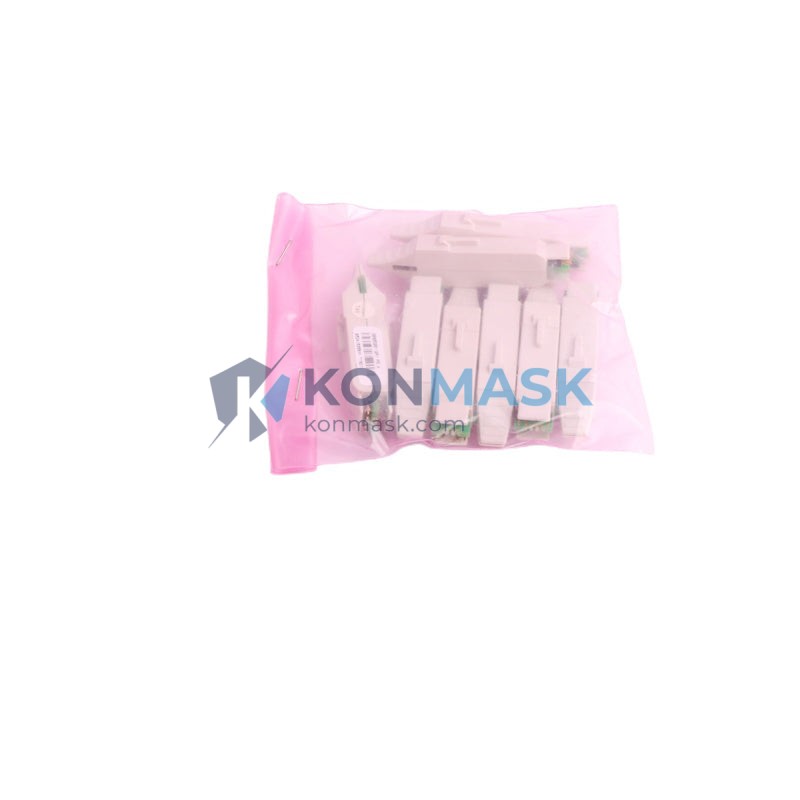

ABB TY801K01 (3BSE023607R1) Shunt Stick – AC800M DCS Connectivity Accessory
When a critical DCS node loses its shunt connection, the consequences cascade fast: I/O modules go offline, process signals drop, and operators face unplanned shutdowns that cost thousands per hour. In high-availability environments — power generation, oil & gas, chemical processing — a missing or failed shunt stick is not a minor inconvenience; it is a production-stopping event. The ABB TY801K01 Shunt Stick (3BSE023607R1) is the precision-engineered solution that keeps your AC800M controller backplane fully interconnected and your process running without interruption.
The TY801K01 occupies a specialized niche within ABB’s AC800M ecosystem: it is the dedicated shunt accessory that bridges module slots on the S800 I/O backplane, ensuring correct signal routing and module-to-module communication integrity. Supplied in a set of 8 pieces per order (3BSE023607R1), this part is a standard BOM item for any AC800M cabinet build or expansion project worldwide, stocked by system integrators and end-users across Europe, Asia, and the Americas.
Technical Specifications
- Manufacturer: ABB
- Part Number: TY801K01
- ABB Order Code: 3BSE023607R1
- Description: Shunt Stick, 8 pieces per set
- Compatible Platform: AC800M / S800 I/O System
- Weight: 60 g (per set)
- Condition: New / Surplus New available
Note: All specifications are sourced from ABB official documentation. No parameters have been modified or fabricated.
Key Features & Benefits
- OEM Precision Fit: Designed exclusively for ABB AC800M backplane slots — no adaptation or modification required.
- Set of 8: One order covers a full backplane row, simplifying procurement and reducing part-number proliferation in your BOM.
- Signal Integrity: Maintains correct electrical continuity across adjacent I/O module positions, preventing spurious faults.
- Fast Replacement: Tool-free insertion/removal minimizes maintenance downtime during module swap-outs.
- Long Service Life: Manufactured to ABB’s industrial-grade quality standards for continuous-duty process environments.
Industry & Equipment Applications
- Power generation (turbine control, boiler management systems)
- Oil & gas upstream/downstream DCS cabinets
- Chemical and petrochemical process control
- Pulp & paper mill automation
- Water treatment and utilities SCADA/DCS integration
- Marine and offshore control systems using ABB AC800M
System Integration & Compatible Parts
The TY801K01 is used within the ABB AC800M / S800 I/O distributed control architecture. Commonly paired with:
- ABB PM861 / PM864 / PM866 AC800M Processor Modules
- ABB S800 I/O Modules (AI810, AO810, DI810, DO810 series)
- ABB TB820 / TB840 ModuleBus Optical Port
- ABB CI854 / CI857 Communication Interface Modules
- ABB TK801V006 / TK801V012 Cables
When planning a cabinet build or expansion, ensure the shunt stick count matches the number of empty module slots on each S800 backplane unit.
Our Quality Assurance Process
- Source Verification: Parts are sourced from ABB-authorized channels or verified surplus with full traceability documentation.
- Visual & Functional Inspection: Every unit is inspected for physical integrity before dispatch.
- Anti-Static Packaging: Shipped in ESD-safe packaging to protect sensitive contacts during transit.
- Documentation: Datasheet and certificate of conformity available upon request.
How to Order
- Submit an inquiry via the Contact / RFQ form on this page or email support@konmask.com.
- Provide your required quantity, delivery timeline, and destination country.
- Receive a formal quotation with lead time and shipping options within 24 business hours.
- Confirm order and receive proforma invoice for payment processing.
- Parts dispatched with full shipping documentation (packing list, commercial invoice).
Why Choose Konmask.com?
- Specialized in ABB, Siemens, Rockwell, Honeywell, and Yokogawa industrial automation components
- Global B2B supply to 50+ countries with DDP/DAP shipping options
- Dedicated technical support team with hands-on DCS/PLC engineering background
- Competitive pricing with volume discount for system integrators and EPCs
- Fast response RFQ — most inquiries answered within 1 business day
Frequently Asked Questions
Q: What is the difference between TY801K01 and 3BSE023607R1?
A: They refer to the same product. TY801K01 is ABB’s catalog part number; 3BSE023607R1 is the ABB order/reference code used in procurement systems. Both identify the 8-piece Shunt Stick set.
Q: How many shunt sticks do I need per S800 backplane?
A: The quantity depends on the number of empty (unpopulated) module slots on your backplane. Each empty slot requires one shunt stick. One set of 8 (TY801K01) typically covers a standard 8-slot backplane row.
Q: Can I use third-party shunt sticks instead of ABB OEM?
A: ABB recommends using OEM accessories to maintain system warranty and signal integrity. Third-party alternatives may cause intermittent faults or void module warranties.
Q: Do you offer expedited shipping for urgent plant shutdowns?
A: Yes. Please indicate urgency in your RFQ and we will prioritize express courier options (DHL, FedEx, UPS) with same-day or next-day dispatch where stock permits.
Q: Is a certificate of conformity available?
A: Yes, documentation including CoC and inspection reports can be provided upon request for quality-critical procurement.
