ABB UNITROL 1000 3BHE005774R0002 UN1000a-Z V1 Automatic Voltage Regulator | Replacement, Equivalent & Selection Guide

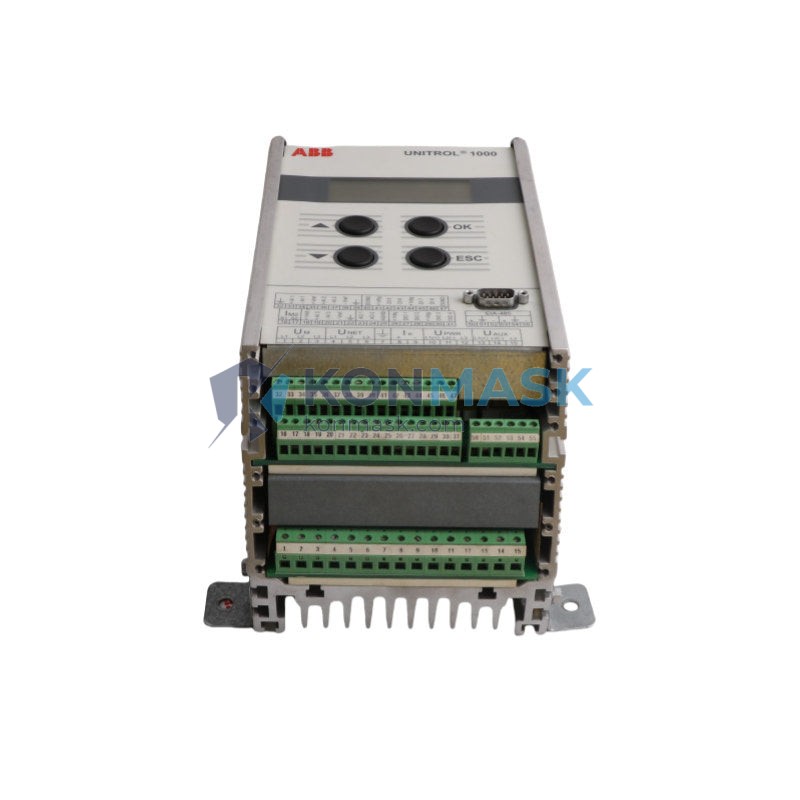

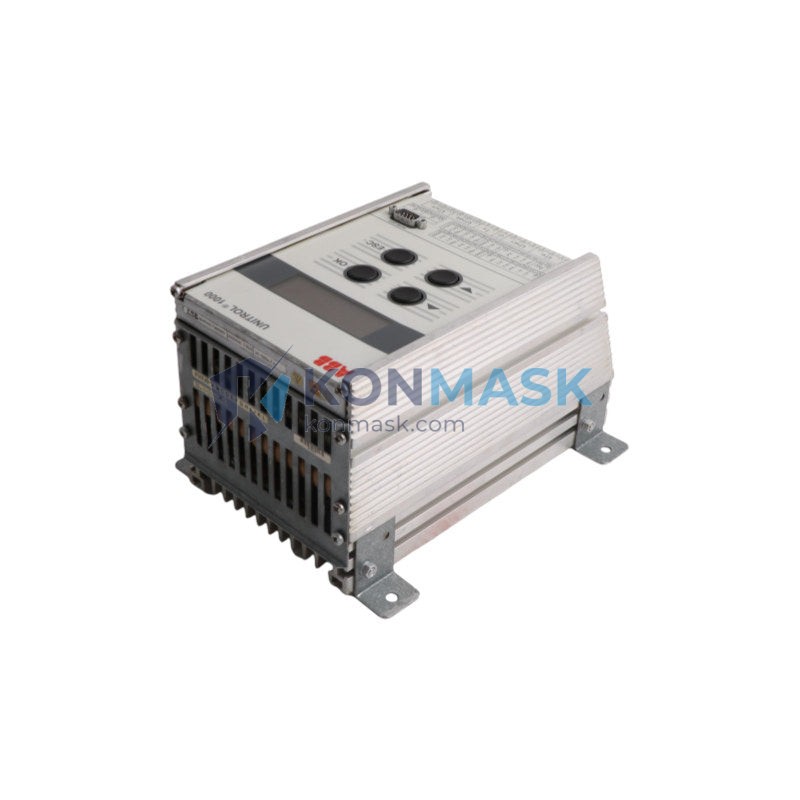

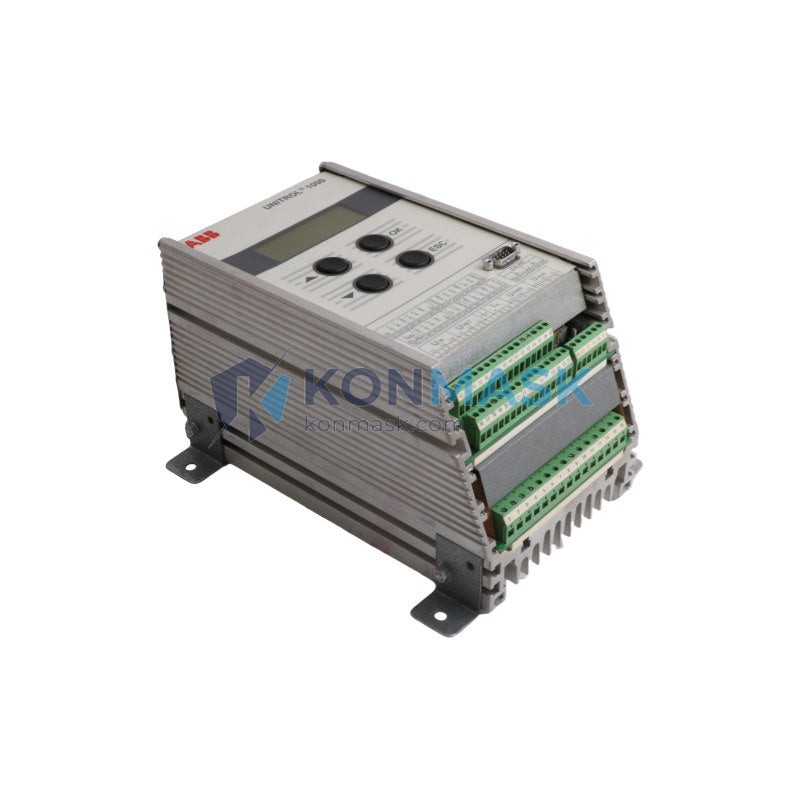

The ABB UNITROL 1000 (Part No. 3BHE005774R0002, Model UN1000a-Z V1) is a high-performance digital Automatic Voltage Regulator (AVR) designed for synchronous generators in power generation and industrial applications. This page provides full technical specifications, compatible replacement options, and a structured selection guide to help engineers and procurement teams make informed decisions.
Technical Specifications
| Manufacturer | ABB |
| Series | UNITROL 1000 |
| Part Number | 3BHE005774R0002 |
| Model | UN1000a-Z V1 |
| Type | Digital Automatic Voltage Regulator (AVR) |
| Function | Generator excitation control & voltage regulation |
| Input Voltage | AC/DC (refer to OEM datasheet for exact range) |
| Output | Excitation current control for synchronous generators |
| Communication | Serial / fieldbus (model-dependent) |
| Weight | 4.3 kg |
| Compliance | CE, IEC standards |
| Condition | New / Refurbished / Tested available – specify on inquiry |
Compatible Replacement & Equivalent Models
If the 3BHE005774R0002 is discontinued, long lead-time, or over budget, the following ABB UNITROL series units may serve as functional equivalents depending on your generator configuration:
- ABB UNITROL 1020 – Next-generation digital AVR with expanded I/O; direct upgrade path for most UN1000 installations
- ABB UNITROL 5000 / 5010 – Higher-capacity excitation controller for larger generator sets
- ABB UNITROL 6000 – Advanced AVR with redundancy features for critical power plants
- Basler Electric DECS-100 / DECS-200 – Third-party equivalent AVR; compatible with similar generator excitation systems
- Woodward MFR 3 / EasyGen series – Alternative digital regulators for retrofit applications
⚠ Always verify terminal wiring, excitation voltage range, and communication protocol before substituting. Contact our engineers for a free compatibility assessment.
Why Choose the Original Model
- OEM-grade precision – Factory-calibrated for ABB generator excitation systems
- Proven reliability – Deployed in power plants, marine, and industrial facilities worldwide
- Seamless integration – Plug-and-play replacement for existing UNITROL 1000 installations
- ABB software compatibility – Fully supported by ABB commissioning and diagnostic tools
- Long service life – Robust design rated for continuous industrial duty cycles
Typical Applications
- Synchronous generator voltage regulation in power stations
- Diesel generator sets (gensets) in standby and prime power applications
- Marine propulsion and onboard power generation
- Industrial co-generation (CHP) plants
- Wind turbine excitation control systems
- Mining and oil & gas facility power systems
System Compatibility
The ABB UNITROL 1000 3BHE005774R0002 is compatible with:
- ABB synchronous generators (AMG, AMS, AMI series)
- Third-party generators with standard excitation winding configurations
- ABB DCS / SCADA integration via supported fieldbus protocols
- Retrofit installations replacing older analog AVR units
Selection Guide
Use the following criteria to confirm the 3BHE005774R0002 is the right choice for your application:
- Generator rated voltage & kVA – Confirm the AVR input/output range matches your generator nameplate data.
- Excitation type – Static excitation or brushless? Verify compatibility with your exciter configuration.
- Communication requirements – Does your SCADA/DCS require Modbus, Profibus, or other protocols?
- Environmental rating – Check ambient temperature range and IP rating for your installation environment.
- Redundancy needs – For critical applications, consider upgrading to UNITROL 5000/6000 with dual-channel redundancy.
Not sure which model fits? Send us your generator nameplate data and we’ll recommend the correct AVR within 24 hours.
Quality Assurance & Sourcing
- All units sourced from authorized ABB distributors or verified surplus channels
- Each unit undergoes incoming inspection and functional testing before shipment
- Original packaging and documentation preserved where available
- Traceable batch records available on request
- 12-month warranty on new units; 90-day warranty on tested refurbished units
How to Order
- Add to cart directly, or
- Contact us with your part number, quantity, and required delivery date
- We’ll confirm stock, lead time, and issue a formal quotation within 1 business day
- Payment via T/T, PayPal, or credit card; DDP/DAP shipping worldwide
📧 [email protected] | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can the UNITROL 1020 directly replace the 3BHE005774R0002?
A: In most cases yes, but terminal mapping and parameter configuration must be verified. Our engineers can assist with the migration.
Q: Is a refurbished unit as reliable as a new one?
A: Our refurbished units are fully tested to OEM specifications and carry a 90-day warranty. For critical applications, we recommend new stock.
Q: Do you provide commissioning support?
A: Yes. Remote commissioning guidance is available. On-site support can be arranged for large projects.
Q: What is the typical lead time?
A: In-stock units ship within 3–5 business days. Out-of-stock items typically have a 4–8 week lead time from ABB.
Q: Can this AVR work with non-ABB generators?
A: Yes, provided the excitation voltage and current ratings are compatible. Contact us with your generator specs for confirmation.
