ABB UNS3670 HIEE205011R0001 Power Supply | Replacement, Equivalent & Selection Guide

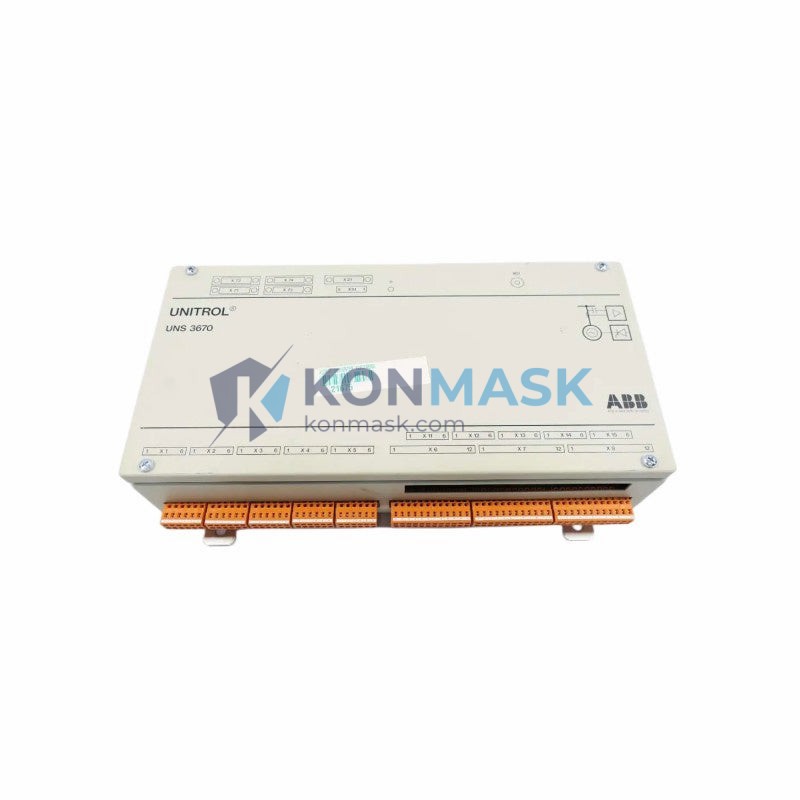

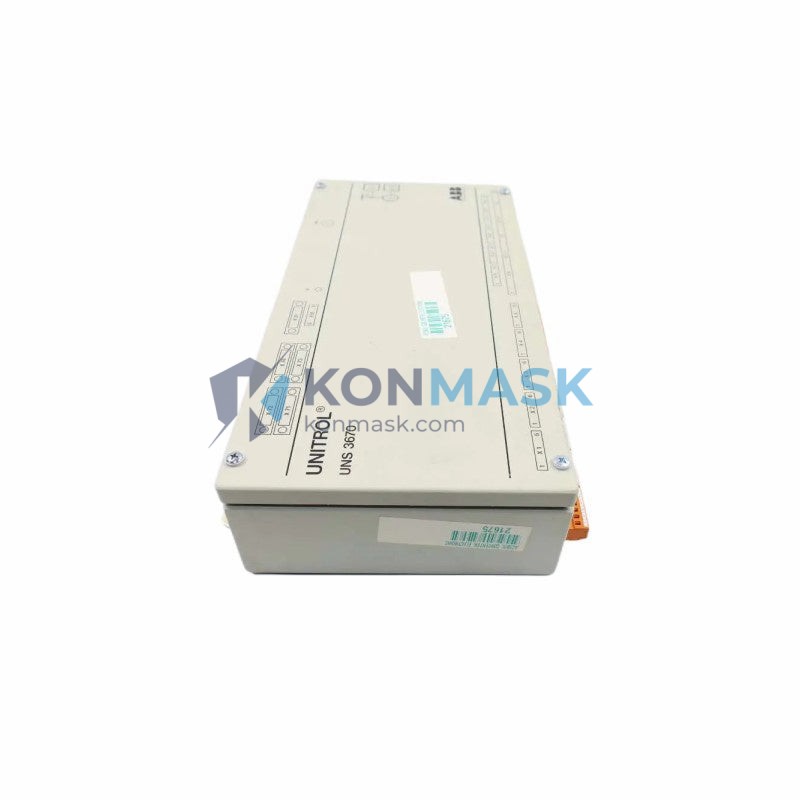

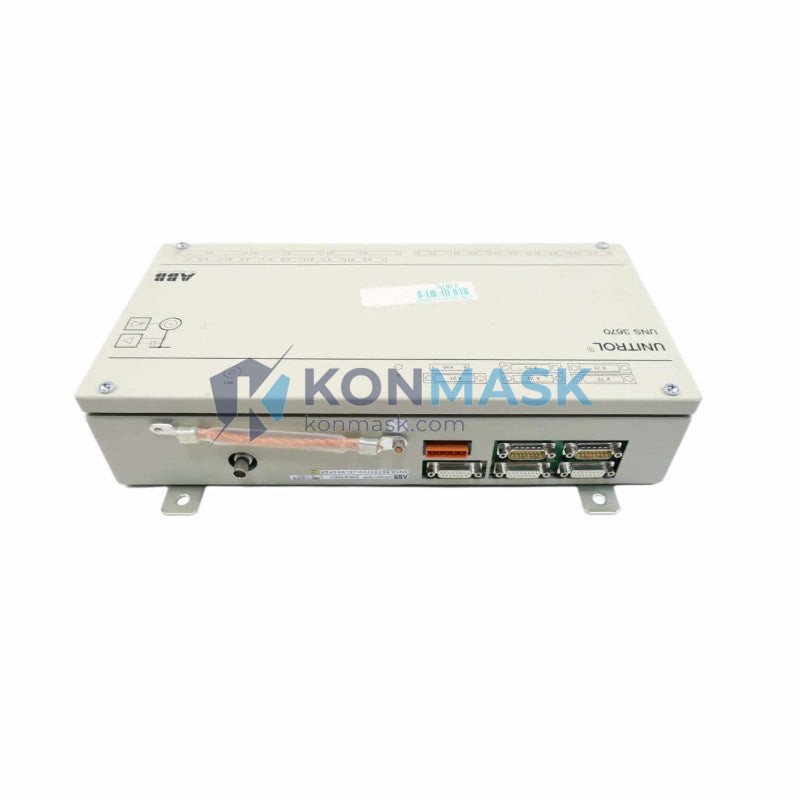

The ABB UNS3670 (HIEE205011R0001) is a dedicated DC power supply module designed for ABB’s UNITROL and related DCS/excitation control systems. This page provides full technical specifications, compatible replacement options, application guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
- Manufacturer: ABB
- Part Number: UNS3670
- Reference Number: HIEE205011R0001
- Module Type: Power Supply Module
- Compatible Platform: ABB UNITROL / AC800M DCS Series
- Input Voltage: 24 VDC (nominal)
- Output: Regulated DC power for control electronics
- Weight: ~4.1 kg
- Mounting: DIN rail / rack-mount (system-integrated)
- Protection Class: Short-circuit and overload protected
- Operating Temperature: 0°C to +55°C
- Compliance: CE marked; designed to IEC/EN industrial standards
Note: Specifications are based on available documentation. Please confirm with datasheet or contact us for verification.
Compatible Replacement & Equivalent Models
The following models may serve as direct or functional replacements for the ABB UNS3670 HIEE205011R0001. Always verify electrical and mechanical compatibility before installation:
- ABB HIEE205011R0002 – Revised revision of the same base module (confirm firmware compatibility)
- ABB UNS3680 – Next-generation power supply in the UNITROL family
- ABB HIEE300900R0001 – Alternative PSU used in adjacent UNITROL configurations
- ABB PP C907 BE – Power supply used in AC800M controller racks (cross-check bus interface)
- Third-party equivalents: Industrial 24VDC regulated PSUs with matching form factor and connector pinout may be evaluated as interim replacements — contact our engineering team for assessment
Why Choose the Original Model
- System-certified: Factory-validated for ABB UNITROL excitation and control platforms
- Plug-and-play integration: No firmware or configuration changes required
- Guaranteed compatibility: Eliminates risk of bus communication errors or protection mismatches
- Long service life: Designed for continuous industrial duty cycles
- OEM traceability: Full documentation and serial number traceability available
Typical Applications
- Generator excitation control systems (UNITROL 5000 / 6000 series)
- ABB AC800M distributed control system (DCS) power rails
- Power plant and substation automation panels
- Industrial motor drive and protection relay panels
- Retrofit and spare-parts programs for legacy ABB installations
System Compatibility
| ABB Platform | Compatibility | Notes |
|---|---|---|
| UNITROL 5000 | ✅ Confirmed | Primary target platform |
| UNITROL 6000 | ✅ Likely compatible | Verify revision level |
| AC800M DCS | ⚠️ Conditional | Check rack bus pinout |
| UNITROL 1000 / 1020 | ❌ Not compatible | Different PSU architecture |
| Symphony Plus | ⚠️ Conditional | Consult ABB documentation |
Selection Guide
Use the following criteria to determine whether the UNS3670 HIEE205011R0001 is the right choice for your application:
- Step 1 – Confirm platform: Verify your system is UNITROL 5000/6000 or a compatible ABB DCS rack
- Step 2 – Check revision: Match the R-suffix (R0001) to your existing module or system BOM
- Step 3 – Assess urgency: For emergency replacement, we stock tested units ready to ship
- Step 4 – Evaluate alternatives: If the original is unavailable, request our compatibility assessment for equivalent models
- Step 5 – Confirm quantity: For critical systems, consider ordering a spare unit for on-site inventory
Quality Assurance & Sourcing
- Source: Sourced from authorized distributors, OEM surplus, and verified industrial suppliers
- Testing: Each unit undergoes functional power-on testing and visual inspection before shipment
- Condition: New, refurbished, and tested-used options available — condition clearly stated per order
- Warranty: 90-day replacement warranty on all shipped units
- Documentation: Certificate of conformity and test report available on request
- Anti-counterfeit: We do not source from unverified grey-market channels
How to Order
- Add to cart directly, or contact us for bulk / project pricing
- Provide your system model and revision if requesting a compatibility check
- Specify required condition: New / Refurbished / Tested-Used
- We confirm stock, issue proforma invoice, and arrange shipment within 1–3 business days
- DHL / FedEx express available for urgent requirements
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I use HIEE205011R0002 instead of R0001?
A: In most cases yes, but confirm with your system integrator that the firmware revision is compatible with the updated hardware.
Q: Is this module repairable?
A: ABB does not officially support field repair. We recommend replacement for safety-critical applications. Refurbished units are available as a cost-effective alternative.
Q: What is the lead time for a new unit?
A: Stock units ship within 1–3 business days. For new OEM orders, lead time may be 8–16 weeks — contact us for current availability.
Q: Do you provide installation support?
A: We provide documentation and remote guidance. On-site commissioning support can be arranged through our partner network.
Q: Can I return the unit if it doesn’t fit?
A: Yes, within 14 days of receipt in original condition. Please contact us before returning.
