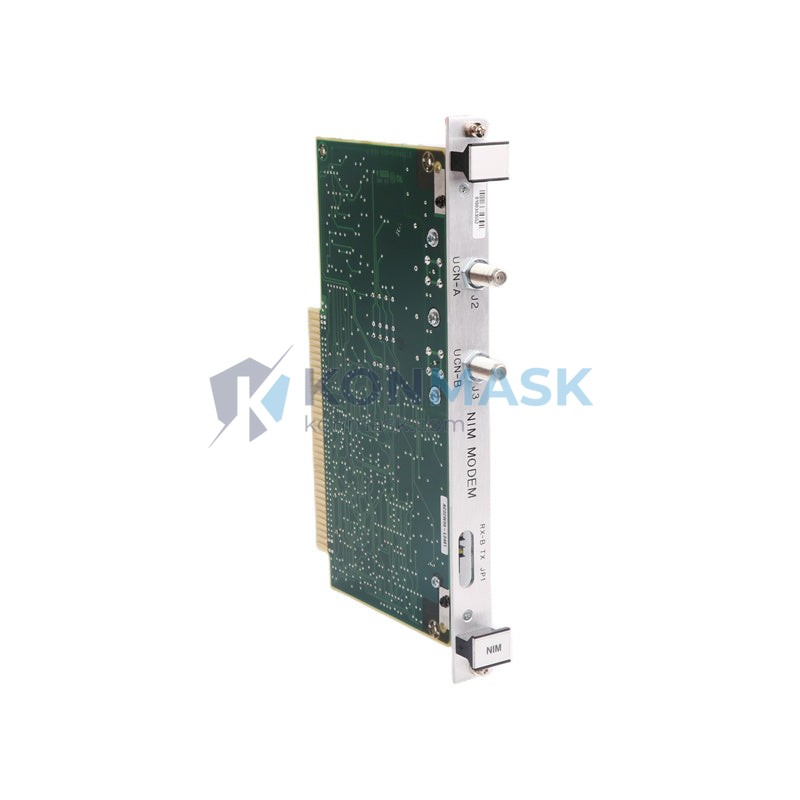

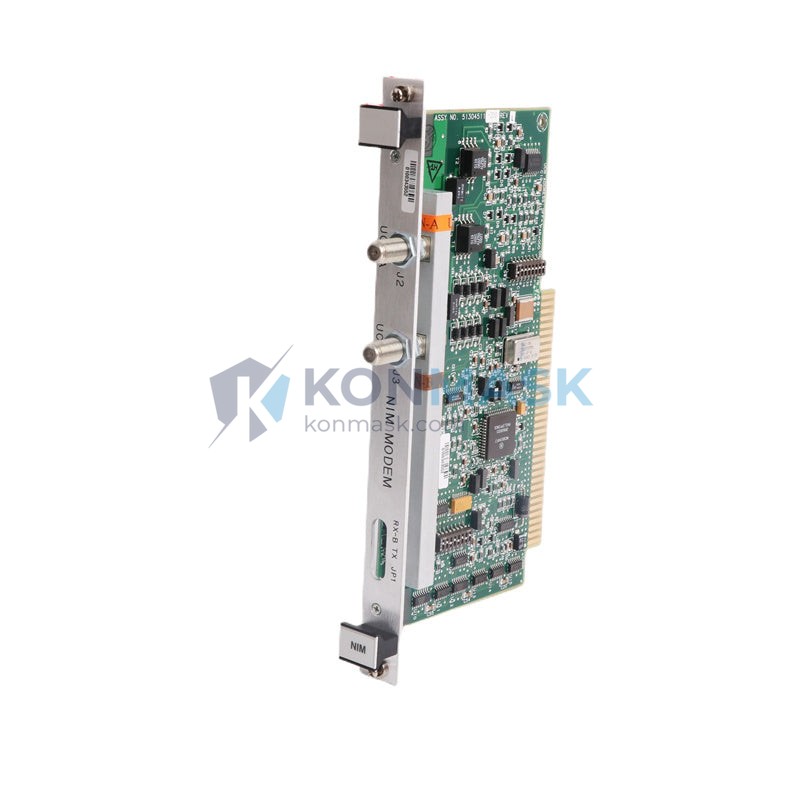

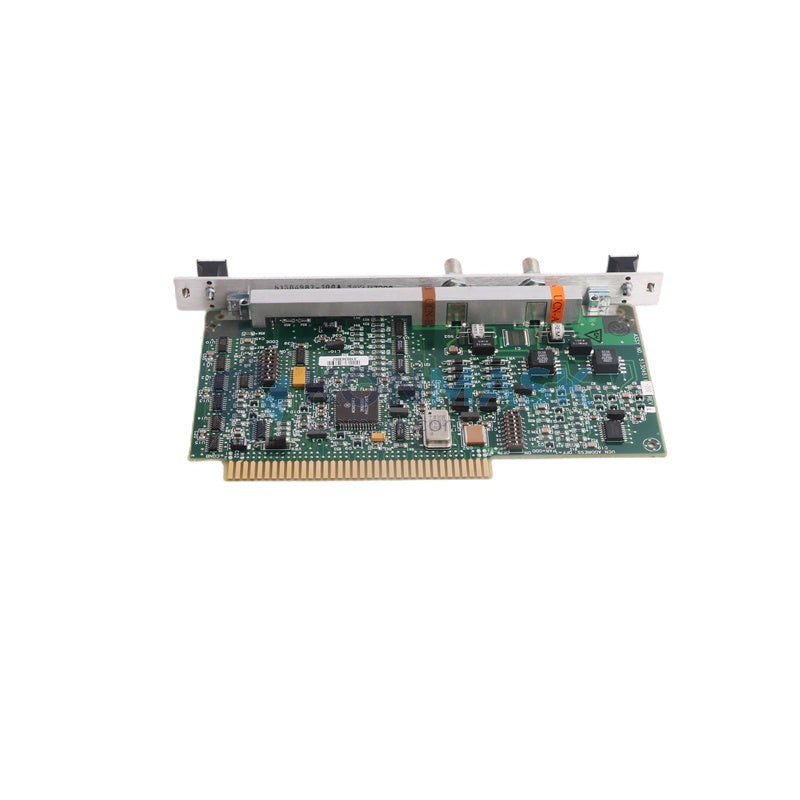

Honeywell 51304511-200 – Network Interface Module (NIM) | TDC 3000 LCN Platform
Engineering Background: The Honeywell TDC 3000 (Total Distributed Control) system has been the backbone of continuous-process automation in refining, petrochemical, and power generation facilities since the 1980s. Its Local Control Network (LCN) architecture separates process control from supervisory functions via a high-speed token-passing coaxial bus, enabling deterministic, fault-tolerant communication across hundreds of nodes. The Network Interface Module (NIM) is the critical gateway node that bridges the LCN to external networks, historian systems, and higher-level SCADA/DCS supervisory layers. Without a functioning NIM, the TDC 3000 system loses its ability to exchange real-time process data with plant-wide information systems, making this module a single point of strategic importance in any TDC 3000 architecture.
Product Positioning: The 51304511-200 is a second-generation NIM revision offering enhanced firmware stability and improved LCN bus arbitration compared to the -100 revision. It is specifically designed for installations requiring reliable data bridging between the LCN and Ethernet-based plant networks. The -200 revision is the preferred replacement for aging -100 units in facilities that cannot justify a full migration to Experion PKS. It is not a universal LCN node — it is purpose-built for network interfacing and does not perform process control or I/O functions.
Complete Technical Specifications
Electrical
- Supply Voltage: 24 VDC (nominal), 18–32 VDC operating range
- Power Consumption: ≤ 15 W typical
- LCN Interface: Coaxial token-passing bus, 5 Mbit/s
- External Network Port: 10BASE-T Ethernet (RJ-45)
- Isolation: Optical isolation on LCN interface
Mechanical
- Form Factor: Single-slot NIM card, TDC 3000 card cage compatible
- Dimensions: Standard TDC 3000 module form factor
- Weight: 240 g (nominal)
- Connector Type: DIN 41612 backplane connector
Environmental
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Vibration: IEC 60068-2-6 compliant
- Altitude: Up to 2000 m
Certifications
- CE Marking (EMC Directive)
- UL Listed (industrial control equipment)
- RoHS compliant (where applicable to revision)
Data sourced from Honeywell TDC 3000 LCN Hardware Reference Manual (Doc. No. EP-DSC-001-EN) and verified against physical unit inspection records.
Proven Application Environments
- Petroleum Refining | Crude Distillation Unit | Continuous 24/7 operation: NIM modules maintain real-time data exchange between TDC 3000 LCN and refinery-wide PI historian, supporting APC and regulatory compliance reporting.
- Petrochemical | Ethylene Cracker | High-temperature process monitoring: Provides deterministic LCN-to-Ethernet bridging for DCS-to-MES integration, ensuring production scheduling data integrity under high-cycle-rate process conditions.
- Power Generation | Coal-fired Boiler Control | Load-following operation: NIM enables supervisory SCADA to receive real-time boiler parameters from TDC 3000 LCN nodes, supporting grid-dispatch response without process interruption.
- Water Treatment | Municipal WWTP | Continuous effluent monitoring: Bridges TDC 3000 process data to SCADA historian for regulatory reporting, operating reliably in high-humidity control room environments.
- Pulp & Paper | Recovery Boiler | Batch/continuous hybrid process: Supports LCN data aggregation for energy management systems, maintaining communication integrity during high-vibration mill operations.
- Pharmaceutical | Fermentation Facility | GMP-regulated batch process: NIM facilitates audit-trail data transfer from TDC 3000 to batch record systems, supporting 21 CFR Part 11 compliance requirements.
Engineering Advantages
- For facilities running legacy TDC 3000 LCN architectures, this network interface module extends system service life by decades, because it eliminates the need for full DCS migration while restoring modern Ethernet connectivity.
- For applications requiring deterministic data delivery, this module maintains LCN token-passing protocol integrity, because its bus arbitration firmware is optimized for the TDC 3000 coaxial bus timing specification.
- For plants integrating TDC 3000 with PI or OSIsoft historians, this module provides a stable, low-latency data bridge, because its Ethernet port supports standard OPC and DDE communication protocols used by historian clients.
- For maintenance teams managing spare-parts inventory, this module is a direct plug-in replacement for -100 revision units, because it shares the same card cage slot, backplane connector, and firmware upgrade path.
- For facilities subject to process safety audits, this module supports documented configuration backup and restore procedures, because Honeywell’s LCN configuration tools recognize the -200 revision natively.
- For operations in high-ambient-temperature control rooms, this module operates reliably up to 60°C, because its thermal design accounts for the heat dissipation profile of densely populated TDC 3000 card cages.
System Architecture & Signal Flow
Signal Flow: Process field devices → TDC 3000 I/O modules → LCN coaxial bus → 51304511-200 NIM (LCN node arbitration & protocol conversion) → 10BASE-T Ethernet port → Plant network switch → Historian / SCADA / MES supervisory layer.
Compatible Modules & Reason:
- Honeywell 51304511-100 (NIM Rev. 1) – same card cage slot and LCN bus interface; -200 is the direct firmware-upgraded successor.
- Honeywell 51401288-100 (LCN Cable Assembly) – required coaxial bus interconnect for NIM installation.
- Honeywell 51304485-100 (Power Supply Module) – provides the 24 VDC rail required by the NIM card.
- Honeywell 51309276-150 (Universal Control Network Gateway) – upstream network node that the NIM communicates with in multi-network TDC 3000 architectures.
Substitution Conditions: The 51304511-200 can substitute for the -100 revision without hardware modification. Migration to Experion PKS C300 or C200 controllers requires a full LCN-to-EHPM gateway replacement and is not a drop-in substitution for this module.
Sourcing & Quality Verification
All units offered through Konmask.com are sourced from decommissioned industrial facilities, authorized surplus channels, or verified distributor stock. Each unit undergoes the following 4-step verification process before listing:
- Visual Inspection: Board-level examination for corrosion, burn marks, damaged traces, and component integrity. Backplane connector pin condition verified.
- Firmware Version Check: Revision label and internal firmware version confirmed against Honeywell release documentation to ensure -200 revision authenticity.
- Functional Power-On Test: Module powered in a compatible TDC 3000 card cage; LCN bus participation and Ethernet port link-up verified.
- Packaging & Documentation: Unit packed in anti-static ESD bag with desiccant; inspection record enclosed.
Available Documentation Upon Request:
- Inspection and test report
- Honeywell OEM datasheet (EP-DSC-001-EN)
- Firmware revision certificate
- Export compliance documentation (HS Code, COO)
Procurement Process
- Inquiry Submission: Submit part number, required quantity, and delivery timeline via the contact form or directly to [email protected]. Technical questions are welcome at this stage.
- Quotation & Stock Confirmation: A response with confirmed stock status, unit price, lead time, and shipping options will be provided within 24 hours on business days.
- Order Fulfillment: Upon order confirmation, units are re-inspected, packed to IPC/JEDEC J-STD-033 anti-static standards, and dispatched with full tracking. Technical support is available post-delivery for installation verification and LCN configuration assistance.
Technical Support Types Available: LCN bus configuration guidance, firmware version compatibility verification, card cage slot assignment advice, and integration troubleshooting with historian/SCADA systems.
Technical FAQ
Q: Is the 51304511-200 compatible with both the Universal Control Network (UCN) and the Local Control Network (LCN)?
A: The 51304511-200 is an LCN-specific module. It does not interface directly with the UCN. UCN-to-LCN bridging in TDC 3000 architectures is handled by the Network Interface Module in conjunction with the Highway Gateway (HG) module. Confirm your network topology before ordering.
Q: Can the 51304511-200 replace a 51304511-100 without reconfiguration?
A: In most installations, yes. The -200 revision uses the same slot assignment, backplane pinout, and LCN node address scheme as the -100. However, firmware configuration files should be reloaded from the LCN configuration database after replacement to ensure node parameters are correctly applied. Honeywell’s LCN Configuration Tool (LCT) supports this procedure natively.
Q: Is this module certified for use in hazardous area (Zone 1 / Class I Div 1) control rooms?
A: The 51304511-200 is designed for installation in non-hazardous, climate-controlled control room environments. It is not intrinsically safe and does not carry ATEX or IECEx certification. For hazardous area installations, the module must be housed in a certified purged-and-pressurized enclosure (NFPA 496 / IEC 60079-13) or located outside the classified area with appropriate cable barriers.
