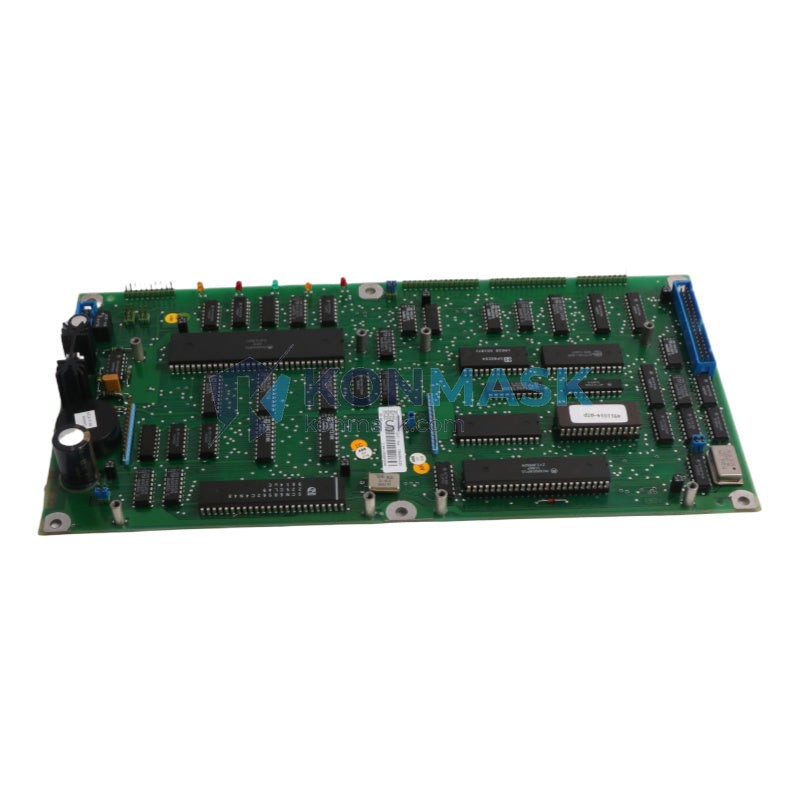

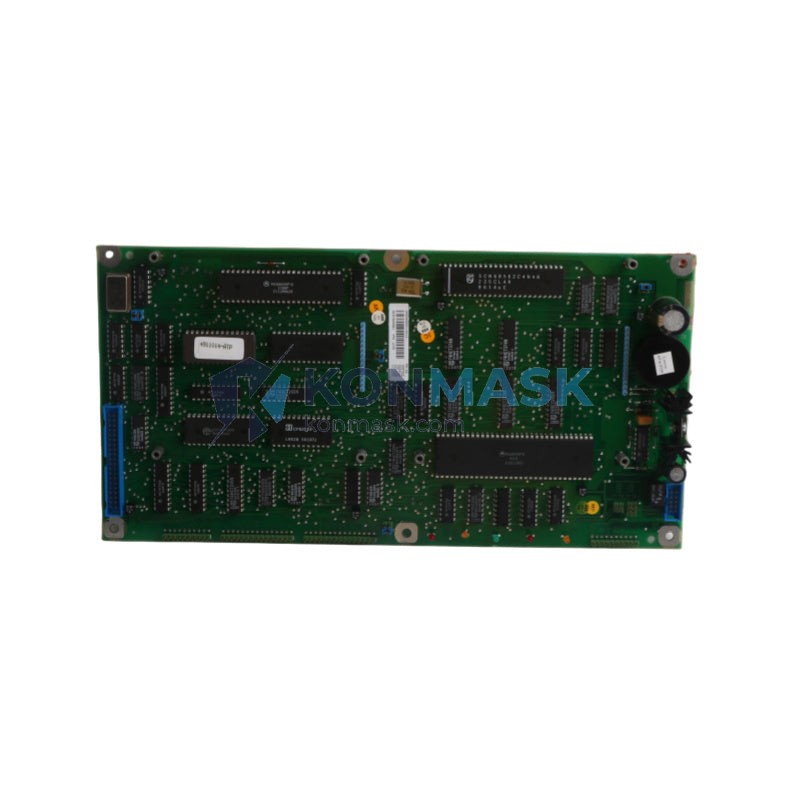

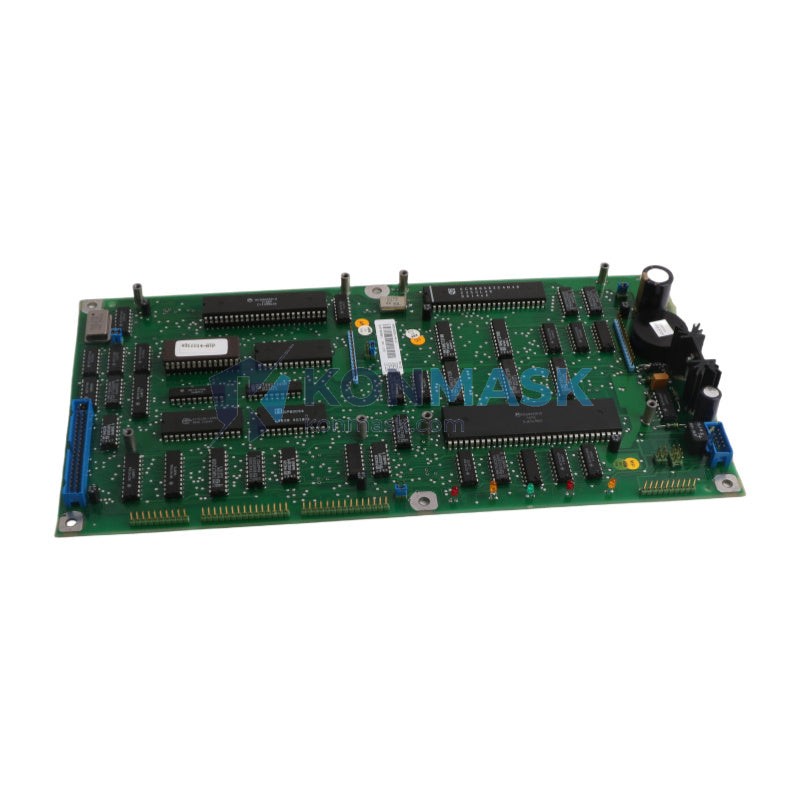

ABB YPK107E (3ASD489301A410) – DCS Communication Interface Module | AC800M Series Platform
Engineering Background: The YPK107E is a communication interface module developed by ABB for integration within the AC800M Distributed Control System (DCS) platform — one of ABB’s flagship process automation architectures deployed globally in power generation, oil & gas, chemical processing, and pulp & paper industries. Part number 3ASD489301A410 is the ABB factory ordering reference for this specific hardware revision.
Product Positioning: Designed for procurement engineers and system integrators who require a verified, drop-in replacement or expansion module for existing AC800M controller cabinets. The YPK107E enables reliable fieldbus communication between the AC800M controller and field devices, I/O clusters, or peer controllers — maintaining deterministic data exchange in safety-critical process environments.
Complete Technical Specifications
- Manufacturer: ABB Ltd.
- Part Number / SKU: YPK107E
- ABB Ordering Reference: 3ASD489301A410
- Product Series: AC800M DCS Platform
- Module Category: Communication Interface Module
- Form Factor: DIN-rail / rack-mount module (AC800M backplane compatible)
- Communication Protocol: ABB proprietary fieldbus / inter-module bus (AC800M native)
- Operating Temperature: 0°C to +55°C (standard industrial range)
- Storage Temperature: -40°C to +70°C
- Power Supply: Supplied via AC800M backplane (24 VDC bus)
- Weight: Approx. 360 g
- Compliance: CE, IEC 61131-2, RoHS
- Country of Origin: Sweden / Germany (ABB manufacturing)
Proven Application Environments
- Power plant DCS control loops (boiler, turbine, BOP systems)
- Oil & gas upstream/downstream process control cabinets
- Chemical reactor and batch process automation
- Pulp & paper mill distributed I/O expansion
- Water treatment and municipal utility SCADA integration
- Pharmaceutical manufacturing (GMP-compliant process control)
Engineering Advantages
- Native AC800M Compatibility: Plug-and-play integration with existing AC800M controller racks — no firmware patching required for standard revisions.
- Deterministic Communication: Maintains cycle-time integrity for real-time process control loops, critical for safety instrumented systems (SIS) adjacent architectures.
- Hot-swap Capable: Supports live module replacement in redundant configurations, minimizing planned downtime during maintenance windows.
- Compact Footprint: Optimized for high-density cabinet layouts without sacrificing signal integrity or thermal performance.
- Long Service Life: ABB industrial-grade components rated for 10+ years MTBF in continuous operation environments.
System Architecture & Signal Flow
The YPK107E interfaces directly with the AC800M controller CPU module via the internal backplane bus. It acts as a transparent communication bridge, routing fieldbus signals between the controller and downstream I/O modules or remote I/O clusters (e.g., S800 I/O). Signal flow is managed by the AC800M firmware scheduler, ensuring deterministic scan cycles. In redundant configurations, the module participates in bumpless switchover protocols managed by the AC800M redundancy supervisor.
Sourcing & Quality Verification
- All units sourced from authorized ABB distributors or verified industrial surplus channels.
- Each module undergoes visual inspection, label verification (part number, revision, serial number), and functional continuity check prior to dispatch.
- Original ABB packaging and documentation provided where available.
- Certificate of conformance (CoC) available upon request for regulated industries.
- Warranty: 12 months from date of shipment (DOA replacement policy).
Procurement Process
- Step 1: Confirm your AC800M controller revision and backplane slot compatibility with your system documentation.
- Step 2: Submit your purchase order via Konmask.com or contact support@konmask.com for bulk pricing or lead-time inquiry.
- Step 3: Receive order confirmation with estimated dispatch date (typically 1–3 business days for in-stock units).
- Step 4: Shipment via DHL / FedEx with full tracking. Export documentation (commercial invoice, packing list, HS code declaration) included for international orders.
- Step 5: Post-delivery technical support available via email or WhatsApp (+0086 19859288691).
Technical FAQ
- Q: Is YPK107E compatible with AC800M PM860 / PM861 / PM866 controllers?
- A: Compatibility depends on the specific backplane revision and firmware version. Please share your controller part number and firmware revision for a definitive compatibility confirmation before ordering.
- Q: Can this module be used in a hot-standby redundant configuration?
- A: Yes, when paired with a redundant AC800M controller pair and appropriate redundancy supervisor module. Consult ABB System 800xA engineering documentation for configuration details.
- Q: What is the lead time for out-of-stock units?
- A: Typical lead time for sourced units is 2–6 weeks. Contact us for current availability and expedite options.
- Q: Do you provide an IQ test report or functional test certificate?
- A: A basic functional inspection report is included. Full IQ/OQ documentation is available as a paid service for regulated industries.
- Q: What export controls apply to this product?
- A: This module is classified as general industrial automation equipment. Standard export documentation is provided. Buyers are responsible for compliance with their local import regulations.
