PROFIBUS DP Communication Solution – ABB CI854AK01 | AC 800M Series
Where This Product Is Used

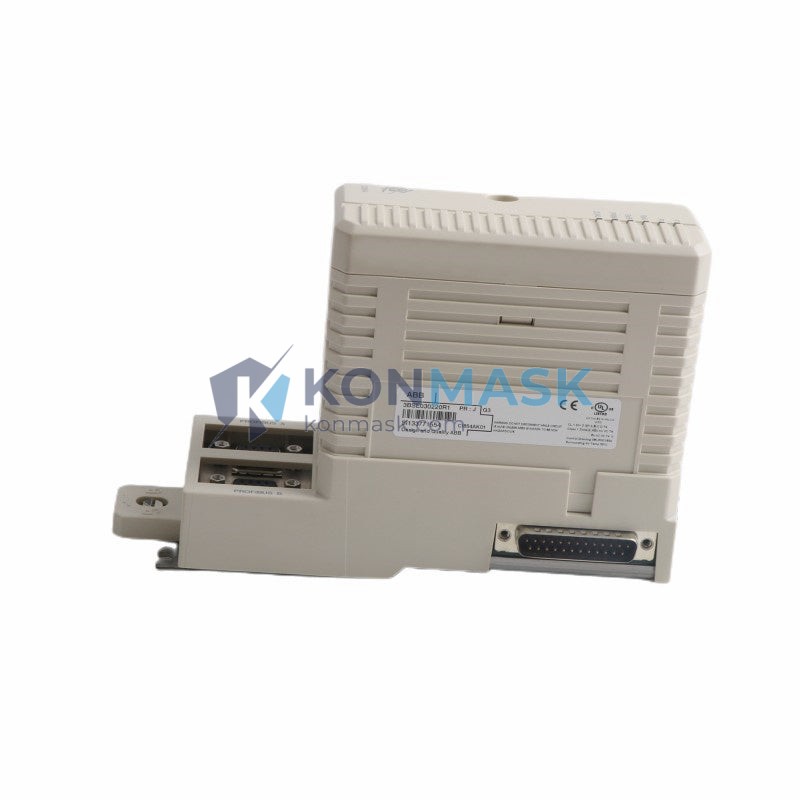

The ABB CI854AK01 (3BSE030220R1) is a PROFIBUS DP interface module designed for the AC 800M controller platform. It is deployed across a wide range of industrial automation environments where deterministic fieldbus communication is critical:
- Process Industries: Oil & gas refineries, chemical plants, and pulp & paper mills requiring reliable field device integration via PROFIBUS DP.
- Power Generation & Utilities: Turbine control systems, substation automation, and distributed energy management where ABB AC 800M controllers coordinate field instruments.
- Pharmaceutical & Life Sciences: GMP-compliant batch processing lines using PROFIBUS DP to connect drives, valves, and analyzers to the DCS backbone.
- Mining & Minerals: Conveyor systems, crushers, and flotation cell control where robust fieldbus communication withstands harsh electrical environments.
- Water & Wastewater Treatment: SCADA-integrated pump stations and filtration systems using PROFIBUS DP for remote I/O and drive control.
- Automotive & Discrete Manufacturing: Assembly line PLCs and robot controllers communicating with AC 800M via PROFIBUS DP master/slave topology.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | CI854AK01 |
| ABB Order Code | 3BSE030220R1 |
| Platform | AC 800M (Advant Controller 800M) |
| Communication Protocol | PROFIBUS DP (EN 50170 / IEC 61158) |
| PROFIBUS Role | DP Master (Class 1) |
| Max. Slaves per Module | Up to 125 DP slaves |
| Baud Rate | 9.6 kbps – 12 Mbps (auto-detect) |
| Connector | 9-pin D-Sub (RS-485) |
| Module Form Factor | Single-width AC 800M communication module |
| Power Supply | Supplied via AC 800M controller backplane |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -40 °C to +70 °C |
| Humidity | 5 % to 95 % RH (non-condensing) |
| Weight | Approx. 500 g |
| Firmware Compatibility | AC 800M Controller Software 5.0 and above |
| Certifications | CE, UL, cUL |
Why Engineers Specify This Model
- Native AC 800M Integration: Plugs directly into the AC 800M communication module slot — no external gateway or protocol converter required, minimising latency and single points of failure.
- High Slave Density: Supports up to 125 PROFIBUS DP slaves per module, enabling large-scale field device networks from a single interface card.
- Auto Baud Rate Detection: Eliminates manual baud rate configuration during commissioning, reducing setup time on multi-vendor PROFIBUS segments.
- Redundancy-Ready: Compatible with AC 800M redundant controller configurations, supporting hot-standby switchover without loss of PROFIBUS communication.
- Long-Term ABB Ecosystem Support: As an ABB-native module, it benefits from ABB’s extended product lifecycle support, firmware updates, and compatibility with ABB 800xA DCS.
- Proven Field Reliability: Widely deployed in safety-critical process industries with documented MTBF performance in continuous 24/7 operation.
Complete System Bill of Materials
For a fully operational AC 800M PROFIBUS DP communication node, the following components are typically required:
- ABB PM866 / PM864 / PM861 — AC 800M Processor Module
- ABB CI854AK01 (3BSE030220R1) — PROFIBUS DP Interface Module (this item)
- ABB TB807 / TB811 — Termination Board (if applicable)
- ABB SD821 / SD822 — Power Supply Module
- PROFIBUS DP Cable (shielded, twisted-pair, IEC 61158-2 compliant)
- PROFIBUS DP Bus Terminator (active, at both segment ends)
- ABB 800xA or Freelance DCS Engineering Station (for configuration)
- GSD File for each connected DP slave device
Compliance & Industry Standards
- PROFIBUS DP: EN 50170, IEC 61158, IEC 61784
- EMC Directive: 2014/30/EU (CE marked)
- Safety: IEC 61508 (functional safety compatibility — verify SIL rating with ABB for SIS applications)
- UL/cUL Listed: UL 508 (Industrial Control Equipment)
- RoHS: Compliant with EU Directive 2011/65/EU
- ATEX / IECEx: Not intrinsically safe — install in non-hazardous control room environment or suitable enclosure
Quality Assurance & Sourcing
At Konmask.com, every ABB CI854AK01 unit is subject to the following quality process before dispatch:
- Authenticity Verification: Cross-referenced against ABB part number databases; counterfeit screening via physical inspection and label authentication.
- Functional Pre-Test: Where test infrastructure permits, modules are powered and communication ports verified prior to shipment.
- Condition Grading: Units are graded as New (factory-sealed), Refurbished (tested, cleaned, re-labelled), or Surplus (used, tested, cosmetic wear noted). Grade is stated on your quotation.
- Packaging: Anti-static bag, foam-lined carton, and humidity indicator card. Export carton with shock-watch label for international shipments.
- Traceability: Serial number and batch recorded against your order for warranty and audit purposes.
- Warranty: 12-month replacement warranty against defects in materials and workmanship under normal operating conditions.
How to Source This Part
- Add to Cart — Select quantity and proceed to checkout for in-stock units.
- Request a Quote — For bulk orders (5+ units), OEM pricing, or project BOM sourcing, email support@konmask.com with your project details.
- Lead Time — In-stock units ship within 1–3 business days. Special-order or factory-new units: 4–8 weeks (subject to ABB availability).
- Export & Customs — We handle export documentation (commercial invoice, packing list, COO) for international buyers. HS Code: 8537.10 (verify with your customs broker).
- Payment — T/T (bank transfer), PayPal, and trade credit available for approved accounts.
Application-Specific FAQ
Q: Can the CI854AK01 operate as a PROFIBUS DP slave?
A: No. The CI854AK01 functions exclusively as a DP Master (Class 1). For slave functionality within the AC 800M platform, consult ABB for alternative communication modules.
Q: Is this module compatible with AC 800M redundant controller pairs?
A: Yes. The CI854AK01 supports AC 800M redundancy configurations. Both the primary and standby controllers require one CI854AK01 each for full redundant PROFIBUS DP operation.
Q: What is the maximum cable length for a PROFIBUS DP segment?
A: Cable length depends on baud rate — up to 1,200 m at 93.75 kbps, reducing to 100 m at 12 Mbps. Repeaters can extend total network reach.
Q: Can I mix CI854AK01 with other communication modules in the same AC 800M rack?
A: Yes. The AC 800M architecture supports multiple communication modules in a single controller rack, allowing simultaneous PROFIBUS DP, Modbus, and other protocol interfaces.
Q: Do you provide the GSD file for this module?
A: The CI854AK01 is a DP Master — it reads GSD files from connected slave devices. GSD files for ABB modules are available from the ABB Library (library.abb.com). Contact us if you need assistance locating specific GSD files.
Q: Is this part suitable for SIL 2 safety applications?
A: The CI854AK01 is a standard (non-safety) communication module. For SIL-rated PROFIBUS communication in safety instrumented systems, consult ABB for their certified safety I/O and communication solutions.
