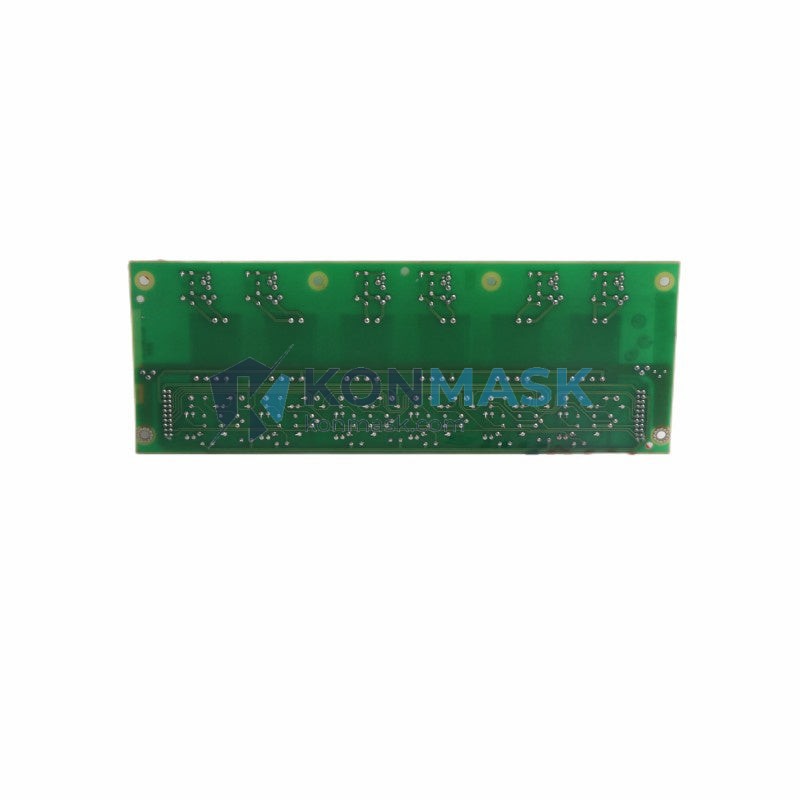

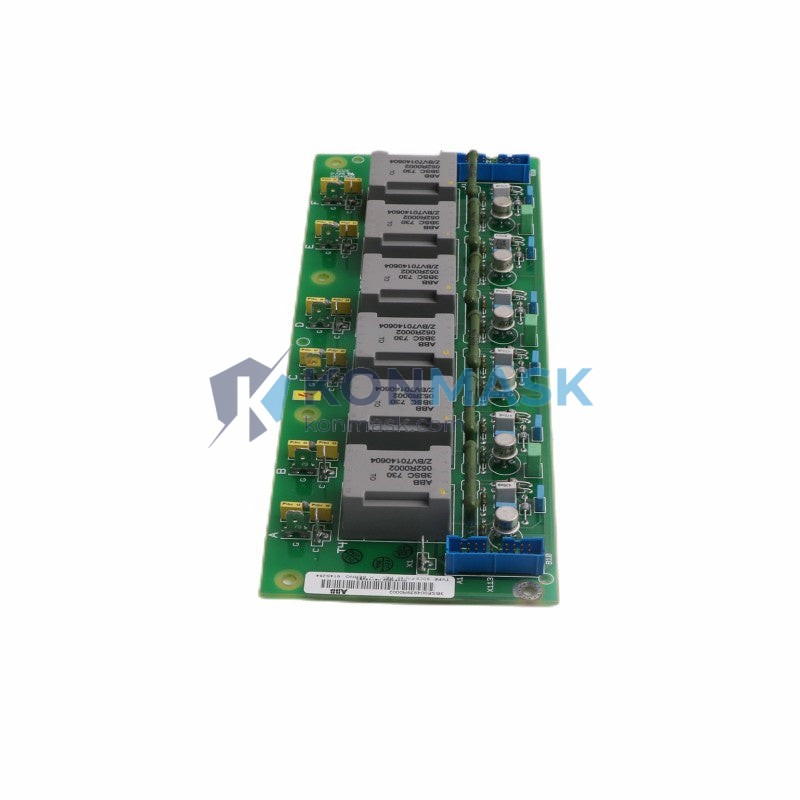

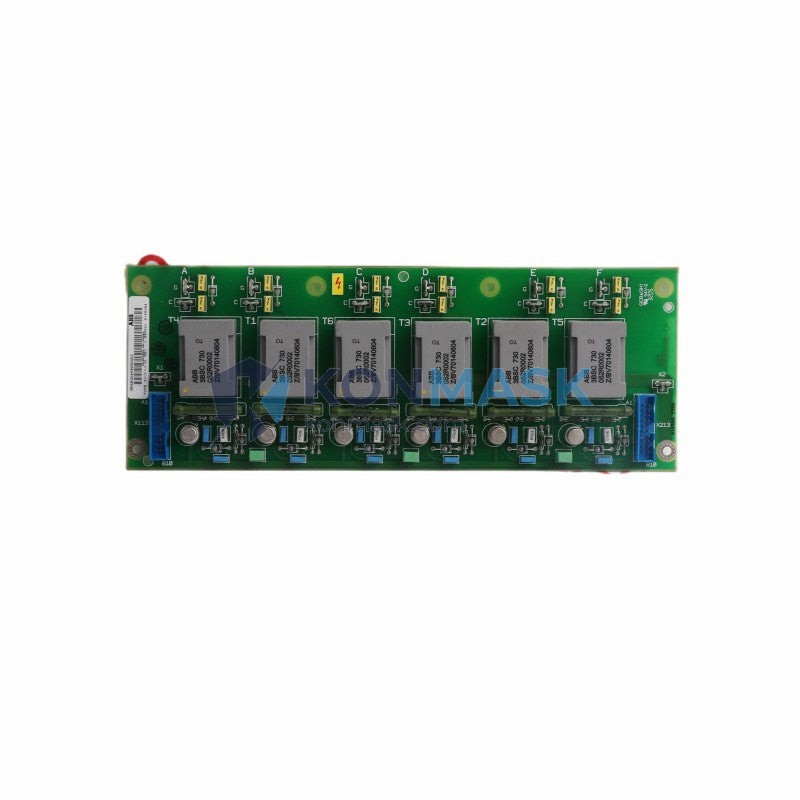

DC Drive Pulse Firing Solution – ABB SDCS-PIN-48 | 3BSE004939R0002 Pulse Transformer Board
The ABB SDCS-PIN-48 (3BSE004939R0002) is a dedicated Pulse Transformer Board engineered for the ABB DCS 400 / DCS 500 / DCS 600 series DC drive platforms. It provides galvanically isolated gate-pulse distribution to thyristor bridges, ensuring precise firing synchronization in demanding industrial power conversion applications.

Where This Product Is Used
The SDCS-PIN-48 is specified wherever a DCS-series ABB DC drive must deliver reliable, noise-immune thyristor gate pulses. Typical deployment environments include:
- Steel & Metal Rolling Mills — Precise speed and torque control of main drive motors; pulse isolation prevents ground-loop interference across multi-drive lines.
- Paper & Pulp Machinery — Section drives on winders, coaters, and calenders where synchronised firing is critical to web tension control.
- Marine Propulsion & Thrusters — Shipboard DC drives operating in high-EMI environments benefit from transformer-isolated gate circuits.
- Mining Hoists & Conveyors — High-inertia loads with regenerative braking demand robust, thermally stable pulse distribution boards.
- Extruder & Injection Moulding Lines — Consistent melt-speed control via accurate thyristor firing angles.
- Water & Wastewater Pump Stations — Variable-speed DC pump drives requiring long-term, maintenance-free operation.
- Test Bench & R&D Facilities — Laboratory DC drive rigs where isolated gate signals eliminate measurement ground loops.

Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Part Number | SDCS-PIN-48 |
| Order Code | 3BSE004939R0002 |
| Compatible Drive Series | ABB DCS 400 / DCS 500 / DCS 600 |
| Board Function | Thyristor gate-pulse transformer & distribution |
| Isolation Type | Galvanic (pulse transformer) |
| Thyristor Channels | 6 (3-phase full-wave bridge) |
| Weight | 268 g |
| Form Factor | Plug-in PCB assembly |
| Vendor | ABB |
Why Engineers Specify This Model
- Galvanic Isolation — Pulse transformers eliminate common-mode noise coupling between the control board and power thyristors, reducing nuisance trips in noisy plant environments.
- Drop-in Compatibility — Designed exclusively for the DCS 400/500/600 backplane; no wiring adaptation or firmware changes required.
- Proven Field Reliability — The SDCS-PIN-48 has accumulated decades of service in heavy-industry drives worldwide, with a well-documented spare-parts ecosystem.
- Precise Firing Angle Control — Matched transformer windings ensure uniform pulse amplitude across all six thyristor channels, minimising current imbalance in the bridge.
- Thermal Stability — Industrial-grade components rated for continuous operation across the full drive cabinet temperature range.
- Fast Availability — Stocked as a critical spare; reduces drive downtime versus waiting for OEM lead times.

Complete System Bill of Materials
The SDCS-PIN-48 operates within the ABB DCS drive control stack. A complete spare-parts BOM for a typical DCS 600 drive includes:
- SDCS-PIN-48 / 3BSE004939R0002 — This item — Pulse Transformer Board
- SDCS-CON-4 / 3BSE004939R1 — Control Board
- SDCS-FEX-2 — Field Excitation Board
- SDCS-IOB-3 — I/O Extension Board
- SDCS-DSL-4 — Serial Link Board
- SDCS-POW-4 — Power Supply Board
- Thyristor Module (rating per drive frame size)
- Gate Pulse Cables (OEM harness set)
Contact us to source any companion board or complete drive rebuild kit.
Compliance & Industry Standards
- CE Marking — Manufactured to EU Low Voltage Directive and EMC Directive requirements as part of the DCS drive system.
- IEC 61800-3 — Drive system EMC compliance for industrial environments (Category C3).
- IEC 61800-5-1 — Safety requirements for adjustable-speed electrical power drive systems.
- RoHS Compliant — Restriction of Hazardous Substances per EU Directive 2011/65/EU.
- UL / cUL Recognition — As part of the ABB DCS drive platform (verify frame-specific listing with ABB).
Quality Assurance & Sourcing
- Every unit is inspected for physical integrity, connector condition, and component completeness before dispatch.
- Parts are sourced from authorised ABB distribution channels, decommissioned OEM equipment, or certified refurbishers — provenance documented on request.
- Functional test reports available for refurbished units upon request.
- Secure anti-static packaging with humidity indicator card; double-boxed for international freight.
- Serial number and firmware revision recorded and provided with shipment documentation.
How to Source This Part
- Add to Cart — Click Add to Cart above and proceed to checkout for immediate online purchase.
- Request a Quote — For volume orders (>3 units), OEM pricing, or consignment stock agreements, email [email protected].
- Urgent Requirement — Call or WhatsApp +0086 19859288691 for same-day shipping confirmation on in-stock units.
- Cross-Reference Check — If your drive nameplate shows a different suffix (R0001, R0003), contact us to confirm interchangeability before ordering.
- International Shipping — We ship worldwide via DHL Express, FedEx, and UPS. Customs documentation and HS code 8537.10 provided.
Application-Specific FAQ
Q: Is the SDCS-PIN-48 compatible with both DCS 500 and DCS 600 drives?
A: Yes. The SDCS-PIN-48 / 3BSE004939R0002 is used across the DCS 400, DCS 500, and DCS 600 series. Always verify the drive’s hardware revision against the ABB spare-parts manual for your specific frame size.
Q: Can I use a refurbished SDCS-PIN-48 in a production-critical drive?
A: Refurbished units that have passed functional testing are widely used in production environments as cost-effective alternatives to new OEM boards. We provide test reports on request.
Q: What causes SDCS-PIN-48 failure in the field?
A: The most common failure modes are transformer winding degradation due to sustained overcurrent events, connector oxidation in humid environments, and component damage from upstream thyristor failures. Inspect the thyristor module before fitting a replacement board.
Q: How long does shipping take to Europe / North America?
A: DHL Express typically delivers within 3–5 business days from our warehouse. Expedited 1–2 day options are available on request.
Q: Do you offer a warranty?
A: New OEM units carry the standard ABB warranty. Refurbished units carry a 90-day Konmask functional warranty covering board-level defects.
