Advanced Energy DRE CESAR3-MAIN V2.1 / DRE C4-MAIN V4.0 PCB Board | Replacement, Equivalent & Selection Guide

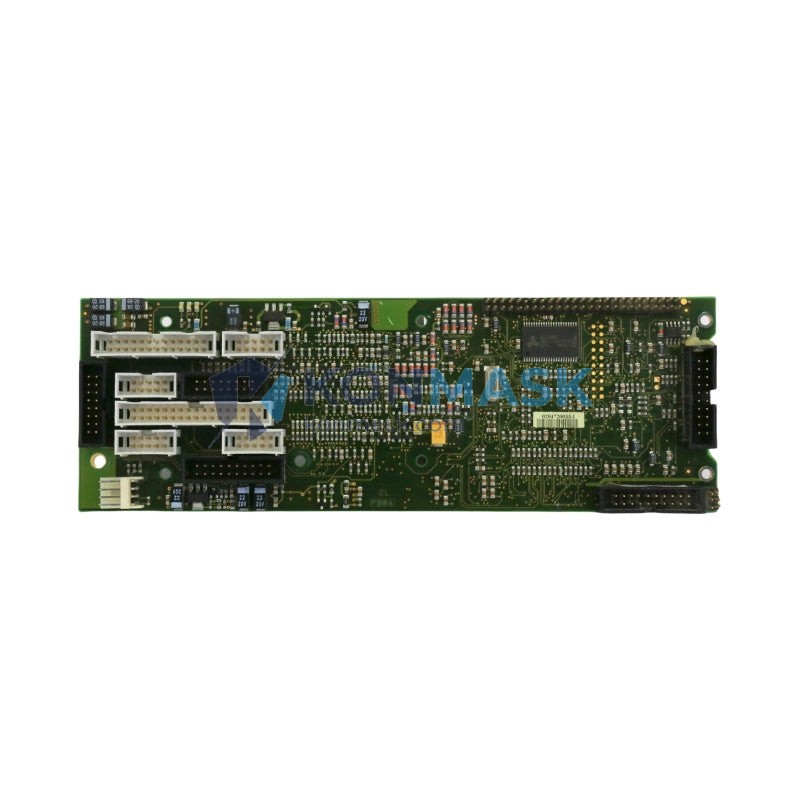

The Advanced Energy DRE CESAR3-MAIN V2.1 (LY210109) and DRE C4-MAIN V4.0 (LY400268 / 2305173-A) are main control PCB boards designed for Advanced Energy’s CESAR series RF power generators. These boards serve as the central processing and control interface within the generator chassis, managing power regulation, feedback loops, and system communication. Konmask.com supplies both original and verified-equivalent boards for MRO, spare-parts, and system-upgrade applications.
Technical Specifications
| Parameter | DRE CESAR3-MAIN V2.1 | DRE C4-MAIN V4.0 |
|---|---|---|
| Part Number | LY210109 | LY400268 / 2305173-A |
| Board Revision | V2.1 | V4.0 |
| Board Type | Main Control PCB | Main Control PCB |
| Compatible Generator Series | CESAR3 Series | CESAR C4 Series |
| Manufacturer | Advanced Energy Industries | Advanced Energy Industries |
| Application | RF Power Control | RF Power Control |
| Condition | New / Refurbished Available | New / Refurbished Available |
| Weight (approx.) | 150 g | 150 g |
Compatible Replacement & Equivalent Models
The following models are known compatible replacements or functional equivalents. Always verify firmware version and connector pinout before installation:
- LY210109 — DRE CESAR3-MAIN V2.1 (direct OEM part)
- LY400268 — DRE C4-MAIN V4.0 (direct OEM part)
- 2305173-A — Alternate part number for DRE C4-MAIN V4.0
- Earlier revisions: DRE CESAR3-MAIN V2.0, DRE C4-MAIN V3.x (verify compatibility with your unit serial number)
- Third-party equivalents: Contact Konmask for cross-reference verification
Why Choose the Original Model
- Guaranteed compatibility — OEM-matched firmware and hardware revision
- Validated performance — Meets Advanced Energy’s RF power regulation tolerances
- Reduced downtime risk — No re-calibration required when replacing like-for-like
- Warranty traceability — Original part numbers maintain service records
- Long-term support — Konmask maintains stock of legacy CESAR series boards
Typical Applications
- Semiconductor wafer fabrication (CVD, PVD, etch processes)
- Plasma surface treatment systems
- Thin-film deposition equipment
- Industrial RF power generator maintenance and MRO
- Research & development plasma systems
- Flat panel display (FPD) manufacturing lines
System Compatibility
- CESAR3-MAIN V2.1 (LY210109): Compatible with Advanced Energy CESAR3 series RF generators (typically 1–5 kW output range). Verify chassis model and firmware before ordering.
- C4-MAIN V4.0 (LY400268 / 2305173-A): Compatible with Advanced Energy CESAR C4 series generators. Cross-check unit serial number prefix for exact board revision match.
- Not interchangeable between CESAR3 and C4 series without engineering validation.
Selection Guide
| Your Generator Model | Recommended Board | Part Number |
|---|---|---|
| CESAR3 series (any wattage) | DRE CESAR3-MAIN V2.1 | LY210109 |
| CESAR C4 series | DRE C4-MAIN V4.0 | LY400268 / 2305173-A |
| Unknown / mixed revision | Contact Konmask for cross-reference | — |
Tip: Locate the silver label on your generator’s rear panel — it lists the exact board part number and revision installed at the factory.
Quality Assurance & Sourcing
- All boards sourced from authorized distributors or verified MRO channels
- Pre-shipment visual and functional inspection
- ESD-safe packaging for international shipping
- Traceability documentation available on request
- Refurbished units include repair report and 90-day functional warranty
How to Order
- Confirm your generator model and current board revision (check rear-panel label)
- Select the correct part number: LY210109 (CESAR3) or LY400268 / 2305173-A (C4)
- Add to cart and proceed to checkout, or contact us for bulk / urgent orders
- Provide your shipping address — we ship worldwide with DHL, FedEx, and UPS
- Lead time: In-stock items ship within 1–3 business days
Replacement & Compatibility FAQ
Q: Can I use the C4-MAIN V4.0 board in a CESAR3 chassis?
A: No. The CESAR3 and C4 series use different board form factors and firmware. Cross-installation requires engineering validation and is not recommended.
Q: Is V2.1 backward compatible with V2.0 slots?
A: In most cases yes, but confirm with your service manual or contact Konmask before ordering.
Q: Do you supply refurbished boards?
A: Yes. Refurbished boards are tested, cleaned, and shipped with a 90-day warranty. Specify “refurbished” when inquiring.
Q: What is the lead time for out-of-stock boards?
A: Typically 2–4 weeks for sourcing. Contact us for urgent requirements.
Q: Can you provide a certificate of conformance?
A: Yes, available on request for both new and refurbished units.
