AGILENT 33-5013 E3126-26611 Pin Board – HP 8300D Automated Test Equipment Series
When a Pin Board fails inside an HP/Agilent 8300D Automatic Test System, the entire production line grinds to a halt. The 33-5013 Pin Board is the critical signal-routing interface between the test head and the device-under-test (DUT) fixture. Without it, stimulus signals cannot reach the DUT, measurement channels go dark, and costly downtime accumulates by the hour. In high-throughput semiconductor and PCB testing environments, every minute of unplanned downtime translates directly into yield loss and missed delivery commitments.

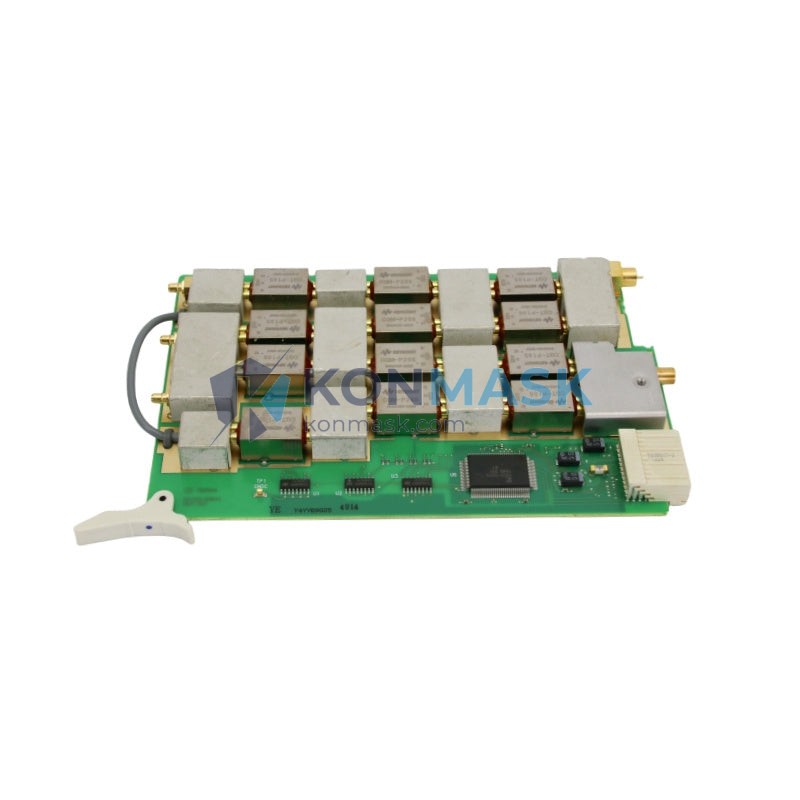

The AGILENT 33-5013 (alternate part numbers: E3126-26611, E3126-66611, 0090-00012, 0040-21367) is a factory-original Pin Board engineered specifically for the HP/Agilent 8300D Functional Test System. Within the 8300D platform — one of the most widely deployed functional ATE systems in aerospace, defense, and electronics manufacturing — this board occupies the signal-integrity-critical position of the test-head interconnect layer. Its precision-machined pin array and controlled-impedance traces ensure repeatable, low-noise signal paths across thousands of test cycles, making it an irreplaceable component for any facility running 8300D-based test programs.
Technical Specifications
- Manufacturer: Agilent Technologies (formerly HP / Hewlett-Packard)
- Primary Part Number: 33-5013
- Alternate Part Numbers: E3126-26611 | E3126-66611 | 0090-00012 | 0040-21367
- Component Type: Pin Board (Test-Head Interconnect Board)
- Compatible Platform: HP / Agilent 8300D Functional Automatic Test System
- Form Factor: Proprietary PCB assembly with precision pin array
- Weight: Approx. 2.6 kg (as shipped)
- Condition Available: Refurbished / Used – Tested & Verified
Key Features & Benefits
- OEM-Equivalent Signal Integrity: Precision pin layout maintains controlled impedance for accurate stimulus/measurement routing.
- Multi-Part-Number Cross-Reference: One board resolves multiple obsolete part numbers (E3126-26611, E3126-66611, 0090-00012, 0040-21367), simplifying procurement.
- Drop-In Replacement: Mechanically and electrically compatible with the 8300D test head — no firmware changes or fixture modifications required.
- Tested Before Shipment: Each unit undergoes functional verification prior to dispatch to minimize field rejection risk.
- Long-Term Availability: Sourced from decommissioned ATE systems and certified refurbishers, extending the service life of legacy 8300D installations.
- Global Export Ready: Properly packaged with ESD protection and export documentation for international shipment.
Industry & Equipment Applications
- Semiconductor Manufacturing: Final test of ICs and hybrid modules on 8300D functional testers.
- Aerospace & Defense Electronics: MIL-spec board-level functional testing requiring traceable ATE platforms.
- PCB Assembly & EMS: In-circuit and functional test of assembled boards in high-mix, low-volume production.
- Telecommunications Equipment: Functional verification of line cards and RF modules.
- Automotive Electronics: ECU and sensor module test on legacy HP/Agilent ATE lines.
System Integration & Compatible Parts
The AGILENT 33-5013 Pin Board is designed to integrate within the HP/Agilent 8300D Functional Test System ecosystem. Compatible and commonly co-ordered parts include:
- HP/Agilent 8300D Test Head Assembly
- 8300D System Controller / CPU Board
- 8300D Interface Adapter Cables
- DUT Fixture / Bed-of-Nails Fixture for 8300D
- Agilent E3126 Series Interconnect Modules
Contact our technical team at support@konmask.com for compatibility confirmation with your specific test program or fixture configuration.
Our Quality Assurance Process
- Step 1 – Visual Inspection: All boards are inspected for physical damage, corrosion, bent pins, and PCB delamination.
- Step 2 – Functional Test: Boards are powered and tested in a compatible 8300D chassis to verify signal-path continuity and basic functionality.
- Step 3 – Cleaning & Refurbishment: Boards are cleaned with approved solvents; damaged connectors or pins are replaced where applicable.
- Step 4 – ESD Packaging: Units are sealed in anti-static bags, placed in foam-lined boxes, and labeled with part number and test date.
- Step 5 – Documentation: Each shipment includes a test report and packing list for traceability.
How to Order
- Submit an inquiry via support@konmask.com or call +0086 19859288691.
- Provide your system model (8300D configuration), required quantity, and delivery timeline.
- Receive a formal quotation within 1 business day.
- Confirm order and arrange payment via T/T, PayPal, or other agreed terms.
- Shipment dispatched within 3–5 business days with tracking number provided.
Why Choose Konmask.com?
- Specialist in Legacy ATE & Industrial Automation Parts: We focus exclusively on hard-to-find industrial and test equipment components.
- Global B2B Export Experience: Serving customers in 40+ countries with compliant export documentation.
- Technical Pre-Sales Support: Our engineers can advise on compatibility, alternatives, and system integration.
- Competitive Pricing: Direct sourcing from decommissioned systems keeps costs low without compromising quality.
- Responsive Communication: Inquiries answered within 24 hours, Monday–Saturday.
Frequently Asked Questions
Q: Is the AGILENT 33-5013 a new or refurbished part?
A: We supply refurbished/used units that have been functionally tested. New old stock (NOS) may be available — please inquire for current inventory status.
Q: Can this Pin Board replace E3126-26611 or 0090-00012 directly?
A: Yes. Part numbers 33-5013, E3126-26611, E3126-66611, 0090-00012, and 0040-21367 are cross-referenced to the same assembly. Please confirm with your system documentation before installation.
Q: Do you provide a warranty?
A: We offer a 90-day functional warranty on all tested units. Terms are detailed in the quotation.
Q: Can you ship internationally?
A: Yes. We ship worldwide via DHL, FedEx, and UPS with full export documentation. Lead time varies by destination.
Q: What if the part does not work in my system?
A: Contact us within the warranty period. We will arrange a replacement or refund subject to our return policy.
