Allen-Bradley 1715-OB8DE Redundant 8-Point Digital Output Module | 1715 Series

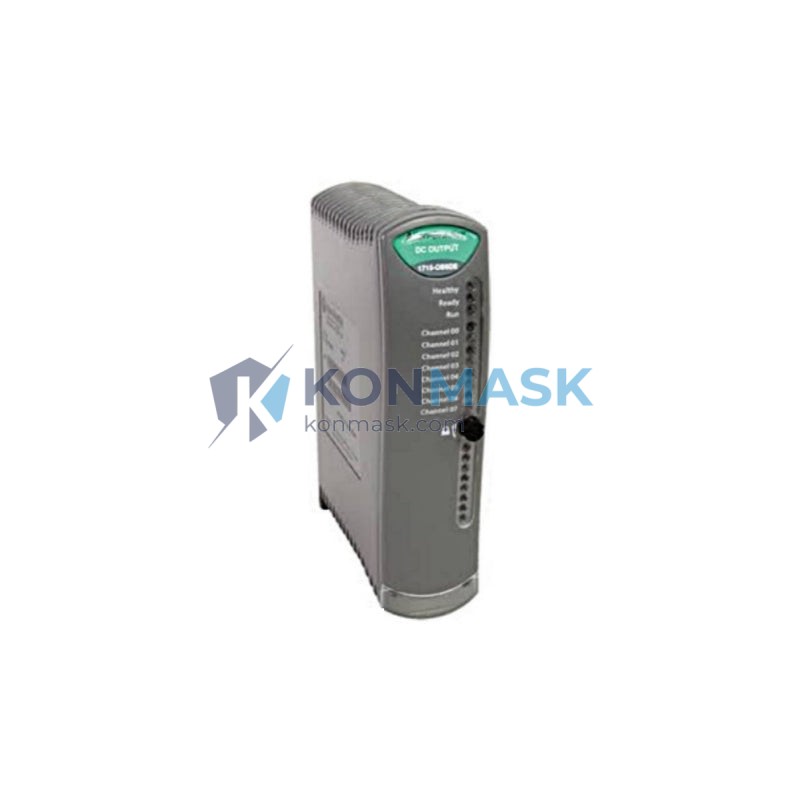

Allen-Bradley 1715-OB8DE 8-Point Redundant Digital Output Module – 1715 Redundant I/O System

Imagine a critical process line — a refinery reactor, a pharmaceutical batch system, or a high-speed automotive assembly cell — suddenly losing output control because a single I/O module fails. Without a redundant, diagnostics-enabled output module like the Allen-Bradley 1715-OB8DE, that failure cascades instantly: actuators freeze, safety interlocks trip, and unplanned downtime costs mount by the minute. The 1715-OB8DE exists precisely to prevent this scenario, delivering hardware-level redundancy and per-channel diagnostics that keep your process running even when individual components degrade.

Within Rockwell Automation’s 1715 Redundant I/O System, the 1715-OB8DE occupies the role of the high-integrity digital output workhorse. Designed to pair with the 1715-A2A adapter in a fully redundant I/O chassis, it provides 8 electronically fused, diagnostics-enabled output points capable of detecting open-load, short-circuit, and over-temperature faults in real time. Globally, the 1715 platform is recognized as a cornerstone of SIL 2-capable process safety architectures, deployed across oil & gas, power generation, and advanced manufacturing facilities on every continent.

Technical Specifications

• Part Number: 1715-OB8DE
• Series: Allen-Bradley 1715 Redundant I/O
• Module Type: 8-Point Digital Output, Electronically Fused with Diagnostics
• Output Points: 8 (individually fused, diagnostics per channel)
• Output Voltage: 10.8–26.4V DC (24V DC nominal)
• Output Current: 0.5 A per point (max)
• Total Module Current: 4 A max
• Diagnostics: Open-load detection, short-circuit protection, over-temperature fault
• Backplane Current (5V): 75 mA
• Operating Temperature: 0–60°C (32–140°F)
• Storage Temperature: -40–85°C (-40–185°F)
• Relative Humidity: 5–95% non-condensing
• Certifications: UL, CE, cUL; compatible with SIL 2 architectures
• Form Factor: 1715 Redundant I/O chassis-mount module
• Weight: Approx. 400 g

Note: All specifications are based on Rockwell Automation published data. Verify against the official 1715-OB8DE product page for the latest revision details.

Key Features & Benefits

• True Hardware Redundancy: Operates in a dual-module redundant pair within the 1715 chassis, ensuring zero-downtime switchover on module fault.
• Per-Channel Electronic Fusing: Each of the 8 output points is individually electronically fused — no blown fuses to replace, faster fault recovery.
• Real-Time Diagnostics: Detects open-load, short-circuit, and thermal overload conditions and reports them to the controller without interrupting other channels.
• SIL 2 Architecture Support: Engineered to participate in IEC 61508 / IEC 61511 SIL 2 safety instrumented systems when properly configured.
• Hot-Swap Capable: Remove and replace the module under power without shutting down the redundant I/O chassis or the process.
• Seamless ControlLogix Integration: Communicates natively with ControlLogix and GuardLogix controllers via the 1715-A2A adapter and EtherNet/IP.
• Reduced Wiring Complexity: Compact 8-point density with a single module footprint simplifies panel design and reduces installation labor.

Industry & Equipment Applications

• Oil & Gas: Wellhead control panels, pipeline valve actuation, compressor station safety shutdowns
• Power Generation: Turbine control systems, boiler management, substation automation
• Pharmaceutical & Life Sciences: Batch reactor control, clean-room HVAC actuation, FDA-regulated process lines
• Chemical Processing: Reactor feed valve control, emergency shutdown (ESD) systems
• Automotive Manufacturing: Redundant body-shop welding cell I/O, paint-line conveyor control
• Water & Wastewater: Pump station control, treatment plant valve automation

System Integration & Compatible Parts

The 1715-OB8DE is designed to operate within the complete Allen-Bradley 1715 Redundant I/O ecosystem. Key compatible components include:

• 1715-A2A — Redundant I/O Adapter (EtherNet/IP, required for chassis communication)
• 1715-IB16D — 16-Point Redundant Digital Input Module (diagnostic)
• 1715-IF16 — 16-Channel Redundant Analog Input Module
• 1715-OF8I — 8-Channel Redundant Analog Output Module (isolated)
• 1756-L8x ControlLogix — Primary controller platform
• 1756-L8xS GuardLogix — Safety controller for SIL-rated applications
• 1715-SN — 1715 Series I/O chassis (specify slot count)

Contact Konmask.com to verify compatibility with your specific system revision and firmware version before ordering.

Our Quality Assurance Process

• Source Verification: Every 1715-OB8DE unit is sourced from authorized distributors or directly from verified OEM channels — no gray-market or counterfeit risk.
• Visual & Functional Inspection: Each module undergoes physical inspection for label integrity, connector condition, and firmware label verification prior to shipment.
• Secure Packaging: Anti-static packaging with moisture barrier and shock-absorbing foam to protect sensitive electronics during international transit.
• Documentation Included: Certificate of conformance and original manufacturer documentation provided upon request.
• Traceability: Full lot traceability maintained for every unit shipped from Konmask.com.

How to Order

1. Submit your inquiry via the “Get a Quote” button or email support@konmask.com.
2. Provide your required quantity, delivery timeline, and destination country.
3. Our team will respond within 1 business day with pricing, lead time, and availability.
4. Upon agreement, we issue a proforma invoice and arrange secure payment and shipment.
5. Tracking information and documentation are provided after dispatch.

Why Choose Konmask.com?

• ✅ Specialized in Industrial Automation Components — PLC, DCS, servo, and I/O modules from leading global brands
• ✅ Global Export Experience — Serving buyers in Europe, Southeast Asia, the Middle East, and the Americas
• ✅ Fast Response — Dedicated B2B inquiry team, reply within 24 hours
• ✅ Competitive Pricing — Direct sourcing relationships enable better pricing than typical distributors
• ✅ Reliable Logistics — DHL, FedEx, UPS, and sea freight options with full export documentation
• ✅ After-Sales Support — Technical guidance and warranty coordination available post-delivery

Frequently Asked Questions

Q: Is the 1715-OB8DE in stock?
A: Stock levels vary. Please submit an inquiry at Konmask.com or email support@konmask.com for real-time availability.

Q: Can the 1715-OB8DE be used in a non-redundant configuration?
A: The 1715 I/O system is designed specifically for redundant architectures. Using it outside a redundant chassis is not a supported configuration per Rockwell Automation guidelines.

Q: What is the difference between 1715-OB8D and 1715-OB8DE?
A: The “E” suffix denotes electronically fused outputs with enhanced per-channel diagnostics, replacing the standard fused version with solid-state protection and fault reporting.

Q: Do you provide export documentation for customs clearance?
A: Yes. We provide commercial invoice, packing list, and certificate of origin. HS code classification is the buyer’s responsibility per their country’s import regulations.

Q: What warranty applies to this module?
A: We offer a 90-day inspection warranty covering DOA (dead on arrival) units. Extended warranty options are available — contact us for details.

---
