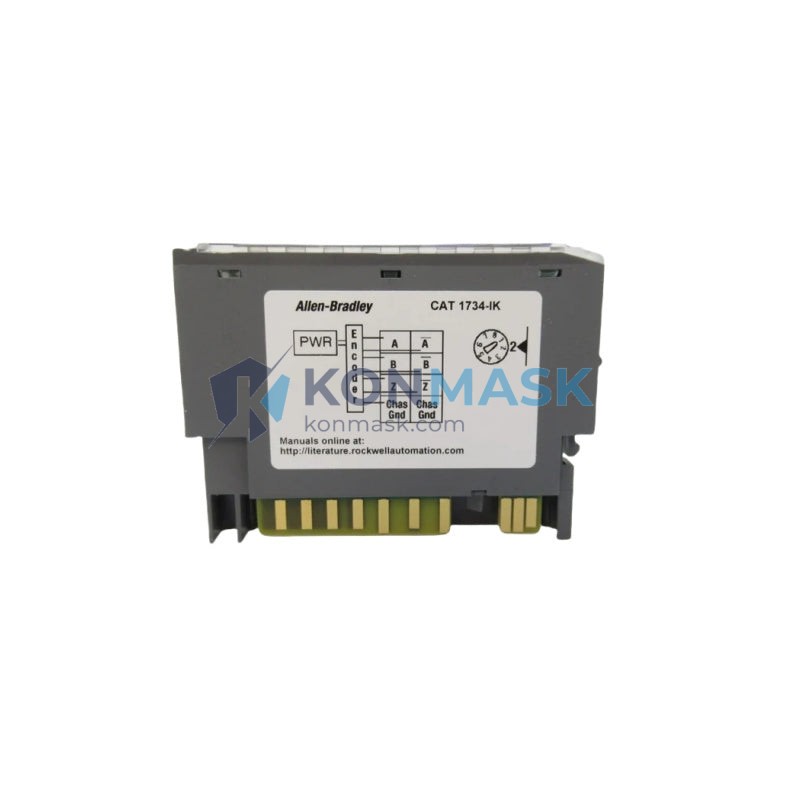

Allen-Bradley 1734-IK/C – POINT I/O Incremental Encoder Module | Series C
Engineering Background: The 1734-IK/C is a high-speed incremental encoder interface module within Rockwell Automation’s POINT I/O platform — a compact, modular I/O system designed for distributed control architectures. Series C represents the latest hardware revision, incorporating improved noise immunity and expanded diagnostic capabilities over prior revisions.
Product Positioning: Engineered for motion feedback applications requiring precise position and velocity measurement, the 1734-IK/C integrates directly into ControlLogix, CompactLogix, and FlexLogix control systems via the POINT I/O backplane. It is the preferred encoder interface for OEM machine builders and system integrators demanding deterministic, high-resolution feedback in space-constrained panel environments.
Complete Technical Specifications
- Catalog Number: 1734-IK/C
- Series: C
- Platform: Allen-Bradley POINT I/O (1734 Series)
- Module Type: Incremental Encoder / Counter Input
- Input Channels: 1 encoder channel (A, B, Z quadrature)
- Maximum Input Frequency: 1 MHz
- Encoder Signal Types: Single-ended and differential (RS-422)
- Supply Voltage: 24V DC (via POINT I/O power bus)
- Input Voltage Range: 5–24V DC encoder supply
- Counter Resolution: 32-bit up/down counter
- Operating Modes: Quadrature x1, x2, x4; Pulse/Direction; Up/Down Count
- Z (Index) Input: Supported — latch and reset on index pulse
- Backplane Current Draw: 75 mA @ 5V DC
- Operating Temperature: 0°C to +55°C (32°F to 131°F)
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5–95% non-condensing
- Vibration: IEC 68-2-6, 2g @ 10–500 Hz
- Shock: IEC 68-2-27, 30g
- Dimensions (H × W × D): 94 × 12 × 55 mm
- Weight: Approx. 100 g
- Certifications: UL, CE, C-Tick, ATEX Zone 2
- Communication: Via POINT I/O adapter (DeviceNet, EtherNet/IP, ControlNet, PROFIBUS)
- Wiring: Removable terminal block (RTB)
Proven Application Environments
- Conveyor & Material Handling: Precise belt speed and position tracking in high-throughput logistics systems.
- Packaging Machinery: Synchronization of servo axes and registration mark detection on form-fill-seal lines.
- CNC & Machine Tool: Spindle speed feedback and axis position verification in retrofit and OEM machine tool applications.
- Printing & Converting: Web tension control and print registration requiring sub-millimeter positional accuracy.
- Robotics & Assembly: Joint position feedback integration in collaborative and industrial robot cells.
- Automotive Manufacturing: Transfer line indexing and torque verification stations.
Engineering Advantages
- 1 MHz Maximum Frequency: Supports high-resolution encoders at elevated speeds without signal loss or count errors.
- Differential RS-422 Input: Superior noise rejection in electrically noisy industrial environments — eliminates common-mode interference from VFDs and high-current switching.
- 32-Bit Counter: Extended count range eliminates rollover errors in long-travel or continuous-rotation applications.
- Compact POINT I/O Form Factor: 12 mm wide module minimizes panel footprint — critical in space-constrained enclosures.
- Hot-Swap Capable: Module replacement without system shutdown reduces maintenance downtime.
- Integrated Diagnostics: Series C adds enhanced fault detection — open-wire, short-circuit, and signal loss alarms surfaced directly in Studio 5000 Logix Designer.
- Flexible Counting Modes: x1/x2/x4 quadrature multiplication configurable in software — no hardware jumpers required.
System Architecture & Signal Flow
The 1734-IK/C mounts on any standard POINT I/O base unit (1734-TB, 1734-TBS, or 1734-TOP). The encoder’s A, B, and Z signals connect to the removable terminal block. The module processes quadrature signals in hardware, maintaining count integrity independent of backplane scan time. Count data is transferred to the POINT I/O adapter (e.g., 1734-AENT for EtherNet/IP) and mapped into the controller’s I/O tree as a 32-bit DINT. In Studio 5000, the module appears as a generic or specific I/O module under the adapter node, with configurable preset, rollover, and gate functions accessible via module properties.
Typical Wiring: Differential encoder → 1734-IK/C RTB (A+/A−, B+/B−, Z+/Z−, Shield, +V, 0V) → POINT I/O backplane → Adapter → EtherNet/IP → ControlLogix/CompactLogix CPU.
Sourcing & Quality Verification
- Origin: Genuine Rockwell Automation / Allen-Bradley manufactured product.
- Condition: New surplus or factory-refurbished units available — condition specified at time of quotation.
- Traceability: Each unit ships with original Rockwell Automation labeling, date code, and series marking visible on housing.
- Inspection Protocol: Pre-shipment functional verification including counter operation, signal input continuity, and backplane connector integrity check.
- Packaging: Anti-static bag, foam-lined carton, moisture barrier — compliant with IPC/JEDEC J-STD-033 handling standards.
- Documentation: Certificate of conformance available upon request; original Rockwell publication 1734-UM013 supplied as reference.
Procurement Process
- Confirm Quantity & Condition: Contact Konmask.com with required quantity and acceptable condition (new/refurbished). Real-time stock check performed within 2 business hours.
- Quotation: Formal quotation issued with unit price, lead time, and shipping options (DHL Express, FedEx International Priority, sea freight for bulk).
- Order Placement: Purchase order accepted via email or online checkout. Payment terms: T/T, PayPal, or credit card.
- Export Compliance: ECCN classification confirmed; export license determination completed prior to shipment for controlled destinations.
- Shipment & Tracking: Ships within 1–3 business days of payment confirmation. Full tracking number provided via email.
- After-Sales Support: 12-month warranty on all units. Technical support available via email and phone for installation and commissioning queries.
Technical FAQ
Q: Is the 1734-IK/C compatible with single-ended (TTL) encoders?
A: Yes. The module accepts both single-ended (5–24V TTL/HTL) and differential RS-422 encoder signals. Wiring configuration differs — consult publication 1734-UM013 for terminal assignments.
Q: What is the maximum cable length for encoder wiring?
A: For differential RS-422 signals at 1 MHz, cable lengths up to 30 m are typical. Shielded twisted-pair cable (e.g., Belden 9728) is strongly recommended. Longer runs require frequency de-rating.
Q: Can the 1734-IK/C be used with a 1734-AENTR (redundant EtherNet/IP adapter)?
A: Yes. The module is fully compatible with all 1734-series adapters including the 1734-AENTR for DLR (Device Level Ring) redundant network topologies.
Q: Does Series C require a firmware update on the adapter?
A: Rockwell recommends adapter firmware version 4.x or later for full Series C diagnostic feature support. Verify adapter firmware in Studio 5000 before deployment.
Q: What is the difference between 1734-IK and 1734-IK/C?
A: Series C adds enhanced open-wire diagnostics, improved EMC performance, and updated firmware compatibility. It is a drop-in replacement for earlier series with no wiring or configuration changes required.
