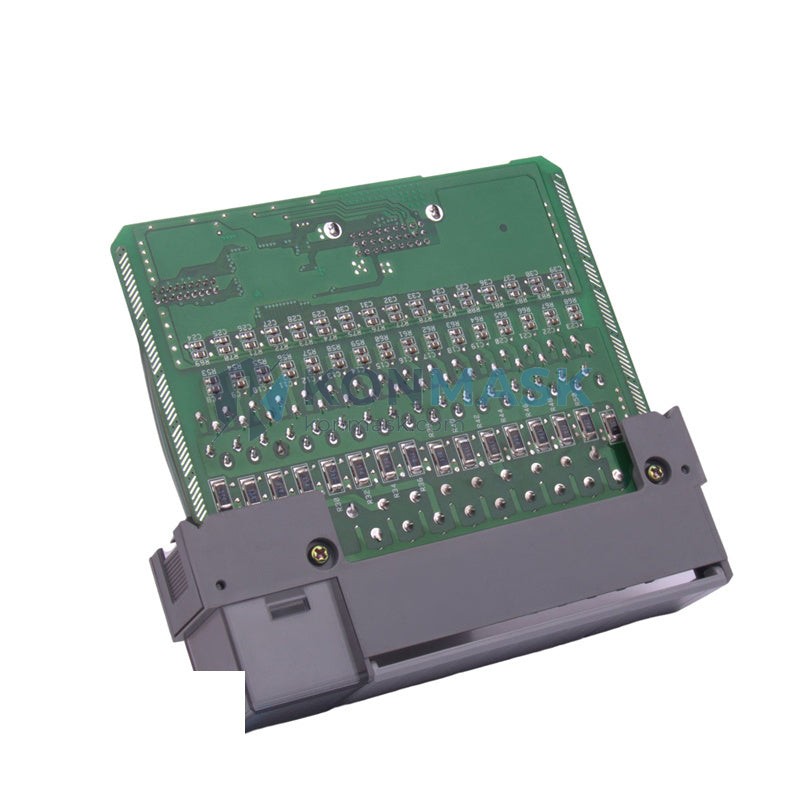

Allen-Bradley 1746-IO12 – Combination Discrete I/O Module | SLC 500 Series Platform
Engineering Background: The Allen-Bradley SLC 500 control platform has been a backbone of discrete and process automation since the early 1990s, deployed extensively across petrochemical, power generation, water/wastewater treatment, and general manufacturing. The SLC 500 rack-based architecture (1746 chassis) supports modular I/O expansion, enabling engineers to tailor control density to process requirements without over-specifying hardware. The 1746-IO12 occupies a single slot in any 1746 chassis and delivers both input sensing and output switching in one module footprint—reducing slot consumption and wiring complexity in space-constrained panels.
Product Positioning: The 1746-IO12 provides 6 discrete inputs and 6 discrete outputs (120V AC, relay or triac depending on sub-variant) in a single-slot form factor. It is the preferred choice when I/O count per slot is the primary constraint and the application does not require high-density (16- or 32-point) modules such as the 1746-IA16 or 1746-OA16. The IO12 is not suited for analog signal conditioning, high-speed counter applications, or installations requiring HART/fieldbus integration—those scenarios call for dedicated 1746-NI4, 1746-HSCE, or 1746-BAS modules respectively.
Complete Technical Specifications
Electrical
- Module Type: Combination Discrete I/O (6 IN / 6 OUT)
- Input Voltage Range: 74–132V AC, 47–63 Hz
- Input Current (ON state): 6–16 mA @ 120V AC
- Input Impedance: ~8 kΩ @ 60 Hz
- Output Type: Triac (solid-state AC) — confirm sub-variant for relay version
- Output Voltage Range: 10–132V AC
- Output Current Rating: 0.5A per point continuous; 2A surge (1 cycle)
- Leakage Current (OFF state): <2 mA
- Backplane Current Draw: 5V DC @ 100 mA (from SLC 500 backplane)
- Power Dissipation: 2.5W max
Mechanical
- Form Factor: Single-slot, 1746 chassis compatible
- Wiring: Removable terminal block (RTB), screw-type
- Weight: ~400 g
- Dimensions: Per standard 1746 single-slot module envelope
Environmental
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5–95% non-condensing
- Vibration: 2g @ 10–500 Hz (IEC 68-2-6)
- Shock: 30g operational (IEC 68-2-27)
- Pollution Degree: 2
- Enclosure Rating: Open-type (requires installation in rated enclosure)
Certifications
- UL Listed: UL 508
- CE Marked: EMC Directive 2014/30/EU; LVD 2014/35/EU
- CSA Certified: C22.2 No. 142
- RoHS Compliant
Data source: Rockwell Automation Publication 1746-UM001, SLC 500 I/O Modules User Manual; Rockwell Automation Product Certification Database (rok.auto/certifications).
Proven Application Environments
- Petrochemical / Refinery: Pump station control panels | Motor starter feedback monitoring | Continuous duty cycling at elevated ambient temperatures up to 55°C
- Power Generation: Auxiliary equipment control (cooling fans, lube oil pumps) | Turbine BOP systems | 24/7 uninterrupted operation with infrequent maintenance windows
- Water & Wastewater Treatment: Lift station automation | Valve open/close sequencing | Wet, humid environments requiring sealed enclosure installation
- Chemical Processing: Batch reactor interlock circuits | Agitator and conveyor control | Applications requiring deterministic scan-time response under SLC 500 ladder logic
- Pulp & Paper / Material Handling: Conveyor line start/stop control | Limit switch and proximity sensor integration | High-cycle-count environments with frequent I/O toggling
- Building & Facility Automation (Legacy Systems): HVAC equipment sequencing | Lighting and utility control panels | Long-lifecycle installations where SLC 500 platform continuity is mandated
Engineering Advantages
- For space-constrained control panels, this combination I/O module reduces chassis slot consumption by 50% versus using separate input and output modules, because both 6-point input and 6-point output functions are integrated into a single 1746 slot.
- For retrofit and brownfield projects, this module maintains full backward compatibility with all SLC 5/01 through SLC 5/05 processors, because it adheres to the original 1746 backplane communication protocol without firmware dependency.
- For high-ambient-temperature installations (up to 60°C), this module sustains rated output current without derating, because the triac output stage is thermally designed for continuous industrial duty cycles.
- For applications with infrequent maintenance access, this module’s removable terminal block (RTB) design allows wiring harness pre-assembly and rapid module swap without rewiring, because the RTB detaches independently from the module body.
- For procurement engineers managing multi-site SLC 500 fleets, this module’s single catalog number covers both I/O functions, because it simplifies spare parts inventory and reduces the number of distinct line items in MRO stock lists.
- For installations subject to vibration (pumps, compressors, rotating equipment), this module meets IEC 68-2-6 vibration qualification at 2g across 10–500 Hz, because the PCB and connector assembly are mechanically rated for continuous vibration exposure.
System Architecture & Signal Flow
Signal Flow: Field device (sensor/switch) → Input terminal block → Optical isolation stage → SLC 500 backplane data bus → Processor image table (input word) → Ladder logic rung evaluation → Output image table (output word) → Backplane → Output driver (triac) → Output terminal block → Field actuator (contactor coil, solenoid, pilot light).
Compatible Processors:
- 1747-L20 / L30 / L40 / L511 / L514 / L524 / L531 / L532 / L541 / L542 / L543 / L551 / L552 / L553 — all SLC 5/01 through SLC 5/05 variants. Compatibility is assured because the 1746-IO12 uses the standard 1746 backplane protocol, which is processor-firmware-agnostic at the I/O module level.
- Compatible chassis: 1746-A4, A7, A10, A13 (4-, 7-, 10-, 13-slot).
- Compatible power supplies: 1746-P1, P2, P3, P4, P7.
Substitution Conditions: The 1746-IO12 can be substituted for two separate modules (e.g., 1746-IA8 + 1746-OA8) only when the application requires ≤6 inputs and ≤6 outputs per slot, and when the input/output voltage class (120V AC) matches the field wiring. It cannot substitute for DC input/output modules (1746-IB16, 1746-OB16) or analog modules.
Sourcing & Quality Verification
Units are sourced from authorized distribution channels, decommissioned OEM equipment, and verified industrial surplus with full traceability documentation. Every unit undergoes a 4-step inspection protocol before shipment:
- Visual Inspection: Housing integrity check, terminal block condition, label legibility, and absence of burn marks, corrosion, or physical damage.
- Backplane Connector Verification: Pin alignment, contact cleanliness, and mechanical seating force test against 1746 chassis slot.
- Functional Power-On Test: Module installed in SLC 500 test chassis with active processor; all 6 input channels and 6 output channels exercised under load.
- Firmware / Catalog Confirmation: Catalog number, series letter, and firmware revision recorded and matched against Rockwell Automation product database.
Documentation available upon request: Test report, product datasheet (Rockwell Automation original), certificate of conformance, photos of actual unit (serial number visible), and export compliance documentation (ECCN, HTS code).
Procurement Process
- Submit Inquiry: Provide catalog number (1746-IO12), required quantity, delivery timeline, and destination country via the contact form or email support@konmask.com. Include any specific series letter or firmware revision requirements.
- Receive Quotation & Stock Confirmation: A technical quotation with unit price, lead time, and available stock quantity will be issued within 24 hours of inquiry receipt. Urgent requirements are flagged for same-day response.
- Order Confirmation & Shipment: Upon purchase order confirmation, units are prepared, inspected, and dispatched with full shipping documentation. DHL Express, FedEx International Priority, and sea freight options are available depending on order volume and urgency.
Technical Support: Pre-sales support includes compatibility verification, chassis slot planning, and cross-reference assistance. Post-sales support covers installation guidance, SLC 500 I/O configuration in RSLogix 500, and troubleshooting of field wiring issues. Contact: support@konmask.com | +0086 19859288691.
Technical FAQ
Q1: Is the 1746-IO12 compatible with the MicroLogix 1000 or MicroLogix 1100?
No. The 1746-IO12 is designed exclusively for the SLC 500 1746 chassis backplane. MicroLogix 1000 and 1100 are fixed I/O controllers that do not accept 1746 expansion modules. For MicroLogix 1100 I/O expansion, the 1762 (MicroLogix Expansion) module family is required.
Q2: Can the 1746-IO12 replace a 1746-IA8 (8-point input) + 1746-OA8 (8-point output) combination?
Only if the application requires 6 or fewer inputs and 6 or fewer outputs. The 1746-IO12 provides 6 inputs and 6 outputs; the IA8/OA8 pair provides 8 of each. If all 8 points of either module are utilized in the existing program, substitution requires I/O address remapping in RSLogix 500 and field wiring modification. A direct drop-in replacement without program changes is not possible.
Q3: Is the 1746-IO12 certified for use in hazardous (classified) locations such as Zone 1 or Class I Div 1?
No. The 1746-IO12 carries UL 508 and CSA C22.2 No. 142 industrial control equipment certifications but is not rated for hazardous location installation (no ATEX, IECEx, or Class I Div 1/2 listing). For hazardous area applications, field signals must be routed through certified intrinsic safety barriers or Zener barriers before connecting to the 1746-IO12 installed in a safe area enclosure.
