Discrete & Process Automation Solution — Allen-Bradley 1747-L543/C | SLC 500 Series
Where This Product Is Used

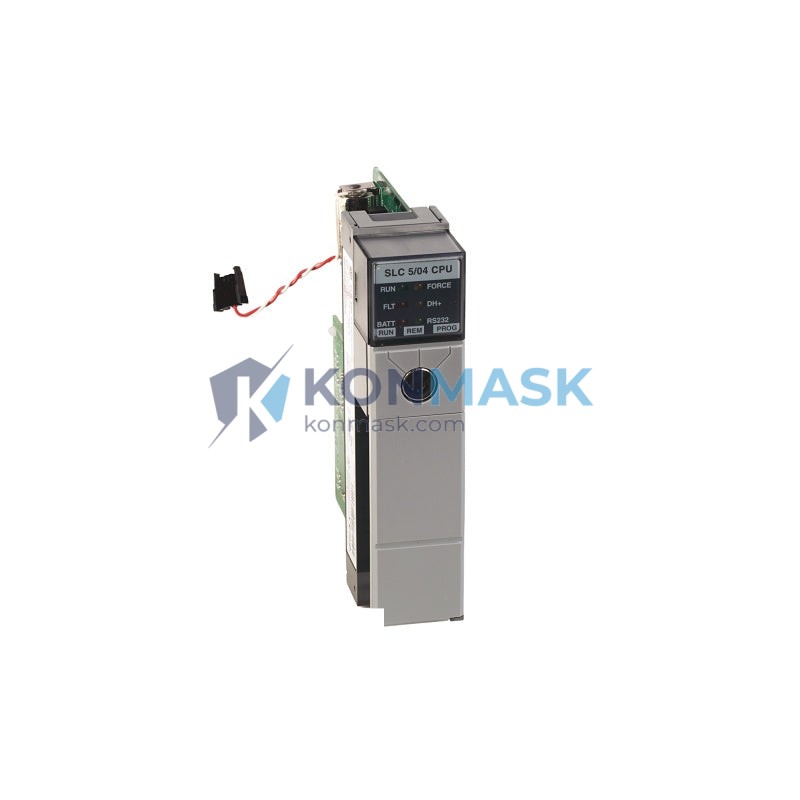

The Allen-Bradley 1747-L543/C SLC 5/04 Processor is a field-proven controller deployed across demanding industrial environments worldwide. Engineers specify this unit in:
- Automotive Assembly Lines — Coordinating robotic welding cells, conveyor sequencing, and torque-tool interlocks where deterministic scan times are non-negotiable.
- Food & Beverage Processing — Managing CIP (Clean-In-Place) cycles, batch mixing, and filling-line PID loops in hygienic production areas.
- Water & Wastewater Treatment — Controlling pump stations, chemical dosing, and SCADA-integrated lift stations with reliable DH+ or RS-232 communications.
- Oil & Gas Upstream/Midstream — Wellhead automation, compressor control panels, and pipeline monitoring skids requiring rugged, temperature-tolerant hardware.
- Pharmaceutical Manufacturing — Validated batch processes under 21 CFR Part 11 environments where audit-trail integrity and deterministic execution are mandatory.
- Material Handling & Packaging — Palletizer sequencing, label-apply stations, and case-erector control with high-speed I/O response.
- HVAC & Building Automation — Chiller plant sequencing, AHU control, and energy management in commercial and industrial facilities.
Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | 1747-L543/C |
| Series / Revision | SLC 500 — SLC 5/04, Series C |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| User Memory | 16K Words (16,384 words) |
| I/O Capacity | Up to 4,096 I/O points (local + remote) |
| Communication Ports | DH+ (Port 1), RS-232 / DF1 (Port 2) |
| DH+ Data Rate | 57.6 Kbps / 115.2 Kbps / 230.4 Kbps |
| Scan Time | ~1 ms/K (typical) |
| Operating Temperature | 0 °C to 60 °C (32 °F to 140 °F) |
| Storage Temperature | -40 °C to 85 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Power Consumption | 800 mA @ 5 VDC (backplane) |
| Chassis Compatibility | 1746 SLC 500 Chassis (4, 7, 10, 13 slot) |
| Programming Software | RSLogix 500 / RSLogix Micro |
| HS Code | 8537.10 |
| Weight | Approx. 500 g |
Why Engineers Specify This Model
- 16K Word Memory Headroom — Accommodates complex ladder logic programs, data tables, and PID blocks without memory constraints common in smaller SLC variants (1747-L532, 1747-L533).
- Dual-Port Communications — Native DH+ enables peer-to-peer messaging and SCADA integration; the RS-232 port supports HMI, barcode scanners, and remote programming without additional communication modules.
- Deterministic Scan Performance — ~1 ms/K scan time ensures tight loop control and reliable interlock response for safety-critical sequences.
- Broad I/O Ecosystem — Compatible with the full 1746 I/O module library: analog, digital, thermocouple, RTD, high-speed counter, and specialty modules.
- Proven Field Reliability — MTBF exceeding 300,000 hours; widely supported by Rockwell Automation’s global service network and third-party repair facilities.
- Series C Enhancements — Improved firmware stability, enhanced diagnostics, and extended operating temperature tolerance versus earlier Series A/B revisions.
Complete System Bill of Materials
A typical SLC 5/04 control panel build using the 1747-L543/C includes:
- 1747-L543/C — SLC 5/04 Processor (this unit)
- 1746-P2 / 1746-P4 — SLC 500 Power Supply (2A or 4A @ 5 VDC)
- 1746-A4 / 1746-A7 / 1746-A10 / 1746-A13 — SLC 500 Chassis (4, 7, 10, or 13 slot)
- 1746-IB16 / 1746-OB16 — 16-point 24 VDC Digital Input / Output Modules
- 1746-NI4 / 1746-NO4I — 4-channel Analog Input / Output Modules
- 1747-UIC — USB-to-DH+ Interface Cable (for programming)
- 1747-CP3 — RS-232 Programming Cable
- RSLogix 500 — Programming Software (Rockwell Automation)
- 1747-SDN — DeviceNet Scanner Module (optional, for device-level networking)
Compliance & Industry Standards
- UL Listed (UL 508)
- CE Marked — EMC Directive 2014/30/EU & Low Voltage Directive 2014/35/EU
- CSA Certified (C22.2 No. 142)
- RoHS Compliant
- ATEX / IECEx: Suitable for use in Zone 2 / Class I Div 2 environments when installed per Rockwell guidelines
- IEC 61131-3 Ladder Diagram (LD) programming standard
Quality Assurance & Sourcing
Every 1747-L543/C unit offered through Konmask.com undergoes a structured verification process before dispatch:
- Visual Inspection — Enclosure integrity, connector condition, label legibility, and revision marking verification.
- Functional Power-On Test — Unit is powered and firmware version confirmed against catalog revision.
- Communication Port Verification — DH+ and RS-232 ports tested for signal continuity.
- Sourcing Transparency — Units sourced from decommissioned OEM lines, authorized distributors, or certified repair facilities. Provenance documentation available on request.
- Anti-Counterfeit Screening — PCB markings, component dates, and firmware signatures cross-referenced against known-good reference units.
How to Source This Part
- Add to Cart — Click the purchase button above to place your order directly.
- Request a Quote — For volume orders (5+ units), OEM integrators, or MRO contracts, contact us at support@konmask.com for preferential pricing.
- Expedited Sourcing — If this unit is out of stock, our procurement team can source from our global supplier network within 3–7 business days. Contact us with your required delivery date.
- Export & Customs — We handle export documentation, EAR99 classification confirmation, and commercial invoices for international shipments.
Application-Specific FAQ
Q: Can the 1747-L543/C communicate with ControlLogix or CompactLogix systems?
A: Yes, via a 1761-NET-AIC or 1747-AENTR Ethernet/IP adapter, or through RSLinx Classic bridging over DH+. Direct EtherNet/IP is not native to this processor.
Q: What is the difference between 1747-L541, 1747-L542, and 1747-L543?
A: Memory capacity — L541 = 4K words, L542 = 8K words, L543 = 16K words. All are SLC 5/04 processors sharing the same communication ports and I/O compatibility.
Q: Is RSLogix 500 still available for programming this unit?
A: Yes. RSLogix 500 (v12.x) is still sold and supported by Rockwell Automation. Studio 5000 does NOT support SLC 500 processors.
Q: Can this processor be used as a drop-in replacement for a 1747-L542/C?
A: Yes, with the same Series C revision. The larger memory (16K vs 8K) is backward compatible — existing programs will load without modification.
Q: What warranty is provided?
A: Konmask.com provides a 90-day functional warranty on all verified units. Extended warranty options are available — contact us for details.
