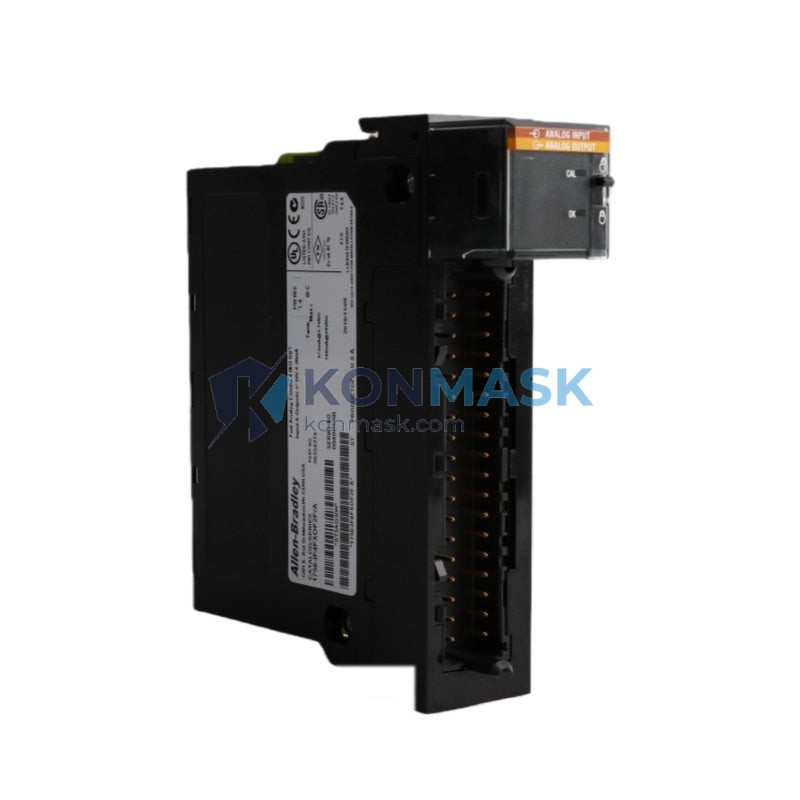

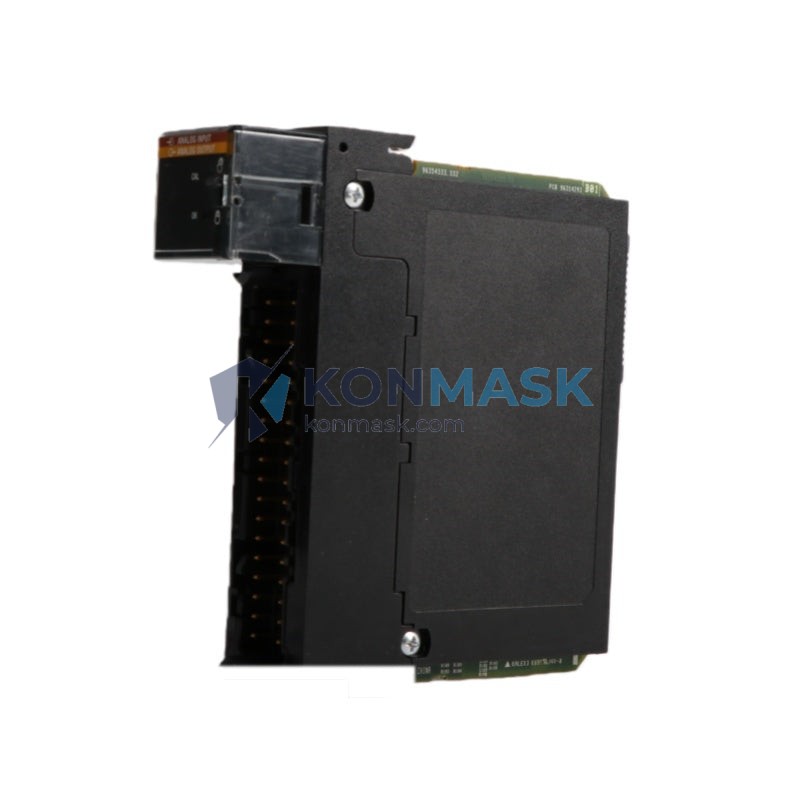

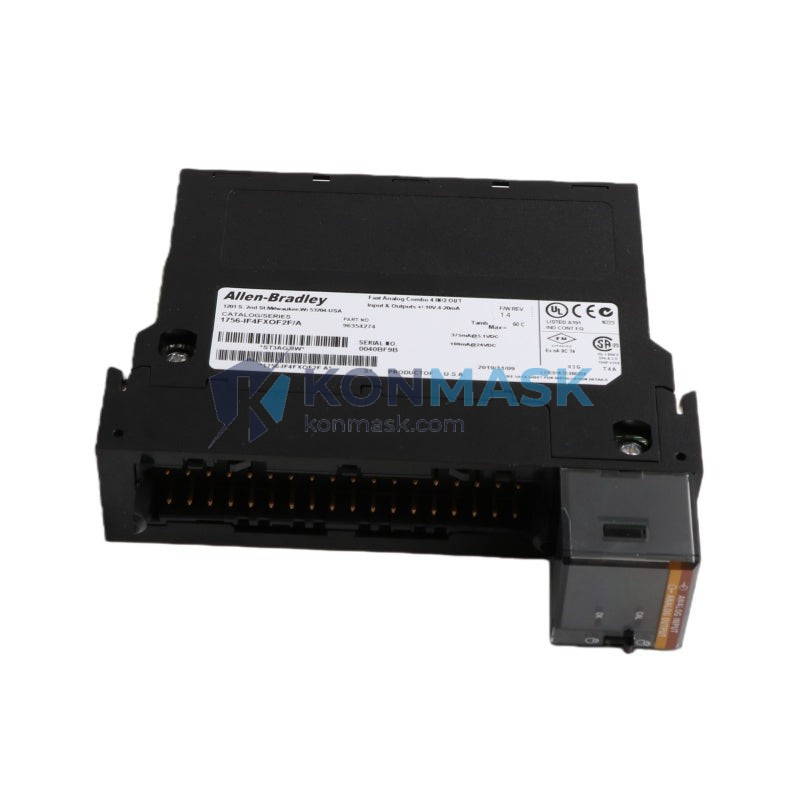

Allen-Bradley 1756-IF4FXOF2F – HART-Enabled Analog I/O Module | ControlLogix 1756 Platform
Engineering Background: Process industries demand analog I/O that goes beyond simple 4–20 mA signal conditioning. The 1756-IF4FXOF2F was engineered by Rockwell Automation to deliver simultaneous HART communication over every channel — enabling device diagnostics, secondary variables, and field device configuration without additional wiring infrastructure. It is a cornerstone module for modern DCS-equivalent control built on the ControlLogix backbone.
Product Positioning: The 1756-IF4FXOF2F occupies the premium tier of the 1756 analog I/O family. With 4 HART-capable current inputs and 2 HART-capable current outputs in a single slot, it delivers the highest channel density for HART-intensive applications in oil & gas, chemical processing, and power generation. Engineers specify this module when field device intelligence must be accessible at the controller level — not just at a handheld communicator.
Complete Technical Specifications
- Catalog Number: 1756-IF4FXOF2F
- Platform: Allen-Bradley ControlLogix 1756
- Series: Series A / B (firmware-dependent)
- Input Channels: 4 × HART current input (4–20 mA)
- Output Channels: 2 × HART current output (4–20 mA)
- Input Resolution: 24-bit ADC
- Output Resolution: 16-bit DAC
- Input Accuracy: ±0.1% of full scale at 25 °C
- Output Accuracy: ±0.1% of full scale at 25 °C
- HART Protocol: HART 5 / HART 6 / HART 7 compatible
- HART Variables per Channel: Up to 4 (PV, SV, TV, QV)
- Backplane Current (5 V): 250 mA
- Backplane Current (24 V): 2 mA
- Field-Side Power: External 24 V DC loop power required
- Isolation: Channel-to-backplane isolation; group isolation between input and output banks
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +85 °C
- Relative Humidity: 5–95% non-condensing
- Dimensions (H × W × D): 94.0 × 94.5 × 58.0 mm (standard 1756 chassis slot)
- Weight: Approx. 220 g
- Certifications: UL, CE, C-Tick, ATEX Zone 2 (with appropriate barriers)
- Firmware: Upgradeable via ControlFlash
Proven Application Environments
- Oil & Gas Upstream: Wellhead pressure/temperature transmitter integration with HART diagnostics for predictive maintenance on remote pads
- Refinery & Petrochemical: Flow control loops with Coriolis and magnetic flowmeters; simultaneous HART polling for device health without process interruption
- Power Generation: Boiler drum level control, turbine inlet pressure regulation, and generator excitation feedback loops
- Water & Wastewater Treatment: Pump speed control via 4–20 mA output to VFDs; HART-enabled level transmitter diagnostics
- Chemical & Pharmaceutical: Reactor temperature and pressure control with full audit trail via HART secondary variables
- Pulp & Paper: Consistency control loops and stock flow regulation requiring high-accuracy analog output
Engineering Advantages
- Simultaneous HART + Analog: HART communication runs concurrently with the 4–20 mA process signal — no multiplexers, no signal interruption
- 24-Bit Input Resolution: Resolves signals to <1 µA, critical for precision flow and level measurement in custody transfer applications
- Per-Channel HART Polling: Each of the 4 inputs independently polls its field device; no shared bandwidth bottleneck
- Integrated Diagnostics: Module self-diagnostics report open-wire, over-range, under-range, and HART communication faults directly to the Logix tag structure
- Studio 5000 Native Integration: Add-On Instructions (AOIs) and pre-built faceplates available in Rockwell’s Library of Process Objects
- Hot-Swap Capable: Remove and replace in a live 1756 chassis without powering down the rack (with appropriate chassis and firmware)
- Scalable Architecture: Mix with 1756-IF8, 1756-OF8, and 1756-IF16 modules in the same chassis for optimized channel-cost balance
System Architecture & Signal Flow
Field transmitters (4–20 mA HART) connect to the 1756-IF4FXOF2F terminal block via shielded twisted-pair cable. The module’s internal HART modem superimposes FSK communication on the analog loop. The ControlLogix backplane transfers both the analog process value (updated every scan) and HART device data (polled asynchronously) to the L7x/L8x controller. In Studio 5000, the module appears as a standard I/O tree node; HART variables map to dedicated controller tags accessible by any routine or HMI. Output channels drive final control elements (control valves, I/P transducers) while simultaneously communicating with HART-capable positioners for valve diagnostics and partial stroke testing.
Sourcing & Quality Verification
- All units sourced from authorized distributors or verified surplus channels with full traceability
- Pre-shipment inspection: visual, label verification (catalog number, series, firmware revision), and functional power-up test
- Firmware revision documented and disclosed prior to shipment
- Original Rockwell Automation packaging preserved where available; repackaged units clearly identified
- Counterfeit screening: hologram verification, PCB marking inspection, and weight cross-check against OEM specification
- 12-month warranty against manufacturing defects; DOA replacement within 7 business days
Procurement Process
- Submit RFQ: Email support@konmask.com with quantity, required firmware revision, and delivery timeline
- Receive Quote: Pricing and lead time confirmed within 24 hours (business days)
- Order Confirmation: Purchase order or proforma invoice issued; payment via T/T, PayPal, or trade terms
- Quality Inspection: Pre-shipment inspection report provided upon request
- Shipping: DHL / FedEx / UPS express; EXW Xiamen or CIF destination port available
- Documentation: Commercial invoice, packing list, COO certificate, and test report included
Technical FAQ
- Q: Is the 1756-IF4FXOF2F compatible with all ControlLogix chassis?
- A: Yes — it fits any 1756 chassis (4, 7, 10, 13, 17-slot) and is compatible with all L6x, L7x, and L8x controllers running Logix firmware 16.x and above.
- Q: Can I use this module with non-HART 4–20 mA devices?
- A: Absolutely. HART is optional per channel. Standard 4–20 mA transmitters operate normally; the HART modem simply remains idle on those channels.
- Q: What is the maximum HART polling rate?
- A: HART communication operates at 1200 baud. A full HART transaction (command + response) typically completes in 250–500 ms per channel. The module polls all 4 input channels independently.
- Q: Does this module support HART pass-through to a HART multiplexer or asset management system?
- A: Yes. Via the ControlLogix backplane and EtherNet/IP, HART pass-through to Rockwell’s FactoryTalk AssetCentre or third-party AMS systems (Emerson, Honeywell) is supported using standard HART DTM drivers.
- Q: What firmware revision is recommended for HART 7 support?
- A: Firmware revision 3.x and above provides full HART 7 support. Confirm the installed revision via the module’s properties in Studio 5000 or RSLinx Classic.
- Q: Is a replacement available if the unit is DOA?
- A: Yes. Konmask.com provides DOA replacement within 7 business days upon confirmation of fault. Contact support@konmask.com with photos and test results.
